batgrbproduct analysis for trigger=848890

batgrbproduct Analysis for Trigger=848890

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Aug  6 18:24:51 EDT 2018
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger848890
======================================================================

  Trigger: 00848890      Segment: 000

  BAT Trigger Time: 553789325.888   [s; MET]
      Trigger Stop: 553789326.912   [s; MET]
               UTC: 2018-07-20T14:21:44.593440    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 0.52968200447337   Dec: -2.93344156841311  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    12.41
     Image Trigger?:     NO
     Rate S/N Ratio:     135.970585054268  [ if not an image trigger ]
     Image S/N Ratio:    12.41

  Flight Position:   [ source = BAT ]
    RA: 0.52968200447337   Dec: -2.93344156841311  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 0.528571841222877   Dec: -2.92552612118528  [deg; J2000]
        { 00h 02m 06.9s , -02d 55' 31.9" }
         +/- 1.16091989332408 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.41793099795083 [arcmin] (formal 1-sigma fit error)
    SNR: 24.5778411209893

  Angular difference between Flight and Ground position is 0.479563 arcmin

  Partial Coding Fraction: 0.08496094    [ including projection effects ]

  Duration
     T90: 108.399999856949 +/- 3.6884533781446
        Measured from: 0.220000028610229
                   to: 108.619999885559     [s; relative to TRIGTIME]
     T50: 20.067999958992 +/- 1.06384957132124
        Measured from: 8.28799998760223
                   to: 28.3559999465942     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 10.9359999895096
                   to: 11.9359999895096     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -3.81599998474121
                   to: 527.728000044823     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    27.985309  42.002355  38.493172  13.089993
           0.287209   0.348442   0.353681   0.280679 [error]
 Peak      1.265924   2.649425   3.050419   1.236563
           0.064338   0.090272   0.105104   0.086043 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 9.51e-06 1.92e-05 3.03e-05 1.06e-04 8.45e-05 1.65e-04   erg/cm2
              Error 3.21e-07 3.79e-07 4.53e-07 3.83e-06 1.19e-06 3.89e-06   erg/cm2
Peak flux Power-law 1.44e-03 4.78e-02 5.32e-01 5.18e+01 2.39e+00 5.18e+01   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s

Fluence   Cutoff-PL 9.51e-06 1.92e-05 3.03e-05 1.05e-04 8.45e-05 1.72e-04   erg/cm2
              Error -------- 3.79e-07 -------- -------- 1.19e-06 --------   erg/cm2
Peak flux Cutoff-PL 1.40e+01 2.10e+01 2.12e+01 2.53e+01 6.72e+01 8.16e+01   ph/cm2/s
              Error 1.44e+00 1.01e+00 1.07e+00 6.03e+00 2.63e+00 6.49e+00   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.345    0.027    -      -           1.62e-02 2.42e-04   34.850 57
CPL   1.340    0.041    9998.8    0.0      1.63e-02 5.27e-04   35.020 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.026    0.063    -      -           5.89e-01 2.20e-02   74.420 57
CPL   0.664    0.259     214.7  194.2      8.53e-01 2.24e-01   68.220 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 68.544000 sec.
T50 in the 50-300 keV band: 17.600000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  531.544   -3.816  527.728
T90   108.400    0.220  108.620
T50    20.068    8.288   28.356
Peak    1.000   10.936   11.936

Click here for the BAT GCN circular template

Special notes of this burst

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
    0.5286    -2.9255   0.0078    45.1652    47.0600        49.7042722     24.578 TRIG_00848890

Foreground time interval of the image:
 -3.816  12.013 (delta_t =  15.829 [sec])
Background time interval of the image:
-40.387  -3.816 (delta_t =  36.571 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

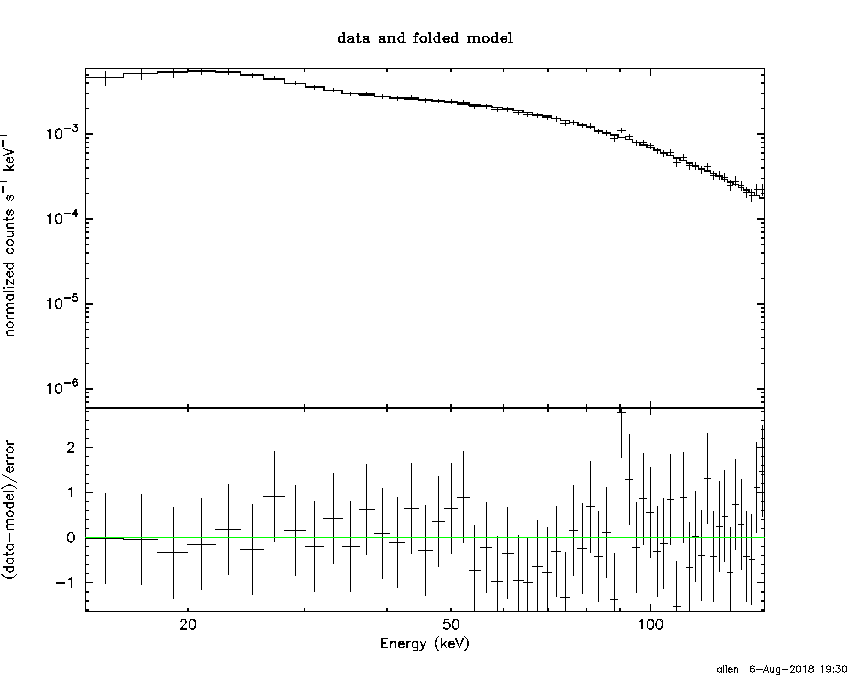

Power-law model

Time interval is from   -3.816 sec. to  527.728 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.34547     ( -0.0274723   0.0273285 )
Norm@50keV  : 1.62355E-02    ( -0.00024236   0.00024175 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          34.85 using 59 PHA bins.
# Reduced chi-squared =         0.6114 for     57 degrees of freedom
# Null hypothesis probability =   9.909425e-01

Photon flux (15-150 keV)    in 531.5 sec: 1.95412 ( -0.03432  0.03451 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.43751e-05 ( -1.1866e-06  1.18737e-06 ) ergs/cm2

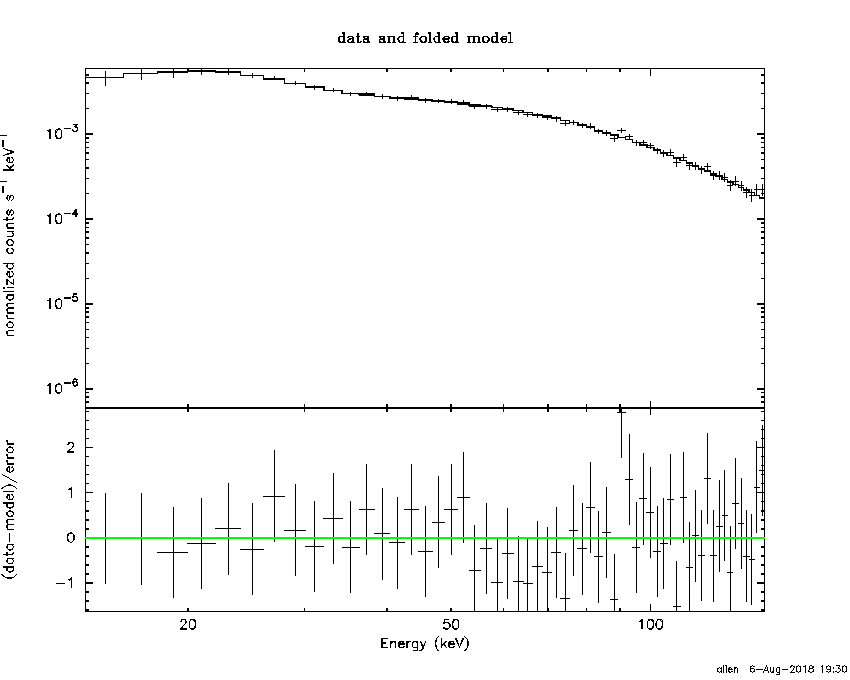

Cutoff power-law model

Time interval is from   -3.816 sec. to  527.728 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.34046     ( -0.0552421   0.0276626 )
Epeak [keV] : 9998.78      ( -9999.29 -9999.29 )
Norm@50keV  : 1.62850E-02    ( -0.000238793   0.000815327 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          35.02 using 59 PHA bins.
# Reduced chi-squared =         0.6253 for     56 degrees of freedom
# Null hypothesis probability =   9.874280e-01

Photon flux (15-150 keV)    in 531.5 sec: 1.05496 ( -0.060522  0.04154 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.43613e-05 ( -1.1881e-06  1.18346e-06 ) ergs/cm2

Band function

Time interval is from   -3.816 sec. to  527.728 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

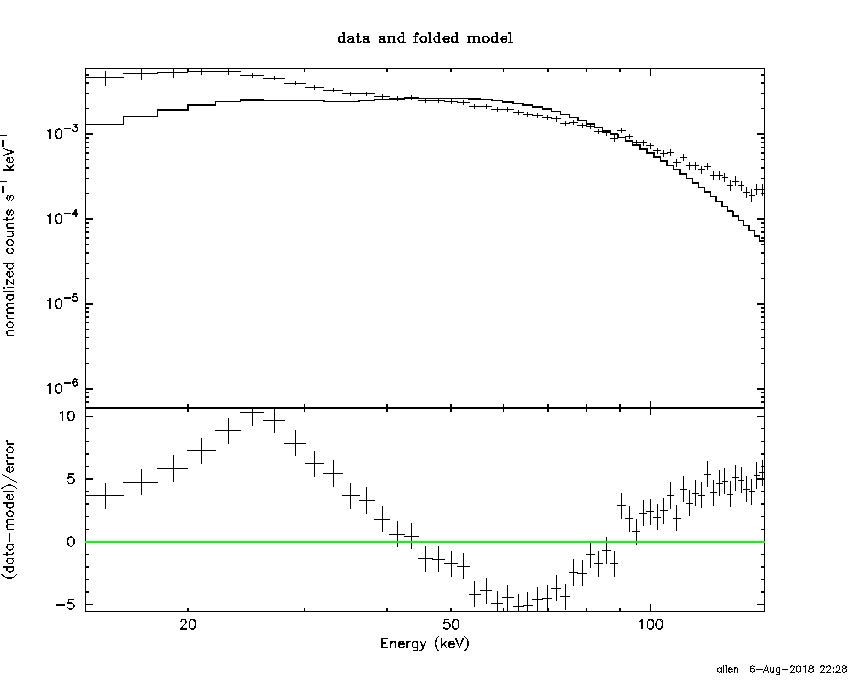

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 21.4323  (  )
R^2/D10^2   : 6.55553E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =        1142.26 using 59 PHA bins.
# Reduced chi-squared =        20.0397 for     57 degrees of freedom
# Null hypothesis probability =  1.080009e-201

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.997e-06   9.168e-08
25- 50  1.560e-05   3.614e-07
50-150  5.348e-05   9.966e-07
15-150  7.208e-05   1.063e-06

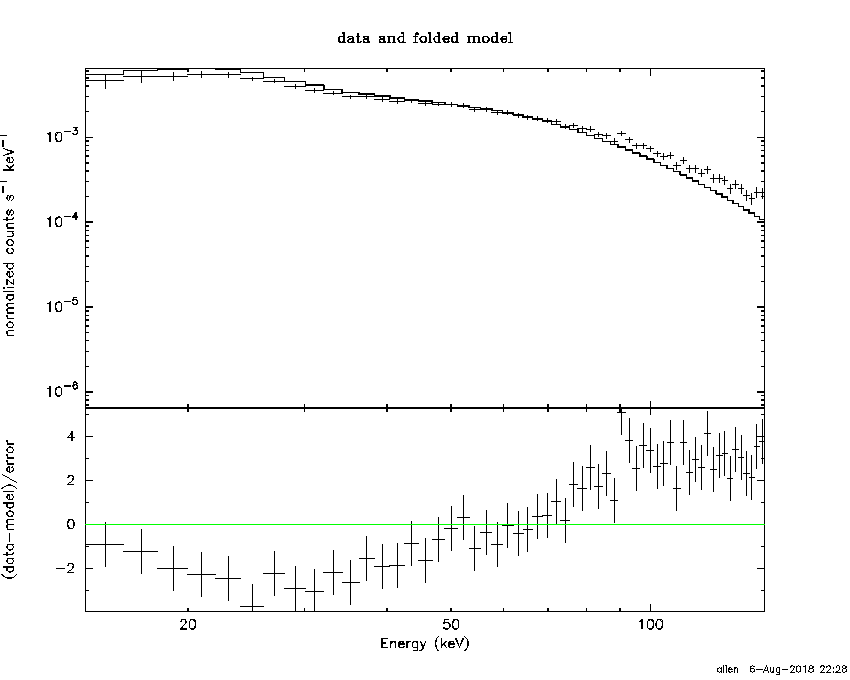

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 8.50127       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         348.56 using 59 PHA bins.
# Reduced chi-squared =         6.1152 for     57 degrees of freedom
# Null hypothesis probability =   1.819759e-43

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.125e-05   1.940e-07
25- 50  2.164e-05   3.667e-07
50-150  4.747e-05   7.786e-07
15-150  8.036e-05   1.329e-06

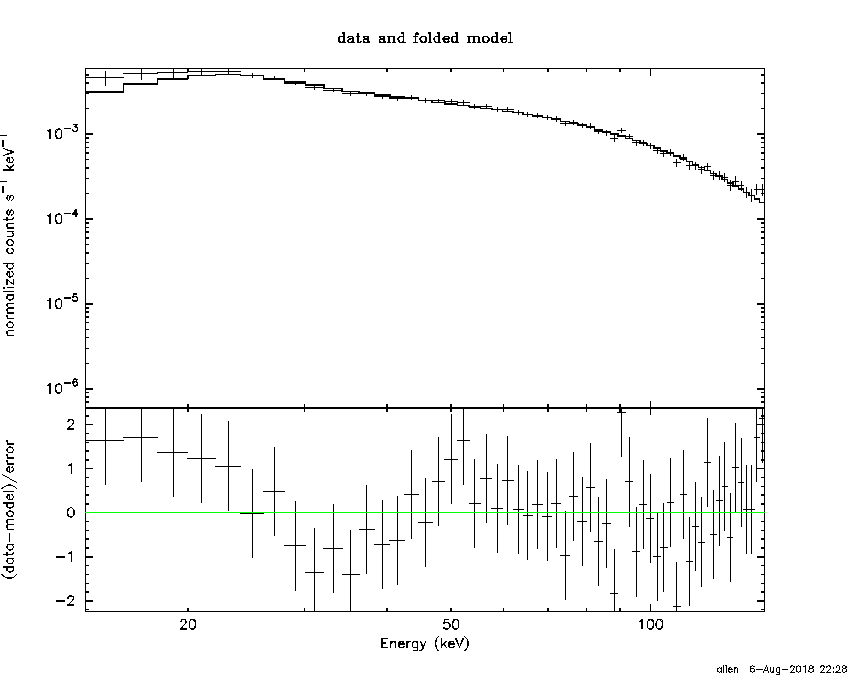

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.64303        (-0.478324      0.499997)
R1^2/D10^2  : 0.914508        (-0.158249      0.199633)
kT2 [keV]   : 35.9902        (-1.99255      2.36395)
R2^2/D10^2  : 9.80864E-03    (-0.00184278   0.00205929)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.09 using 59 PHA bins.
# Reduced chi-squared =         0.9835 for     55 degrees of freedom
# Null hypothesis probability =   5.093928e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.851e-06   4.385e-07
25- 50  1.997e-05   5.076e-07
50-150  5.624e-05   1.488e-06
15-150  8.406e-05   1.834e-06

Peak spectrum fit

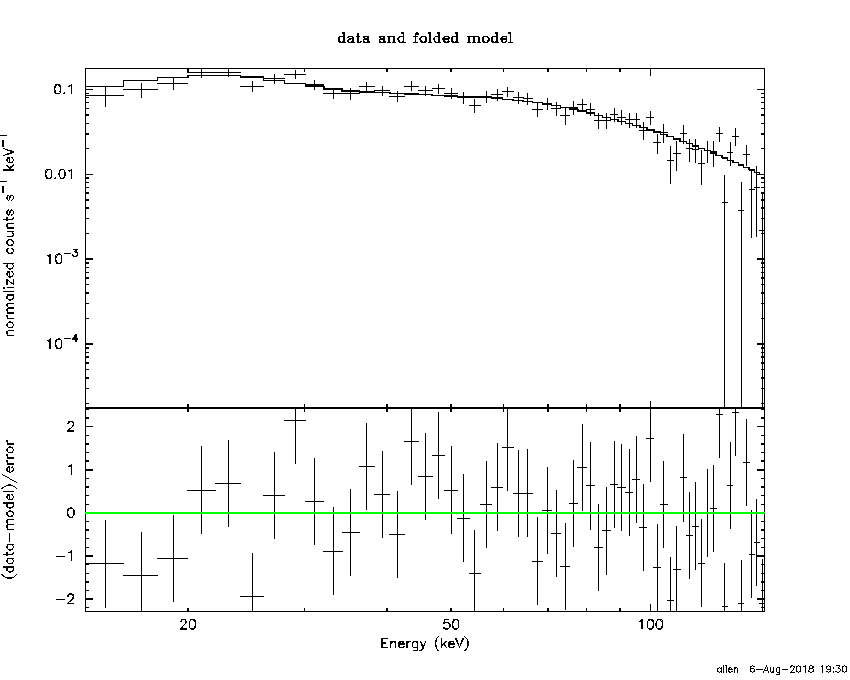

Power-law model

Time interval is from   10.936 sec. to   11.936 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.02558     ( -0.0633522   0.0631034 )
Norm@50keV  : 0.588910    ( -0.0220061   0.0219957 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.42 using 59 PHA bins.
# Reduced chi-squared =          1.306 for     57 degrees of freedom
# Null hypothesis probability =   6.045939e-02

Photon flux (15-150 keV)    in 1 sec: 2.39163 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.31204e-06 ( -2.59049e-07  2.59694e-07 ) ergs/cm2

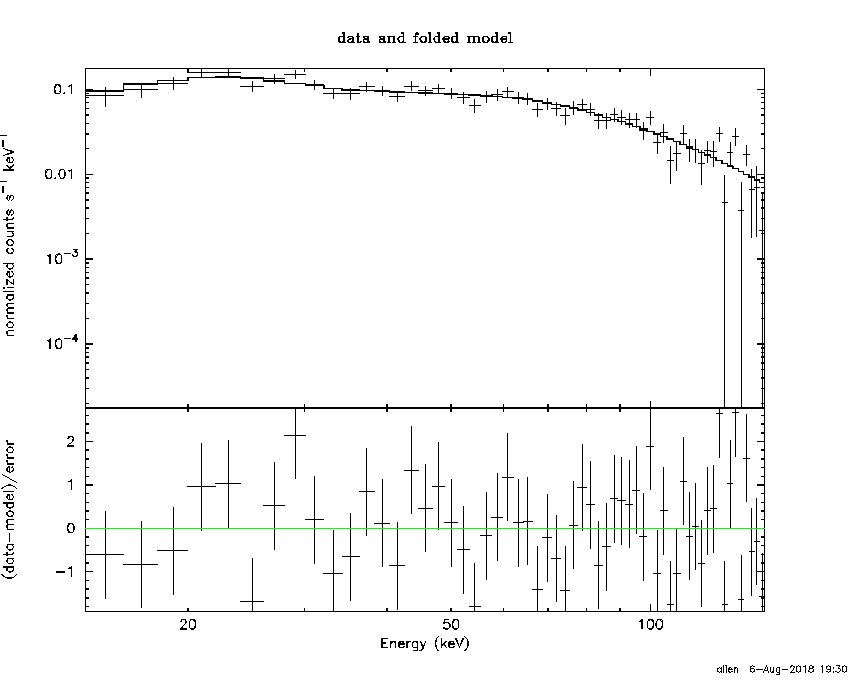

Cutoff power-law model

Time interval is from   10.936 sec. to   11.936 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.663509     ( -0.266226   0.251136 )
Epeak [keV] : 214.739      ( -66.7397 321.716 )
Norm@50keV  : 0.853391    ( -0.189165   0.25844 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.22 using 59 PHA bins.
# Reduced chi-squared =          1.218 for     56 degrees of freedom
# Null hypothesis probability =   1.267865e-01

Photon flux (15-150 keV)    in 1 sec: 67.1509 ( -2.6298  2.6306 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.36708e-07 ( -1.66673e-07  1.60607e-07 ) ergs/cm2

Band function

Time interval is from   10.936 sec. to   11.936 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 21.6557  (  )
R^2/D10^2   : 2.59343  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         175.74 using 59 PHA bins.
# Reduced chi-squared =         3.0832 for     57 degrees of freedom
# Null hypothesis probability =   4.956406e-14

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.267e-07   1.655e-08
25- 50  1.188e-06   6.050e-08
50-150  4.159e-06   2.485e-07
15-150  5.573e-06   2.650e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 272.923       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         251.47 using 59 PHA bins.
# Reduced chi-squared =         4.4118 for     57 degrees of freedom
# Null hypothesis probability =   2.992693e-26

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.796e-07   2.730e-08
25- 50  1.307e-06   5.300e-08
50-150  2.867e-06   1.115e-07
15-150  4.854e-06   2.005e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.20941        (-1.51113      1.73557)
R1^2/D10^2  : 20.0176        (-7.40948      13.6814)
kT2 [keV]   : 35.6286        (-4.89939      8.16761)
R2^2/D10^2  : 0.449843    (-0.215559   0.286656)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.11 using 59 PHA bins.
# Reduced chi-squared =          1.220 for     55 degrees of freedom
# Null hypothesis probability =   1.268156e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.142e-07   5.915e-08
25- 50  1.262e-06   1.538e-07
50-150  4.620e-06   6.575e-07
15-150  6.296e-06   8.670e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.10825     ( -0.0344137   0.034288 )
Norm@50keV  : 0.225813    ( -0.00440439   0.00439715 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.44 using 59 PHA bins.
# Reduced chi-squared =         0.7270 for     57 degrees of freedom
# Null hypothesis probability =   9.396729e-01

Photon flux (15-150 keV)    in 15.83 sec: 26.2140 ( -0.543915  0.545063 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.72757e-05 ( -7.19276e-07  7.19464e-07 ) ergs/cm2

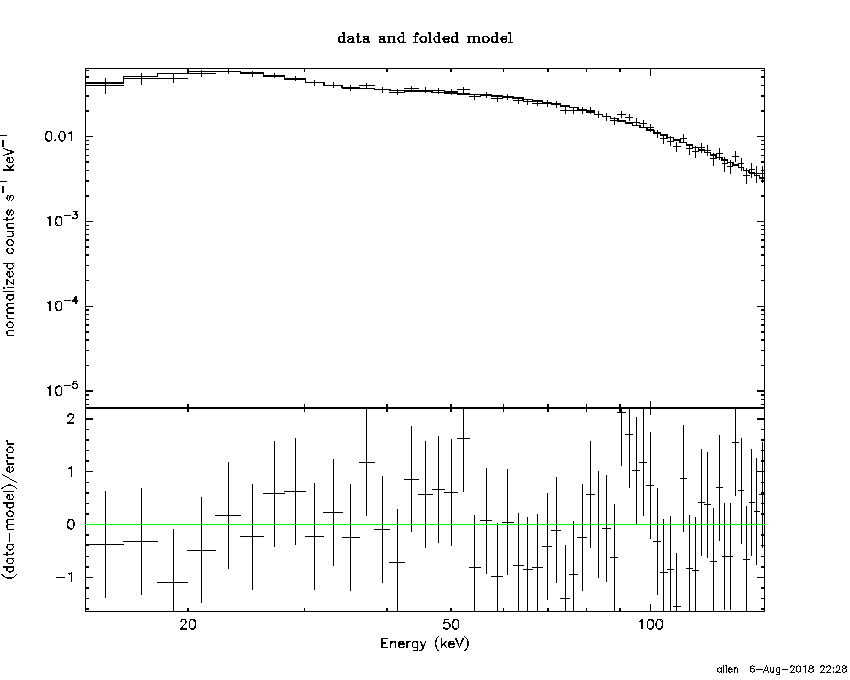

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.981439     ( -0.140268   0.069645 )
Epeak [keV] : 502.104      ( -228.358 -502.105 )
Norm@50keV  : 0.254310    ( -0.0197466   0.0347577 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          38.94 using 59 PHA bins.
# Reduced chi-squared =         0.6953 for     56 degrees of freedom
# Null hypothesis probability =   9.597971e-01

Photon flux (15-150 keV)    in 15.83 sec: 26.0197 ( -0.5774  0.5795 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.7173e-05 ( 0  0 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.92e-05
S(50-100 keV) = 3.03e-05

T90 vs. Hardness ratio plot

T90                                   = 108.399999856949 sec.
Hardness ratio (energy fluence ratio) = 1.57813

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.50087
Count Ratio (50-100 keV) / (15-25 keV) = 1.37548

Mask shadow pattern

IMX = 6.851704927661812E-01, IMY = -7.363008159140418E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

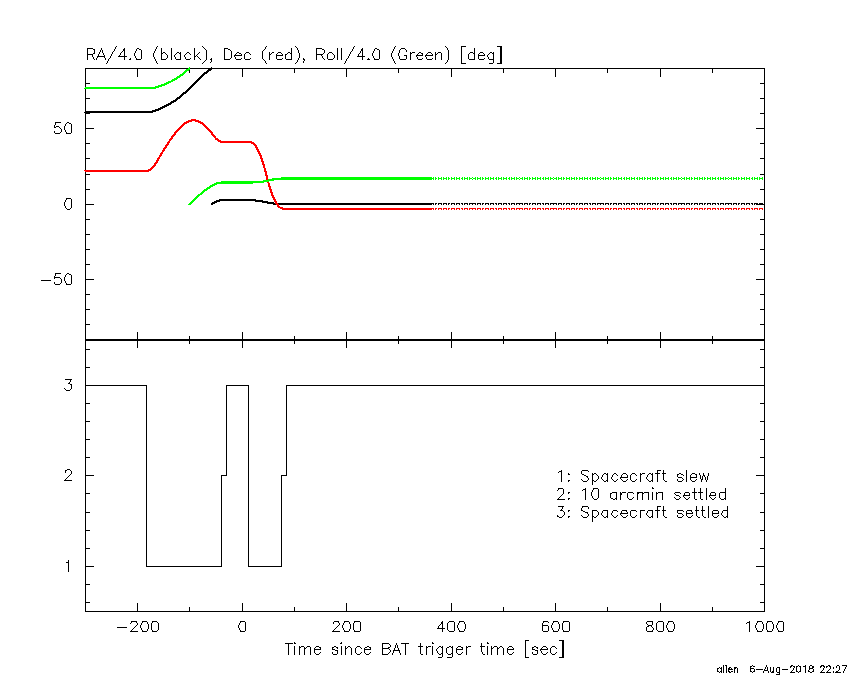

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-40.387410 -3.816000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
308.0550  41.0523    6.2  46.1  144.2   0.4671   1.9    6.5	Cyg X-3
326.3129  38.2324    7.2  33.9  132.4   0.2091   1.6    8.5	Cyg X-2
  0.5913  -2.9177    2.3  45.1   47.0   1.3785   4.9  178.6	UNKNOWN
 24.5764  26.3927    2.5  18.8   -9.2   0.3285   4.6 ------	UNKNOWN
 30.4738  41.7461    2.6  14.8  -65.8   0.3226   4.5 ------	UNKNOWN
 58.5222   4.6416    2.6  56.2  -30.1   1.9163   4.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-3.816000 12.012600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
308.0463  40.8408   10.3  46.2  144.0  -0.7500  -1.1    7.3	Cyg X-3
326.1673  38.3360   61.4  34.0  132.7  -0.1015  -0.2    0.9	Cyg X-2
  0.5286  -2.9255    0.5  45.2   47.1  49.6999  24.6  178.4	UNKNOWN
325.0491  44.2223    3.1  33.2  143.3   1.6391   3.8 ------	UNKNOWN
288.0484  66.7198    3.4  49.9 -178.2   1.1190   3.4 ------	UNKNOWN
293.7605  81.4080    2.7  47.3 -158.8   0.9713   4.3 ------	UNKNOWN
 46.7525  38.3379    2.5  27.6  -63.3   0.6485   4.5 ------	UNKNOWN
 52.2613   3.0117    3.2  53.4  -23.0   1.1711   3.6 ------	UNKNOWN
 51.8461  10.8020    4.0  47.2  -29.1   0.7866   2.9 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
75.412600 962.152000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
326.2049  38.1540    3.9  51.9  167.8   7.3716   3.0   10.2	Cyg X-2
  0.5161  -2.9337    0.4   0.0  108.0  15.5100  26.0  178.7	UNKNOWN
350.3084  46.5312    3.0  50.3 -167.1   6.7565   3.9 ------	UNKNOWN

Plot creation:
Mon Aug  6 22:29:04 EDT 2018
