batgrbproduct analysis for trigger=856977

batgrbproduct Analysis for Trigger=856977

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Fri Oct 19 18:24:11 EDT 2018
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger856977
======================================================================

  Trigger: 00856977      Segment: 000

  BAT Trigger Time: 557175476.288   [s; MET]
      Trigger Stop: 557175477.312   [s; MET]
               UTC: 2018-08-28T18:57:34.785720    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 268.699972359996   Dec: -25.7997839712606  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    16.5
     Image Trigger?:     NO
     Rate S/N Ratio:     120.685541801825  [ if not an image trigger ]
     Image S/N Ratio:    16.5

  Flight Position:   [ source = BAT ]
    RA: 268.699972359996   Dec: -25.7997839712606  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 268.704088873397   Dec: -25.7914707658866  [deg; J2000]
        { 17h 54m 49.0s , -25d 47' 29.3" }
         +/- 0.85469475352285 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.400414649069615 [arcmin] (formal 1-sigma fit error)
    SNR: 38.0654687959079

  Angular difference between Flight and Ground position is 0.546119 arcmin

  Partial Coding Fraction: 0.1855469    [ including projection effects ]

  Duration
     T90: 13 +/- 9
        Measured from: -7.28799998760223
                   to: 5.71200001239777     [s; relative to TRIGTIME]
     T50: 4 +/- 1
        Measured from: -4.28799998760223
                   to: -0.287999987602234     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.287999987602234
                   to: 0.712000012397766     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -7.28799998760223
                   to: 28.7120000123978     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.477350   3.076445   4.237919   2.250834
           0.102280   0.114736   0.115899   0.106811 [error]
 Peak      0.232381   0.573992   0.968137   0.544185
           0.024027   0.032463   0.040298   0.036794 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.65e-07 1.51e-06 3.26e-06 1.83e-05 8.78e-06 2.37e-05   erg/cm2
              Error 4.67e-08 7.48e-08 1.09e-07 1.47e-06 2.95e-07 1.49e-06   erg/cm2
Peak flux Power-law 2.77e+00 4.69e+00 6.05e+00 1.57e+01 1.78e+01 2.92e+01   ph/cm2/s
              Error 3.35e-01 3.49e-01 3.00e-01 1.70e+00 9.25e-01 1.74e+00   ph/cm2/s

Fluence   Cutoff-PL 5.47e-07 1.51e-06 3.30e-06 1.65e-05 8.78e-06 2.19e-05   erg/cm2
              Error 5.97e-08 7.57e-08 1.12e-07 3.17e-06 2.97e-07 2.47e-06   erg/cm2
Peak flux Cutoff-PL 2.65e+00 4.69e+00 6.16e+00 1.41e+01 1.78e+01 2.76e+01   ph/cm2/s
              Error 4.20e-01 3.55e-01 4.11e-01 3.09e+00 9.30e-01 3.04e+00   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.891    0.063    -      -           2.17e-02 8.14e-04   46.330 57
CPL   0.795    0.187     833.1    0.0      2.36e-02 3.43e-03   45.890 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.634    0.090    -      -           1.53e-01 8.54e-03   49.190 57
CPL   0.509    0.269     797.3    0.0      1.71e-01 4.92e-02   48.840 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 8.384000 sec.
T50 in the 50-300 keV band: 4.288000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   36.000   -7.288   28.712
T90    13.000   -7.288    5.712
T50     4.000   -4.288   -0.288
Peak    1.000   -0.288    0.712

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  268.7041   -25.7915   0.0051    53.3691    -7.3856        11.3635578     38.065 TRIG_00856977

Foreground time interval of the image:
 -7.288  16.013 (delta_t =  23.301 [sec])
Background time interval of the image:
-239.288  -7.288 (delta_t = 232.000 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

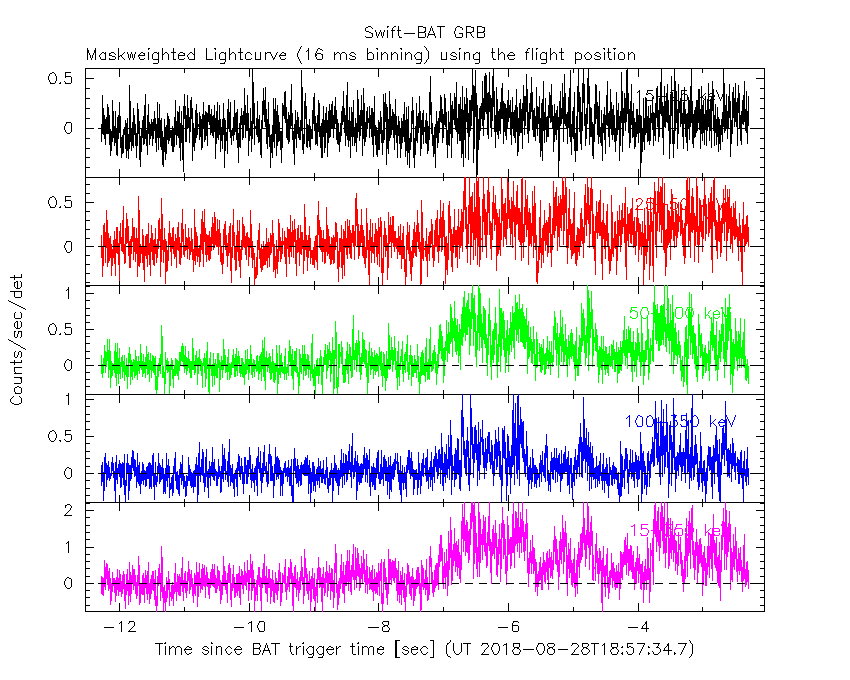

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -7.288 sec. to   28.712 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.890869     ( -0.0630345   0.0620739 )
Norm@50keV  : 2.16686E-02    ( -0.000816866   0.000810974 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.33 using 59 PHA bins.
# Reduced chi-squared =         0.8128 for     57 degrees of freedom
# Null hypothesis probability =   8.427770e-01

Photon flux (15-150 keV)    in 36 sec: 2.48691 ( -0.09358  0.09404 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.78663e-06 ( -2.9497e-07  2.94975e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -7.288 sec. to   28.712 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.795173     ( -0.254798   0.118546 )
Epeak [keV] : 833.089      ( -833.089 -833.089 )
Norm@50keV  : 2.35697E-02    ( -0.00113673   0.00572401 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.89 using 59 PHA bins.
# Reduced chi-squared =         0.8194 for     56 degrees of freedom
# Null hypothesis probability =   8.304687e-01

Photon flux (15-150 keV)    in 36 sec: 2.47504 ( -0.09782  0.08829 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.77673e-06 ( -2.96793e-07  2.96305e-07 ) ergs/cm2

Band function

Time interval is from   -7.288 sec. to   28.712 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 27.3751  (  )
R^2/D10^2   : 4.68474E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         170.05 using 59 PHA bins.
# Reduced chi-squared =         2.9834 for     57 degrees of freedom
# Null hypothesis probability =   3.496549e-13

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.088e-07   1.501e-08
25- 50  1.238e-06   7.110e-08
50-150  6.752e-06   2.862e-07
15-150  8.199e-06   3.186e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 10.9135       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         395.87 using 59 PHA bins.
# Reduced chi-squared =         6.9451 for     57 degrees of freedom
# Null hypothesis probability =   3.149273e-52

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.783e-07   3.780e-08
25- 50  1.882e-06   7.524e-08
50-150  4.127e-06   1.602e-07
15-150  6.988e-06   2.628e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.84293        (-1.49513      1.71545)
R1^2/D10^2  : 0.564093        (-0.208672      0.373071)
kT2 [keV]   : 43.1521        (-5.53558      8.89283)
R2^2/D10^2  : 1.06166E-02    (-0.00439013   0.00546627)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.34 using 59 PHA bins.
# Reduced chi-squared =         0.8061 for     55 degrees of freedom
# Null hypothesis probability =   8.476108e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.854e-07   8.725e-08
25- 50  1.574e-06   1.948e-07
50-150  6.815e-06   7.506e-07
15-150  8.874e-06   8.964e-07

Peak spectrum fit

Power-law model

Time interval is from   -0.288 sec. to    0.712 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.633652     ( -0.0907421   0.0886879 )
Norm@50keV  : 0.153240    ( -0.00858942   0.00849813 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.19 using 59 PHA bins.
# Reduced chi-squared =         0.8630 for     57 degrees of freedom
# Null hypothesis probability =   7.593980e-01

Photon flux (15-150 keV)    in 1 sec: 17.8227 ( -0.9245  0.9254 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.92872e-06 ( -9.9525e-08  9.96165e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.288 sec. to    0.712 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.508824     ( -0.378072   0.159509 )
Epeak [keV] : 797.267      ( -797.267 -797.267 )
Norm@50keV  : 0.171104    ( -0.0332553   0.0651473 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.84 using 59 PHA bins.
# Reduced chi-squared =         0.8721 for     56 degrees of freedom
# Null hypothesis probability =   7.403182e-01

Photon flux (15-150 keV)    in 1 sec: 17.7794 ( -0.9309  0.9282 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.92983e-06 ( -9.99189e-08  1.00048e-07 ) ergs/cm2

Band function

Time interval is from   -0.288 sec. to    0.712 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 31.0520  (-2.23214  2.54673)
R^2/D10^2   : 0.258162  (-0.0513565   0.0612573)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          92.15 using 59 PHA bins.
# Reduced chi-squared =          1.617 for     57 degrees of freedom
# Null hypothesis probability =   2.203889e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.812e-08   3.930e-09
25- 50  2.384e-07   2.160e-08
50-150  1.601e-06   1.055e-07
15-150  1.877e-06   1.040e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 67.2609       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         327.91 using 59 PHA bins.
# Reduced chi-squared =         5.7529 for     57 degrees of freedom
# Null hypothesis probability =   1.046677e-39

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.675e-07   1.070e-08
25- 50  3.222e-07   2.340e-08
50-150  7.066e-07   1.452e-07
15-150  1.196e-06   1.716e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.81452        (-2.33659      3.26588)
R1^2/D10^2  : 4.17362        (-2.42911      7.18437)
kT2 [keV]   : 43.6116        (-6.61333      13.1277)
R2^2/D10^2  : 9.15593E-02    (-0.0468473   0.0552239)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.17 using 59 PHA bins.
# Reduced chi-squared =         0.8757 for     55 degrees of freedom
# Null hypothesis probability =   7.312096e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.353e-08   3.271e-08
25- 50  2.758e-07   7.835e-08
50-150  1.606e-06   2.825e-07
15-150  1.966e-06   3.330e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.875300     ( -0.057001   0.0562245 )
Norm@50keV  : 3.25668E-02    ( -0.00111722   0.00111016 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.33 using 59 PHA bins.
# Reduced chi-squared =         0.8829 for     57 degrees of freedom
# Null hypothesis probability =   7.217443e-01

Photon flux (15-150 keV)    in 23.3 sec: 3.73765 ( -0.127376  0.127726 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.5988e-06 ( -2.64737e-07  2.64816e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.733655     ( -0.234309   0.176955 )
Epeak [keV] : 590.987      ( -590.987 -590.987 )
Norm@50keV  : 3.68947E-02    ( -0.00502956   0.00818766 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.17 using 59 PHA bins.
# Reduced chi-squared =         0.8781 for     56 degrees of freedom
# Null hypothesis probability =   7.289297e-01

Photon flux (15-150 keV)    in 23.3 sec: 3.74222 3.71286 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.59139e-06 ( -2.66808e-07  2.66412e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.51e-06
S(50-100 keV) = 3.26e-06

T90 vs. Hardness ratio plot

T90                                   = 13 sec.
Hardness ratio (energy fluence ratio) = 2.15894

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 2.08241
Count Ratio (50-100 keV) / (15-25 keV) = 2.8686

Mask shadow pattern

IMX = 1.333826326491719E+00, IMY = 1.728940634877155E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

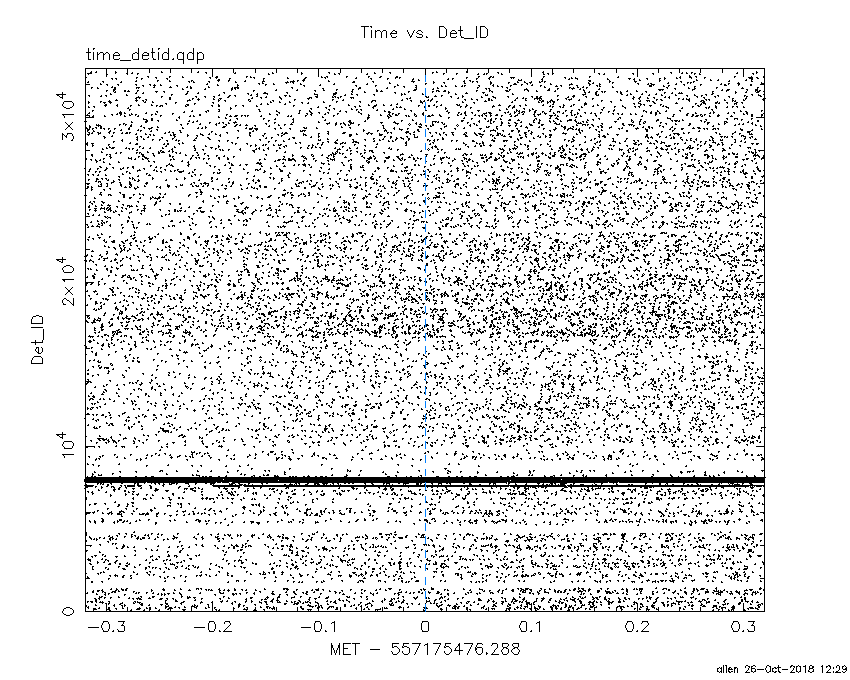

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.288000 -7.288000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
262.9703 -24.7811   25.9  58.6   -8.5   0.5864   0.4    3.0	GX 1+4
264.6837 -44.5762    9.9  52.1  -31.3   0.8048   1.2    8.0	4U 1735-44
270.4582 -25.0619    6.1  52.1   -5.8   1.0904   1.9    9.5	GX 5-1
270.3855 -25.7612   17.1  52.0   -6.7  -0.3772  -0.7    4.6	GRS 1758-258
274.0130 -14.0310   78.2  53.5    8.5  -0.1216  -0.1    0.5	GX 17+2
276.0176 -30.4123    7.2  45.8  -10.7   0.7270   1.6    5.5	H1820-303
285.0359 -24.9249   26.1  39.7    0.3   0.1702   0.4    0.3	HT1900.1-2455
262.9961 -33.9781   10.4  55.6  -18.8  -0.8698  -1.1    8.6	GX 354-0
 26.2217  -8.7497    2.8  56.8  174.0   5.1419   4.1 ------	UNKNOWN
271.7807 -19.3274    2.4  53.1    1.4   3.0754   4.7 ------	UNKNOWN
350.9705 -52.5631    2.4  27.2 -115.1   1.4176   4.8 ------	UNKNOWN
337.6478 -54.9427    2.5  25.3  -96.9   1.3705   4.7 ------	UNKNOWN
 22.4457 -58.7385    3.7  45.4 -121.6   3.2723   3.2 ------	UNKNOWN
 28.9297 -53.6645    3.2  48.1 -129.3   3.8732   3.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-7.288000 16.012590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
262.9893 -24.7884    3.9  58.6   -8.5  -2.0057  -2.9    2.8	GX 1+4
264.8863 -44.4013    8.1  52.0  -31.1   0.3810   1.4    6.8	4U 1735-44
270.2675 -25.0726  118.7  52.3   -5.9   0.0258   0.1    1.0	GX 5-1
270.2992 -25.7448   22.4  52.0   -6.7   0.1391   0.5    0.2	GRS 1758-258
273.9979 -13.9411    7.4  53.5    8.6   0.6991   1.6    5.7	GX 17+2
275.7489 -30.4030    5.5  46.1  -10.8  -0.3627  -2.1    9.4	H1820-303
285.1119 -24.8212    5.1  39.6    0.5   0.2922   2.2    7.3	HT1900.1-2455
263.0322 -33.7534    7.1  55.6  -18.6   0.5972   1.6    5.3	GX 354-0
268.7039 -25.7915    0.3  53.4   -7.4  11.3476  37.7 ------	UNKNOWN
268.8633 -26.8194    2.7  52.9   -8.5   1.2800   4.3 ------	UNKNOWN
  3.3707 -49.3693    1.8  31.8 -129.5   0.6712   6.5 ------	UNKNOWN
 37.1101 -32.0538    2.3  56.8 -155.6   2.1745   5.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
103.812590 155.012610

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9742 -15.6201    0.6  24.4  -69.3   2.2465  19.4    1.2	Sco X-1
255.9703 -37.8760   11.3  16.2 -140.6   0.1002   1.0    2.1	4U 1700-377
256.2565 -36.4406  257.3  15.1 -137.3   0.0043   0.0    8.7	GX 349+2
263.0092 -24.7239    4.1   5.3  -78.8   0.2712   2.8    1.3	GX 1+4
264.7035 -44.3540   12.4  18.8 -170.3   0.0847   0.9    6.0	4U 1735-44
268.2317  -1.4915   10.7  24.3   -0.5  -0.1066  -1.1    8.5	SW J1753.5-0127
270.2476 -25.1930    5.4   1.5   67.1   0.2235   2.4    7.1	GX 5-1
270.3703 -25.6751    7.6   1.5   86.2   0.1902   2.0    5.5	GRS 1758-258
273.8464 -13.8923    0.0  12.8   23.6  -0.0528  -0.6   12.7	GX 17+2
275.7508 -30.3597    4.9   7.7  128.7   0.2148   2.4    9.0	H1820-303
285.1782 -24.7565    0.0  14.9   90.3  -0.1576  -1.5   12.5	HT1900.1-2455
288.6402  11.0937    7.5  41.7   30.9   0.3125   1.5   12.9	GRS 1915+105
262.9199 -33.9158    5.0   9.5 -148.8   0.2062   2.3    6.0	GX 354-0

Plot creation:
Fri Oct 26 12:29:42 EDT 2018
