batgrbproduct analysis for trigger=868427

batgrbproduct Analysis for Trigger=868427

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Dec 17 17:11:02 EST 2018
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger868427
======================================================================

  Trigger: 00868427      Segment: 000

  BAT Trigger Time: 561953064   [s; MET]
      Trigger Stop: 561953160   [s; MET]
               UTC: 2018-10-23T02:04:02.201780    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 248.328741900568   Dec: 19.564150818638  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.13
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    7.13

  Flight Position:   [ source = BAT ]
    RA: 248.328741900568   Dec: 19.564150818638  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 248.324883995465   Dec: 19.5781622938717  [deg; J2000]
        { 16h 33m 18.0s , +19d 34' 41.4" }
         +/- 1.99455718922227 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.03550434088403 [arcmin] (formal 1-sigma fit error)
    SNR: 11.3440007578389

  Angular difference between Flight and Ground position is 0.868519 arcmin

  Partial Coding Fraction: 0.515625    [ including projection effects ]

  Duration
     T90: 56.9839998483658 +/- 8.03310270984739
        Measured from: -21.4119999408722
                   to: 35.5719999074936     [s; relative to TRIGTIME]
     T50: 35.5999999046326 +/- 8.24235794592534
        Measured from: -7.55599999427795
                   to: 28.0439999103546     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 32.1840000152588
                   to: 33.1840000152588     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -29.0160000324249
                   to: 36.9400000572205     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.667064   0.775392   0.588418   0.112958
           0.105407   0.090893   0.076592   0.068049 [error]
 Peak      0.043308   0.031396   0.029800   0.011832
           0.012742   0.011109   0.009485   0.008271 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.22e-07 3.56e-07 4.32e-07 1.03e-06 1.31e-06 2.04e-06   erg/cm2
              Error 4.95e-08 4.79e-08 7.73e-08 3.97e-07 1.83e-07 4.56e-07   erg/cm2
Peak flux Power-law 4.28e-01 3.31e-01 1.71e-01 1.28e-01 9.89e-01 1.06e+00   ph/cm2/s
              Error 2.13e-01 1.02e-01 8.17e-02 1.29e-01 3.11e-01 3.22e-01   ph/cm2/s

Fluence   Cutoff-PL 2.16e-07 3.63e-07 4.37e-07 7.85e-07 1.29e-06 1.80e-06   erg/cm2
              Error 5.44e-08 5.54e-08 8.15e-08 4.40e-07 1.99e-07 4.97e-07   erg/cm2
Peak flux Cutoff-PL 4.37e-01 3.21e-01 1.61e-01 1.35e-01 9.69e-01 1.04e+00   ph/cm2/s
              Error -------- 1.44e-01 6.71e-02 6.14e-02 -------- 4.65e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.722    0.238    -      -           2.14e-03 2.88e-04   71.770 57
CPL   1.551    0.907     129.9    0.0      2.62e-03 3.04e-03   71.650 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.949    0.644    -      -           6.74e-03 2.45e-03   50.380 57
CPL   1.941    1.779     350.8    0.0      6.82e-03 0.00e+00   50.380 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 14.016000 sec.
T50 in the 50-300 keV band: 8.768000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   65.956  -29.016   36.940
T90    56.984  -21.412   35.572
T50    35.600   -7.556   28.044
Peak    1.000   32.184   33.184

Click here for the BAT GCN circular template

Special notes of this burst

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte

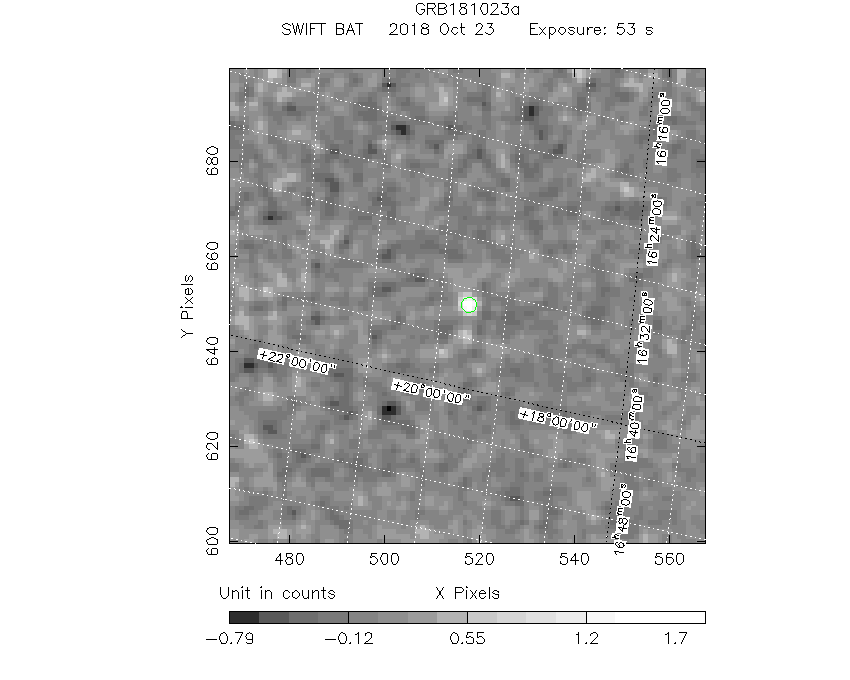

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  248.3249    19.5782   0.0169    40.1231   -25.5672         2.0245601     11.344 TRIG_00868427

Foreground time interval of the image:
-16.299  36.940 (delta_t =  53.239 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

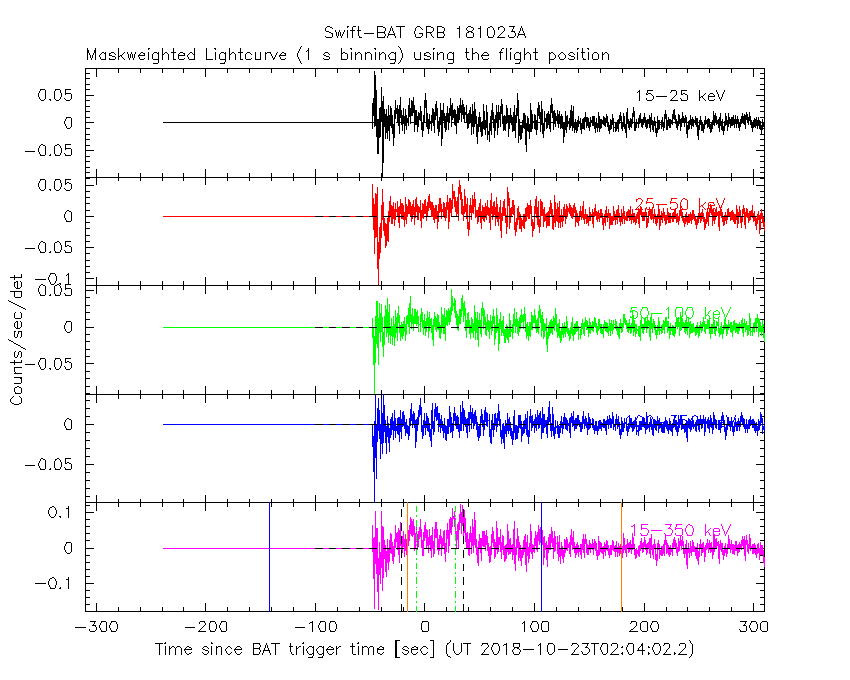

From T0-310 s to T0+310 s

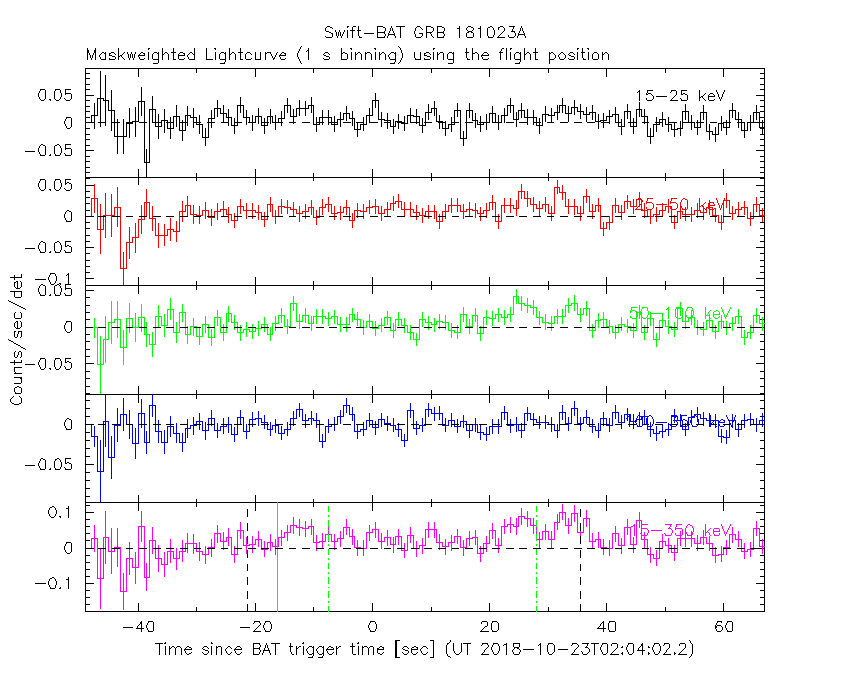

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

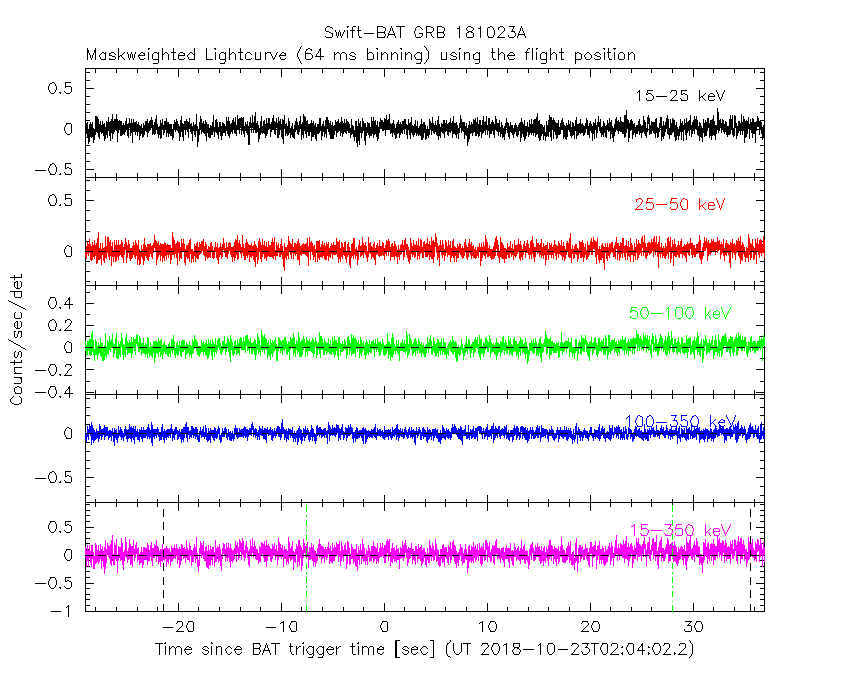

From T100_start to T100_end

From T0-5 sec to T0+5 sec

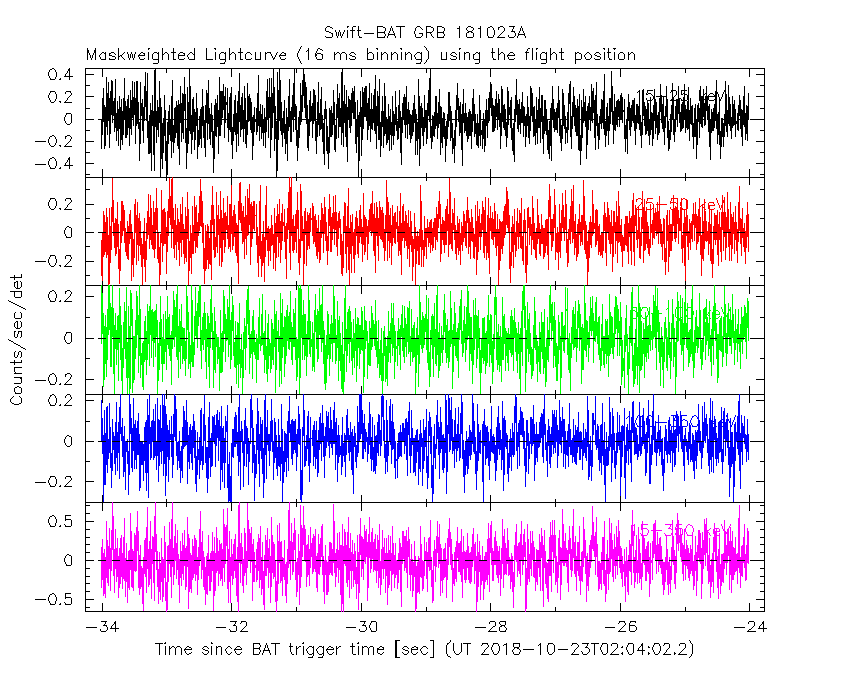

16 ms binning

From T100_start-5 s to T100_start+5 s

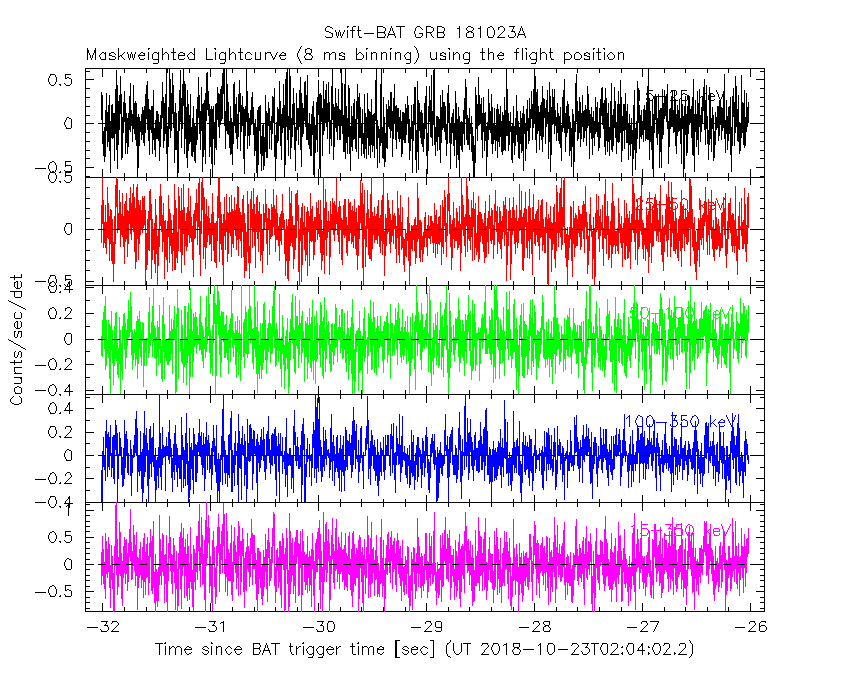

8 ms binning

From T100_start-3 s to T100_start+3 s

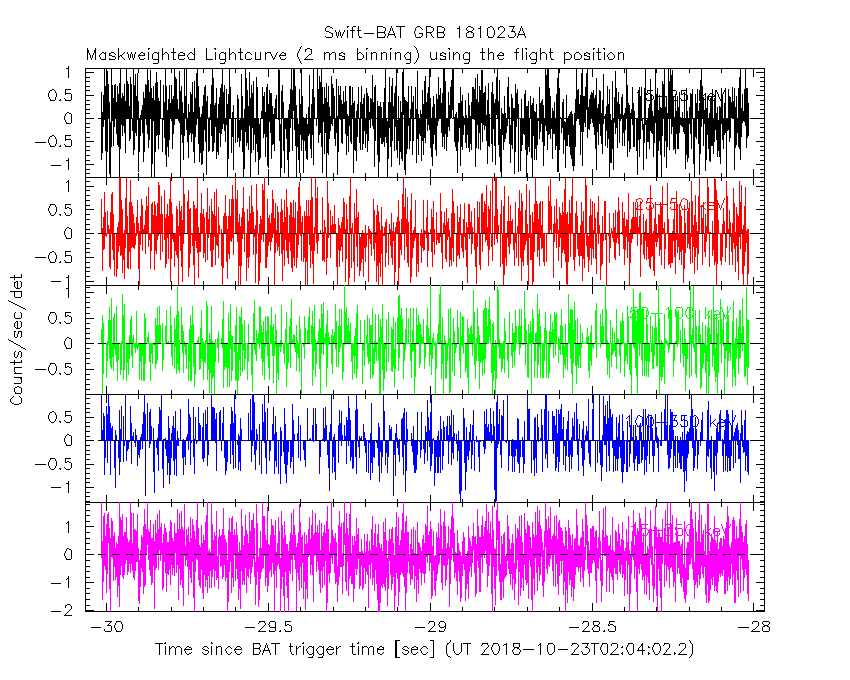

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

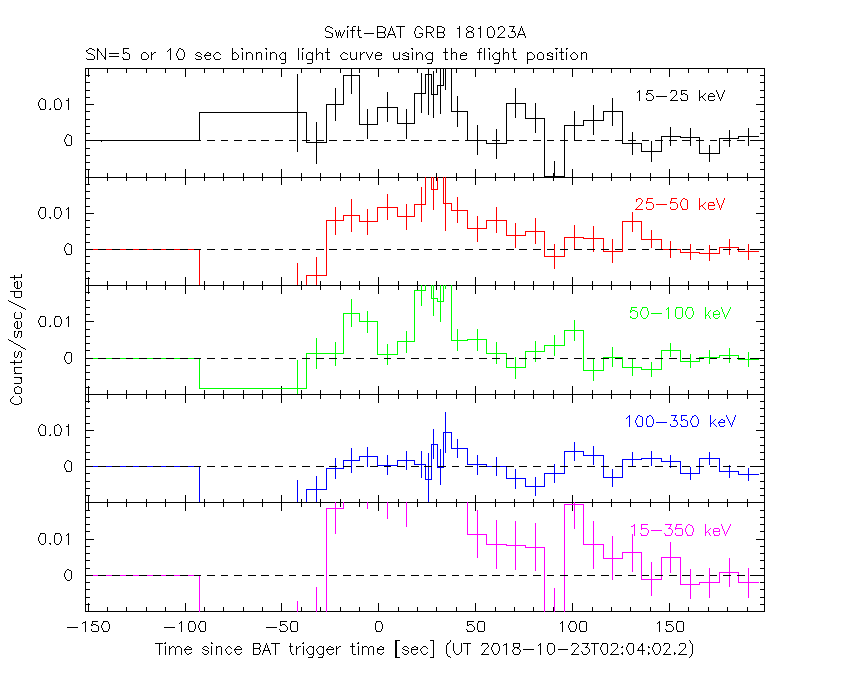

SN=5 or 10 sec. binning (T < 200 sec)

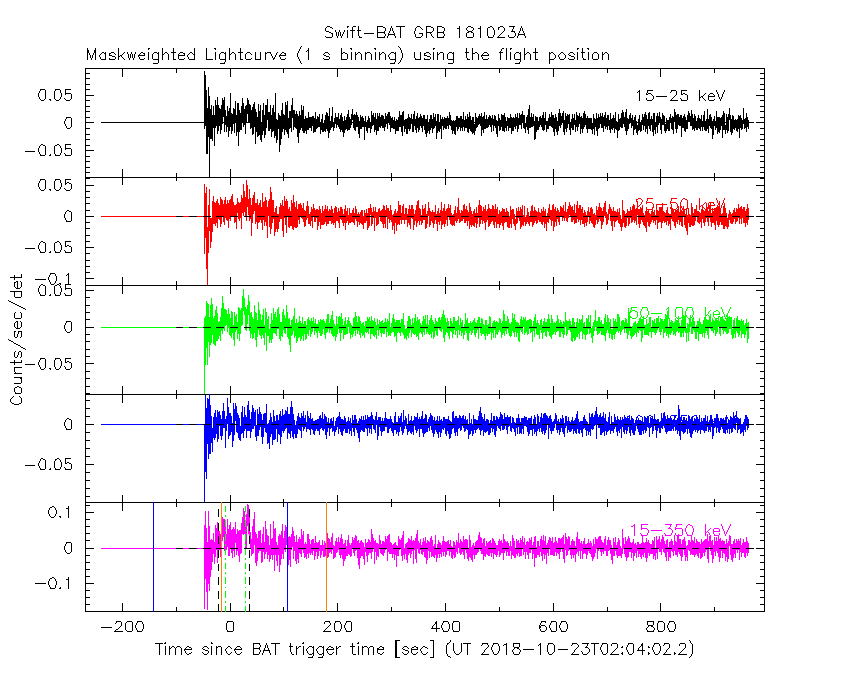

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

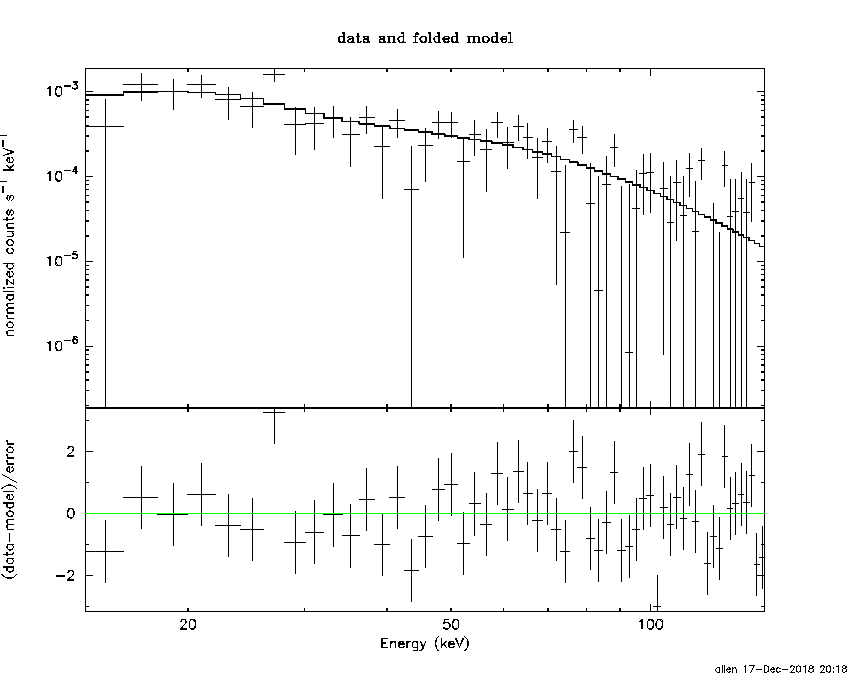

Power-law model

Time interval is from  -29.016 sec. to   36.940 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.72205     ( -0.236162   0.240581 )
Norm@50keV  : 2.14004E-03    ( -0.000290052   0.00028677 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.77 using 59 PHA bins.
# Reduced chi-squared =          1.259 for     57 degrees of freedom
# Null hypothesis probability =   9.011103e-02

Photon flux (15-150 keV)    in 65.96 sec: 0.286459 ( -0.038827  0.039046 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.305e-06 ( -1.82152e-07  1.84022e-07 ) ergs/cm2

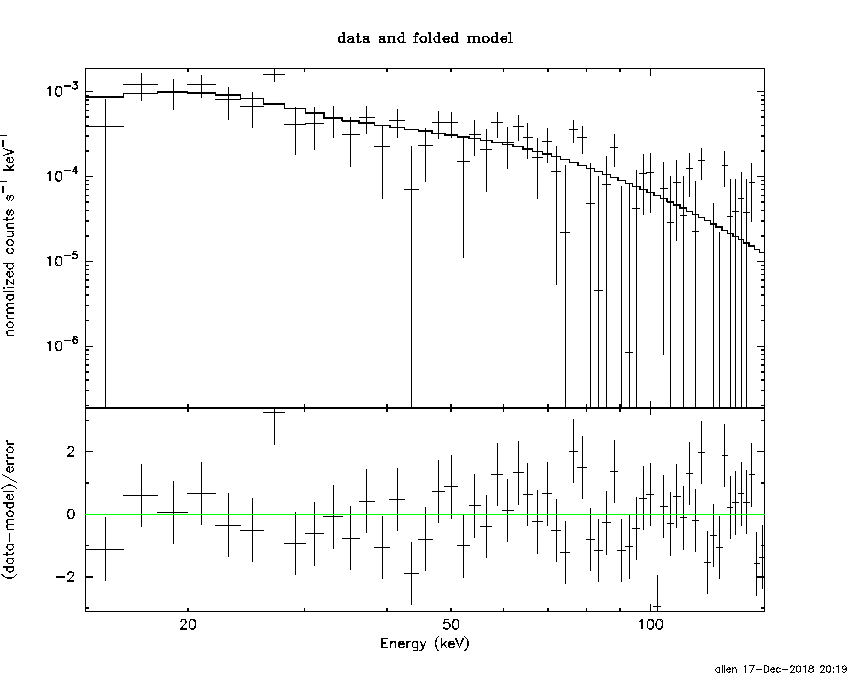

Cutoff power-law model

Time interval is from  -29.016 sec. to   36.940 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55058     ( -0.980561   0.833897 )
Epeak [keV] : 129.856      ( -129.854 -129.854 )
Norm@50keV  : 2.61513E-03    ( -0.000756533   0.00533001 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.65 using 59 PHA bins.
# Reduced chi-squared =          1.279 for     56 degrees of freedom
# Null hypothesis probability =   7.760368e-02

Photon flux (15-150 keV)    in 65.96 sec: 0.283707 ( -0.04118  0.038446 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.28793e-06 ( -2.01076e-07  1.96163e-07 ) ergs/cm2

Band function

Time interval is from  -29.016 sec. to   36.940 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

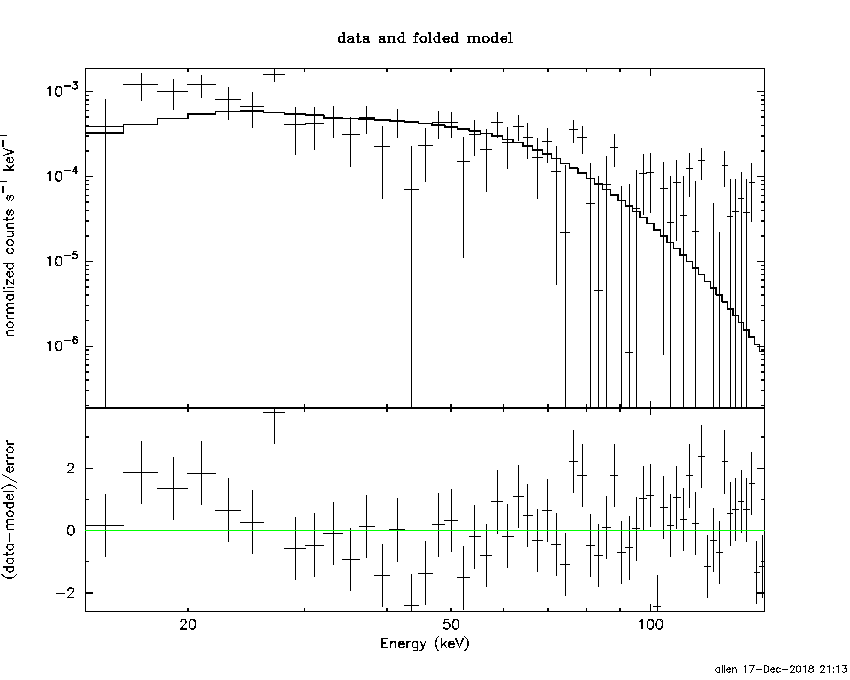

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 14.2861  (-2.28417  2.70416)
R^2/D10^2   : 3.54843E-02  (-0.016582   0.0317686)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          88.16 using 59 PHA bins.
# Reduced chi-squared =          1.547 for     57 degrees of freedom
# Null hypothesis probability =   5.074943e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.007e-07   2.918e-08
25- 50  3.820e-07   7.826e-08
50-150  5.186e-07   1.413e-07
15-150  1.001e-06   1.870e-07

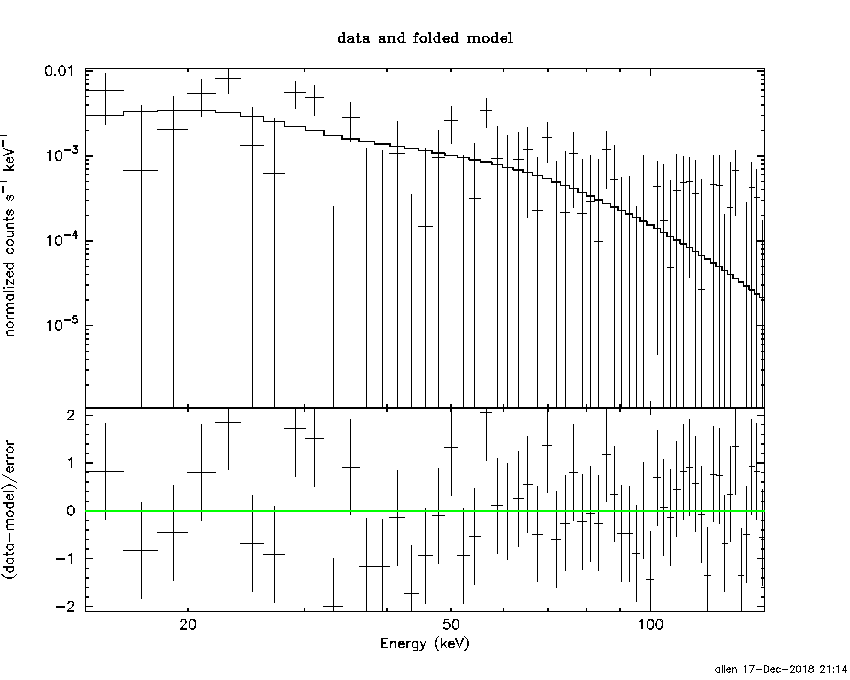

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 141.775       (-59.8674      -138.522)
Norm        : 1.16395       (-0.177092     0.254637)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.94 using 59 PHA bins.
# Reduced chi-squared =          1.262 for     57 degrees of freedom
# Null hypothesis probability =   8.784305e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.981e-07   4.393e-08
25- 50  3.641e-07   1.711e-07
50-150  7.017e-07   4.205e-07
15-150  1.264e-06   6.765e-07

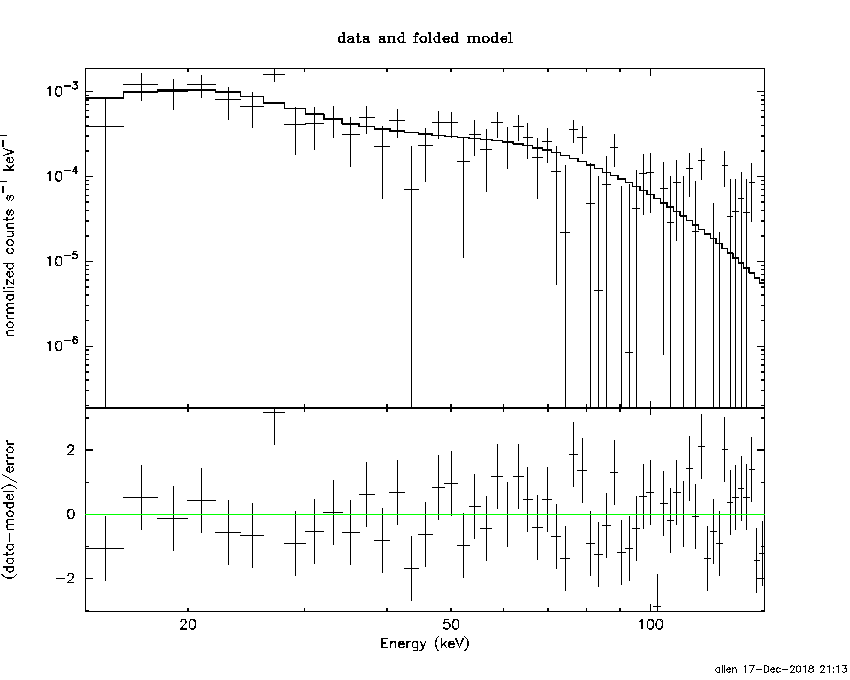

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.18734        (-1.43407      2.07553)
R1^2/D10^2  : 1.03422        (-0.759392      3.05203)
kT2 [keV]   : 21.2452        (-4.67616      8.81984)
R2^2/D10^2  : 7.04306E-03    (-0.00505245   0.00800693)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.95 using 59 PHA bins.
# Reduced chi-squared =          1.272 for     55 degrees of freedom
# Null hypothesis probability =   8.439479e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.312e-07   1.229e-07
25- 50  3.411e-07   1.515e-07
50-150  6.938e-07   3.982e-07
15-150  1.266e-06   6.160e-07

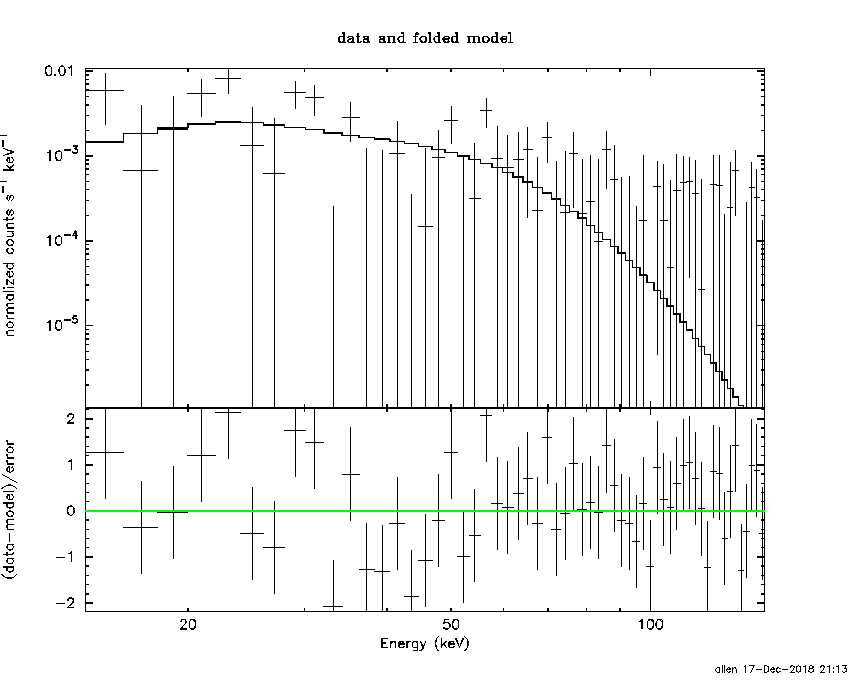

Peak spectrum fit

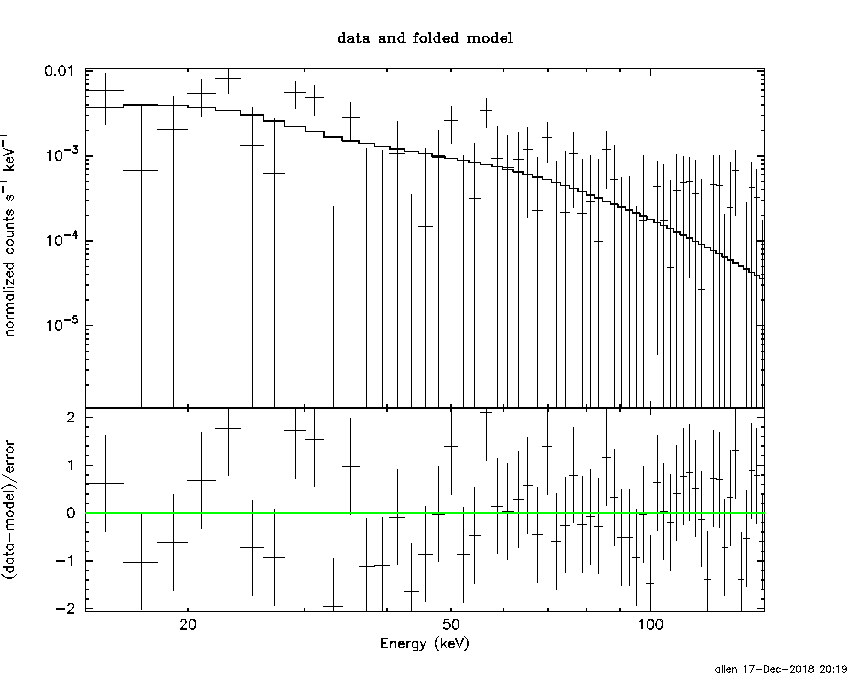

Power-law model

Time interval is from   32.184 sec. to   33.184 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.94931     ( -0.605855   0.681477 )
Norm@50keV  : 6.74221E-03    ( -0.00255052   0.00234089 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.38 using 59 PHA bins.
# Reduced chi-squared =         0.8838 for     57 degrees of freedom
# Null hypothesis probability =   7.199909e-01

Photon flux (15-150 keV)    in 1 sec: 0.988544 ( -0.309954  0.312156 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.20555e-08 ( -2.11379e-08  2.19176e-08 ) ergs/cm2

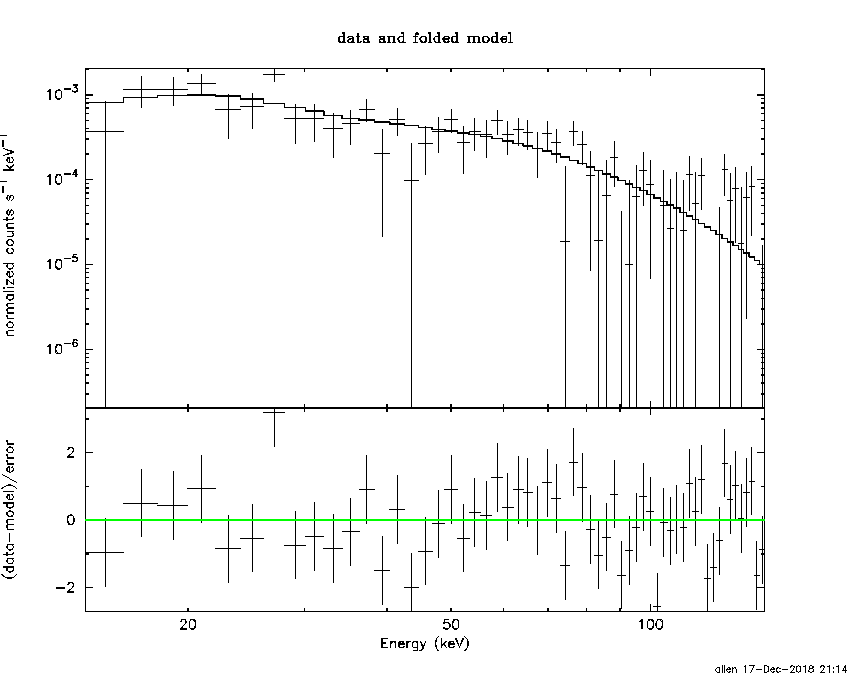

Cutoff power-law model

Time interval is from   32.184 sec. to   33.184 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.94072     ( -1.88835   1.66945 )
Epeak [keV] : 350.793      (   )
Norm@50keV  : 6.81968E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.38 using 59 PHA bins.
# Reduced chi-squared =         0.8997 for     56 degrees of freedom
# Null hypothesis probability =   6.865754e-01

Photon flux (15-150 keV)    in 1 sec: 0.969311 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.28507e-08 ( -5.96119e-08  1.83594e-08 ) ergs/cm2

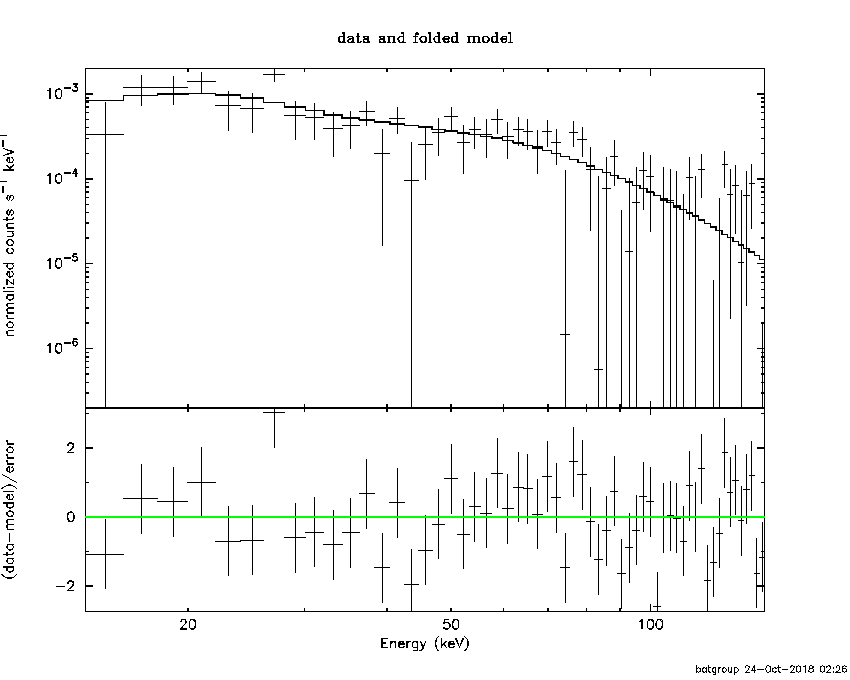

Band function

Time interval is from   32.184 sec. to   33.184 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.2233  (-5.91827  9.31477)
R^2/D10^2   : 0.272164  (-0.257472   4.98075)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.13 using 59 PHA bins.
# Reduced chi-squared =         0.9848 for     57 degrees of freedom
# Null hypothesis probability =   5.075264e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.190e-09   4.640e-09
25- 50  2.086e-08   1.280e-08
50-150  1.507e-08   1.065e-08
15-150  4.311e-08   2.693e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 87.0418       (-87.0555      -87.0555)
Norm        : 4.39582       (-1.71408     3.69903)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.05 using 59 PHA bins.
# Reduced chi-squared =         0.8955 for     57 degrees of freedom
# Null hypothesis probability =   6.968222e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.146e-08   7.295e-09
25- 50  1.923e-08   1.177e-08
50-150  2.868e-08   2.332e-08
15-150  5.937e-08   4.102e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.00579        (-2.05115      3.26286)
R1^2/D10^2  : 5.58608        (-4.91181      62.2054)
kT2 [keV]   : 24.8614        (-11.61      -24.8567)
R2^2/D10^2  : 1.19679E-02    (-0.0115285   0.106063)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.22 using 59 PHA bins.
# Reduced chi-squared =         0.8950 for     55 degrees of freedom
# Null hypothesis probability =   6.939525e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.494e-08   9.340e-09
25- 50  1.623e-08   8.150e-09
50-150  3.381e-08   2.192e-08
15-150  6.497e-08   3.417e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.68076     ( -0.221831   0.225512 )
Norm@50keV  : 2.42757E-03    ( -0.000314791   0.000312509 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.84 using 59 PHA bins.
# Reduced chi-squared =          1.173 for     57 degrees of freedom
# Null hypothesis probability =   1.748710e-01

Photon flux (15-150 keV)    in 53.24 sec: 0.320272 ( -0.0421643  0.0424172 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.19856e-06 ( -1.61364e-07  1.62898e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.02299     ( -1.0837   0.875687 )
Epeak [keV] : 74.6905      ( -22.1184 -74.6904 )
Norm@50keV  : 5.16034E-03    ( -0.00293084   0.011839 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.25 using 59 PHA bins.
# Reduced chi-squared =          1.165 for     56 degrees of freedom
# Null hypothesis probability =   1.860027e-01

Photon flux (15-150 keV)    in 53.24 sec: 0.308447 ( -0.04518  0.045225 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.14506e-06 ( -1.75122e-07  1.78152e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.56e-07
S(50-100 keV) = 4.32e-07

T90 vs. Hardness ratio plot

T90                                   = 56.9839998483658 sec.
Hardness ratio (energy fluence ratio) = 1.21348

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.1624
Count Ratio (50-100 keV) / (15-25 keV) = 0.882101

Mask shadow pattern

IMX = 7.602424147215958E-01, IMY = 3.637123024316146E-01

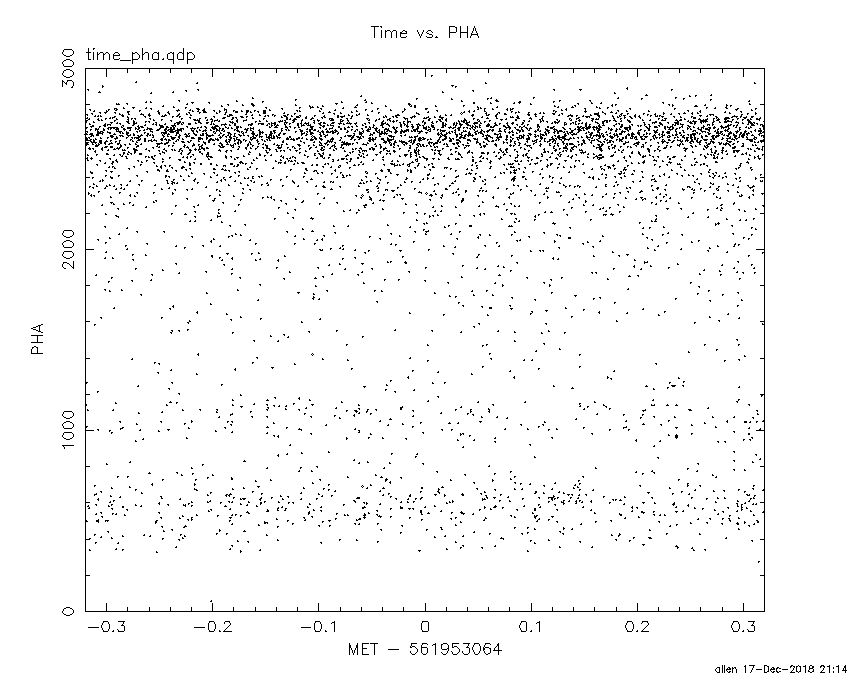

TIME vs. PHA plot around the trigger time

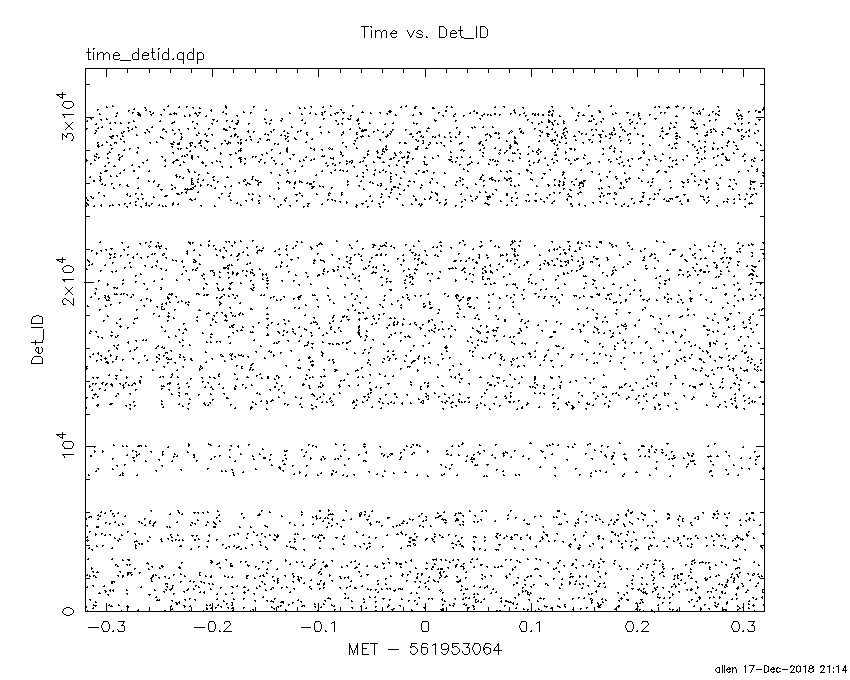

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

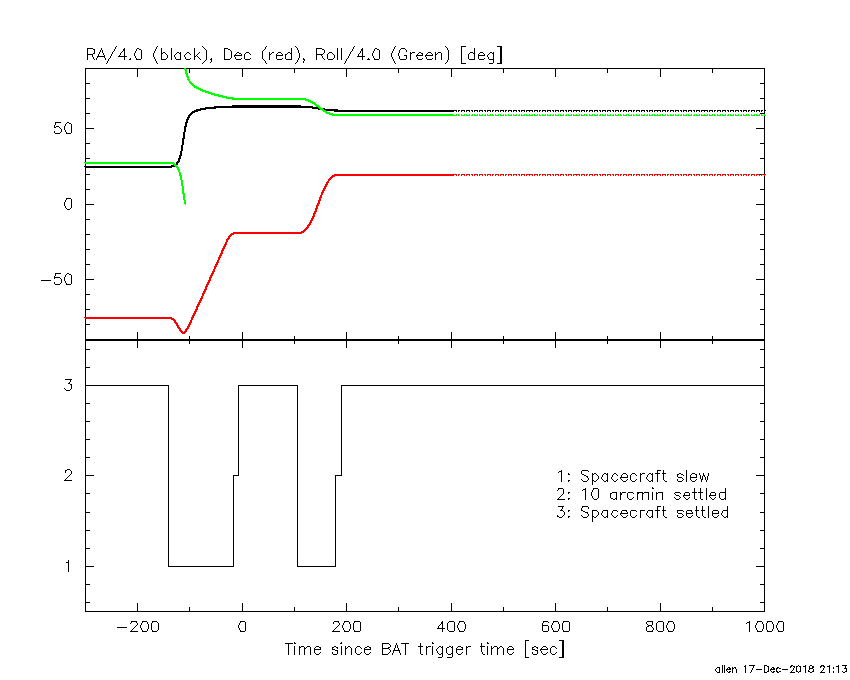

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-16.299400 36.940000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9754 -15.6418    0.3  13.8  -87.3   4.3709  35.0    0.3	Sco X-1
254.3446  35.3516 1393.0  54.7  -14.5   0.0030   0.0    5.6	Her X-1
256.0151 -37.8110    2.3  18.8  177.5   0.6217   5.2    2.4	4U 1700-377
256.2243 -36.5429    0.0  17.6  177.5   0.2658   2.1   12.5	GX 349+2
263.1946 -24.6284   11.8   6.7  135.4   0.1154   1.0   12.3	GX 1+4
264.5437 -44.4747    7.0  25.7  161.0   0.2372   1.7    8.7	4U 1735-44
268.4845  -1.5218    6.7  19.9   19.0  -0.2020  -1.7    8.1	SW J1753.5-0127
270.3208 -25.1110    2.8  12.1  111.8   0.5202   4.1    2.8	GX 5-1
270.3173 -25.8919    4.2  12.4  115.0   0.3541   2.7    9.0	GRS 1758-258
274.0601 -14.0918    8.1  15.3   63.1   0.1804   1.4    4.6	GX 17+2
275.7613 -30.2671   18.7  18.8  119.6   0.0880   0.6   10.4	H1820-303
285.1554 -24.7973   62.6  24.9   98.0   0.0321   0.2    9.8	HT1900.1-2455
288.8379  10.8842  127.3  42.0   37.0   0.0264   0.1    4.4	GRS 1915+105
263.0994 -33.9026    5.6  15.2  157.0   0.2443   2.1    6.8	GX 354-0
292.1084 -64.1034    2.4  50.2  152.0   2.4310   4.8 ------	UNKNOWN
248.3249  19.5781    1.0  40.1  -25.6   2.0240  11.3 ------	UNKNOWN
241.6229  26.0463    2.1  48.2  -30.9   1.6227   5.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
179.100600 963.088300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9897 -15.6371    0.2  35.4 -140.2  53.7091  46.8    0.6	Sco X-1
254.3610  35.4516    3.7  16.8   51.7   2.6197   3.1    8.1	Her X-1
256.3854 -36.3199   47.2  56.4 -153.5  -0.9692  -0.2    6.6	GX 349+2
263.0069 -24.7461   99.1  46.6 -164.2   0.1941   0.1    0.1	GX 1+4
268.3862  -1.4433   12.3  28.8  168.9   0.9461   0.9    1.2	SW J1753.5-0127
270.3366 -24.9817    5.9  49.4 -172.3   3.7497   2.0    6.5	GX 5-1
270.4286 -25.7392    8.2  50.2 -171.9   2.8961   1.4    6.8	GRS 1758-258
274.0061 -14.2173   11.7  42.2  175.6   1.6382   1.0   10.9	GX 17+2
275.9196 -30.3699 1210.4  56.6 -174.3  -0.0336  -0.0    0.3	H1820-303
288.8420  11.0147    4.2  39.9  130.5   5.8880   2.7    4.9	GRS 1915+105
263.0158 -33.7822    4.7  55.2 -160.6   7.3314   2.4    3.4	GX 354-0
285.9008  26.9382    5.0  35.2  105.0   4.4236   2.3 ------	UNKNOWN
282.7712  30.1914    3.0  32.9   98.6   6.0851   3.9 ------	UNKNOWN
275.9674  27.7110    3.8  26.6  101.2   3.8724   3.1 ------	UNKNOWN
190.8864  58.9659    3.3  56.7    3.0  13.4386   3.4 ------	UNKNOWN

Plot creation:
Mon Dec 17 21:14:43 EST 2018
