batgrbproduct analysis for trigger=868849

batgrbproduct Analysis for Trigger=868849

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sat Oct 27 10:08:11 EDT 2018
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger868849/GCN5_download_cron
======================================================================

  Trigger: 00868849      Segment: 000

  BAT Trigger Time: 562217496   [s; MET]
      Trigger Stop: 562217584   [s; MET]
               UTC: 2018-10-26T03:31:14.185360    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 244.793202416147   Dec: -16.0004710572437  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    22.15
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    22.15

  Flight Position:   [ source = BAT ]
    RA: 244.793202416147   Dec: -16.0004710572437  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 244.793665050616   Dec: -15.9990347082876  [deg; J2000]
        { 16h 19m 10.5s , -15d 59' 56.5" }
         +/- 0.85788146921818 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.273503656984285 [arcmin] (formal 1-sigma fit error)
    SNR: 37.8636307202119

  Angular difference between Flight and Ground position is 0.090217 arcmin

  Partial Coding Fraction: 0.5859375    [ including projection effects ]

  Duration
     T90: 209.799999952316 +/- 54.1532267120429
        Measured from: -41.6479998826981
                   to: 168.152000069618     [s; relative to TRIGTIME]
     T50: 101.34399998188 +/- 18.7059055300247
        Measured from: -4.5479998588562
                   to: 96.796000123024     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 47.5920000076294
                   to: 48.5920000076294     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -49.5640000104904
                   to: 221.539999961853     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    14.385761   0.850834  -0.115922   0.014639
           0.179722   0.154828   0.127356   0.107846 [error]
 Peak      0.076457   0.013778   0.014796   0.008943
           0.011219   0.009370   0.007493   0.006432 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.00e-06 5.34e-07 2.37e-08 1.10e-09 5.55e-06 5.55e-06   erg/cm2
              Error 4.32e-07 7.20e-08 8.11e-09 6.41e-10 4.30e-07 4.30e-07   erg/cm2
Peak flux Power-law 8.52e-01 1.58e-01 1.41e-02 1.37e-03 1.02e+00 1.03e+00   ph/cm2/s
              Error 2.03e-01 9.17e-02 2.13e-02 4.20e-03 2.57e-01 2.57e-01   ph/cm2/s

Fluence   Cutoff-PL 4.88e-06 3.54e-07 9.25e-11 8.17e-19 5.23e-06 5.23e-06   erg/cm2
              Error 5.01e-07 8.38e-08 4.83e-10 3.27e-15 5.04e-07 5.04e-07   erg/cm2
Peak flux Cutoff-PL 8.51e-01 1.56e-01 1.38e-02 1.33e-03 1.02e+00 1.02e+00   ph/cm2/s
              Error 2.01e-01 -------- 2.13e-02 4.18e-03 2.57e-01 2.57e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 5.90e-01 4.59e-01 1.15e-01 4.47e-03 1.17e+00 1.17e+00   ph/cm2/s
              Error 4.73e-01 2.92e-01 -------- -------- 5.96e-01 --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    6.495    0.310    -      -           1.03e-04 2.91e-05   72.440 57
CPL   1.000    0.000      50.0    0.0      1.92e-03 0.00e+00  544.390 56

The chi2 of BB fit is 52.45 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.481    1.084    -      -           1.08e-03 1.32e-03   53.360 57
CPL   1.000    0.000      50.0    0.0      1.39e-02 0.00e+00   81.900 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  271.104  -49.564  221.540
T90   209.800  -41.648  168.152
T50   101.344   -4.548   96.796
Peak    1.000   47.592   48.592

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  244.7937 -15.9990 0.0051   28.2  -55.6      14.3382    37.9  TRIG_00868849
------------------------------------------

Foreground time interval of the image:
-16.799  45.870 (delta_t =  62.669 [sec])
 47.000 221.540 (delta_t = 174.540 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

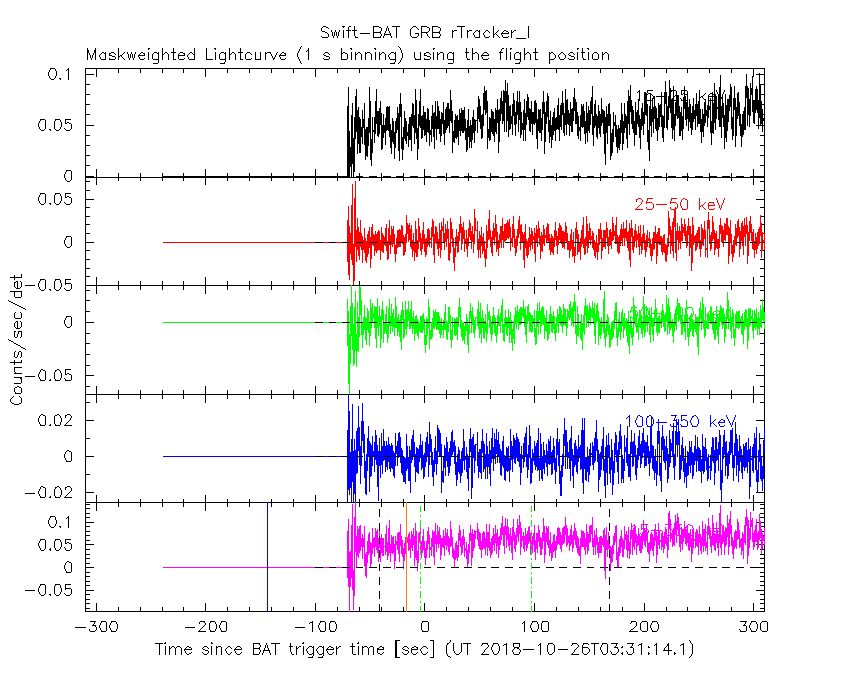

1 s binning

From T0-310 s to T0+310 s

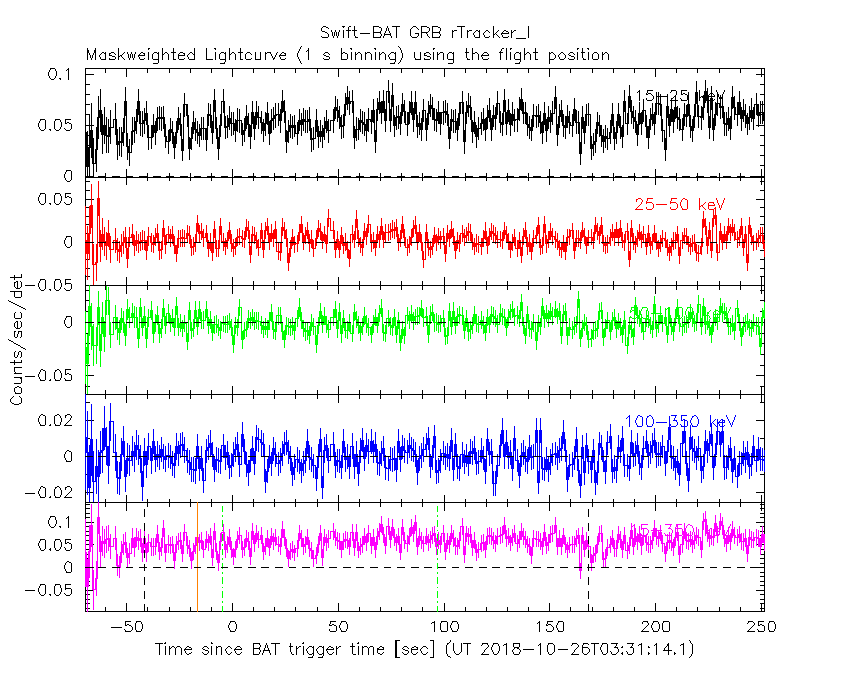

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

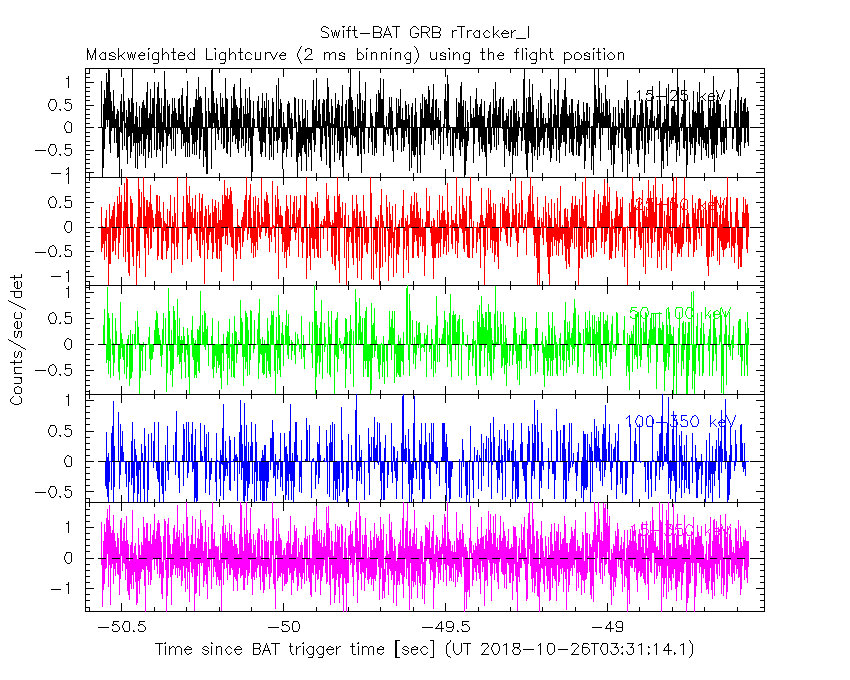

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-49.564000 45.870000
47.000000 221.540000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 6.49459     ( -0.309458   0.311515 )
Norm@50keV  : 1.03085E-04    ( -2.57241e-05   3.24197e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.44 using 59 PHA bins.
# Reduced chi-squared =          1.271 for     57 degrees of freedom
# Null hypothesis probability =   8.161100e-02

Photon flux (15-150 keV)    in 270 sec: 0.700245 ( -0.0582565  0.0586928 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.55387e-06 ( -4.28433e-07  4.31017e-07 ) ergs/cm2

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-49.564000 45.870000
47.000000 221.540000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.91735E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         544.39 using 59 PHA bins.
# Reduced chi-squared =         9.7212 for     56 degrees of freedom
# Null hypothesis probability =   3.451815e-81

Photon flux (15-150 keV)    in 270 sec: 0.660677 ( -0.070635  0.068624 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.23417e-06 ( -5.11488e-07  4.9734e-07 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
-49.564000 45.870000
47.000000 221.540000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.50184   ( -3.20741   3.7064 )
beta        : -10.0000    ( 10   10 )
Epeak [keV] : 9.29441      ( -0.877441 2.96074 )
Norm@50keV   : 338.458    ( -338.414   121703 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.83 using 59 PHA bins.
# Reduced chi-squared =         0.9605 for     55 degrees of freedom
# Null hypothesis probability =   5.581279e-01

Photon flux (15-150 keV)    in 270 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.50085  (-0.131428  0.144586)
R^2/D10^2   : 329.712  (-125.38   197.933)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.45 using 59 PHA bins.
# Reduced chi-squared =         0.9202 for     57 degrees of freedom
# Null hypothesis probability =   6.461904e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.895e-06   7.330e-07
25- 50  3.604e-07   6.384e-08
50-150  1.142e-10   6.580e-11
15-150  5.256e-06   7.519e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.19428       (-0.312503      0.357874)
Norm        : 314.176       (-103.826     152.956)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.92 using 59 PHA bins.
# Reduced chi-squared =         0.9634 for     57 degrees of freedom
# Null hypothesis probability =   5.536890e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.999e-06   6.251e-07
25- 50  4.127e-07   7.709e-08
50-150  8.137e-10   4.471e-10
15-150  5.413e-06   6.574e-07

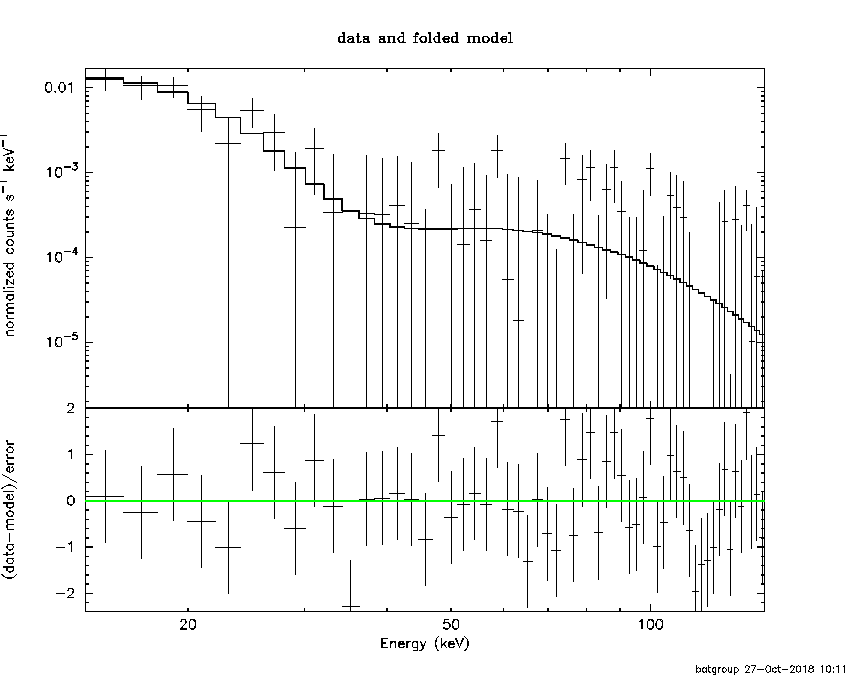

Double BB

------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.45 using 59 PHA bins.
#Fit statistic : Chi-Squared =          52.32 using 59 PHA bins.
#Fit statistic : Chi-Squared =          52.29 using 59 PHA bins.
#Fit statistic : Chi-Squared =          52.28 using 59 PHA bins.
# Reduced chi-squared =         0.9537 for     55 degrees of freedom
# Reduced chi-squared =         0.9513 for     55 degrees of freedom
# Reduced chi-squared =         0.9507 for     55 degrees of freedom
# Reduced chi-squared =         0.9505 for     55 degrees of freedom
# Null hypothesis probability =   5.724792e-01
# Null hypothesis probability =   5.775294e-01
# Null hypothesis probability =   5.788406e-01
# Null hypothesis probability =   5.792334e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.895e-06   5.524e+01
25- 50  3.610e-07   4.784e+02
50-150  1.165e-10   9.335e+03
15-150  5.256e-06   1.179e+04

Peak spectrum fit

Power-law model

Time interval is from   47.592 sec. to   48.592 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.48078     ( -0.94386   1.22361 )
Norm@50keV  : 1.08012E-03    ( -0.00108012   0.00155709 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.36 using 59 PHA bins.
# Reduced chi-squared =         0.9361 for     57 degrees of freedom
# Null hypothesis probability =   6.125943e-01

Photon flux (15-150 keV)    in 1 sec: 1.02482 ( -0.25639  0.257585 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.44503e-08 ( -1.00757e-08  1.12947e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   47.592 sec. to   48.592 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.38922E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          81.90 using 59 PHA bins.
# Reduced chi-squared =          1.463 for     56 degrees of freedom
# Null hypothesis probability =   1.359880e-02

Photon flux (15-150 keV)    in 1 sec: 1.02337 1.01551 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.06554e-15 ( 0  0 ) ergs/cm2

Band function

Time interval is from   47.592 sec. to   48.592 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.75910   ( 1.78083   1.78083 )
beta        : -5.94403    ( 5.79078   14.5017 )
Epeak [keV] : 1.78747      ( -1.90943 4.1341 )
Norm@50keV   : 0.210105    ( -0.211875   4.27814e+07 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.95 using 59 PHA bins.
# Reduced chi-squared =         0.9627 for     55 degrees of freedom
# Null hypothesis probability =   5.533652e-01

Photon flux (15-150 keV)    in 1 sec: 1.16856 ( 5.83144  -0.724514 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 3.12123  (-0.671355  0.816323)
R^2/D10^2   : 113.246  (-113.246   424.981)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.96 using 59 PHA bins.
# Reduced chi-squared =         0.9291 for     57 degrees of freedom
# Null hypothesis probability =   6.273682e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.697e-08   1.527e-08
25- 50  4.504e-09   2.937e-09
50-150  9.943e-12   1.151e-11
15-150  3.148e-08   1.857e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 6.57377       (-2.1521      3.60191)
Norm        : 97.4950       (-97.495     242.195)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.02 using 59 PHA bins.
# Reduced chi-squared =         0.9301 for     57 degrees of freedom
# Null hypothesis probability =   6.252182e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.614e-08   1.487e-08
25- 50  5.791e-09   3.725e-09
50-150  1.011e-10   1.206e-10
15-150  3.203e-08   1.861e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.02868        (-0.683252      0.80709)
R1^2/D10^2  : 133.115        (-133.128      569.69)
kT2 [keV]   : 29.7889        (-29.7525      -29.7525)
R2^2/D10^2  : 2.20061E-03    (-0.00220615   0.154785)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.24 using 59 PHA bins.
# Reduced chi-squared =         0.9317 for     55 degrees of freedom
# Null hypothesis probability =   6.189952e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.670e-08   1.532e-08
25- 50  5.863e-09   3.152e-09
50-150  1.187e-08   8.900e-09
15-150  4.443e-08   2.374e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 6.46757     ( -0.31542   0.317427 )
Norm@50keV  : 1.07358E-04    ( -2.73097e-05   3.46256e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.15 using 59 PHA bins.
# Reduced chi-squared =          1.266 for     57 degrees of freedom
# Null hypothesis probability =   8.519692e-02

Photon flux (15-150 keV)    in 237.2 sec: 0.709403 ( -0.0595884  0.0600055 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.94844e-06 ( -3.85507e-07  3.87713e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 2.00331E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         527.18 using 59 PHA bins.
# Reduced chi-squared =         9.4139 for     56 degrees of freedom
# Null hypothesis probability =   7.938390e-78

Photon flux (15-150 keV)    in 237.2 sec: 0.674161 ( -0.071727  0.069667 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.68892e-06 ( -4.56942e-07  4.44133e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.03321   ( -2.44074   1.79337 )
beta        : -10.0000    ( 10   10 )
Epeak [keV] : 11.1494      ( -0.572055 0.956522 )
Norm@50keV   : 6366.34    ( -2965.14   127200 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.68 using 59 PHA bins.
# Reduced chi-squared =         0.9760 for     55 degrees of freedom
# Null hypothesis probability =   5.252057e-01

Photon flux (15-150 keV)    in 237.2 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.34e-07
S(50-100 keV) = 2.37e-08

T90 vs. Hardness ratio plot

T90                                   = 209.799999952316 sec.
Hardness ratio (energy fluence ratio) = 0.044382

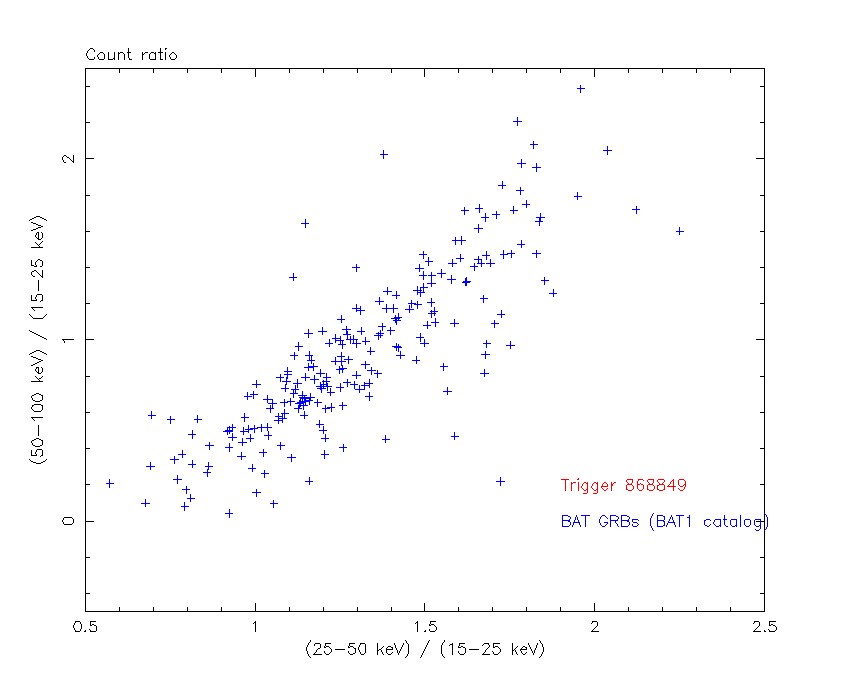

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.0591442
Count Ratio (50-100 keV) / (15-25 keV) = -0.00805811

Mask shadow pattern

IMX = 3.029747333064975E-01, IMY = 4.426486533736473E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-16.799410 45.870000
47.000000 221.540000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3895 -60.7142  207.6  54.9 -166.9   0.0591   0.1    5.9	Cen X-3
186.5427 -62.7761    4.3  47.0 -166.8  -1.8341  -2.7    3.1	GX 301-2
244.8842 -15.5189   15.0  28.6  -55.0  -0.2901  -0.8    9.1	Sco X-1
256.0117 -38.0204    6.2   4.2  -69.8   0.5573   1.9   10.6	4U 1700-377
256.3563 -36.2264    3.9   5.5  -54.6  -0.8510  -2.9   12.4	GX 349+2
262.9306 -24.8498   13.4  16.4  -13.8  -0.2453  -0.9    7.6	GX 1+4
264.5445 -44.4009   14.8   4.8  112.5   0.2403   0.8    9.0	4U 1735-44
268.5018  -1.4352    7.2  40.3  -10.3   0.7097   1.6    8.1	SW J1753.5-0127
270.3319 -25.0052  245.9  18.2    8.1  -0.0141  -0.0    5.1	GX 5-1
270.2515 -25.7341   12.1  17.5    8.9   0.2872   1.0    2.8	GRS 1758-258
273.9896 -13.9926    4.6  29.7    4.9  -0.8780  -2.5    2.8	GX 17+2
275.7831 -30.2522   13.4  16.8   31.5  -0.2546  -0.9   10.1	H1820-303
284.8692 -25.0072   77.5  26.2   36.5   0.0597   0.1   10.5	HT1900.1-2455
263.2000 -33.7430    7.9   7.7   -2.7  -0.4297  -1.5   11.9	GX 354-0
296.8867 -16.2817    2.3  40.3   39.6   3.3179   5.0 ------	UNKNOWN
273.9447  10.3655    2.2  53.0   -6.2   3.4561   5.2 ------	UNKNOWN
211.1341 -41.8962    3.1  36.0 -131.7   1.7106   3.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:

Plot creation:
Sat Oct 27 10:11:57 EDT 2018
