Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Nov 19 13:13:43 EST 2018
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger872470/GCN5_download_cron
======================================================================

  Trigger: 00872470      Segment: 000

  BAT Trigger Time: 564255236.352   [s; MET]
      Trigger Stop: 564255263.232   [s; MET]
               UTC: 2018-11-18T17:33:34.410560    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 299.270012949475   Dec: -15.6652366429685  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    6.55
     Image Trigger?:     NO
     Rate S/N Ratio:     38.742741255621  [ if not an image trigger ]
     Image S/N Ratio:    6.55

  Flight Position:   [ source = BAT ]
    RA: 299.270012949475   Dec: -15.6652366429685  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 299.270547627298   Dec: -15.7216108912909  [deg; J2000]
        { 19h 57m 04.9s , -15d 43' 17.8" }
         +/- 8.62510465297001 [arcmin] (estimated 90% radius based on SNR)
         +/- 7.13278290505667 [arcmin] (formal 1-sigma fit error)
    SNR: 1.40059358355184

  Angular difference between Flight and Ground position is 3.382596 arcmin

  Partial Coding Fraction: 0.8359375    [ including projection effects ]

  Duration
     T90: 26.8799999952316 +/-
        Measured from: 0
                   to: 26.8799999952316     [s; relative to TRIGTIME]
     T50: 26.8799999952316 +/-
        Measured from: 0
                   to: 26.8799999952316     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 26.8799999952316 second)
        Measured from: 5.96046447753906e-08
                   to: 26.8800000548363     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 26.8799999952316     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    -0.119216  -0.060262   0.105761   0.209050
           0.054591   0.061655   0.053231   0.061082 [error]
 Peak     -0.119216  -0.060262   0.105761   0.209050
           0.054591   0.061655   0.053231   0.061082 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 0.00e+005.92e-10 0.00e+006.51e-09 0.00e+006.43e-08 0.00e+004.13e-06 0.00e+002.65e-07 0.00e+004.54e-064.31e-06   erg/cm2
              Error 7.63e-09 1.00e-08 5.53e-08 3.55e-06 1.49e-07 3.59e-06   erg/cm2
Peak flux Power-law 0.00e+006.63e-04 0.00e+003.85e-03 0.00e+001.93e-02 0.00e+003.91e-01 0.00e+005.94e-02 0.00e+003.92e-01   ph/cm2/s
              Error 9.04e-03 6.13e-03 1.67e-02 3.18e-01 3.54e-02 2.58e-01   ph/cm2/s

Fluence   Cutoff-PL 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 7.57e-09 8.84e-09 6.15e-08 -------- 2.23e-07 3.07e-05   erg/cm2
Peak flux Cutoff-PL 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 8.95e-03 5.38e-03 1.69e-02 8.26e-01 4.69e-02 5.40e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL   -1.256    0.894    -      -           2.23e-04 2.73e-04   47.380 57
CPL   1.000    0.000      50.0    0.0      0.00e+00 0.00e+00   57.510 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL   -1.256    0.894    -      -           2.23e-04 2.73e-04   47.380 57
CPL   1.000    0.000      50.0    0.0      0.00e+00 0.00e+00   57.510 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   26.880    0.000   26.880
T90    26.880    0.000   26.880
T50    26.880    0.000   26.880
Peak   26.880    0.000   26.880

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

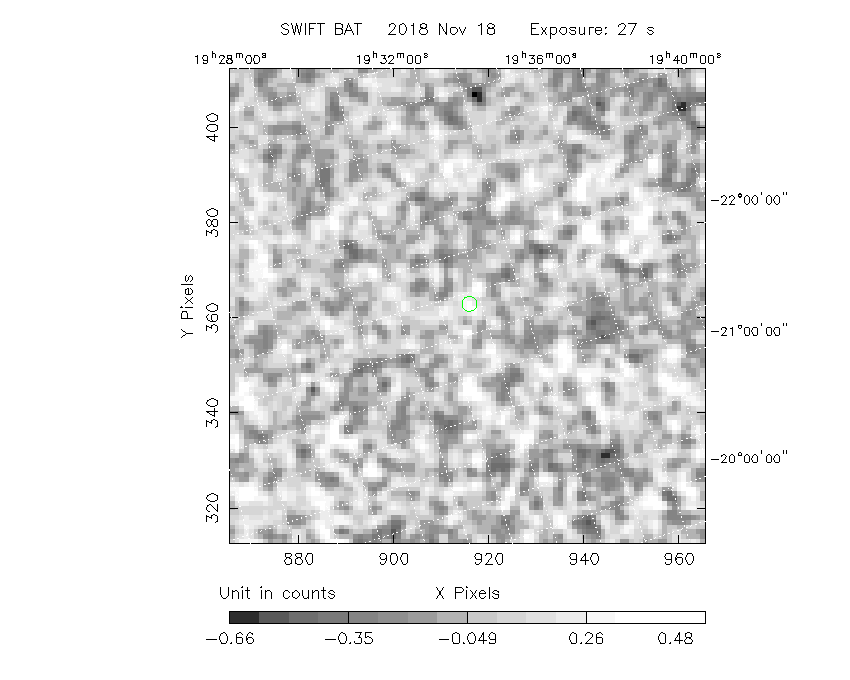

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  299.2705 -15.7216 0.1365   14.1  107.7       0.2441     1.4  TRIG_00872470
------------------------------------------

Foreground time interval of the image:
  0.000  26.880 (delta_t =  26.880 [sec])
Background time interval of the image:
-239.352 -44.352 (delta_t = 195.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

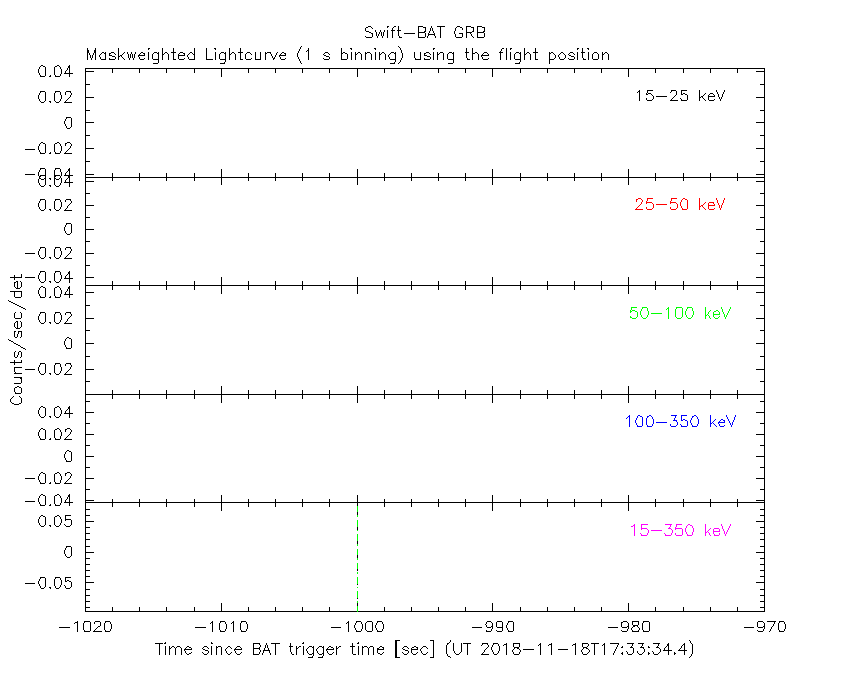

1 s binning

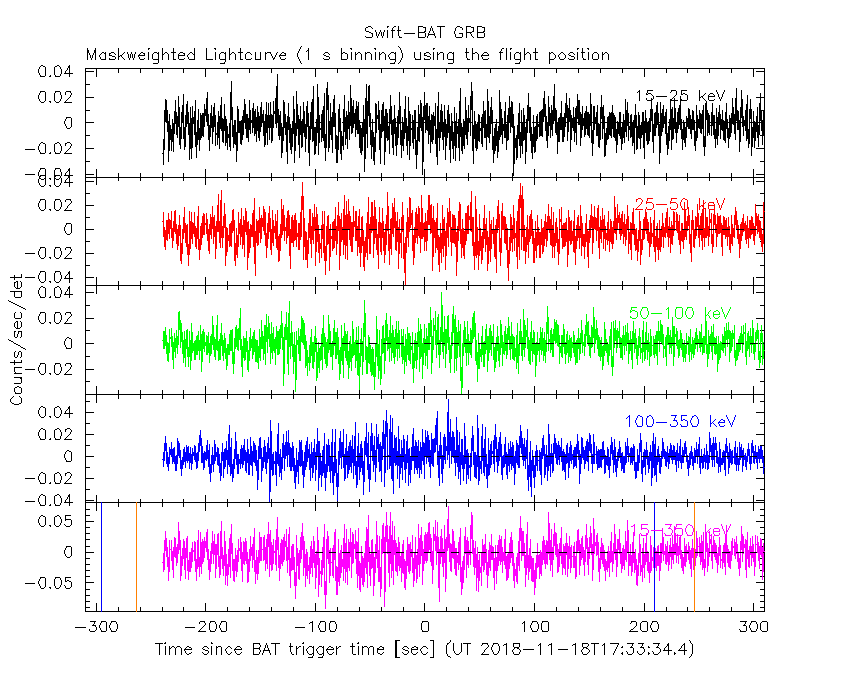

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

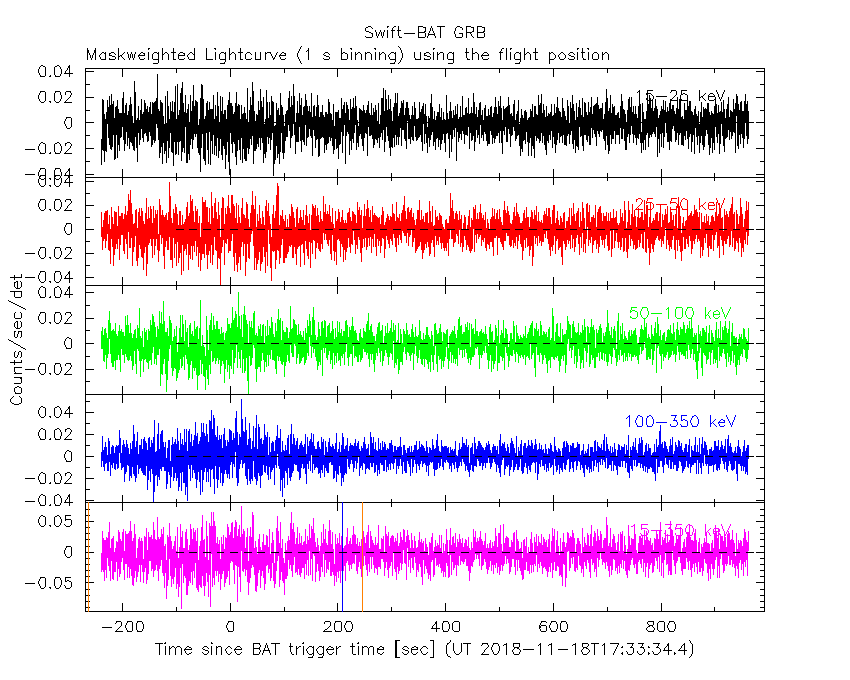

Full time interval

64 ms binning

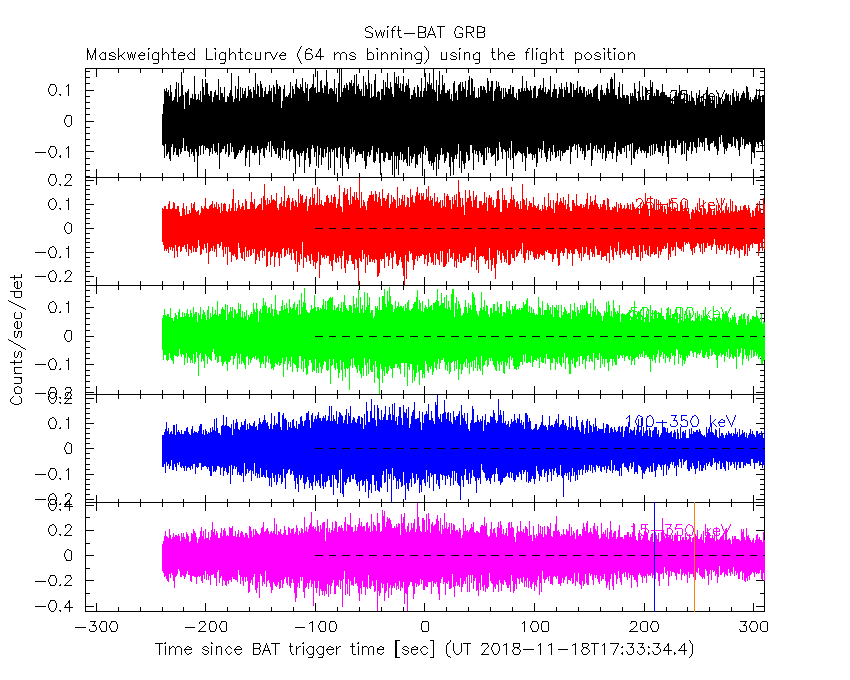

Full time interval

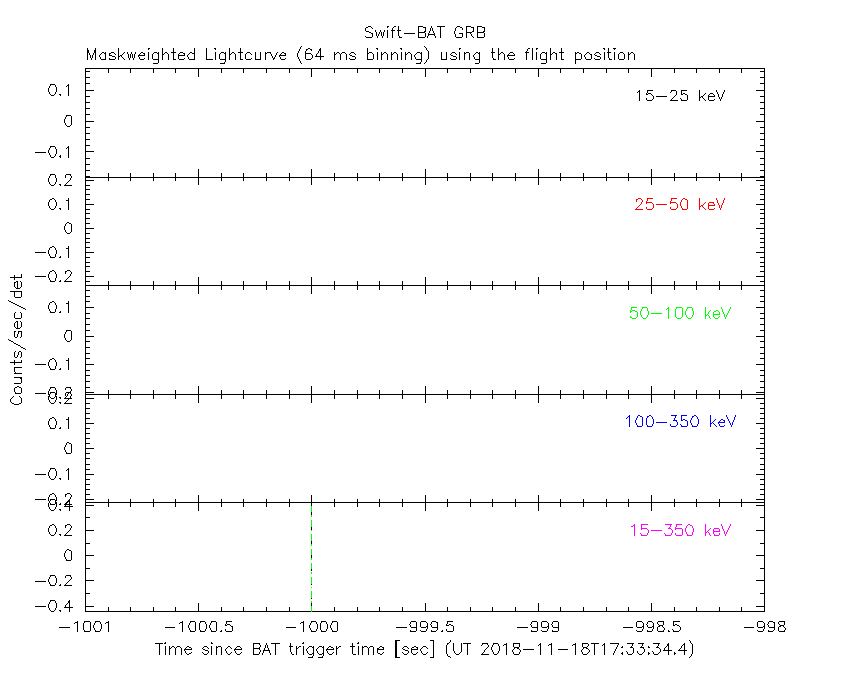

From T100_start to T100_end

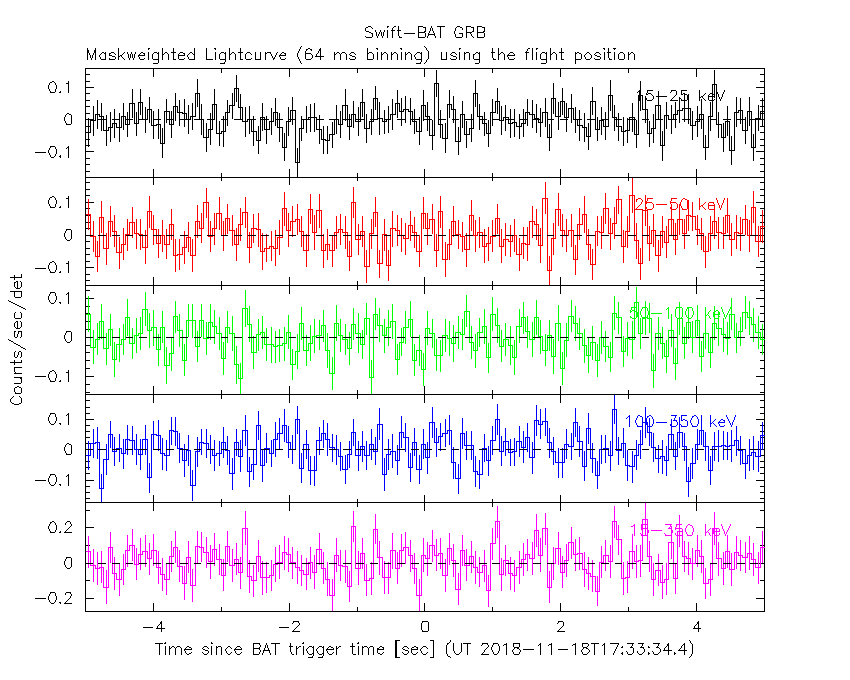

From T0-5 sec to T0+5 sec

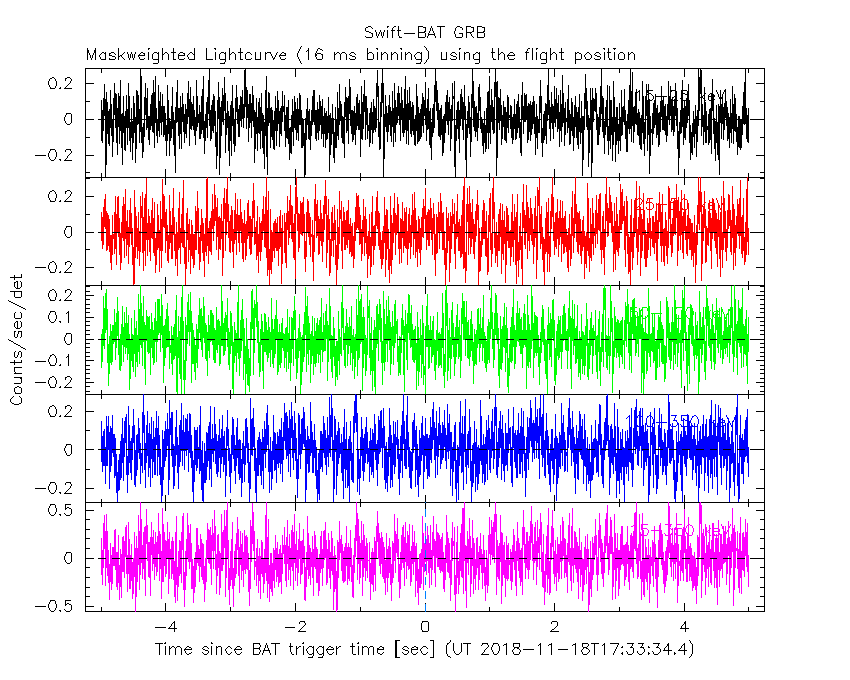

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 26.880000

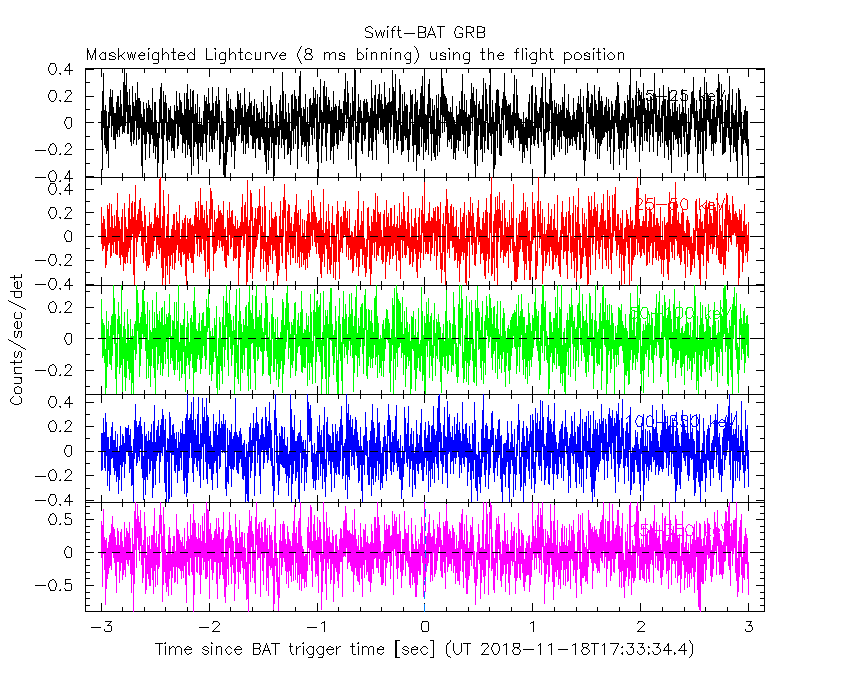

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 26.880000

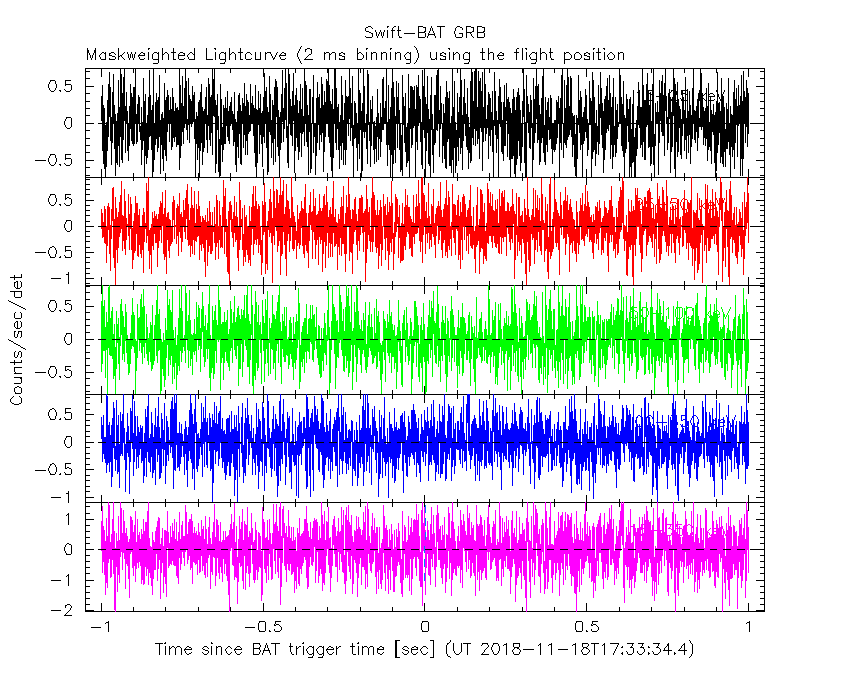

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 26.880000

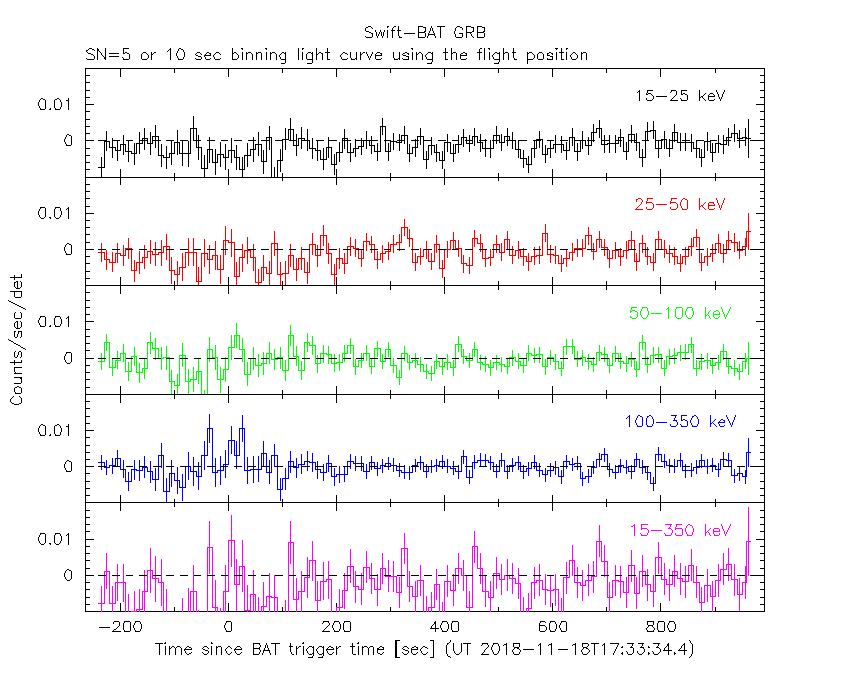

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

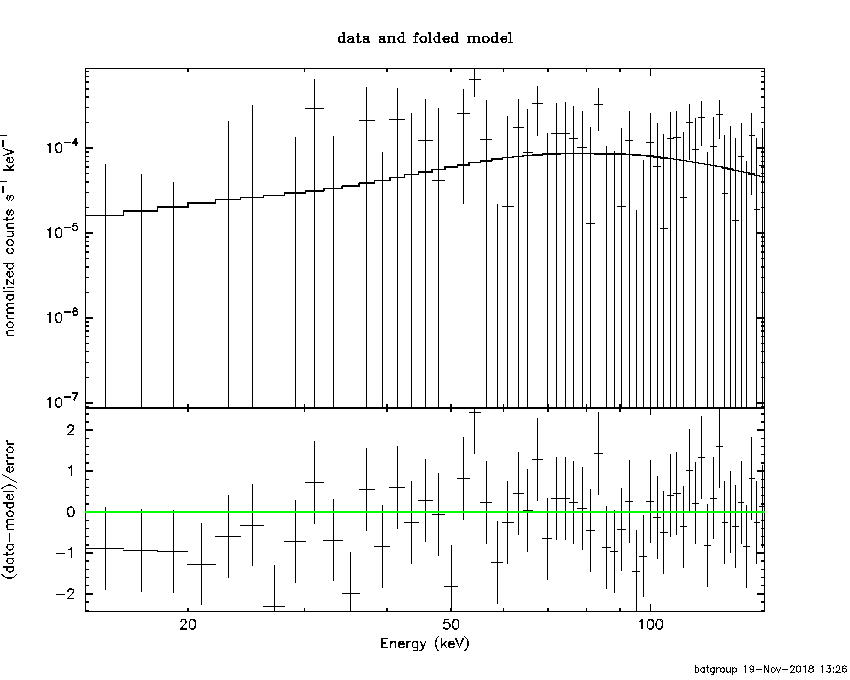

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.000 sec. to   26.880 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -1.25622     ( -0.695944   1.09283 )
Norm@50keV  : 2.23335E-04    ( -0.00022175   0.000323453 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.38 using 59 PHA bins.
# Reduced chi-squared =         0.8312 for     57 degrees of freedom
# Null hypothesis probability =   8.144422e-01

Photon flux (15-150 keV)    in 26.88 sec: 0.0 5.93664E-02 ( -0.0351281  0.0356907 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( -1.53176e-07  1.43971e-07 ) ergs/cm2

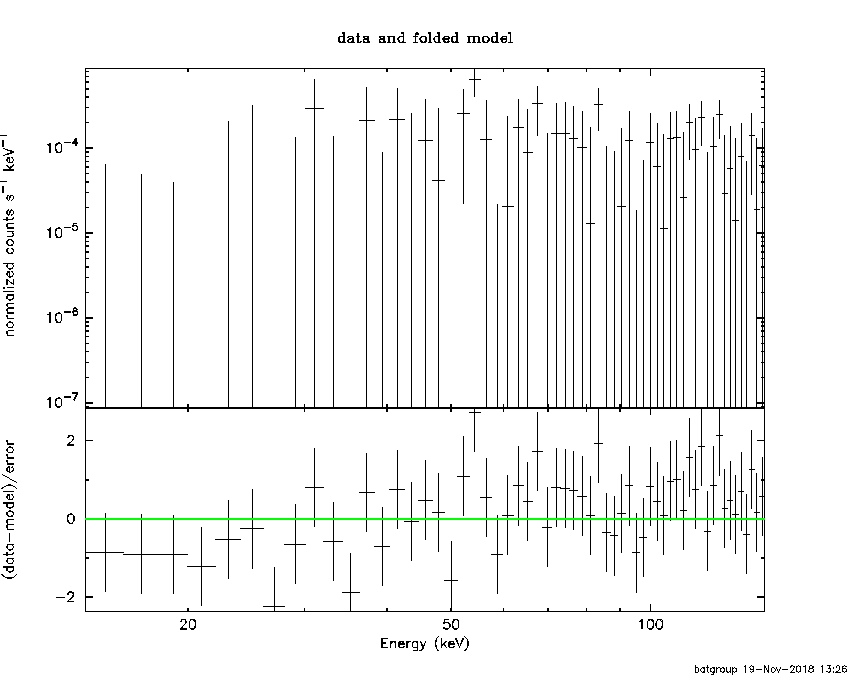

Cutoff power-law model

Time interval is from    0.000 sec. to   26.880 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 0.0    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.51 using 59 PHA bins.
# Reduced chi-squared =          1.027 for     56 degrees of freedom
# Null hypothesis probability =   4.192206e-01

Photon flux (15-150 keV)    in 26.88 sec: 0.0 5.66694E-02 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to   26.880 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -5   -5 )
beta        : -1.54744    ( 1.54744   3.46078 )
Epeak [keV] : 282.294      (   )
Norm@50keV   : 1.98375E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.82 using 59 PHA bins.
# Reduced chi-squared =         0.8513 for     55 degrees of freedom
# Null hypothesis probability =   7.756322e-01

Photon flux (15-150 keV)    in 26.88 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

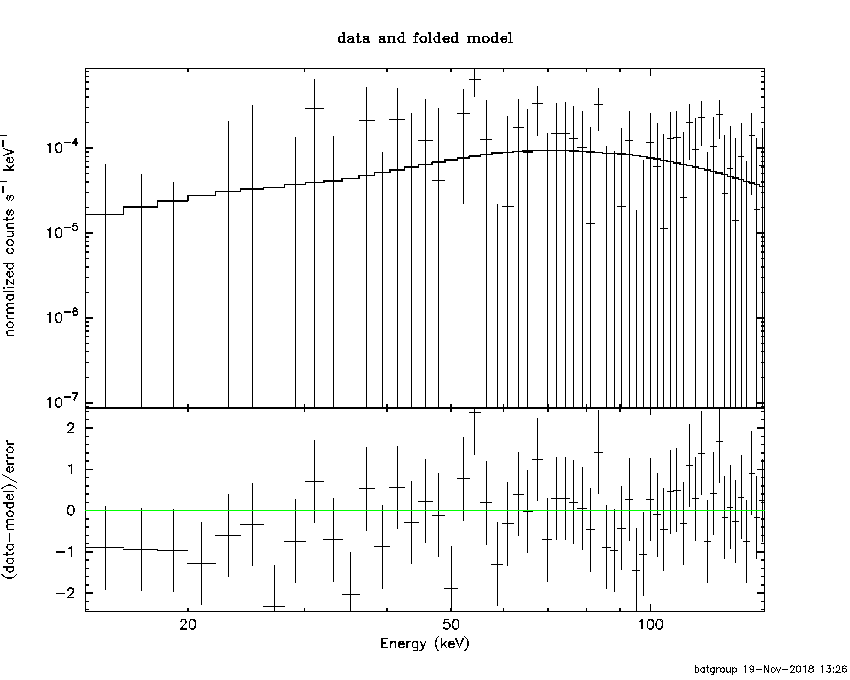

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 200.000  (-200  -200)
R^2/D10^2   : 3.67225E-05  (-1.95527e-05   -3.67226e-05)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.96 using 59 PHA bins.
# Reduced chi-squared =         0.8414 for     57 degrees of freedom
# Null hypothesis probability =   7.974993e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 7.00000       (-7      -7)
Norm        : 0.0       (0     0)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.51 using 59 PHA bins.
# Reduced chi-squared =          1.009 for     57 degrees of freedom
# Null hypothesis probability =   4.563518e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 199.363        (-199.363      -199.363)
R1^2/D10^2  : 3.72625E-05        (-1.96348e-05      0.000184601)
kT2 [keV]   : 10.0000        (-10      -10)
R2^2/D10^2  : 0.0    (0   0)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.51 using 59 PHA bins.
#Fit statistic : Chi-Squared =          47.96 using 59 PHA bins.
# Reduced chi-squared =          1.046 for     55 degrees of freedom
# Reduced chi-squared =         0.8721 for     55 degrees of freedom
# Null hypothesis probability =   3.825780e-01
# Null hypothesis probability =   7.381268e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Peak spectrum fit

Power-law model

Time interval is from    0.000 sec. to   26.880 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -1.25622     ( -0.695944   1.09283 )
Norm@50keV  : 2.23335E-04    ( -0.00022175   0.000323453 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.38 using 59 PHA bins.
# Reduced chi-squared =         0.8312 for     57 degrees of freedom
# Null hypothesis probability =   8.144422e-01

Photon flux (15-150 keV)    in 26.88 sec: 0.0 5.93664E-02 ( -0.0351281  0.0356907 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( -1.53176e-07  1.43971e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to   26.880 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 0.0    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.51 using 59 PHA bins.
# Reduced chi-squared =          1.027 for     56 degrees of freedom
# Null hypothesis probability =   4.192206e-01

Photon flux (15-150 keV)    in 26.88 sec: 0.0 5.66694E-02 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to   26.880 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -5   -5 )
beta        : -1.54744    ( 1.54744   3.46078 )
Epeak [keV] : 282.294      (   )
Norm@50keV   : 1.98375E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.82 using 59 PHA bins.
# Reduced chi-squared =         0.8513 for     55 degrees of freedom
# Null hypothesis probability =   7.756322e-01

Photon flux (15-150 keV)    in 26.88 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 200.000  (-200  -200)
R^2/D10^2   : 3.67225E-05  (-1.95527e-05   -3.67226e-05)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.96 using 59 PHA bins.
# Reduced chi-squared =         0.8414 for     57 degrees of freedom
# Null hypothesis probability =   7.974993e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 7.00000       (-7      -7)
Norm        : 0.0       (0     0)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.51 using 59 PHA bins.
# Reduced chi-squared =          1.009 for     57 degrees of freedom
# Null hypothesis probability =   4.563518e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 199.363        (-147.729      -199.363)
R1^2/D10^2  : 3.72625E-05        (-1.96348e-05      0.000184601)
kT2 [keV]   : 10.0000        (-10      -10)
R2^2/D10^2  : 0.0    (0   0)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.51 using 59 PHA bins.
#Fit statistic : Chi-Squared =          47.96 using 59 PHA bins.
# Reduced chi-squared =          1.046 for     55 degrees of freedom
# Reduced chi-squared =         0.8721 for     55 degrees of freedom
# Null hypothesis probability =   3.825780e-01
# Null hypothesis probability =   7.381268e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -1.25622     ( -0.695944   1.09283 )
Norm@50keV  : 2.23335E-04    ( -0.00022175   0.000323453 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.38 using 59 PHA bins.
# Reduced chi-squared =         0.8312 for     57 degrees of freedom
# Null hypothesis probability =   8.144422e-01

Photon flux (15-150 keV)    in 26.88 sec: 0.0 5.93664E-02 ( -0.0351281  0.0356907 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( -1.53176e-07  1.43971e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 0.0    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.51 using 59 PHA bins.
# Reduced chi-squared =          1.027 for     56 degrees of freedom
# Null hypothesis probability =   4.192206e-01

Photon flux (15-150 keV)    in 26.88 sec: 0.0 5.66694E-02 5.58416E-02 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -5   -5 )
beta        : -1.54744    ( 1.54744   3.46078 )
Epeak [keV] : 282.294      (   )
Norm@50keV   : 1.98375E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.82 using 59 PHA bins.
# Reduced chi-squared =         0.8513 for     55 degrees of freedom
# Null hypothesis probability =   7.756322e-01

Photon flux (15-150 keV)    in 26.88 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 0.00e+006.51e-09
S(50-100 keV) = 0.00e+006.43e-08

T90 vs. Hardness ratio plot

T90                                   = 26.8799999952316 sec.
Hardness ratio (energy fluence ratio) =

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.505486
Count Ratio (50-100 keV) / (15-25 keV) = -0.887138

Mask shadow pattern

IMX = -7.620421242541059E-02, IMY = -2.388754120414345E-01

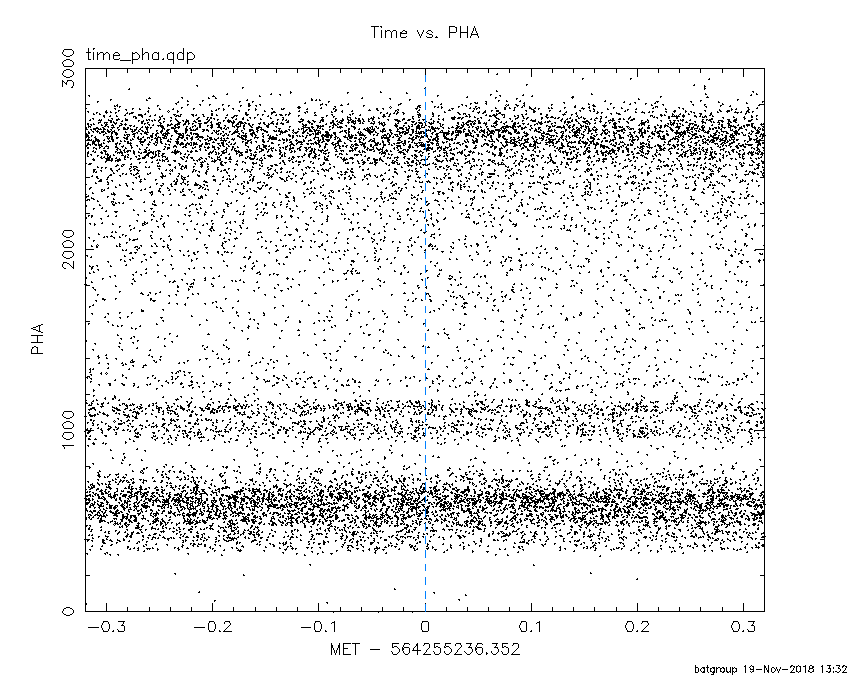

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 26.880000

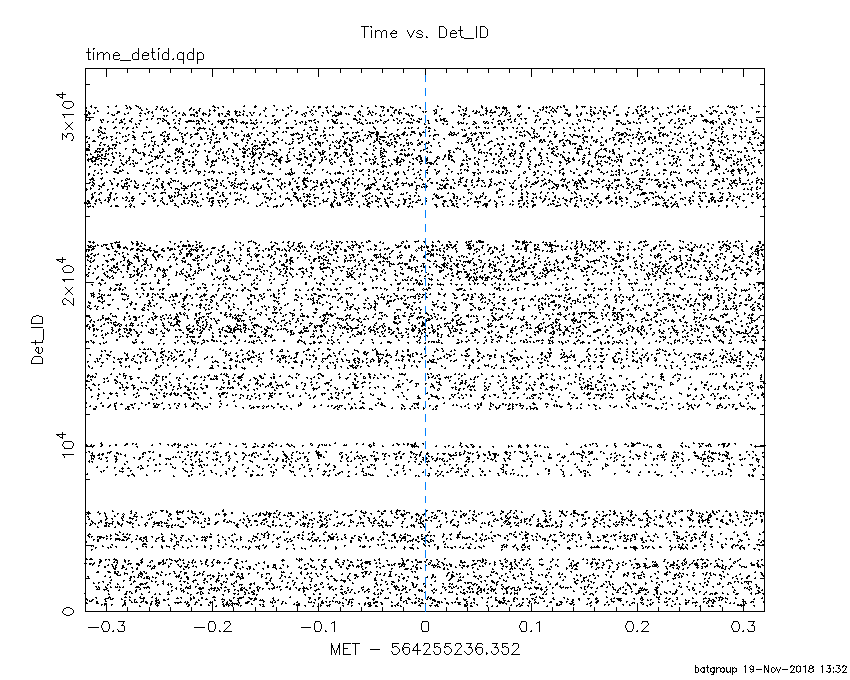

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 26.880000

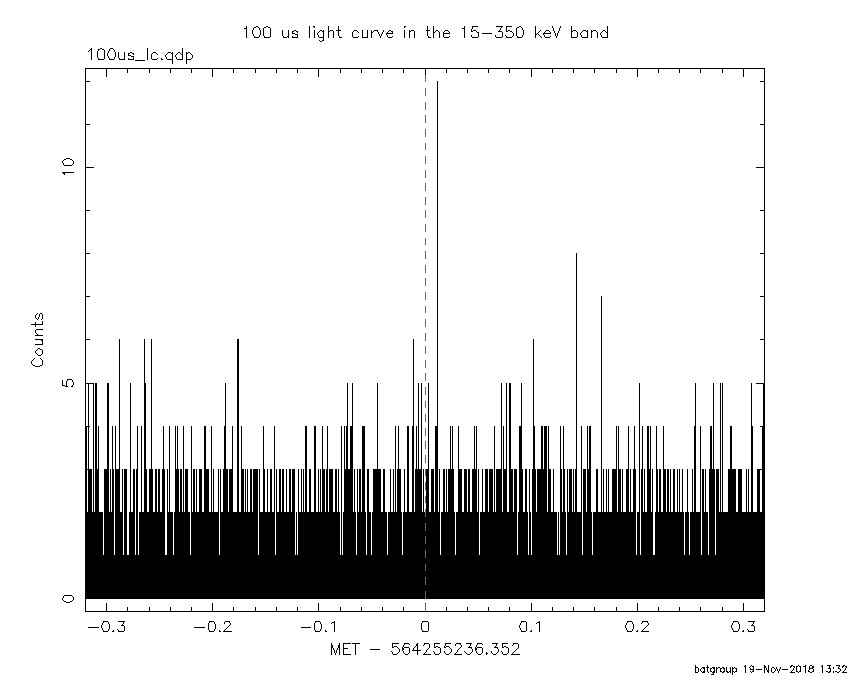

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 26.880000

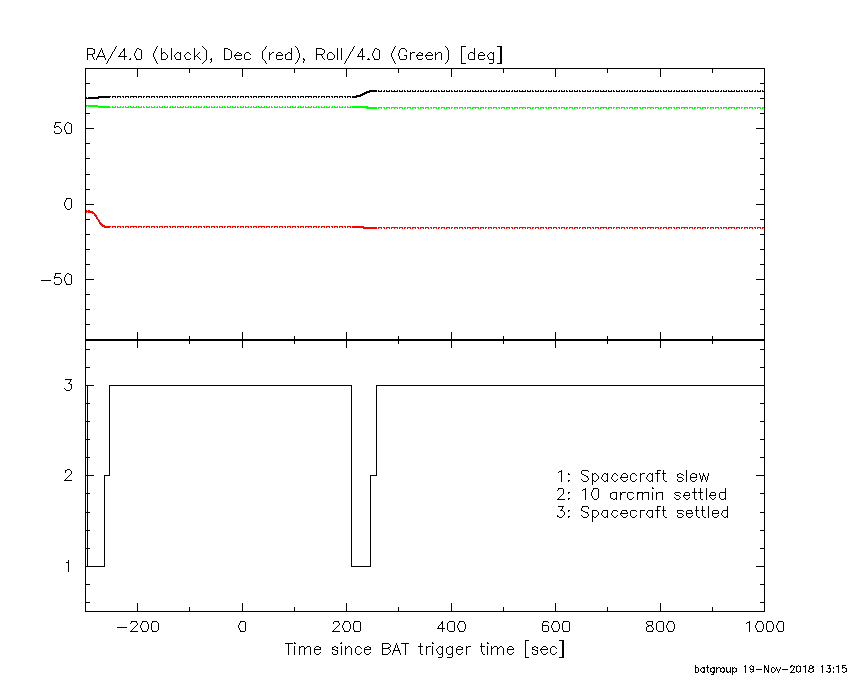

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.352000 -44.352000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0142 -15.7232    4.1  38.2  -83.8   9.9752   2.9    5.4	Sco X-1
254.4323  35.4009   15.2  58.0  -16.2   3.5897   0.8    3.7	Her X-1
255.9314 -37.7060    7.4  34.1 -124.5   2.5394   1.6    8.7	4U 1700-377
256.3789 -36.4423   24.0  33.1 -122.9   0.7876   0.5    3.0	GX 349+2
263.1904 -24.8739    0.0  22.5 -106.7   1.4398   1.2   12.5	GX 1+4
264.5378 -44.3623   34.8  34.0 -141.1  -0.4810  -0.3   10.2	4U 1735-44
268.3756  -1.5089   11.8  21.0  -38.8  -1.1499  -1.0    3.4	SW J1753.5-0127
270.4079 -24.9212   56.0  16.7 -116.0   0.1996   0.2   11.6	GX 5-1
270.2196 -25.6059   15.0  17.2 -117.6   0.7573   0.8    9.4	GRS 1758-258
274.0574 -14.1064    6.0  10.3  -73.7   1.9550   1.9    5.2	GX 17+2
276.0136 -30.5050   99.1  17.4 -141.6  -0.1233  -0.1    9.5	H1820-303
284.9021 -25.0518    5.3  10.1 -168.3   2.0028   2.2   10.7	HT1900.1-2455
288.9618  10.8761   20.6  26.2   22.3   0.7138   0.6   10.5	GRS 1915+105
299.4873  35.1237   10.6  52.0   28.1   4.5653   1.1    6.9	Cyg X-1
263.1509 -33.7378   11.9  27.0 -125.0   1.1772   1.0    9.9	GX 354-0
270.3470  22.2214    2.8  39.8   -8.3   5.9218   4.1 ------	UNKNOWN
255.2460  35.5173    2.4  57.7  -15.5  20.1371   4.7 ------	UNKNOWN
244.7791  24.4711    2.9  55.4  -32.4  26.4826   4.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 26.880000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.1231 -15.7502   11.8  38.1  -83.8   0.5018   1.0   10.6	Sco X-1
254.3577  35.2848    5.3  57.9  -16.4   1.7366   2.2    6.0	Her X-1
255.9479 -37.8317    7.6  34.2 -124.7   0.4205   1.5    2.0	4U 1700-377
256.6207 -36.5372    5.8  33.0 -123.3  -0.5434  -2.0   11.3	GX 349+2
263.1904 -24.8739    0.0  22.5 -106.7   0.2687   1.3   12.5	GX 1+4
264.5878 -44.3041   10.1  33.9 -141.1  -0.2656  -1.1   11.0	4U 1735-44
268.2376  -1.5556   10.2  21.1  -39.2  -0.2092  -1.1   10.0	SW J1753.5-0127
270.2295 -25.0812   47.0  16.9 -116.2  -0.0390  -0.2    3.0	GX 5-1
270.3112 -25.7489    8.6  17.2 -118.2   0.2272   1.4    0.6	GRS 1758-258
273.8281 -13.9177    0.0  10.6  -72.9   0.1717   1.0   12.6	GX 17+2
276.0967 -30.3652    6.9  17.3 -141.5  -0.2929  -1.7    8.9	H1820-303
285.2083 -24.9399    4.1  10.0 -170.0  -0.4572  -2.8    9.4	HT1900.1-2455
288.9563  10.8963   13.1  26.2   22.3   0.1669   0.9    9.8	GRS 1915+105
299.7719  35.0960   36.7  52.1   28.4   0.2112   0.3   10.9	Cyg X-1
263.1593 -33.7972    9.8  27.1 -125.1   0.2421   1.2    8.8	GX 354-0

Post-slew image of 15-350 keV band

Time interval of the image:
246.148590 962.767700

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
262.8474 -24.8217   13.8  35.2  -96.9  -1.2483  -0.8    9.9	GX 1+4
264.7721 -44.3604    7.3  40.9 -127.7   2.1158   1.6    5.5	4U 1735-44
268.3871  -1.5862   22.0  33.5  -54.1  -0.5904  -0.5    8.1	SW J1753.5-0127
270.2260 -25.0213    3.4  28.7  -99.7   3.5025   3.4    4.7	GX 5-1
270.3734 -25.6894    6.7  28.7 -101.1   1.7533   1.7    5.0	GRS 1758-258
274.0763 -14.0754    3.7  24.4  -75.5   2.4437   3.1    4.7	GX 17+2
276.0036 -30.3755    4.8  25.9 -114.6   2.0671   2.4    4.1	H1820-303
284.9395 -24.7868   12.7  16.2 -112.4  -0.6874  -0.9    9.6	HT1900.1-2455
288.7984  10.8385    2.5  28.4   -7.9   3.4744   4.6    6.4	GRS 1915+105
299.5745  35.2112    1.5  50.9   14.4  15.6879   7.9    1.0	Cyg X-1
262.9852 -33.7229   14.1  37.3 -111.6   1.1954   0.8    6.7	GX 354-0
337.5665 -19.6246    3.3  36.7  116.1   7.4111   3.4 ------	UNKNOWN
300.4150  24.7881    2.9  40.5   15.7   4.1136   3.9 ------	UNKNOWN
287.4293   9.7267    3.5  28.0  -11.4   2.4604   3.3 ------	UNKNOWN
256.5922 -53.3368    2.9  50.3 -134.2  14.4602   3.9 ------	UNKNOWN

Plot creation:
Mon Nov 19 13:32:27 EST 2018
