batgrbproduct analysis for trigger=921722

batgrbproduct Analysis for Trigger=921722

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Tue Oct  8 22:29:04 EDT 2019
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger921722
======================================================================

  Trigger: 00921722      Segment: 000

  BAT Trigger Time: 588100227.328   [s; MET]
      Trigger Stop: 588100228.736   [s; MET]
               UTC: 2019-08-21T17:10:03.878460    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 250.076946712462   Dec: -34.0215900580302  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.8
     Image Trigger?:     NO
     Rate S/N Ratio:     11.2694276695846  [ if not an image trigger ]
     Image S/N Ratio:    8.8

  Flight Position:   [ source = BAT ]
    RA: 250.076946712462   Dec: -34.0215900580302  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 250.070237617101   Dec: -34.0265150241703  [deg; J2000]
        { 16h 40m 16.9s , -34d 01' 35.5" }
         +/- 1.32633023350204 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.501644181127196 [arcmin] (formal 1-sigma fit error)
    SNR: 20.3189709488097

  Angular difference between Flight and Ground position is 0.445678 arcmin

  Partial Coding Fraction: 0.8359375    [ including projection effects ]

  Duration
     T90: 57.095999956131 +/- 2.59615098282311
        Measured from: -1.07199990749359
                   to: 56.0240000486374     [s; relative to TRIGTIME]
     T50: 32.6839998960495 +/- 2.39003606412485
        Measured from: 12.2800000905991
                   to: 44.9639999866486     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 29.9840000867844
                   to: 30.9840000867844     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -3.30799996852875
                   to: 59.4920001029968     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.675078   1.744593   0.888540   0.179323
           0.075674   0.068286   0.055942   0.045411 [error]
 Peak      0.111102   0.146155   0.068012   0.007259
           0.011115   0.011109   0.008806   0.006062 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.29e-07 7.10e-07 7.03e-07 1.26e-06 2.35e-06 3.20e-06   erg/cm2
              Error 4.24e-08 3.48e-08 5.55e-08 2.06e-07 1.26e-07 2.56e-07   erg/cm2
Peak flux Power-law 1.22e+00 9.45e-01 4.94e-01 3.73e-01 2.82e+00 3.03e+00   ph/cm2/s
              Error 1.64e-01 8.92e-02 7.01e-02 9.91e-02 2.69e-01 2.86e-01   ph/cm2/s

Fluence   Cutoff-PL 4.99e-07 7.41e-07 7.03e-07 6.47e-07 2.26e-06 2.59e-06   erg/cm2
              Error 5.07e-08 4.40e-08 5.95e-08 4.21e-07 1.54e-07 4.55e-07   erg/cm2
Peak flux Cutoff-PL 1.03e+00 1.12e+00 4.93e-01 7.47e-02 2.70e+00 2.71e+00   ph/cm2/s
              Error 1.92e-01 1.29e-01 8.94e-02 7.01e-02 2.75e-01 2.82e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.014    0.097    -      -           4.07e-03 2.29e-04   60.300 57
CPL   1.596    0.417      43.4   28.6      6.83e-03 3.74e-03   57.030 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.937    0.160    -      -           1.94e-02 2.14e-03   63.370 57
CPL   0.384    0.925      44.4    7.4      1.47e-01 2.88e-01   51.080 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 49.536000 sec.
T50 in the 50-300 keV band: 33.792000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   62.800   -3.308   59.492
T90    57.096   -1.072   56.024
T50    32.684   12.280   44.964
Peak    1.000   29.984   30.984

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  250.0702   -34.0265   0.0095    22.2724  -122.7599         1.7398844     20.319 TRIG_00921722

Foreground time interval of the image:
 -3.308  23.973 (delta_t =  27.281 [sec])
Background time interval of the image:
-239.328  -3.308 (delta_t = 236.020 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.408000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.408000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.408000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

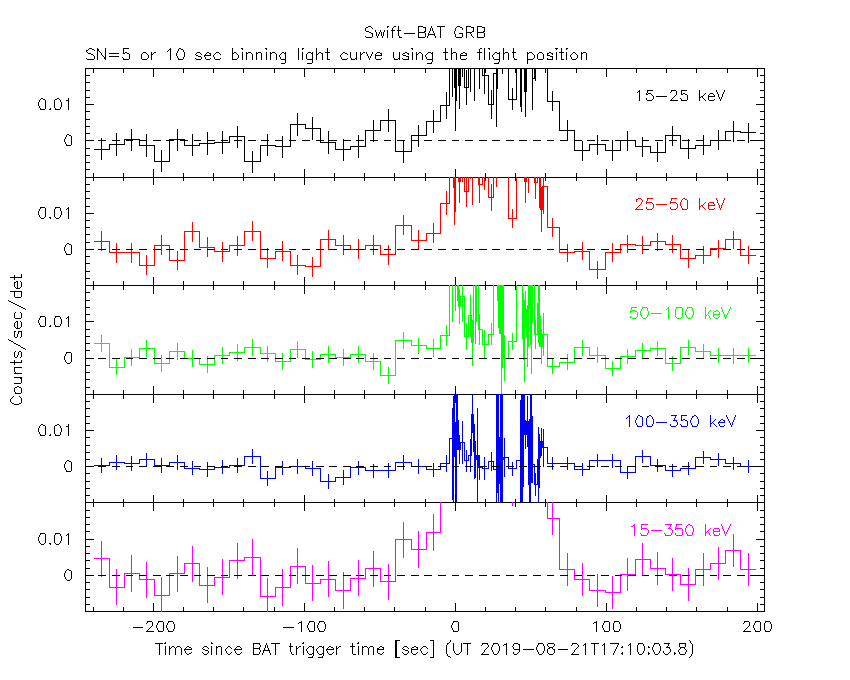

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

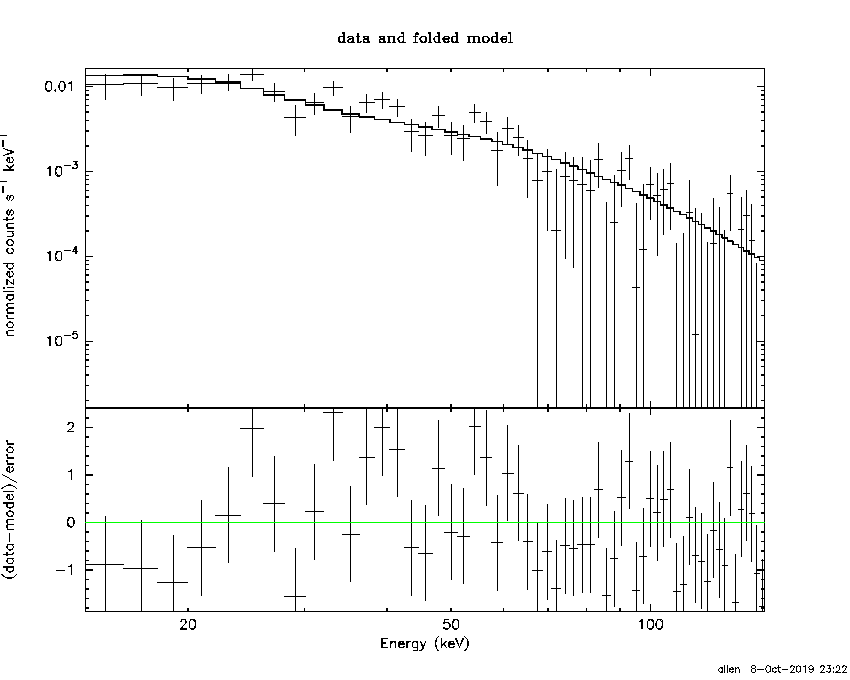

Power-law model

Time interval is from   -3.308 sec. to   59.492 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.01396     ( -0.0962671   0.0981079 )
Norm@50keV  : 4.06577E-03    ( -0.000229902   0.000227735 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.30 using 59 PHA bins.
# Reduced chi-squared =          1.058 for     57 degrees of freedom
# Null hypothesis probability =   3.572823e-01

Photon flux (15-150 keV)    in 62.8 sec: 0.613859 ( -0.031495  0.03159 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.35689e-06 ( -1.2589e-07  1.26698e-07 ) ergs/cm2

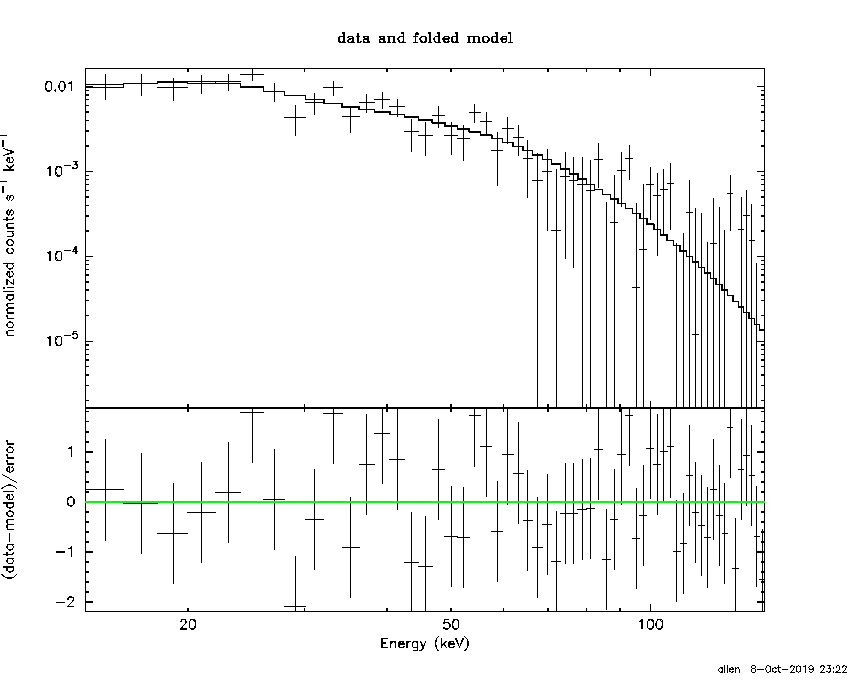

Cutoff power-law model

Time interval is from   -3.308 sec. to   59.492 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.59588     ( -0.438579   0.395014 )
Epeak [keV] : 43.4382      ( -35.6157 21.6463 )
Norm@50keV  : 6.83354E-03    ( -0.00259982   0.004878 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.03 using 59 PHA bins.
# Reduced chi-squared =          1.018 for     56 degrees of freedom
# Null hypothesis probability =   4.365184e-01

Photon flux (15-150 keV)    in 62.8 sec: 0.597380 ( -0.034884  0.035009 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.26022e-06 ( -1.53045e-07  1.54409e-07 ) ergs/cm2

Band function

Time interval is from   -3.308 sec. to   59.492 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.7725  (  )
R^2/D10^2   : 0.203469  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         133.21 using 59 PHA bins.
# Reduced chi-squared =         2.3371 for     57 degrees of freedom
# Null hypothesis probability =   4.844836e-08

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.084e-07   2.889e-08
25- 50  8.488e-07   4.961e-08
50-150  5.474e-07   6.877e-08
15-150  1.705e-06   1.011e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 70.1295       (-10.3398      13.3201)
Norm        : 2.94801       (-0.251667     0.28149)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.16 using 59 PHA bins.
# Reduced chi-squared =          1.020 for     57 degrees of freedom
# Null hypothesis probability =   4.323965e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.751e-07   3.391e-08
25- 50  7.562e-07   3.894e-08
50-150  9.726e-07   1.221e-07
15-150  2.204e-06   1.294e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.03341        (-1.36637      1.37173)
R1^2/D10^2  : 1.27337        (-0.480962      0.911865)
kT2 [keV]   : 19.1476        (-4.00526      6.89636)
R2^2/D10^2  : 1.54518E-02    (-0.0080361   0.0181227)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.94 using 59 PHA bins.
# Reduced chi-squared =          1.144 for     55 degrees of freedom
# Null hypothesis probability =   2.157971e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.596e-07   1.372e-07
25- 50  7.307e-07   1.759e-07
50-150  9.469e-07   3.056e-07
15-150  2.137e-06   6.126e-07

Peak spectrum fit

Power-law model

Time interval is from   29.984 sec. to   30.984 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.93730     ( -0.156293   0.162982 )
Norm@50keV  : 1.93656E-02    ( -0.00215357   0.0021229 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.37 using 59 PHA bins.
# Reduced chi-squared =          1.112 for     57 degrees of freedom
# Null hypothesis probability =   2.617972e-01

Photon flux (15-150 keV)    in 1 sec: 2.82442 ( -0.26856  0.26872 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.7818e-07 ( -1.91826e-08  1.94077e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   29.984 sec. to   30.984 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.383848     ( -1.02824   0.822581 )
Epeak [keV] : 44.4200      ( -6.13584 8.71384 )
Norm@50keV  : 0.147057    ( -0.147829   0.427552 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.08 using 59 PHA bins.
# Reduced chi-squared =         0.9122 for     56 degrees of freedom
# Null hypothesis probability =   6.610400e-01

Photon flux (15-150 keV)    in 1 sec: 2.70333 ( -0.27472  0.27546 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.59948e-07 ( -1.95762e-08  2.07278e-08 ) ergs/cm2

Band function

Time interval is from   29.984 sec. to   30.984 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.7453  (-0.995642  1.10918)
R^2/D10^2   : 1.06186  (-0.334935   0.479062)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.25 using 59 PHA bins.
# Reduced chi-squared =          1.039 for     57 degrees of freedom
# Null hypothesis probability =   3.935954e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.549e-08   4.150e-09
25- 50  6.991e-08   8.110e-09
50-150  4.476e-08   1.124e-08
15-150  1.402e-07   1.685e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 72.0436       (-16.7734      25.6605)
Norm        : 13.9886       (-1.90173     2.21338)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.59 using 59 PHA bins.
# Reduced chi-squared =         0.9578 for     57 degrees of freedom
# Null hypothesis probability =   5.658956e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.599e-08   4.490e-09
25- 50  5.771e-08   5.695e-09
50-150  7.571e-08   1.710e-08
15-150  1.694e-07   2.115e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.64627        (-3.79098      3.30277)
R1^2/D10^2  : 3.47949        (-2.2153      74.553)
kT2 [keV]   : 15.8708        (-4.53497      28.2759)
R2^2/D10^2  : 0.157918    (-0.153966   0.640642)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.46 using 59 PHA bins.
# Reduced chi-squared =         0.9356 for     55 degrees of freedom
# Null hypothesis probability =   6.108113e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.156e-08   1.674e-08
25- 50  6.325e-08   3.233e-08
50-150  6.437e-08   3.592e-08
15-150  1.592e-07   8.200e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.85883     ( -0.146792   0.150828 )
Norm@50keV  : 3.78366E-03    ( -0.000344006   0.000339626 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          80.03 using 59 PHA bins.
# Reduced chi-squared =          1.404 for     57 degrees of freedom
# Null hypothesis probability =   2.380362e-02

Photon flux (15-150 keV)    in 27.28 sec: 0.533752 ( -0.0438905  0.0439748 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.48978e-07 ( -8.58125e-08  8.6764e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.10856     ( -0.778564   0.654991 )
Epeak [keV] : 53.7036      ( -10.8013 56.4996 )
Norm@50keV  : 9.62622E-03    ( -0.00529183   0.0156317 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          76.15 using 59 PHA bins.
# Reduced chi-squared =          1.360 for     56 degrees of freedom
# Null hypothesis probability =   3.787959e-02

Photon flux (15-150 keV)    in 27.28 sec: 0.513332 ( -0.0473  0.047267 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.86134e-07 ( -9.8699e-08  1.01596e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 7.10e-07
S(50-100 keV) = 7.03e-07

T90 vs. Hardness ratio plot

T90                                   = 57.095999956131 sec.
Hardness ratio (energy fluence ratio) = 0.990141

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.0415
Count Ratio (50-100 keV) / (15-25 keV) = 0.530447

Mask shadow pattern

IMX = -2.216252074017614E-01, IMY = 3.444242243999509E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.408000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.408000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.408000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.328000 -3.308000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0015 -15.6279    0.8  26.0  -76.1   9.3189  14.6    1.5	Sco X-1
255.9842 -37.8451    5.7  20.6 -138.9   0.9916   2.0    0.1	4U 1700-377
256.3453 -36.5630  387.5  19.5 -136.8   0.0147   0.0    9.5	GX 349+2
262.9121 -24.7091    3.7   8.3 -105.1   1.4803   3.1    5.7	GX 1+4
264.8389 -44.5178   10.9  23.0 -163.7   0.5023   1.1    5.8	4U 1735-44
268.2354  -1.6110    0.0  20.9   -5.6  -0.5874  -1.2   12.4	SW J1753.5-0127
270.4484 -25.0566    8.3   3.0 -155.9   0.6339   1.4    9.0	GX 5-1
270.1350 -25.7272    4.6   3.7 -155.5   1.1527   2.5    9.1	GRS 1758-258
274.1603 -14.0459    3.9   8.5   20.9   1.4469   2.9    9.0	GX 17+2
275.9575 -30.2715    5.8   8.9  158.9   0.9425   2.0    6.0	H1820-303
285.1021 -24.9975   18.6  12.7  109.1  -0.3103  -0.6    5.9	HT1900.1-2455
288.7646  11.0275   13.5  37.3   32.5   0.6361   0.9    5.3	GRS 1915+105
262.8893 -33.9818    4.0  14.0 -144.9   1.2115   2.9   10.1	GX 354-0
314.7585 -53.1513    2.6  44.9  148.4   7.9747   4.5 ------	UNKNOWN
320.9730 -62.6852    2.4  52.2  157.7  14.1581   4.7 ------	UNKNOWN
261.2987   3.7578    2.2  27.9  -18.5   2.8155   5.2 ------	UNKNOWN
249.5033  15.9667    2.4  43.9  -27.5   3.7443   4.8 ------	UNKNOWN
227.9967 -60.7343    2.2  48.9 -149.5   6.6771   5.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-3.308000 23.972600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8400 -15.6593    9.4  26.1  -76.2   0.1282   1.2    8.1	Sco X-1
256.0348 -37.9242    7.1  20.6 -139.2  -0.1364  -1.6    5.3	4U 1700-377
256.3308 -36.2685    5.6  19.3 -136.1   0.1728   2.1   10.6	GX 349+2
262.9213 -24.5974    5.6   8.3 -104.3   0.1599   2.0   10.1	GX 1+4
264.9419 -44.5627   10.1  23.0 -163.9  -0.0970  -1.1   10.9	4U 1735-44
268.4457  -1.5979    3.7  20.9   -5.0  -0.2575  -3.1    9.9	SW J1753.5-0127
270.1286 -25.2374    0.0   3.3 -152.3  -0.0396  -0.5   12.7	GX 5-1
270.4362 -25.6402    6.1   3.6 -159.0   0.1717   2.2    9.5	GRS 1758-258
273.9986 -14.0569  192.4   8.5   19.9   0.0047   0.1    1.3	GX 17+2
276.0726 -30.4262    4.9   9.1  158.8   0.1845   2.4    8.4	H1820-303
284.8981 -25.0907    0.0  12.5  109.7  -0.1101  -1.3   12.7	HT1900.1-2455
288.6584  10.9726    6.7  37.2   32.3  -0.2602  -1.7    8.4	GRS 1915+105
262.8858 -33.6846    4.9  13.8 -144.2   0.1876   2.3   10.4	GX 354-0
309.6830 -23.3528    2.2  35.0  103.2   1.0278   5.3 ------	UNKNOWN
250.0702 -34.0265    0.6  22.3 -122.8   1.7401  20.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
67.172600 428.572600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.1816 -60.7563    5.3  56.0 -149.2  -8.0238  -2.2    8.9	Cen X-3
186.4882 -62.6870    9.0  48.2 -151.2   2.1819   1.3    6.8	GX 301-2
244.9896 -15.6256    0.5  18.9  -20.0  16.0448  22.9    1.1	Sco X-1
255.7956 -37.8851    5.8   6.0  127.1   1.3586   2.0    9.4	4U 1700-377
256.6249 -36.2760    0.0   5.8  110.3   2.2756   3.3   12.7	GX 349+2
262.9422 -24.7089    7.5  14.5   48.9   1.0214   1.5    4.3	GX 1+4
264.9266 -44.2890    8.2  15.4  131.7   1.0442   1.4   12.5	4U 1735-44
268.4911  -1.4128    9.5  36.8   27.1  -1.2972  -1.2    7.8	SW J1753.5-0127
270.3922 -25.1934   78.0  19.7   64.1  -0.1294  -0.2    9.0	GX 5-1
270.2987 -25.7071    7.5  19.3   65.3   1.5722   1.8    2.2	GRS 1758-258
274.1591 -14.0670   13.7  29.5   48.7   0.9487   0.8    9.1	GX 17+2
276.0392 -30.2112    4.8  22.2   82.7   2.1322   2.4   11.1	H1820-303
284.8382 -24.8238    0.0  31.4   77.7   1.7881   1.4   12.2	HT1900.1-2455
263.1778 -33.9751    0.0  10.8   88.9   1.0200   1.4   12.6	GX 354-0
303.9486 -66.5918    2.8  45.0  148.3  11.1252   4.2 ------	UNKNOWN
216.0343 -77.8048    2.6  46.2 -175.2   6.5893   4.4 ------	UNKNOWN
195.4167 -37.9789    2.4  43.8 -116.3  13.2498   4.7 ------	UNKNOWN

Plot creation:
Wed Oct  9 18:08:58 EDT 2019
