Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte
Pre-slew 15.0-350.0 keV image (Event data)
# RAcent DECcent POSerr Theta Phi Peak Cts SNR Name
269.3593 46.0473 0.0127 15.4453 42.2249 0.4180388 15.022 TRIG_00933515
Foreground time interval of the image:
-1.356 2.380 (delta_t = 3.736 [sec])
Background time interval of the image:
-255.275 -1.356 (delta_t = 253.919 [sec])
Lightcurves
Notes:
- 1) The mask-weighted light curves are using the flight position.
- 2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
- 3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
- 4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
- 5) Time of each bin is in the middle of the bin.

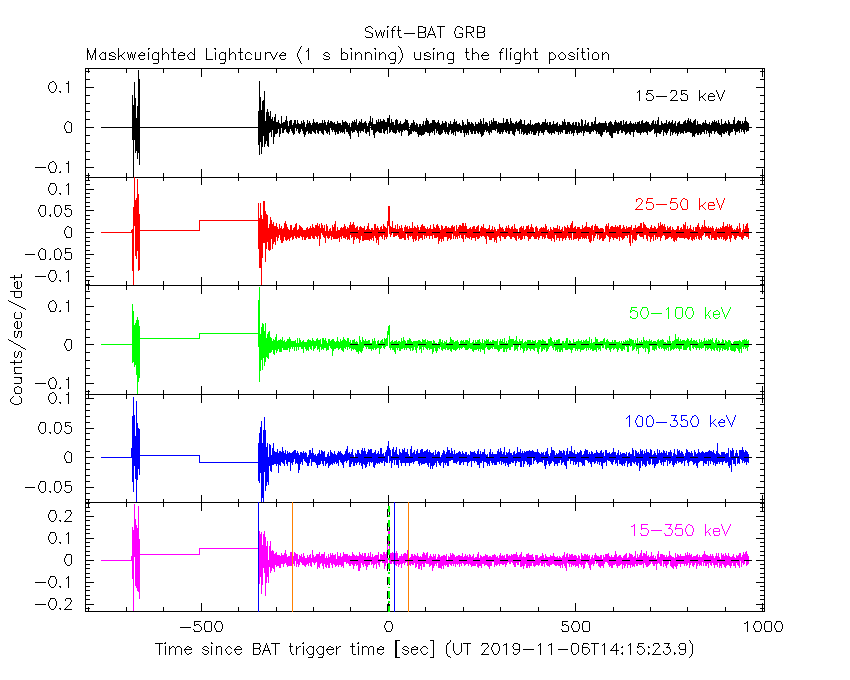

1 s binning
From T0-310 s to T0+310 s
From T100_start - 20 s to T100_end + 30 s
Full time interval

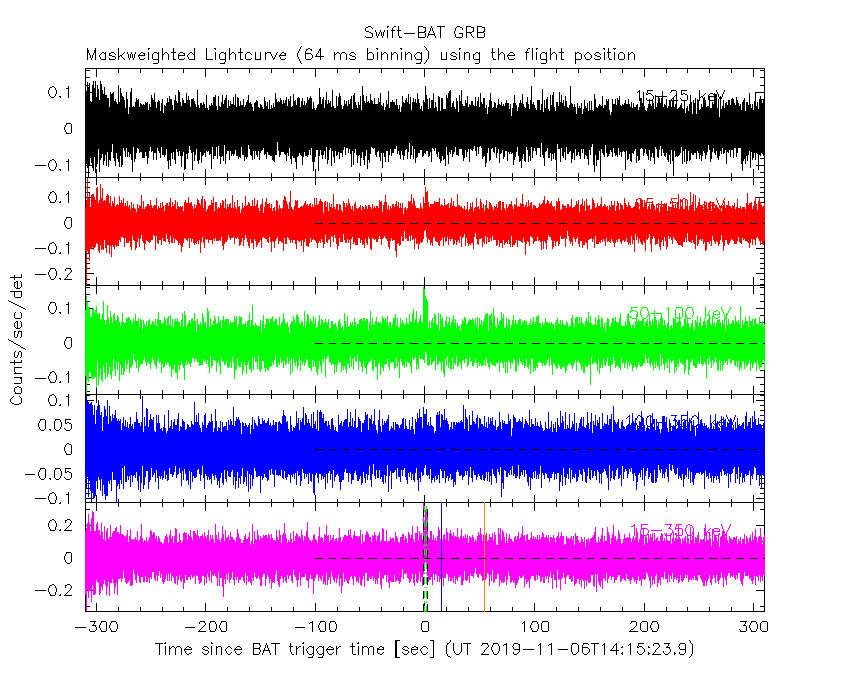

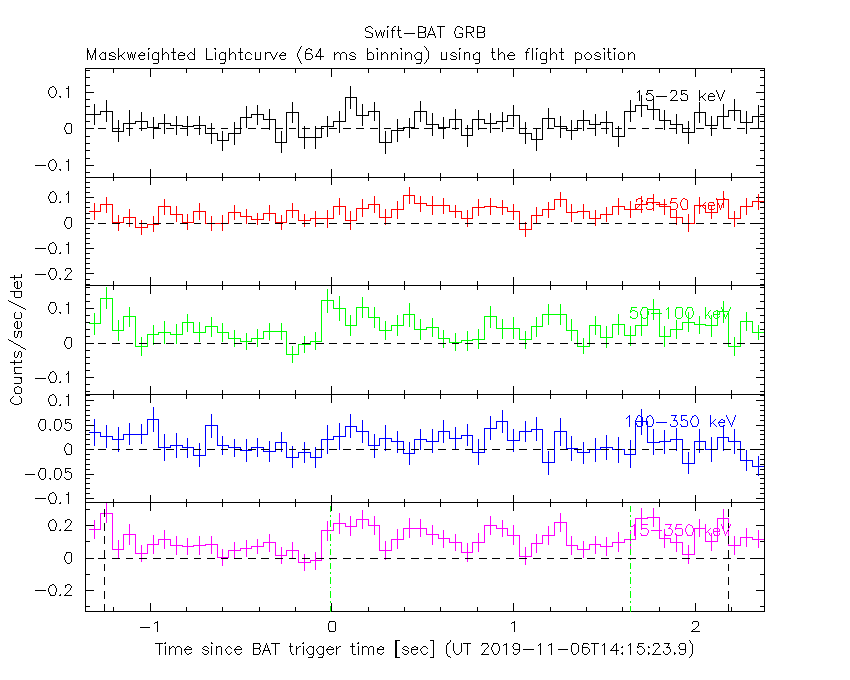

64 ms binning
Full time interval
From T100_start to T100_end

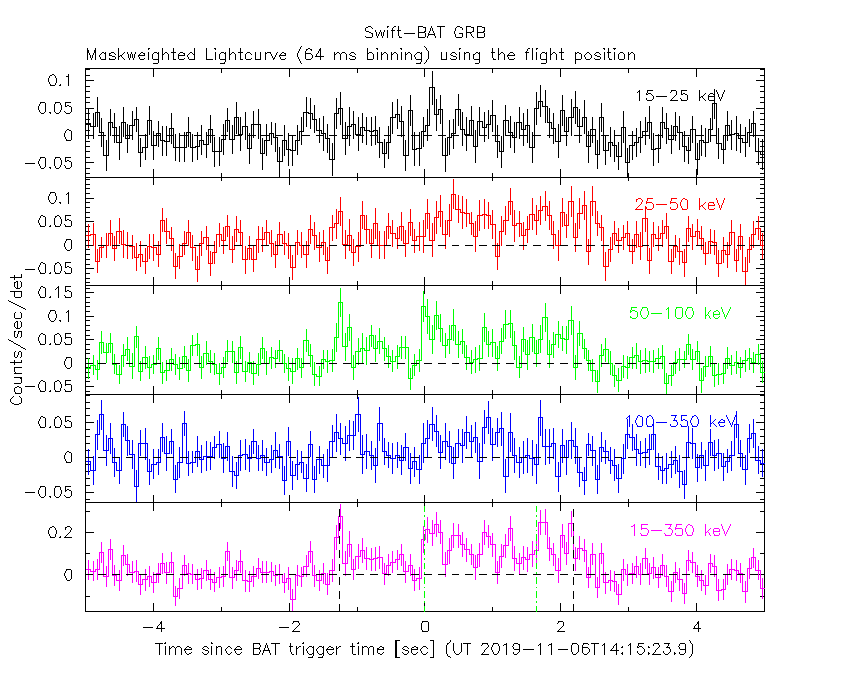

From T0-5 sec to T0+5 sec
16 ms binning
From T100_start-5 s to T100_start+5 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

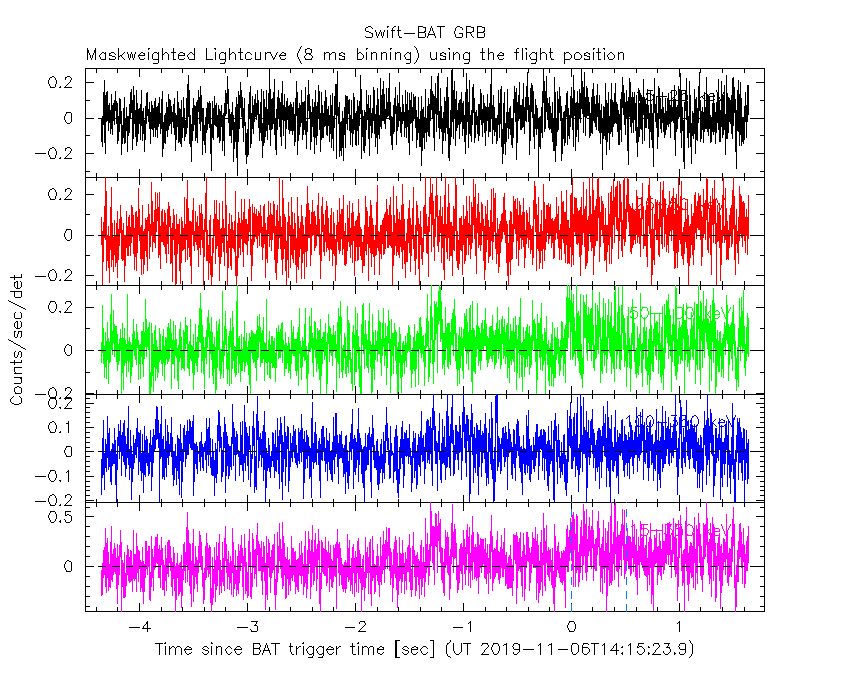

8 ms binning
From T100_start-3 s to T100_start+3 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

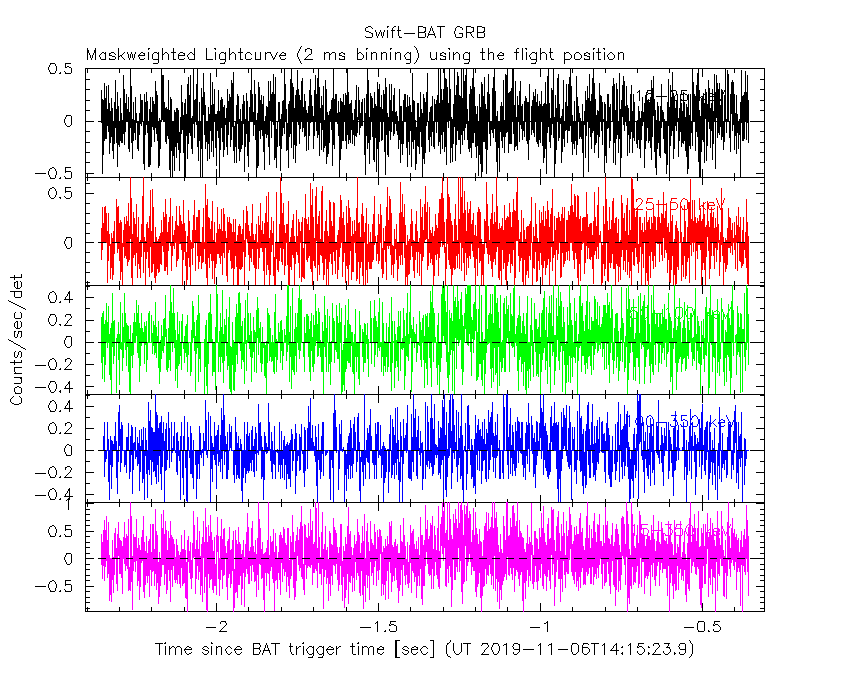

2 ms binning
From T100_start-1 s to T100_start+1 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000
SN=5 or 10 sec. binning (whichever binning is satisfied first)

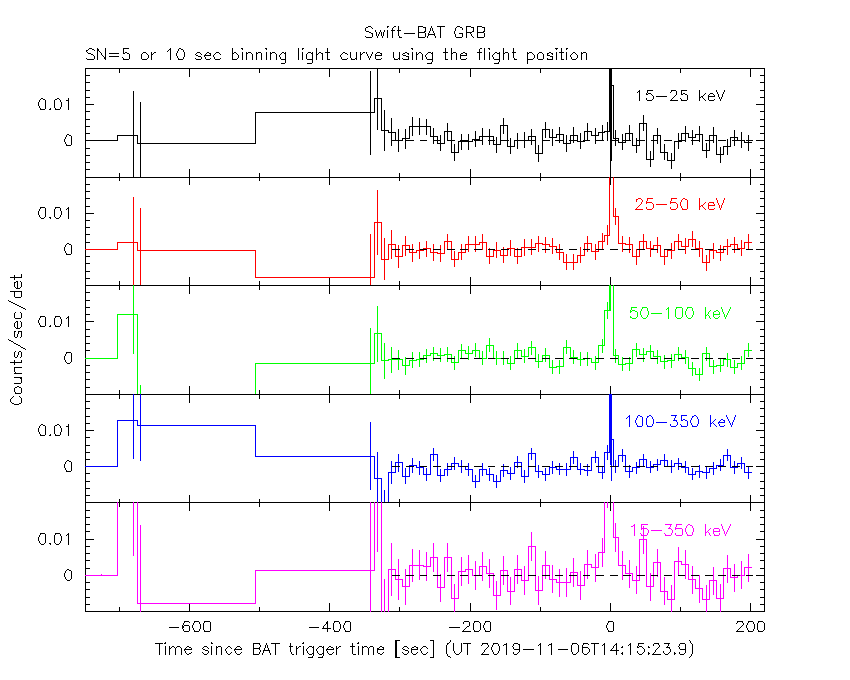

SN=5 or 10 sec. binning (T < 200 sec)
Quad-rate summed light curves (from T0-300s to T0+1000s)
Spectral Evolution
Spectra
Notes:
- 1) The fitting includes the systematic errors.
- 2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
- 3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
Time averaged spectrum fit using the average DRM
Power-law model
Time interval is from -1.356 sec. to 2.380 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.899935 ( -0.177779 0.170793 )
Norm@50keV : 7.58511E-03 ( -0.000754777 0.000749447 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 45.04 using 59 PHA bins.
# Reduced chi-squared = 0.7901 for 57 degrees of freedom
# Null hypothesis probability = 8.742222e-01
Photon flux (15-150 keV) in 3.736 sec: 0.870592 ( -0.086489 0.08674 ) ph/cm2/s
Energy fluence (15-150 keV) : 3.18073e-07 ( -3.29666e-08 3.31451e-08 ) ergs/cm2
Cutoff power-law model
Time interval is from -1.356 sec. to 2.380 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.594798 ( -0.758631 0.386119 )
Epeak [keV] : 263.338 ( -263.34 -263.34 )
Norm@50keV : 1.03824E-02 ( -0.00339088 0.0115012 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 44.42 using 59 PHA bins.
# Reduced chi-squared = 0.7933 for 56 degrees of freedom
# Null hypothesis probability = 8.677069e-01
Photon flux (15-150 keV) in 3.736 sec: 0.859520 ( -0.089846 0.089876 ) ph/cm2/s
Energy fluence (15-150 keV) : 3.12491e-07 ( -3.60404e-08 3.53473e-08 ) ergs/cm2
Band function
Time interval is from -1.356 sec. to 2.380 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : ( )
beta : ( )
Epeak [keV] : ( )
Norm@50keV : ( )
------------------------------------------------------------
Photon flux (15-150 keV) in sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2

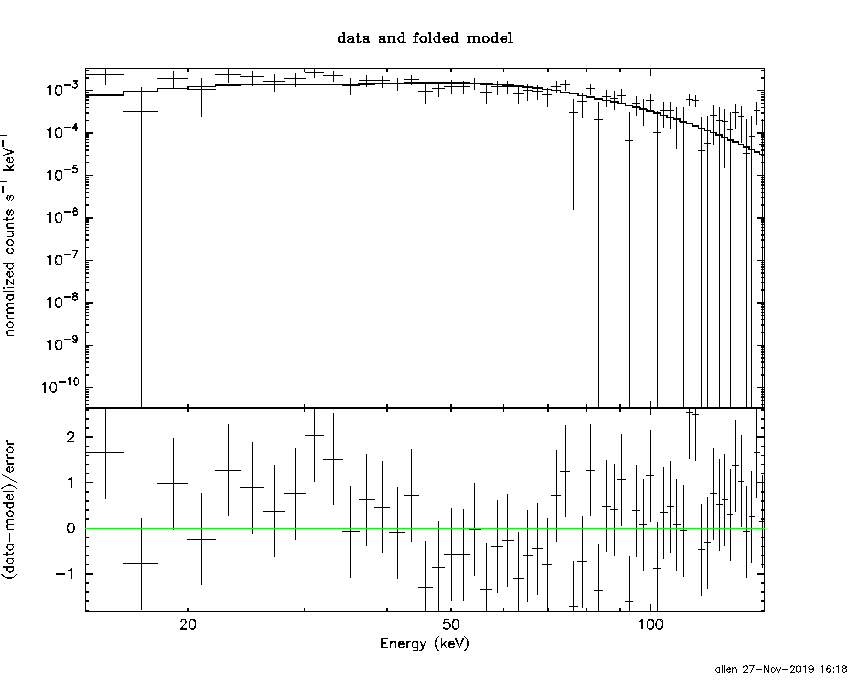

Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 22.9660 (-3.05942 3.78692)
R^2/D10^2 : 2.75637E-02 (-0.0102565 0.0155051)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 58.50 using 59 PHA bins.
# Reduced chi-squared = 1.026 for 57 degrees of freedom
# Null hypothesis probability = 4.201221e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 9.850e-09 1.900e-09
25- 50 5.340e-08 8.238e-09
50-150 2.104e-07 3.729e-08
15-150 2.736e-07 3.531e-08
Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 200.000 (-17.191 -200)
Norm : 3.51859 (-0.359853 0.359853)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 82.68 using 59 PHA bins.
# Reduced chi-squared = 1.450 for 57 degrees of freedom
# Null hypothesis probability = 1.474318e-02
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 3.272e-08 1.706e-08
25- 50 6.294e-08 2.340e-08
50-150 1.380e-07 7.493e-08
15-150 2.337e-07 1.270e-07

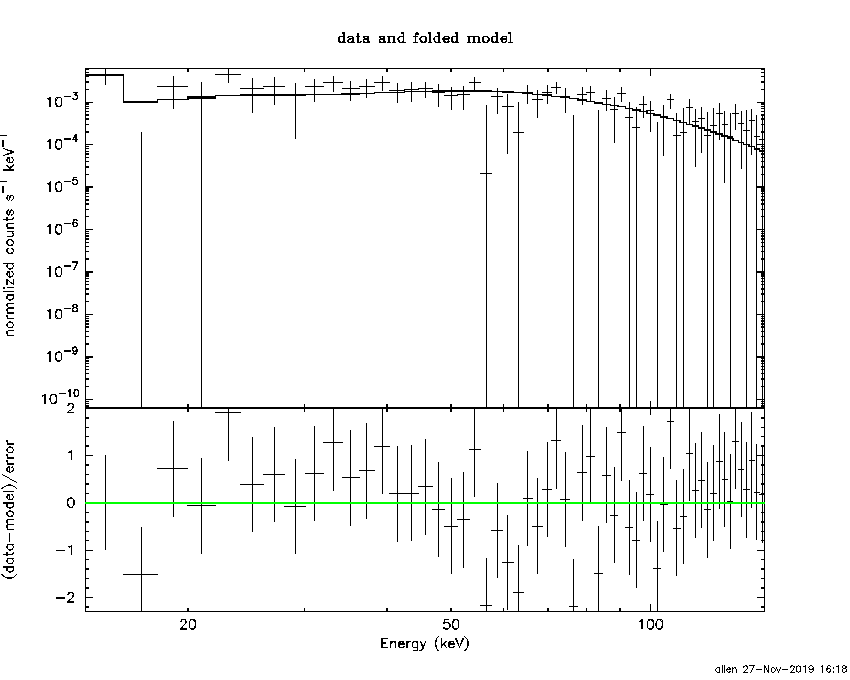

Double BB
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 8.04744E-02 (0.822496 -0.0804744)
R1^2/D10^2 : 4.78220E+17 (-4.7822e+17 -4.7822e+17)
kT2 [keV] : 22.9726 (-3.06126 3.78507)
R2^2/D10^2 : 2.75399E-02 (-0.0102567 0.0155087)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 58.50 using 59 PHA bins.
# Reduced chi-squared = 1.064 for 55 degrees of freedom
# Null hypothesis probability = 3.482216e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 0.000e+00 0.000e+00
25- 50 0.000e+00 0.000e+00
50-150 0.000e+00 0.000e+00
15-150 0.000e+00 0.000e+00
Peak spectrum fit
Power-law model
Time interval is from -0.048 sec. to 0.952 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.770450 ( -0.288489 0.266657 )
Norm@50keV : 9.78014E-03 ( -0.00155785 0.00152135 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 44.71 using 59 PHA bins.
# Reduced chi-squared = 0.7845 for 57 degrees of freedom
# Null hypothesis probability = 8.813884e-01
Photon flux (15-150 keV) in 1 sec: 1.12543 ( -0.171089 0.1722 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.15744e-07 ( -1.80158e-08 1.81281e-08 ) ergs/cm2
Cutoff power-law model
Time interval is from -0.048 sec. to 0.952 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.764559 ( -0.346776 0.267689 )
Epeak [keV] : 9999.19 ( -9999.32 -9999.32 )
Norm@50keV : 9.85439E-03 ( -0.00146476 0.0178813 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 44.71 using 59 PHA bins.
# Reduced chi-squared = 0.7985 for 56 degrees of freedom
# Null hypothesis probability = 8.607360e-01
Photon flux (15-150 keV) in 1 sec: 1.12552 ( -0.174944 0.17087 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.15776e-07 ( -1.89527e-08 1.69848e-08 ) ergs/cm2
Band function
Time interval is from -0.048 sec. to 0.952 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : ( )
beta : ( )
Epeak [keV] : ( )
Norm@50keV : ( )
------------------------------------------------------------
Photon flux (15-150 keV) in sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 26.4764 (-5.63269 8.32639)
R^2/D10^2 : 2.38036E-02 (-0.0128486 0.0250011)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 52.46 using 59 PHA bins.
# Reduced chi-squared = 0.9204 for 57 degrees of freedom
# Null hypothesis probability = 6.458178e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 2.809e-09 9.800e-10
25- 50 1.640e-08 4.728e-09
50-150 8.435e-08 2.525e-08
15-150 1.035e-07 2.369e-08

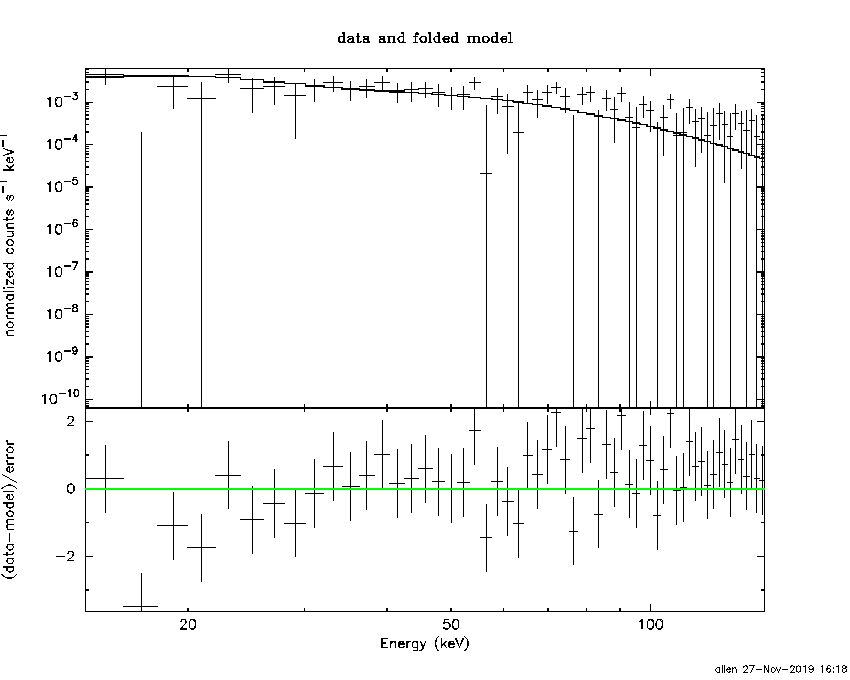

Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 200.000 (-32.0395 -200)
Norm : 4.46402 (-0.714004 0.714004)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 67.40 using 59 PHA bins.
# Reduced chi-squared = 1.182 for 57 degrees of freedom
# Null hypothesis probability = 1.631040e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 1.111e-08 6.385e-09
25- 50 2.137e-08 1.214e-08
50-150 4.688e-08 2.677e-08
15-150 7.936e-08 4.494e-08
Double BB
------------------------------------------------------------
#Fit statistic : Chi-Squared = 49.38 using 59 PHA bins.
#Fit statistic : Chi-Squared = 48.63 using 59 PHA bins.
#Fit statistic : Chi-Squared = 48.59 using 59 PHA bins.
#Fit statistic : Chi-Squared = 48.58 using 59 PHA bins.
# Reduced chi-squared = 0.8979 for 55 degrees of freedom
# Reduced chi-squared = 0.8841 for 55 degrees of freedom
# Reduced chi-squared = 0.8835 for 55 degrees of freedom
# Reduced chi-squared = 0.8832 for 55 degrees of freedom
# Null hypothesis probability = 6.881526e-01
# Null hypothesis probability = 7.151680e-01
# Null hypothesis probability = 7.163438e-01
# Null hypothesis probability = 7.169789e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 2.992e-09 9.365e-10
25- 50 1.590e-08 3.825e-09
50-150 8.528e-08 2.381e-08
15-150 1.042e-07 2.770e-08

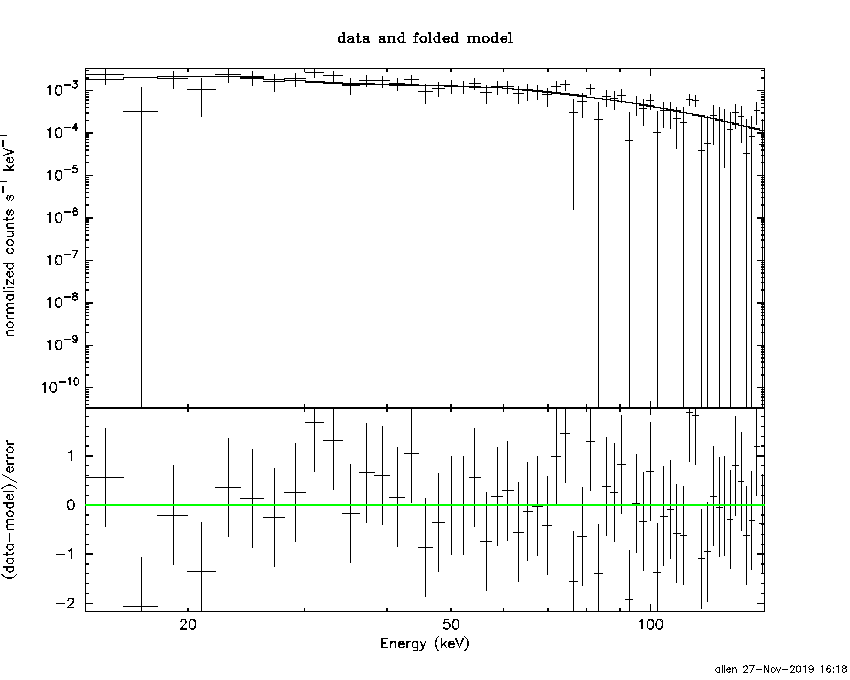

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)
Power-law model
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.899935 ( -0.177779 0.170793 )
Norm@50keV : 7.58511E-03 ( -0.000754777 0.000749447 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 45.04 using 59 PHA bins.
# Reduced chi-squared = 0.7901 for 57 degrees of freedom
# Null hypothesis probability = 8.742222e-01
Photon flux (15-150 keV) in 3.736 sec: 0.870600 ( -0.0864854 0.0867333 ) ph/cm2/s
Energy fluence (15-150 keV) : 3.18033e-07 ( -3.29561e-08 3.31566e-08 ) ergs/cm2

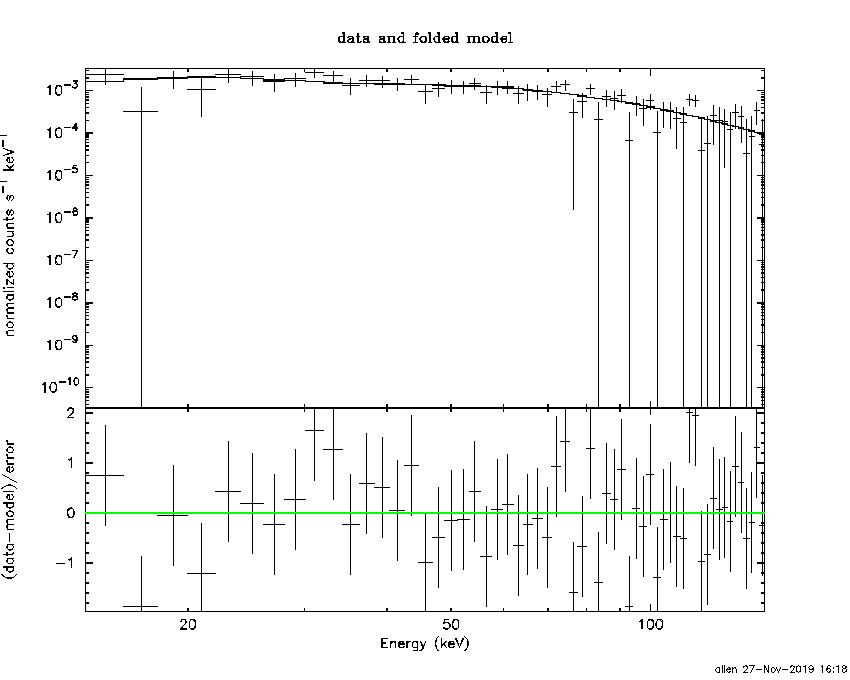

Cutoff power-law model
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.594767 ( -0.758623 0.386178 )
Epeak [keV] : 263.308 ( -263.339 -263.339 )
Norm@50keV : 1.03828E-02 ( -0.00339088 0.0115011 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 44.42 using 59 PHA bins.
# Reduced chi-squared = 0.7933 for 56 degrees of freedom
# Null hypothesis probability = 8.677069e-01
Photon flux (15-150 keV) in 3.736 sec: 0.859493 ( -0.089827 0.08987 ) ph/cm2/s
Energy fluence (15-150 keV) : 3.12639e-07 ( -3.60539e-08 3.53609e-08 ) ergs/cm2
Band function
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : ( )
beta : ( )
Epeak [keV] : ( )
Norm@50keV : ( )
------------------------------------------------------------
Photon flux (15-150 keV) in sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
S(25-50 keV) vs. S(50-100 keV) plot
S(25-50 keV) = 5.49e-08
S(50-100 keV) = 1.18e-07
T90 vs. Hardness ratio plot
T90 = 3.43599987030029 sec.
Hardness ratio (energy fluence ratio) = 2.14936
Color vs. Color plot
Count Ratio (25-50 keV) / (15-25 keV) = 2.77669
Count Ratio (50-100 keV) / (15-25 keV) = 2.74278
Mask shadow pattern
IMX = 2.046010439575555E-01, IMY = -1.856828444633533E-01
TIME vs. PHA plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000
TIME vs. DetID plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

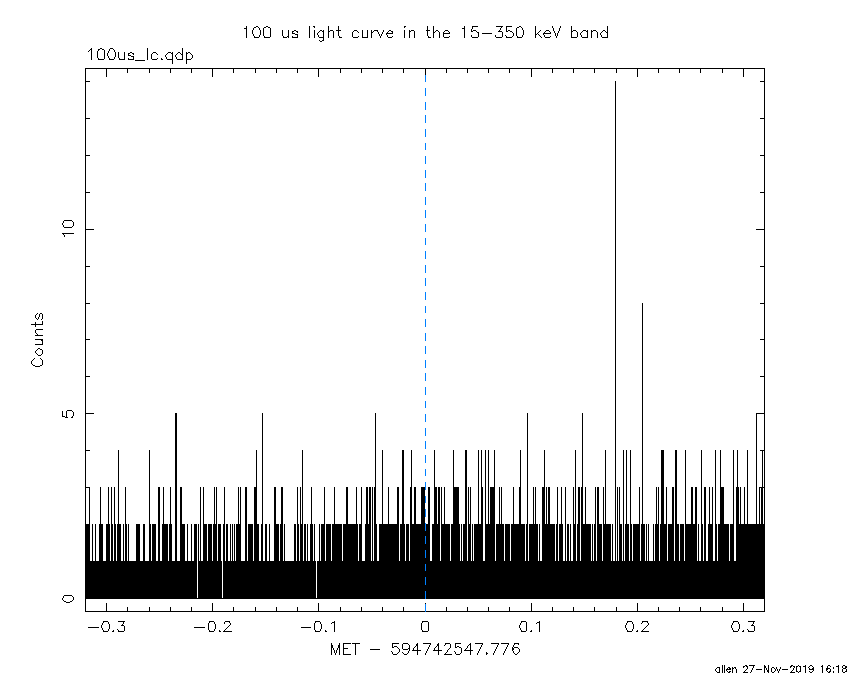

100 us light curve (15-350 keV)
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000
Spacecraft aspect plot
Bright source in the pre-burst/pre-slew/post-slew images
Pre-burst image of 15-350 keV band
Time interval of the image:
-255.275400 -1.356000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
254.4700 35.2473 1.9 11.1 -27.9 1.7257 6.2 5.7 Her X-1
268.5298 -1.4401 8.1 32.2 -148.6 -0.5673 -1.4 9.7 SW J1753.5-0127
270.4356 -25.1158 6.6 56.0 -149.2 2.6191 1.8 8.5 GX 5-1
273.9642 -14.0594 4.9 45.4 -155.0 1.4597 2.4 2.8 GX 17+2
288.8617 10.8100 12.3 28.7 164.2 -0.3098 -0.9 8.9 GRS 1915+105
299.5563 35.1937 1.0 27.9 107.0 4.6540 11.4 1.7 Cyg X-1
308.2028 40.8826 3.6 34.9 96.4 1.8649 3.2 5.9 Cyg X-3
213.0592 68.5524 3.1 48.5 11.9 2.0388 3.7 ------ UNKNOWN
285.1331 -2.9833 2.9 38.1 -175.9 1.6024 3.9 ------ UNKNOWN
242.9187 22.8422 2.5 22.5 -69.8 1.6527 4.6 ------ UNKNOWN
209.8413 43.6866 3.3 46.1 -22.1 1.9984 3.5 ------ UNKNOWN
224.9744 26.7740 2.7 36.5 -50.6 2.0520 4.2 ------ UNKNOWN
267.9030 -23.6577 2.4 54.4 -146.4 6.8042 4.9 ------ UNKNOWN
Pre-slew background subtracted image of 15-350 keV band
Time interval of the image:
-1.356000 2.380000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
254.4590 35.3436 1190.8 11.2 -27.5 -0.0002 -0.0 0.1 Her X-1
268.3930 -1.2707 0.0 32.1 -148.4 0.0447 1.4 11.0 SW J1753.5-0127
270.2303 -25.1237 31.8 56.0 -148.9 -0.0550 -0.4 4.0 GX 5-1
273.9449 -13.9059 8.0 45.2 -155.0 -0.0817 -1.4 8.6 GX 17+2
288.7308 10.7722 38.7 28.6 164.5 0.0095 0.3 11.1 GRS 1915+105
299.4602 35.0235 0.0 27.8 107.4 0.0490 1.3 12.5 Cyg X-1
308.2039 40.8408 6.8 34.9 96.5 0.0998 1.7 7.9 Cyg X-3
295.1017 25.9336 2.5 25.5 128.8 0.1527 4.7 ------ UNKNOWN
269.3593 46.0473 0.8 15.4 42.2 0.4181 15.0 ------ UNKNOWN
Post-slew image of 15-350 keV band
Time interval of the image:
54.124600 719.219200
720.224000 962.302000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
254.4813 35.3577 1.6 15.5 -85.7 6.4521 7.4 1.5 Her X-1
268.2480 -1.5230 7.7 47.6 -135.8 -4.2663 -1.5 8.3 SW J1753.5-0127
288.8317 11.1021 4.5 38.7 -168.9 3.1589 2.6 9.6 GRS 1915+105
299.5940 35.1935 0.8 25.2 147.4 14.3810 15.4 0.5 Cyg X-1
308.1590 40.9529 1.6 28.3 128.9 7.5852 7.2 2.2 Cyg X-3
326.0507 38.2818 6.3 41.9 122.4 7.3496 1.8 6.2 Cyg X-2
123.7953 86.6736 4.1 46.7 40.2 6.3375 2.8 ------ UNKNOWN
292.6151 13.4441 4.1 38.1 -175.9 3.1052 2.8 ------ UNKNOWN
Plot creation:
Wed Nov 27 16:18:40 EST 2019
