batgrbproduct analysis for trigger=954304

batgrbproduct Analysis for Trigger=954304

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Thu Feb  6 16:27:24 EST 2020
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger954304/GCN5_download_cron
======================================================================

  Trigger: 00954304      Segment: 000

  BAT Trigger Time: 602577376   [s; MET]
      Trigger Stop: 602577440   [s; MET]
               UTC: 2020-02-05T06:35:51.617920    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 130.171013589059   Dec: -35.2445838144734  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10.69
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    10.69

  Flight Position:   [ source = BAT ]
    RA: 130.171013589059   Dec: -35.2445838144734  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 130.168311361874   Dec: -35.2752479427948  [deg; J2000]
        { 08h 40m 40.4s , -35d 16' 30.9" }
         +/- 2.97851498857351 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.86902530274864 [arcmin] (formal 1-sigma fit error)
    SNR: 6.39699222650481

  Angular difference between Flight and Ground position is 1.844605 arcmin

  Partial Coding Fraction: 0.9453125    [ including projection effects ]

  Duration
     T90: 198.827999949455 +/- 17.0049234909028
        Measured from: -74.3319998979568
                   to: 124.496000051498     [s; relative to TRIGTIME]
     T50: 97.691999912262 +/- 16.2620241193459
        Measured from: -23.6199998855591
                   to: 74.0720000267029     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -81.8980000019073
                   to: -80.8980000019073     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -81.8880000114441
                   to: 132.868000030518     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.205080   1.202305   0.407533   0.026625
           0.076781   0.078201   0.069403   0.064422 [error]
 Peak      0.009490   0.016223   0.012633   0.008078
           0.008332   0.008571   0.007734   0.007333 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.91e-07 4.54e-07 3.79e-07 5.33e-07 1.42e-06 1.76e-06   erg/cm2
              Error 4.27e-08 3.83e-08 6.12e-08 1.65e-07 1.39e-07 2.41e-07   erg/cm2
Peak flux Power-law 1.27e-01 1.13e-01 6.93e-02 6.43e-02 3.37e-01 3.75e-01   ph/cm2/s
              Error 1.05e-01 9.02e-02 5.78e-02 1.17e-01 1.99e-01 2.28e-01   ph/cm2/s

Fluence   Cutoff-PL 3.51e-07 5.21e-07 3.21e-07 6.69e-08 1.25e-06 1.26e-06   erg/cm2
              Error 4.92e-08 5.39e-08 7.97e-08 9.85e-08 1.46e-07 1.72e-07   erg/cm2
Peak flux Cutoff-PL 8.47e-02 1.40e-01 7.89e-02 1.04e-02 3.13e-01 3.14e-01   ph/cm2/s
              Error 1.14e-01 9.21e-02 7.25e-02 1.01e-01 2.04e-01 2.05e-01   ph/cm2/s

Fluence        Band 3.48e-07 5.19e-07 3.20e-07 6.66e-08 1.25e-06 1.26e-06   erg/cm2
              Error 4.54e-08 5.25e-08 7.78e-08 -------- 1.43e-07 --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.260    0.166    -      -           7.01e-04 8.18e-05   77.170 57
CPL   0.841    0.911      31.5    8.4      4.97e-03 1.02e-02   67.170 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.709    1.216    -      -           2.53e-03 2.10e-03   48.550 57
CPL   0.031    1.619      54.6    0.0      1.87e-02 4.20e+03   47.990 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  214.756  -81.888  132.868
T90   198.828  -74.332  124.496
T50    97.692  -23.620   74.072
Peak    1.000  -81.898  -80.898

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

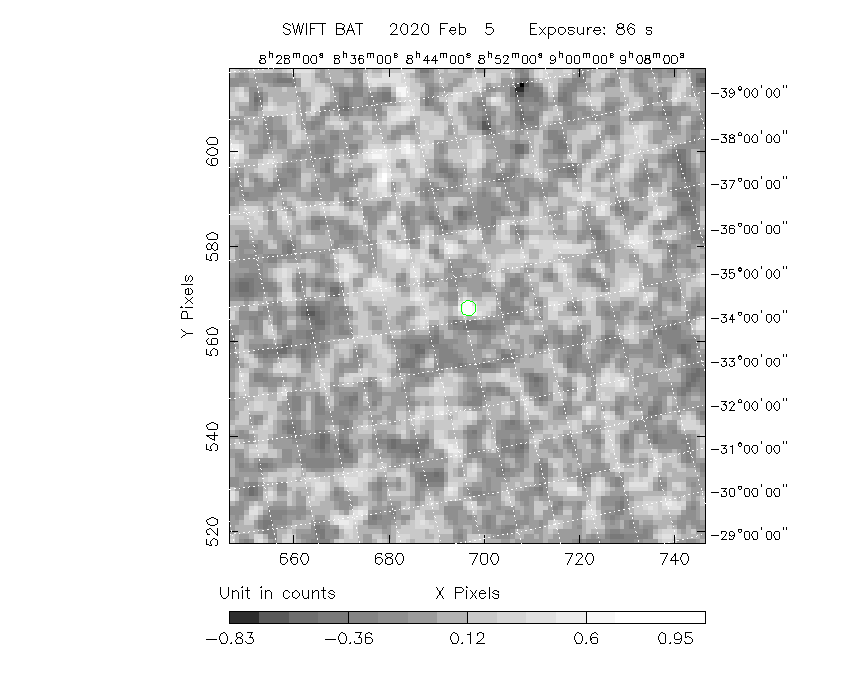

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  130.1683 -35.2752 0.0302   23.2  -26.3       1.2154     6.4  TRIG_00954304
------------------------------------------

Foreground time interval of the image:
-14.799  14.930 (delta_t =  29.729 [sec])
 16.000  72.101 (delta_t =  56.101 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

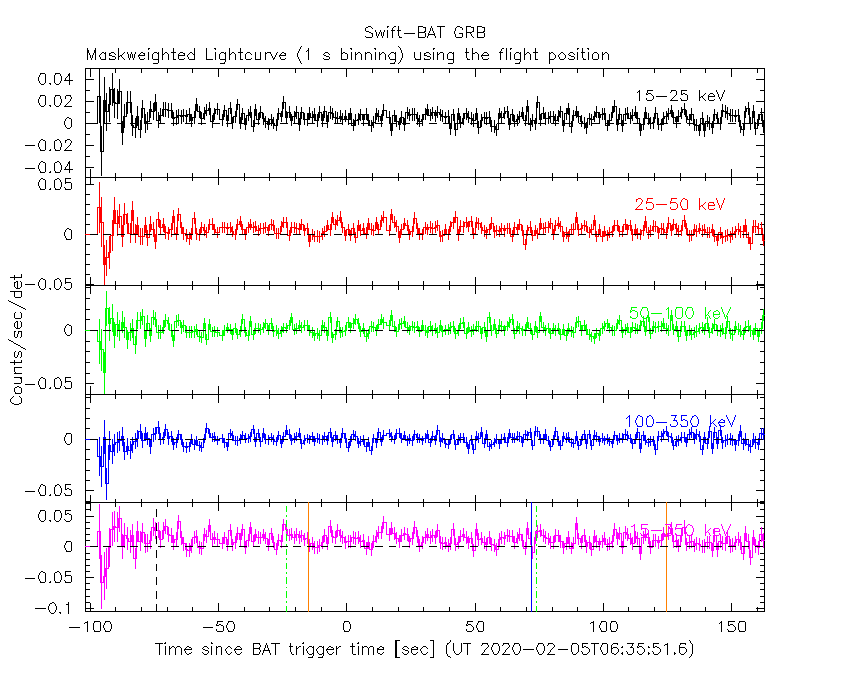

1 s binning

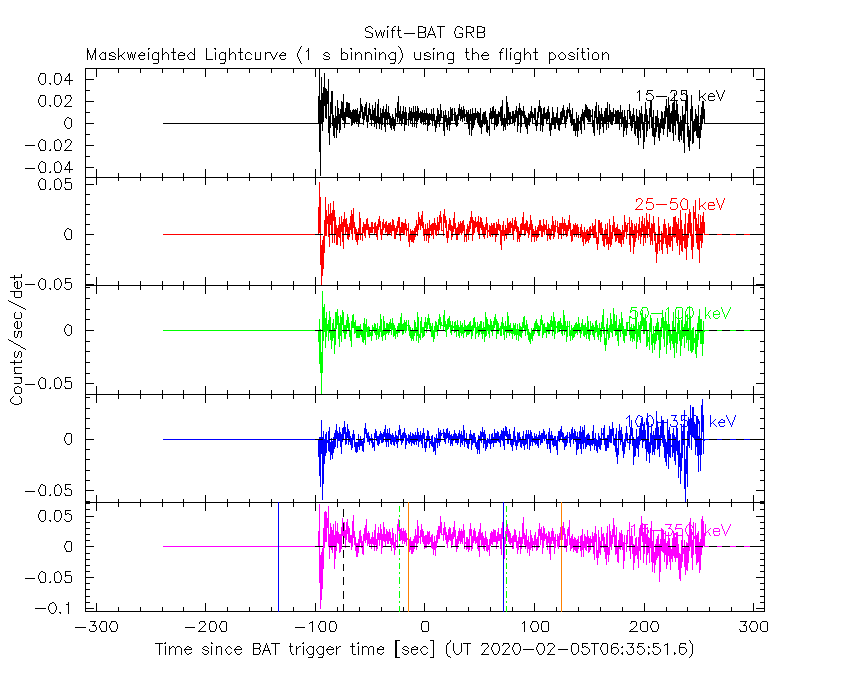

From T0-310 s to T0+310 s

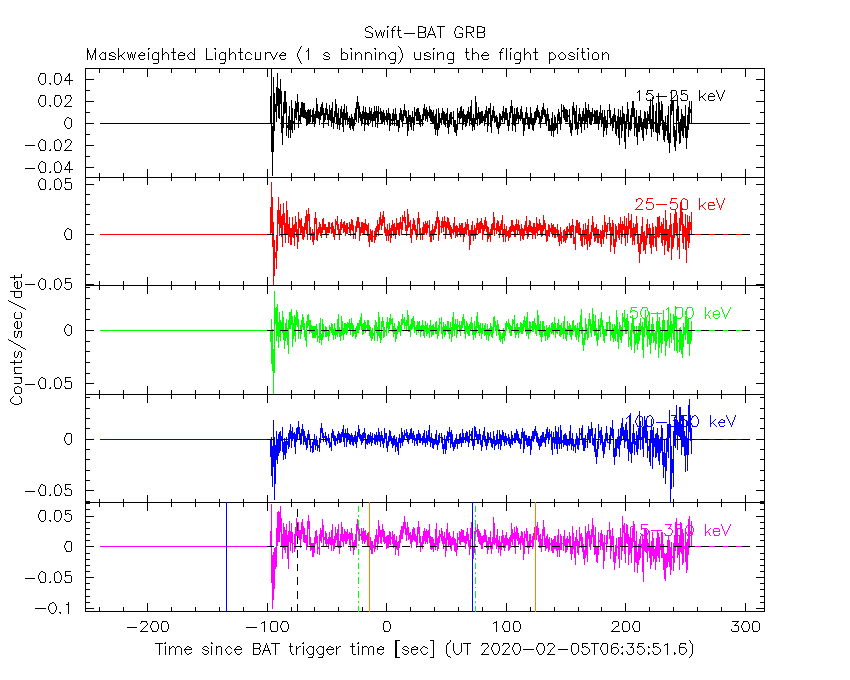

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

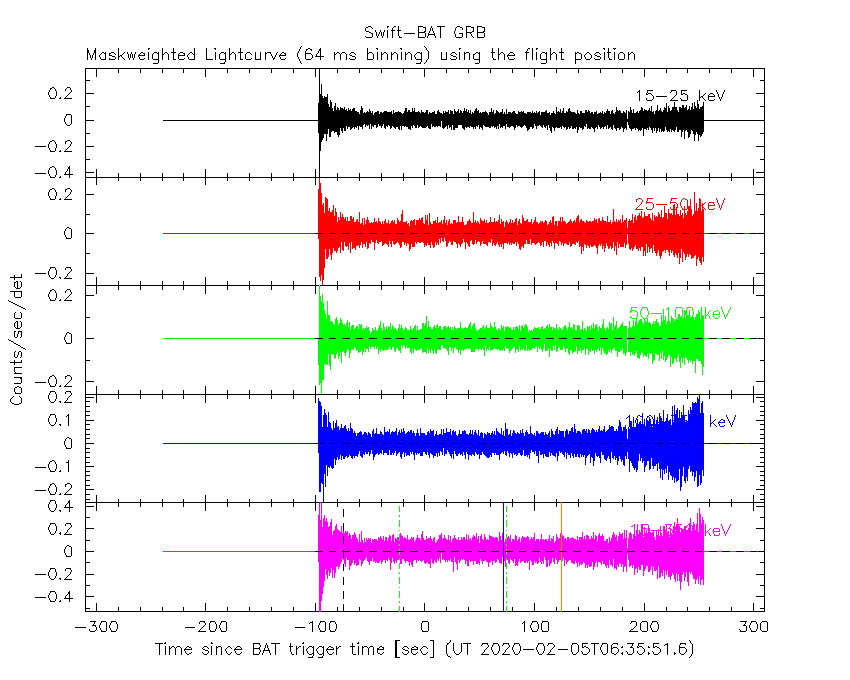

Full time interval

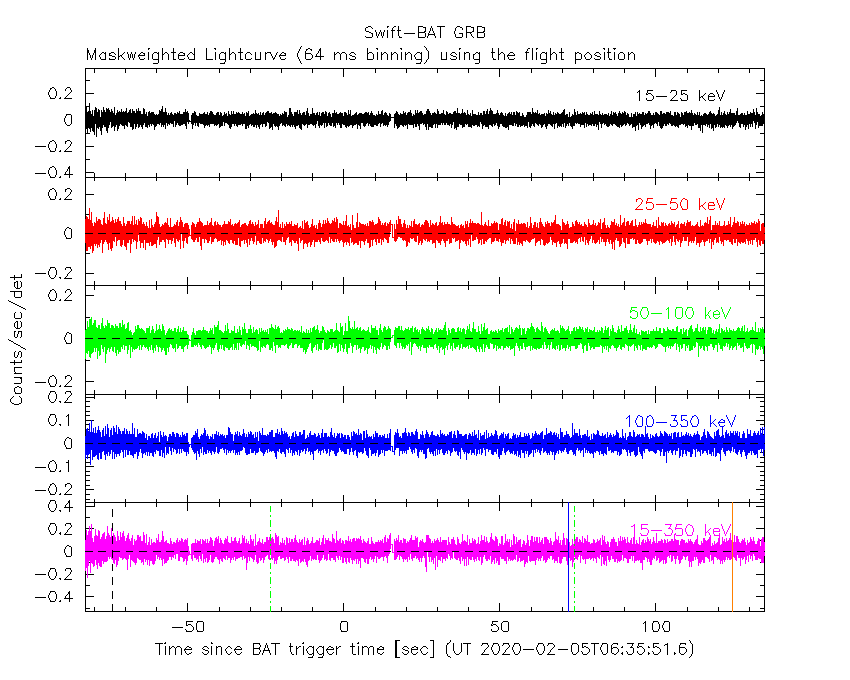

From T100_start to T100_end

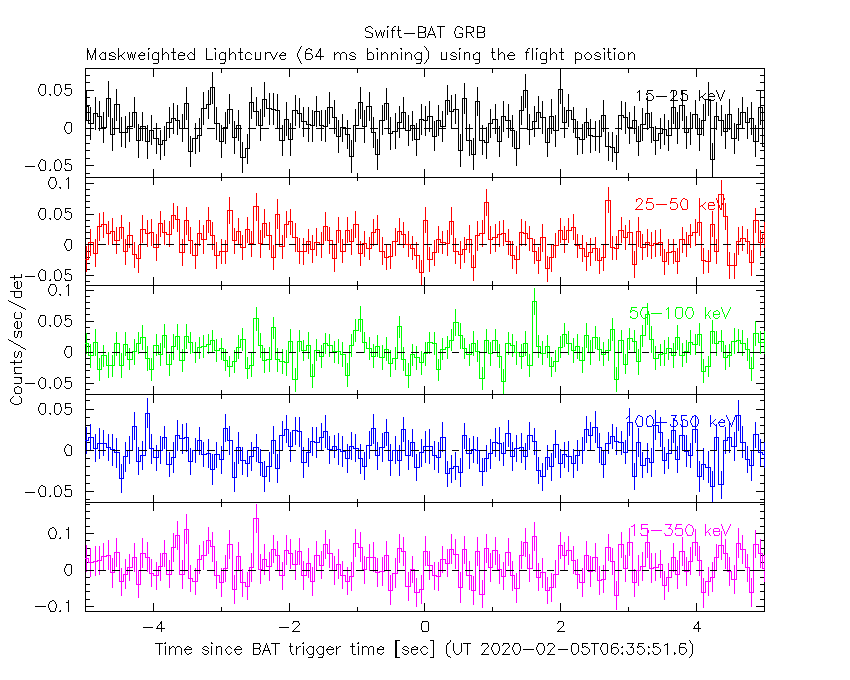

From T0-5 sec to T0+5 sec

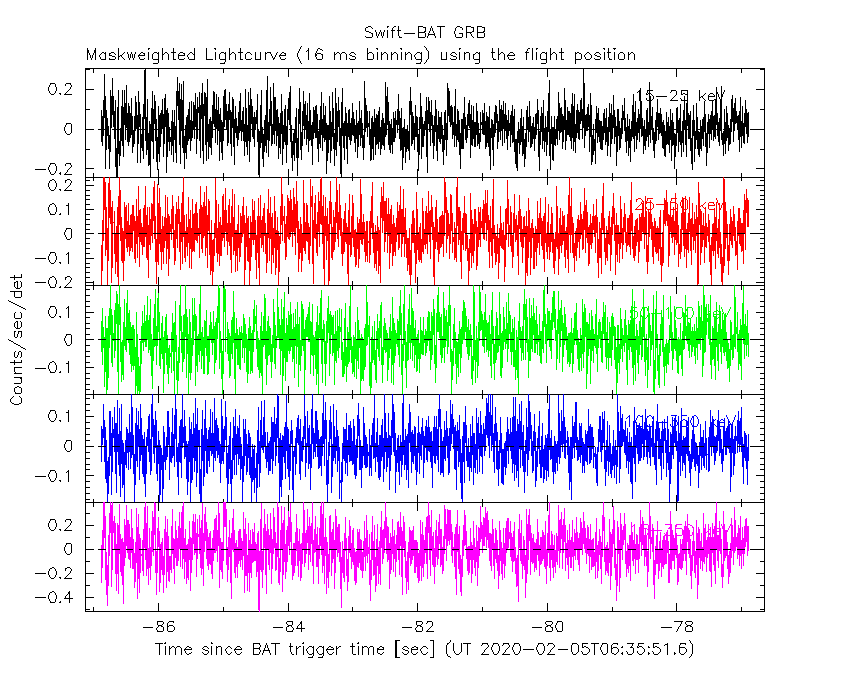

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

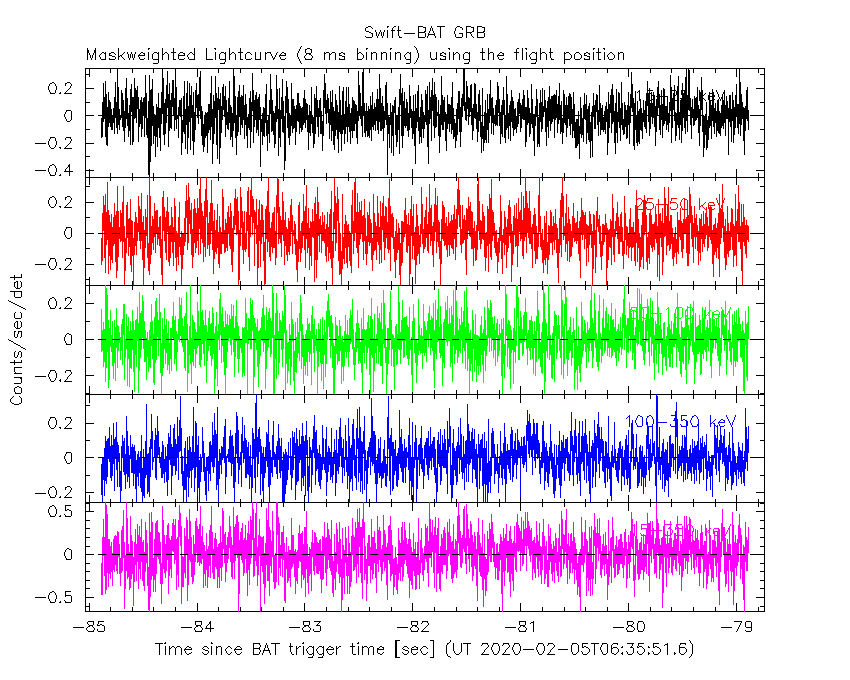

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

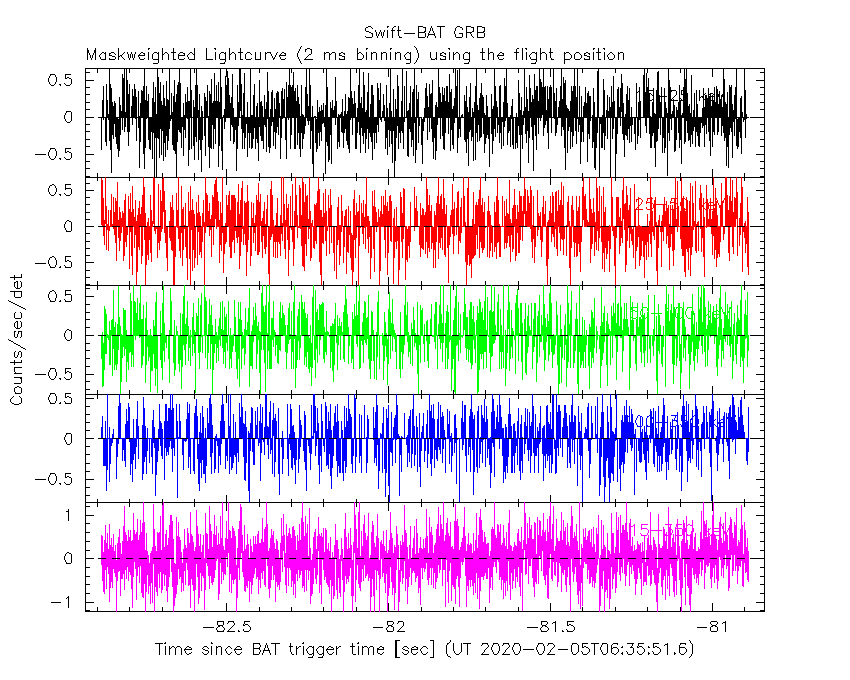

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

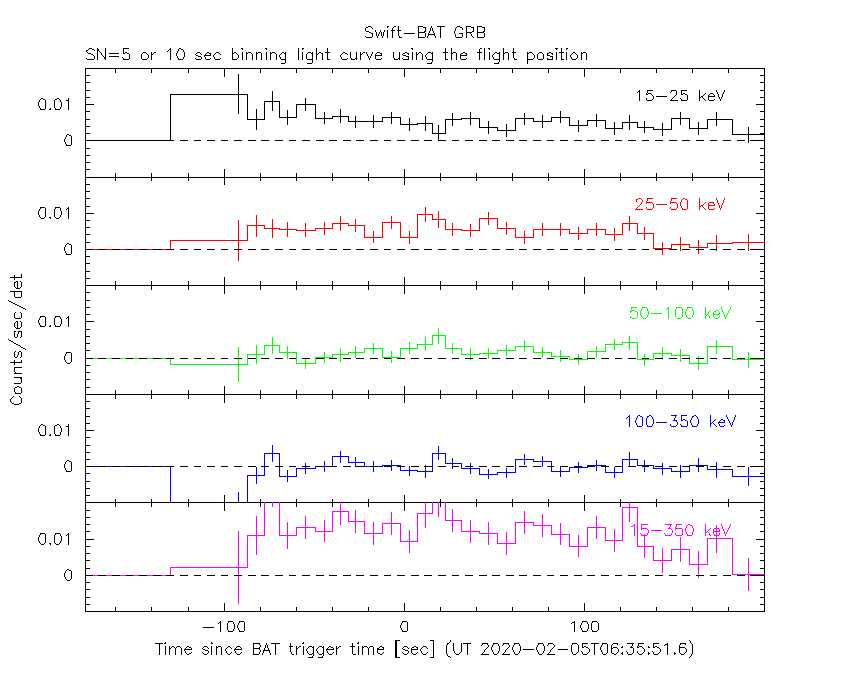

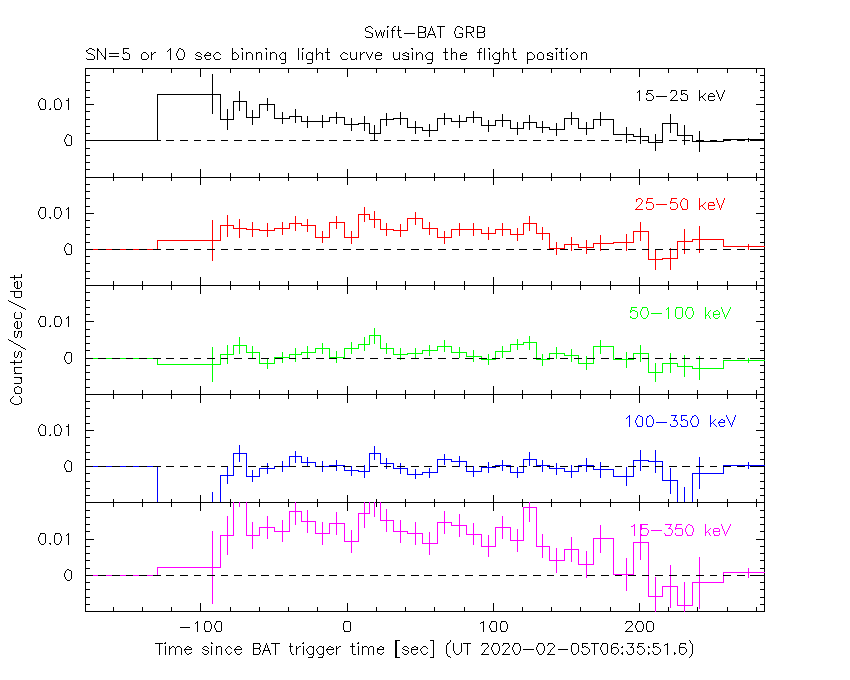

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

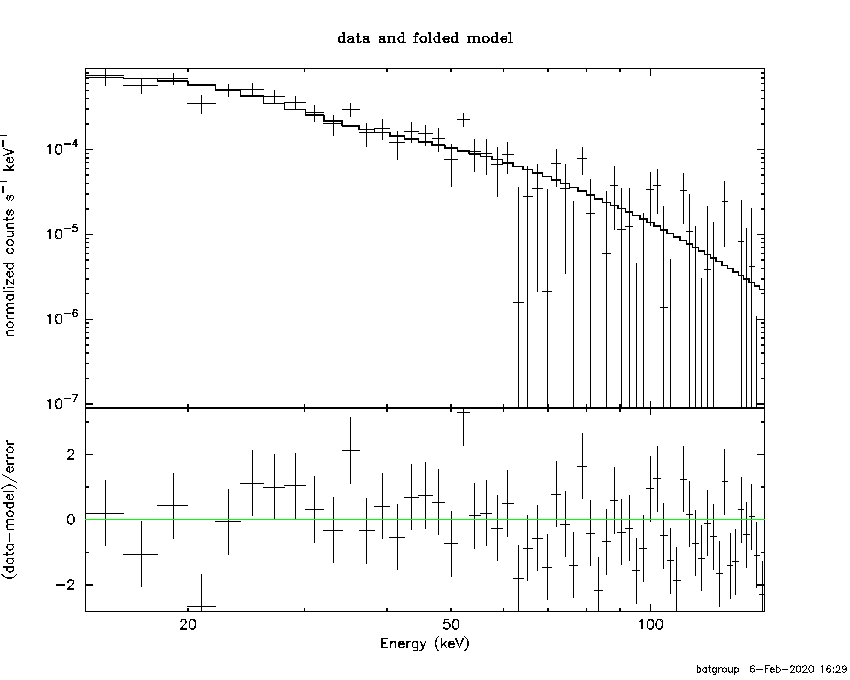

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-81.888000 -49.844800
-49.000000 14.930000
16.000000 132.868000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.25997     ( -0.161858   0.170985 )
Norm@50keV  : 7.00872E-04    ( -8.2307e-05   8.12681e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.17 using 59 PHA bins.
# Reduced chi-squared =          1.354 for     57 degrees of freedom
# Null hypothesis probability =   3.882133e-02

Photon flux (15-150 keV)    in 212.8 sec: 0.119815 ( -0.00967505  0.00967715 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.41528e-06 ( -1.378e-07  1.41072e-07 ) ergs/cm2

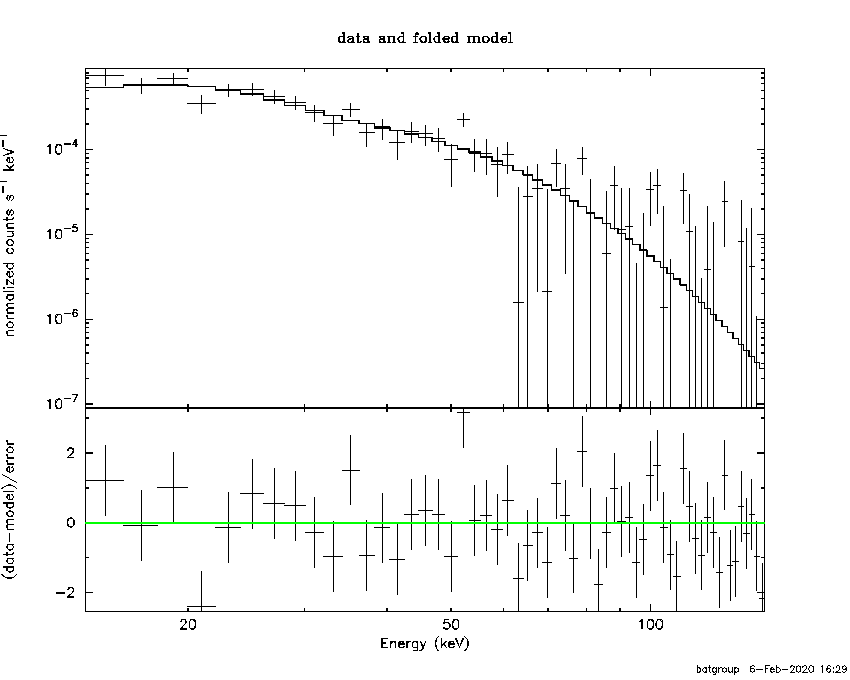

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-81.888000 -49.844800
-49.000000 14.930000
16.000000 132.868000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.841040     ( -1.0027   0.819021 )
Epeak [keV] : 31.4707      ( -11.1506 5.66126 )
Norm@50keV  : 4.96623E-03    ( -0.00496619   0.0153501 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.17 using 59 PHA bins.
# Reduced chi-squared =          1.200 for     56 degrees of freedom
# Null hypothesis probability =   1.457291e-01

Photon flux (15-150 keV)    in 212.8 sec: 0.113259 ( -0.010128  0.010185 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.24869e-06 ( -1.39031e-07  1.5381e-07 ) ergs/cm2

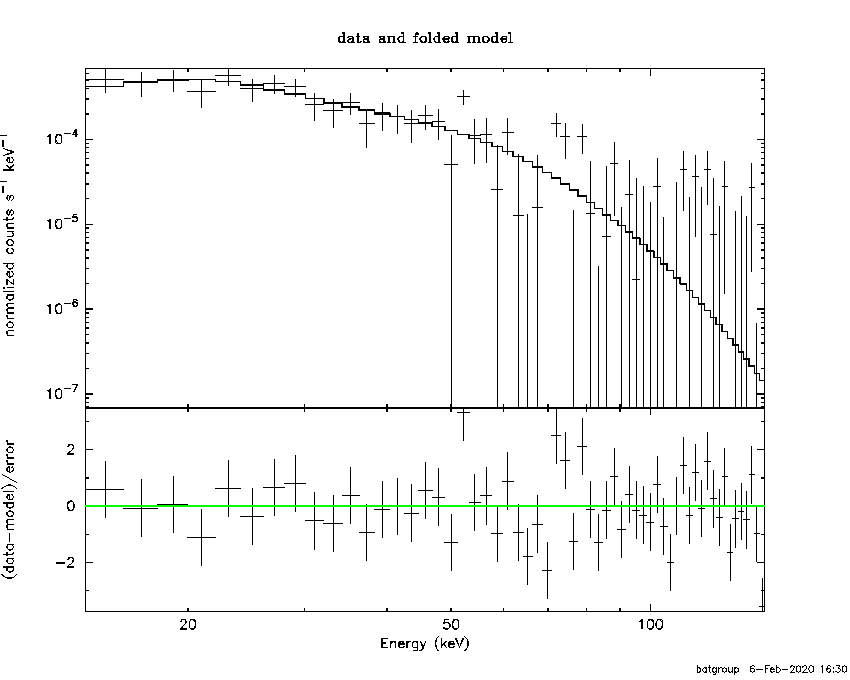

Band function

Multiple GTIs in the spectrum
tstart tstop
-81.888000 -49.844800
-49.000000 14.930000
16.000000 132.868000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.840984   ( -0.577177   1.34237 )
beta        : -10.0000    ( 10   7.10543e-15 )
Epeak [keV] : 31.4636      ( -11.1478 5.56395 )
Norm@50keV   : 4.96676E-03    ( -0.00496676   0.0153699 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.17 using 59 PHA bins.
# Reduced chi-squared =          1.221 for     55 degrees of freedom
# Null hypothesis probability =   1.256287e-01

Photon flux (15-150 keV)    in 212.8 sec: 0.113558 ( 6.88644  -0.010274 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.24653e-06 ( -1.24504e-06  -1.38116e-07 ) ergs/cm2

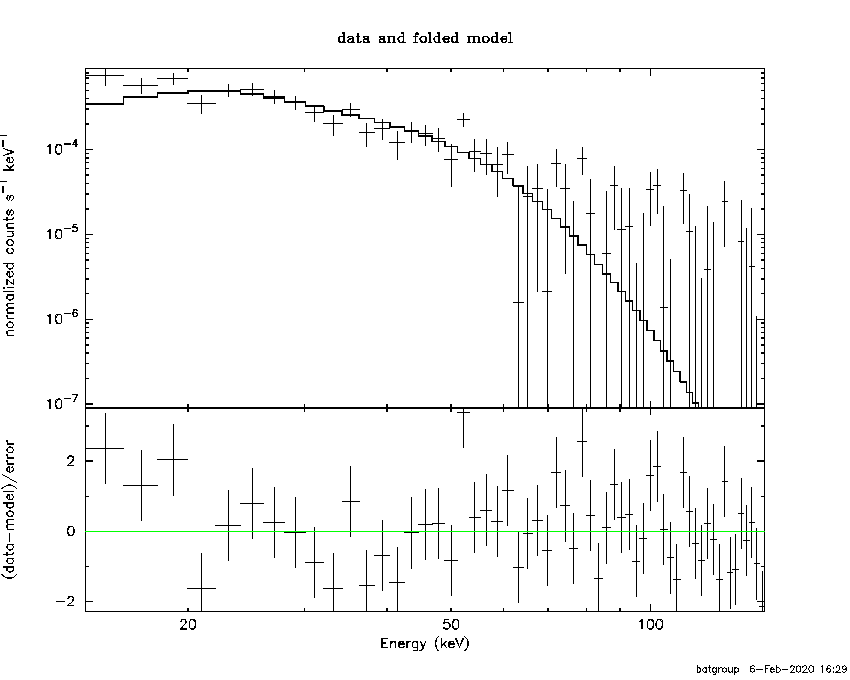

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.79062  (-0.742049  0.808172)
R^2/D10^2   : 8.98344E-02  (-0.0265864   0.037989)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          79.66 using 59 PHA bins.
# Reduced chi-squared =          1.398 for     57 degrees of freedom
# Null hypothesis probability =   2.541253e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.840e-07   3.501e-08
25- 50  5.816e-07   5.394e-08
50-150  2.063e-07   4.788e-08
15-150  1.072e-06   1.047e-07

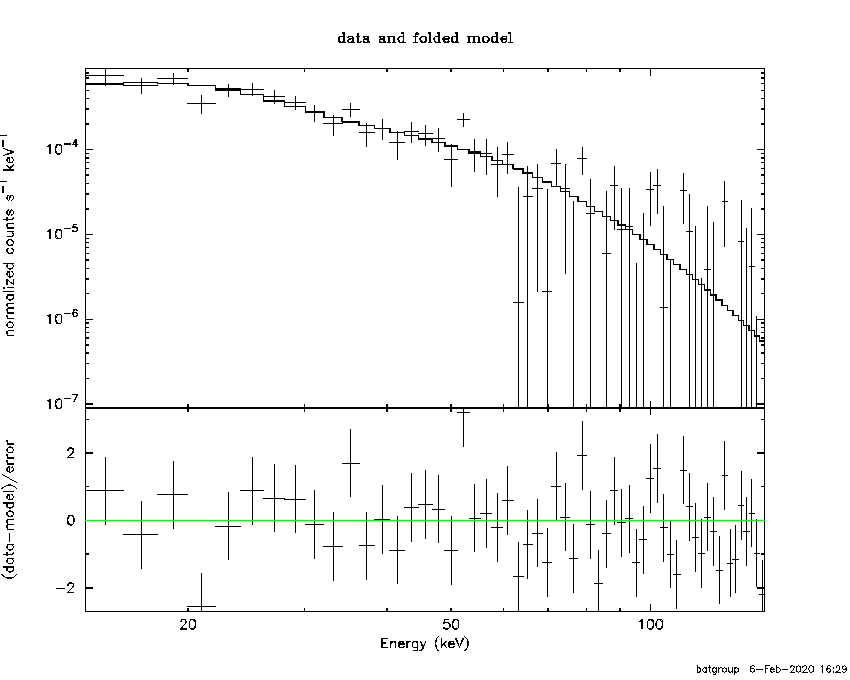

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 43.6330       (-8.22008      11.2963)
Norm        : 0.731199       (-0.105353     0.126829)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.10 using 59 PHA bins.
# Reduced chi-squared =          1.195 for     57 degrees of freedom
# Null hypothesis probability =   1.490008e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.672e-07   3.969e-08
25- 50  5.009e-07   4.448e-08
50-150  4.251e-07   1.028e-07
15-150  1.293e-06   1.452e-07

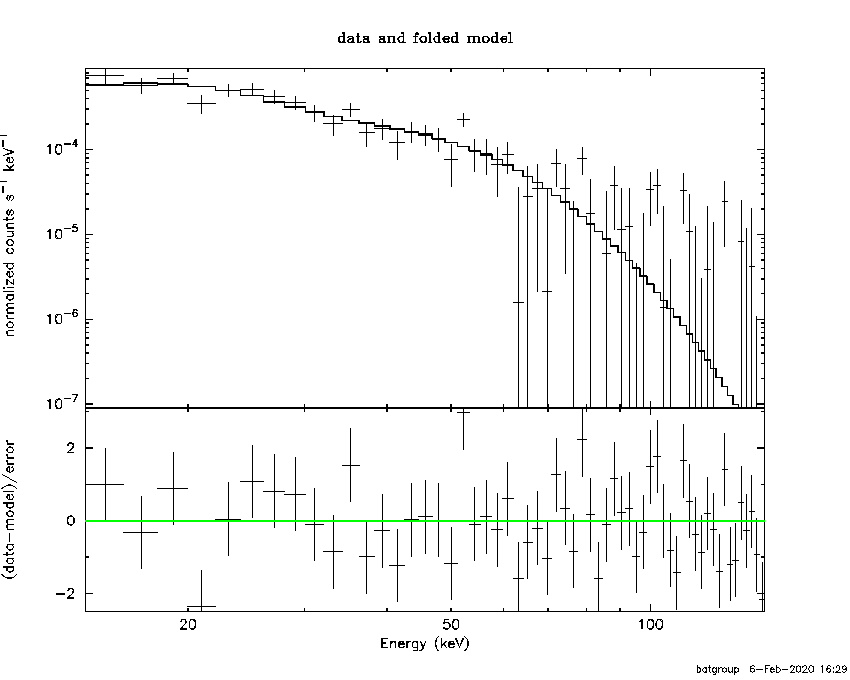

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.67431        (-2.41596      2.69021)
R1^2/D10^2  : 1.50278        (-1.32598      4620.2)
kT2 [keV]   : 11.0165        (-2.01152      4.67442)
R2^2/D10^2  : 3.06503E-02    (-0.026022   0.0510446)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.09 using 59 PHA bins.
# Reduced chi-squared =          1.220 for     55 degrees of freedom
# Null hypothesis probability =   1.270962e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.552e-07   1.706e-07
25- 50  5.221e-07   2.214e-07
50-150  3.221e-07   1.291e-07
15-150  1.199e-06   4.481e-07

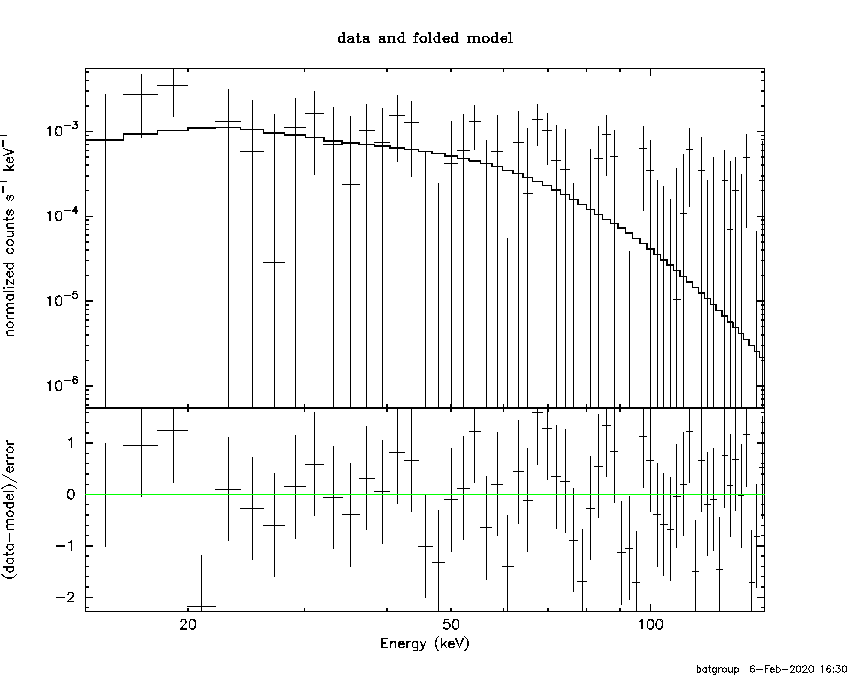

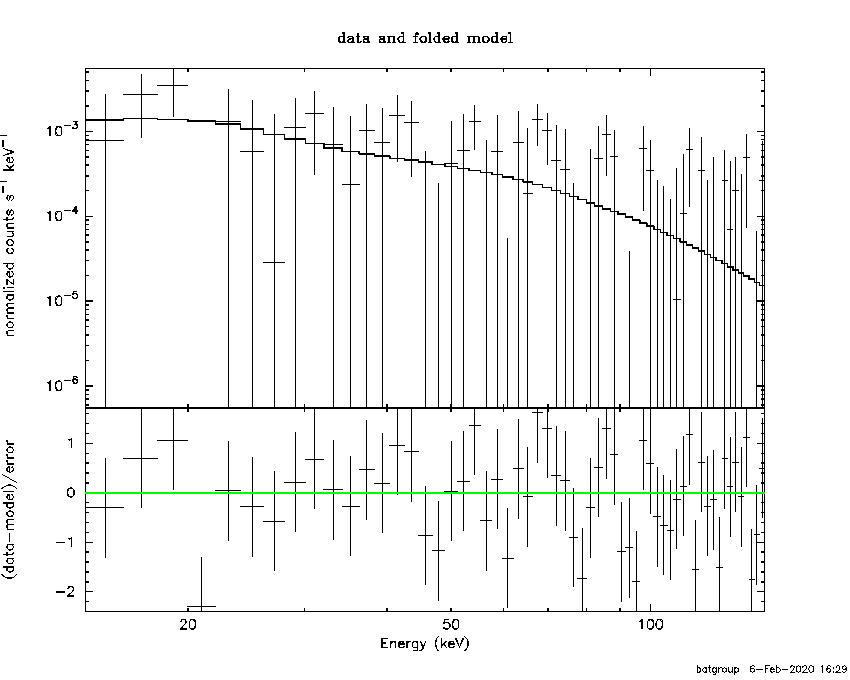

Peak spectrum fit

Power-law model

Time interval is from  -81.898 sec. to  -80.898 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.70872     ( -1.02976   1.40216 )
Norm@50keV  : 2.53322E-03    ( -0.00253272   0.00166129 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.55 using 59 PHA bins.
# Reduced chi-squared =         0.8518 for     57 degrees of freedom
# Null hypothesis probability =   7.796530e-01

Photon flux (15-150 keV)    in 1 sec: 0.337471 ( -0.199261  0.199442 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.34318e-08 ( -1.54911e-08  1.71948e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  -81.898 sec. to  -80.898 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.05325E-02     ( 0.404013   3.64185 )
Epeak [keV] : 54.6161      ( -53.9758 -53.9758 )
Norm@50keV  : 1.86883E-02    ( -0.0373793   8407.27 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.99 using 59 PHA bins.
# Reduced chi-squared =         0.8570 for     56 degrees of freedom
# Null hypothesis probability =   7.679839e-01

Photon flux (15-150 keV)    in 1 sec: 0.312639 ( -0.200666  0.20723 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.09867e-08 ( -1.31693e-08  1.73551e-08 ) ergs/cm2

Band function

Time interval is from  -81.898 sec. to  -80.898 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.414149   ( -2.28453   -0.284527 )
beta        : -9.37167    ( 9.37167   19.3717 )
Epeak [keV] : 54.3515      ( -29.1183 185.577 )
Norm@50keV   : 3.22167E-02    ( -0.0205919   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.92 using 59 PHA bins.
# Reduced chi-squared =         0.8712 for     55 degrees of freedom
# Null hypothesis probability =   7.397251e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.29961e-09 ( -6.29261e-09  -2.02537e-09 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.4930  (-6.26173  11.8276)
R^2/D10^2   : 5.94967E-02  (-0.0594967   0.460342)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.91 using 59 PHA bins.
# Reduced chi-squared =         0.8405 for     57 degrees of freedom
# Null hypothesis probability =   7.990059e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.294e-09   1.585e-09
25- 50  8.220e-09   5.565e-09
50-150  9.663e-09   8.105e-09
15-150  2.018e-08   1.387e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 102.880       (-106.133      -106.133)
Norm        : 1.52231       (-0.912101     2.00241)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.30 using 59 PHA bins.
# Reduced chi-squared =         0.8474 for     57 degrees of freedom
# Null hypothesis probability =   7.872849e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.979e-09   2.548e-09
25- 50  6.919e-09   4.880e-09
50-150  1.139e-08   1.034e-08
15-150  2.229e-08   1.674e-08

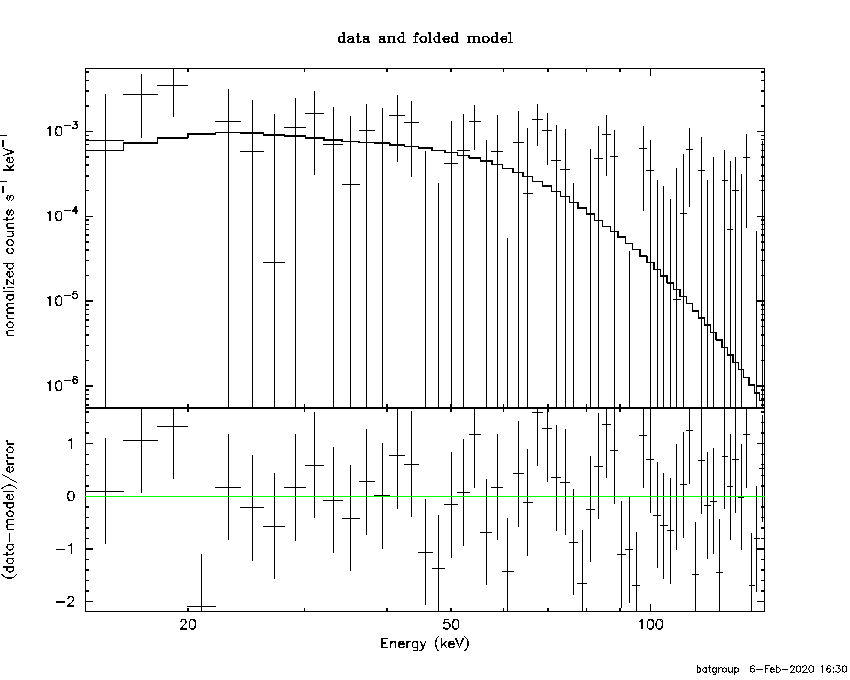

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.00060E-04        (1.39833e-07      -0.00010006)
R1^2/D10^2  : 498.392        (-498.391      -498.391)
kT2 [keV]   : 13.4929        (-6.26171      11.8276)
R2^2/D10^2  : 5.94970E-02    (-0.059497   0.460345)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.02 using 59 PHA bins.
#Fit statistic : Chi-Squared =          47.91 using 59 PHA bins.
# Reduced chi-squared =         0.8730 for     55 degrees of freedom
# Reduced chi-squared =         0.8711 for     55 degrees of freedom
# Null hypothesis probability =   7.363198e-01
# Null hypothesis probability =   7.399556e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.926e-09   1.370e-09
25- 50  7.664e-09   5.195e-09
50-150  1.181e-08   9.000e-09
15-150  2.140e-08   1.620e-08

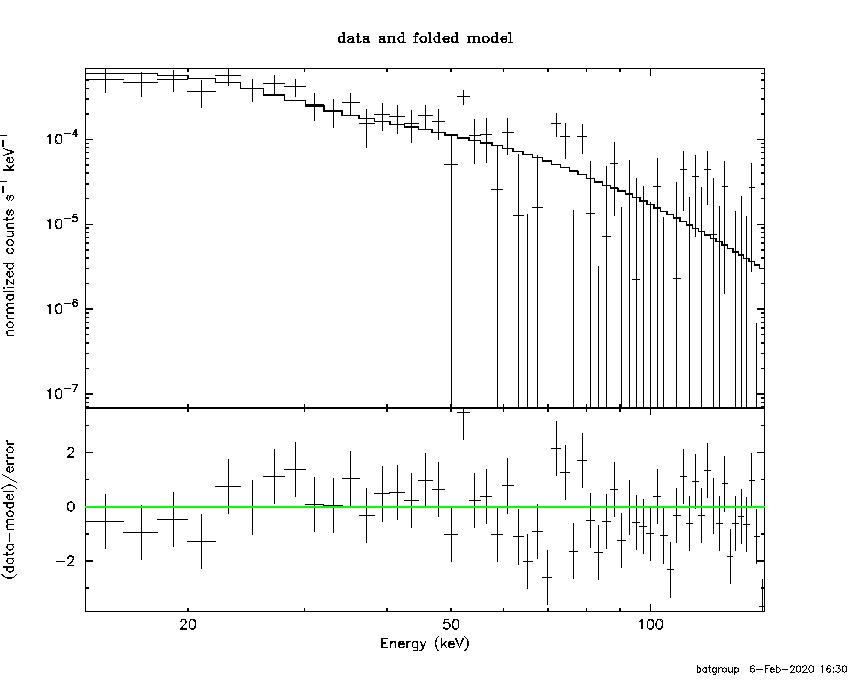

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.06246     ( -0.211334   0.226179 )
Norm@50keV  : 7.48143E-04    ( -0.000120174   0.000118203 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          89.23 using 59 PHA bins.
# Reduced chi-squared =          1.565 for     57 degrees of freedom
# Null hypothesis probability =   4.078416e-03

Photon flux (15-150 keV)    in 85.83 sec: 0.115568 ( -0.013699  0.0136994 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.94565e-07 ( -8.65553e-08  8.95396e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.42287E-02     ( -1.57389   1.19173 )
Epeak [keV] : 37.3381      ( -6.38037 7.36017 )
Norm@50keV  : 1.22976E-02    ( -0.0126245   0.103496 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          79.19 using 59 PHA bins.
# Reduced chi-squared =          1.414 for     56 degrees of freedom
# Null hypothesis probability =   2.238806e-02

Photon flux (15-150 keV)    in 85.83 sec: 0.109415 ( -0.00697  0.01384 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.05638e-07 ( -7.74487e-08  8.93482e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -2.47754E-02   ( -1.2194   1.60258 )
beta        : -10.0000    ( 10   1.06581e-14 )
Epeak [keV] : 37.3364      ( -6.44553 7.35537 )
Norm@50keV   : 1.26478E-02    ( -0.0126478   0.103535 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          79.19 using 59 PHA bins.
# Reduced chi-squared =          1.440 for     55 degrees of freedom
# Null hypothesis probability =   1.802148e-02

Photon flux (15-150 keV)    in 85.83 sec: 0.109940 ( 6.89006  -0.0141452 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.07452e-07 ( -5.06851e-07  -7.93018e-08 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.54e-07
S(50-100 keV) = 3.79e-07

T90 vs. Hardness ratio plot

T90                                   = 198.827999949455 sec.
Hardness ratio (energy fluence ratio) = 0.834802

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.997697
Count Ratio (50-100 keV) / (15-25 keV) = 0.338179

Mask shadow pattern

IMX = 3.843429467941836E-01, IMY = 1.899442981110766E-01

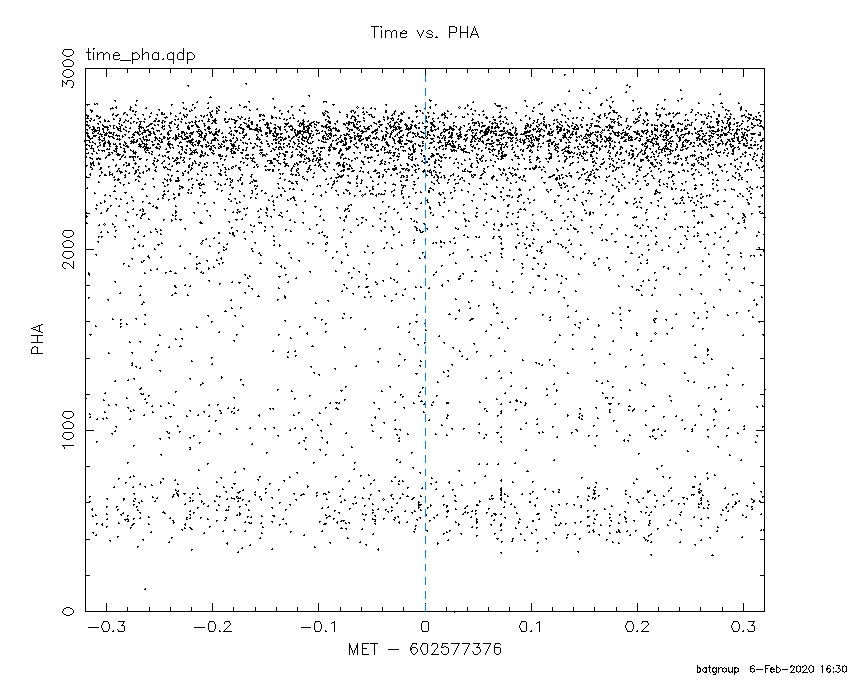

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

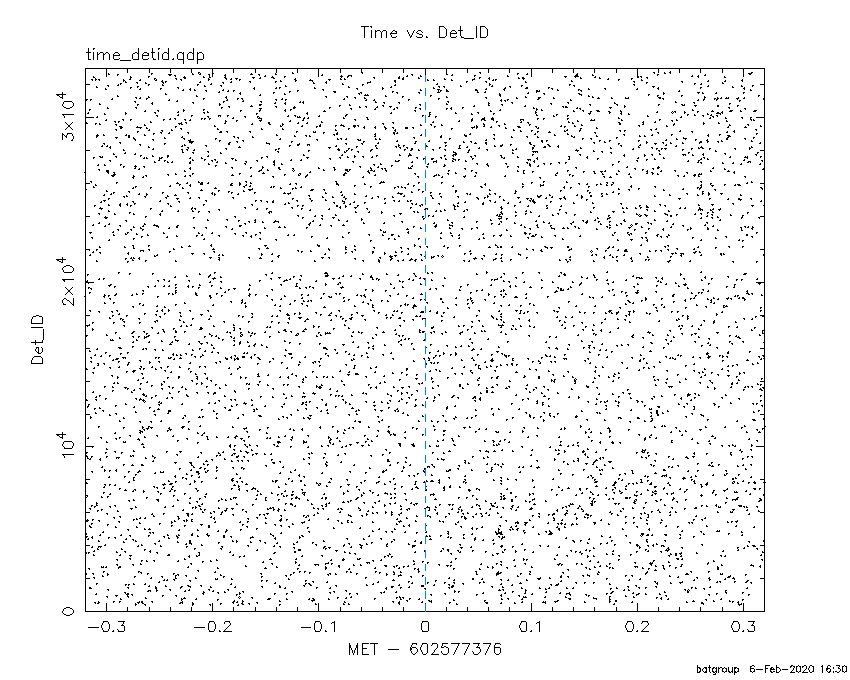

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

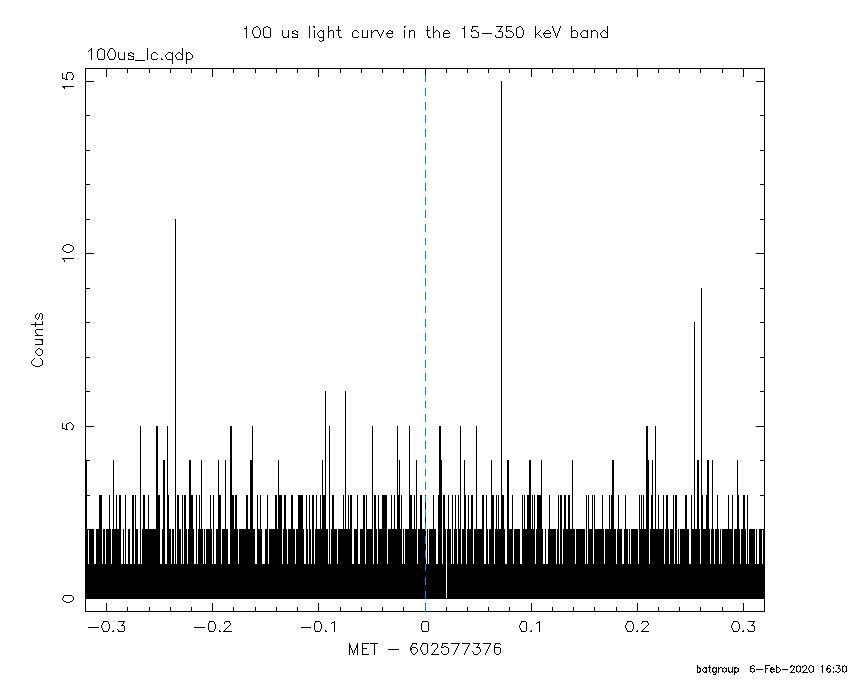

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

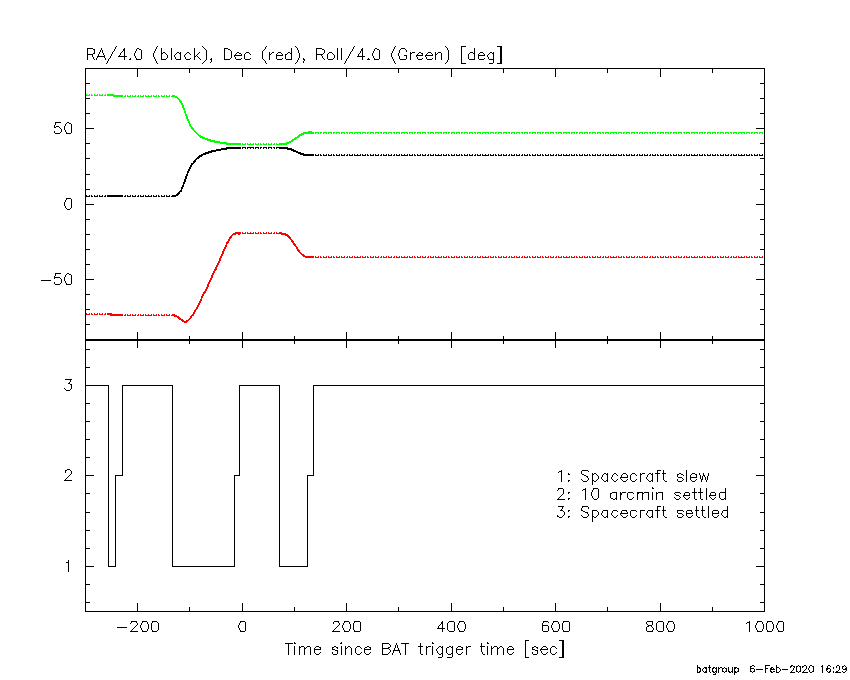

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-14.799410 14.930000
16.000000 72.100600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5059 -40.5785    4.3  24.3  -43.0   0.5612   2.6    1.8	Vela X-1
101.9763  -5.9660    2.6  48.0   30.5   1.7459   4.4 ------	UNKNOWN
130.1675 -35.2740    1.8  23.2  -26.3   1.1982   6.3 ------	UNKNOWN
 83.8524 -43.3952    2.4  59.2  -18.9   5.5879   4.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
124.500590 184.400000
186.000000 303.150000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.3564 -40.3897    0.0   6.6 -136.7  -2.8404  -2.1   12.6	Vela X-1
170.5521 -60.5349   15.7  36.1 -132.6  -1.6197  -0.7    8.7	Cen X-3
186.6565 -62.7703  538.2  44.0 -133.1  -0.0664  -0.0    0.0	GX 301-2
139.1509 -14.3707    2.3  22.4  103.6   8.7304   5.0 ------	UNKNOWN
 84.8458 -28.4864    2.5  38.7  -12.8   8.3223   4.6 ------	UNKNOWN
202.9303 -44.7317    2.4  54.7 -156.1  25.6921   4.8 ------	UNKNOWN
 60.2862 -35.6960    2.3  55.6  -32.3  44.0682   5.0 ------	UNKNOWN

Plot creation:
Thu Feb  6 16:30:38 EST 2020
