batgrbproduct Analysis for Trigger=960986

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Fri Mar 13 20:56:14 EDT 2020
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger960986/GCN5_download_cron
======================================================================

  Trigger: 00960986      Segment: 000

  BAT Trigger Time: 605740631.916   [s; MET]
      Trigger Stop: 605740631.924   [s; MET]
               UTC: 2020-03-12T21:16:47.328540    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 274.470542068872   Dec: -16.1017633943807  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.4
     Image Trigger?:     NO
     Rate S/N Ratio:     23.9791576165636  [ if not an image trigger ]
     Image S/N Ratio:    7.4

  Flight Position:   [ source = BAT ]
    RA: 274.470542068872   Dec: -16.1017633943807  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 274.51539803532   Dec: -16.1254866583063  [deg; J2000]
        { 18h 18m 03.7s , -16d 07' 31.8" }
         +/- 2.66774579708055 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.54302599725958 [arcmin] (formal 1-sigma fit error)
    SNR: 7.4875649443355

  Angular difference between Flight and Ground position is 2.951525 arcmin

  Partial Coding Fraction: 0.9921875    [ including projection effects ]

  Duration
     T90: 0.00800001621246338 +/- 0.0357770002083318
        Measured from: 0
                   to: 0.00800001621246338     [s; relative to TRIGTIME]
     T50: 0.00800001621246338 +/- 0.016
        Measured from: 0
                   to: 0.00800001621246338     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 0.00800001621246338 second)
        Measured from: 5.96046447753906e-08
                   to: 0.00800007581710815     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 0.00800001621246338     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.005933   0.009625   0.000917   0.000140
           0.001585   0.001507   0.000746   0.000456 [error]
 Peak      0.005933   0.009625   0.000917   0.000140
           0.001585   0.001507   0.000746   0.000456 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.40e-09 9.53e-10 4.24e-10 2.61e-10 2.91e-09 3.04e-09   erg/cm2
              Error 5.57e-10 3.67e-10 2.75e-10 3.50e-10 1.05e-09 1.14e-09   erg/cm2
Peak flux Power-law 5.86e+00 2.25e+00 4.99e-01 1.33e-01 8.69e+00 8.74e+00   ph/cm2/s
              Error 2.36e+00 8.46e-01 3.15e-01 1.68e-01 3.10e+00 3.10e+00   ph/cm2/s

Fluence   Cutoff-PL 2.01e-09 2.25e-09 1.95e-11 4.00e-18 4.29e-09 4.29e-09   erg/cm2
              Error 6.33e-10 7.36e-10 2.89e-11 2.27e-16 1.13e-09 1.13e-09   erg/cm2
Peak flux Cutoff-PL 7.61e+00 5.80e+00 3.15e-02 4.02e-09 1.34e+01 1.34e+01   ph/cm2/s
              Error 2.48e+00 1.83e+00 4.12e-02 1.65e-07 3.52e+00 3.52e+00   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.171    0.626    -      -           2.78e-02 1.43e-02   51.910 57
CPL   1.000    0.000      50.0    0.0      8.52e-02 0.00e+00   62.510 56

The chi2 of BB fit is 43.20 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.171    0.626    -      -           2.78e-02 1.43e-02   51.910 57
CPL   1.000    0.000      50.0    0.0      8.52e-02 0.00e+00   62.510 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.008    0.000    0.008
T90     0.008    0.000    0.008
T50     0.008    0.000    0.008
Peak    0.008    0.000    0.008

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

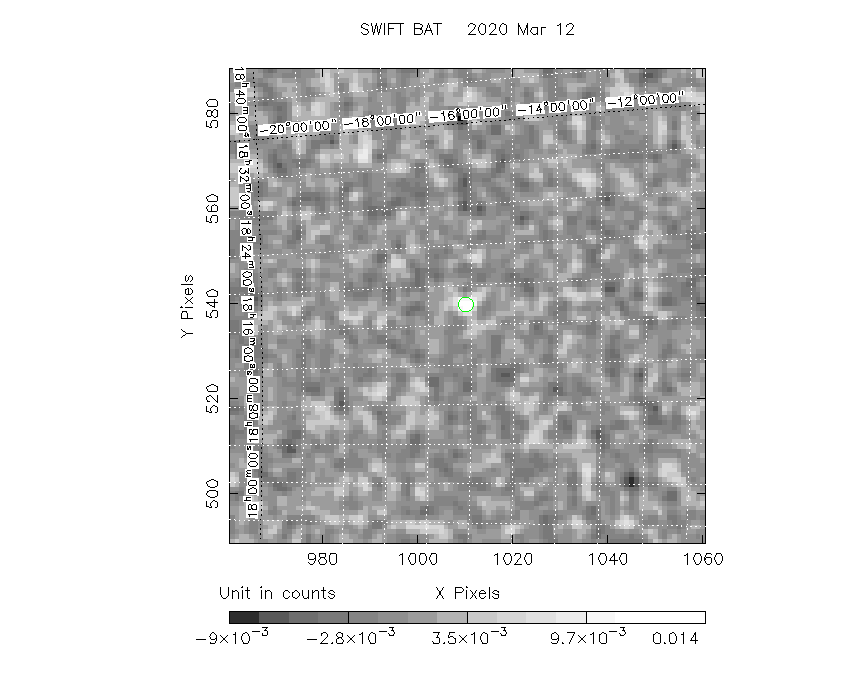

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  274.5154 -16.1255 0.0258   16.9 -154.2       0.0169     7.5  TRIG_00960986
------------------------------------------

Foreground time interval of the image:
  0.000   0.008 (delta_t =   0.008 [sec])
Background time interval of the image:
-30.415  -7.916 (delta_t =  22.499 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

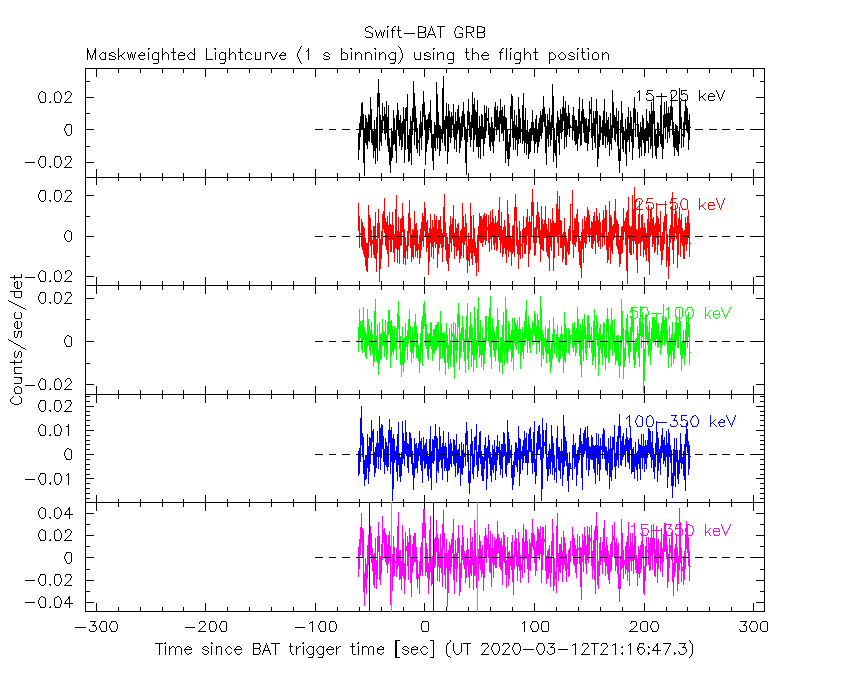

1 s binning

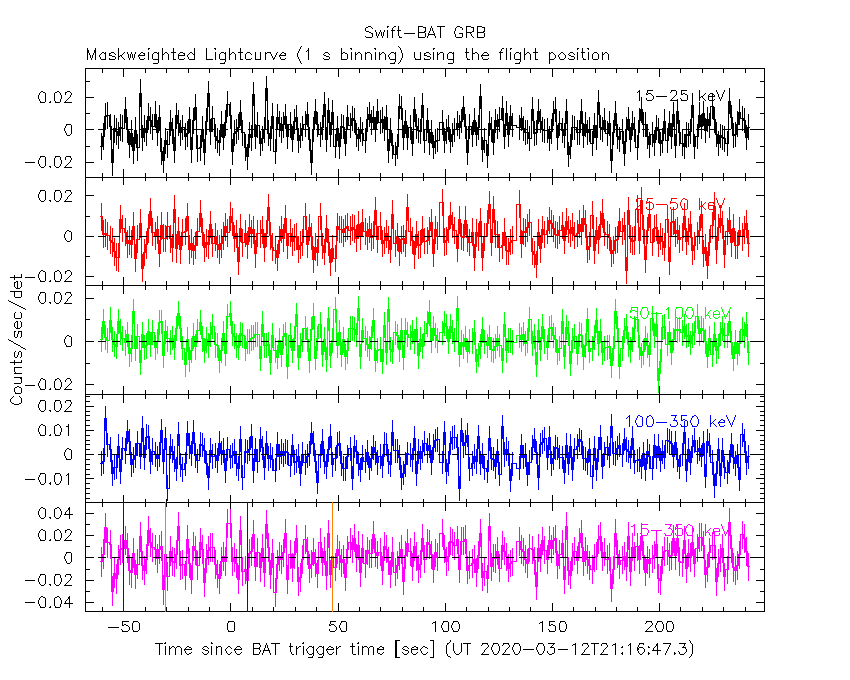

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

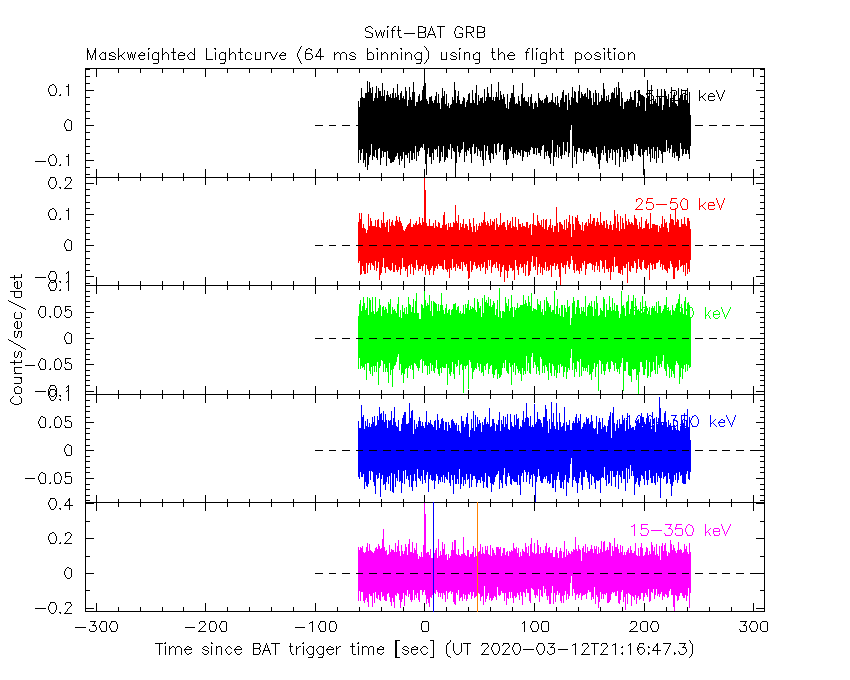

Full time interval

From T100_start to T100_end

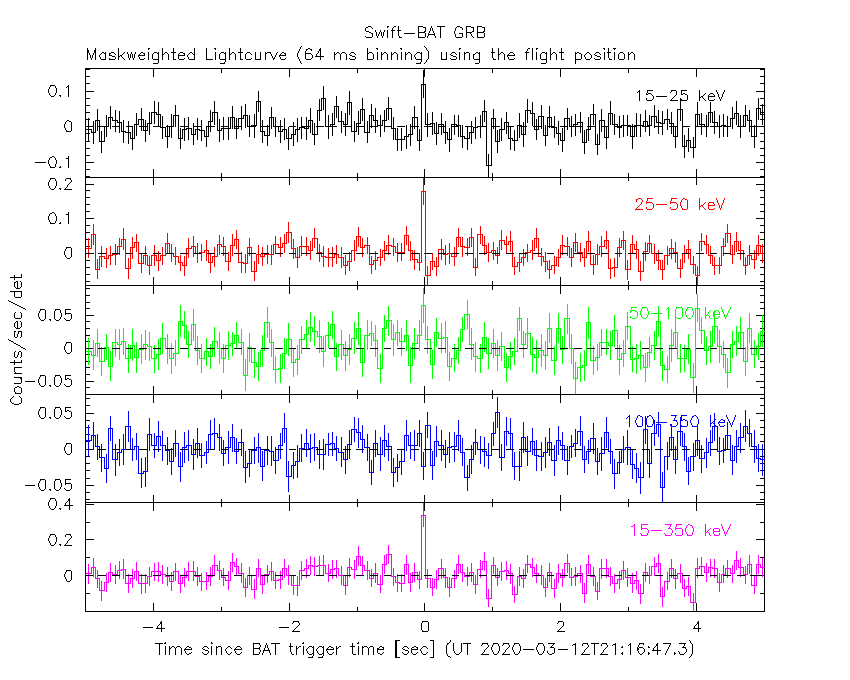

From T0-5 sec to T0+5 sec

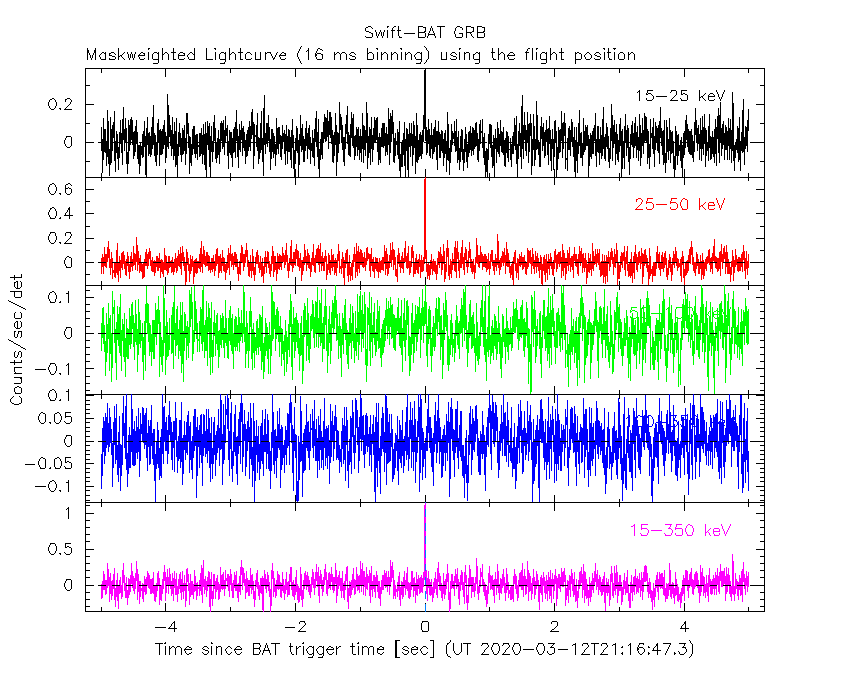

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

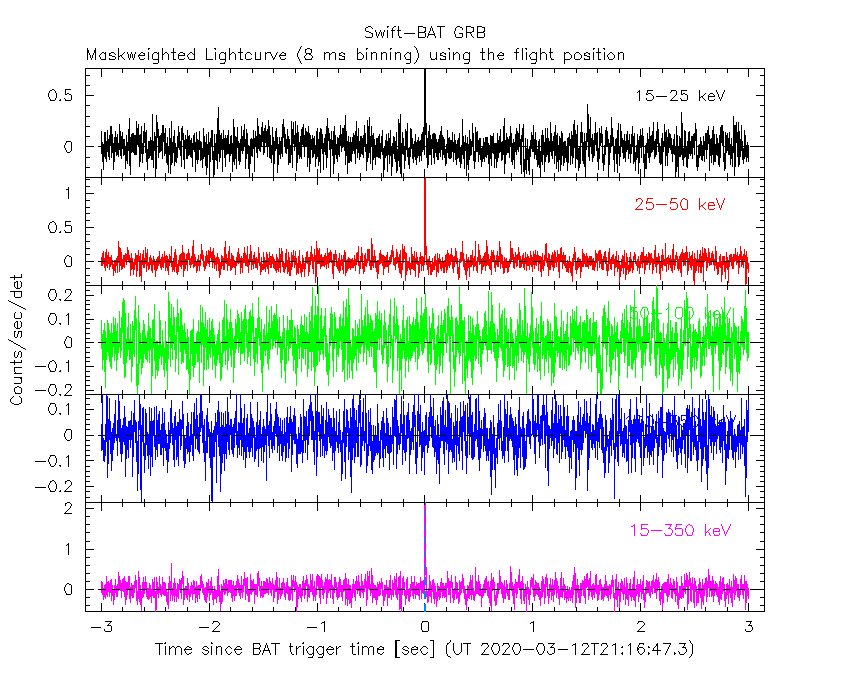

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

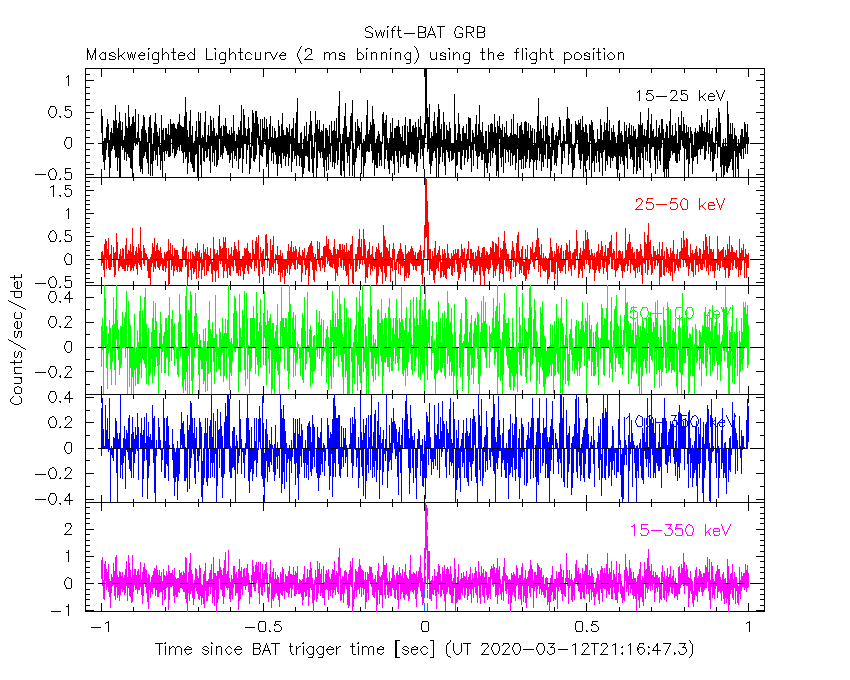

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

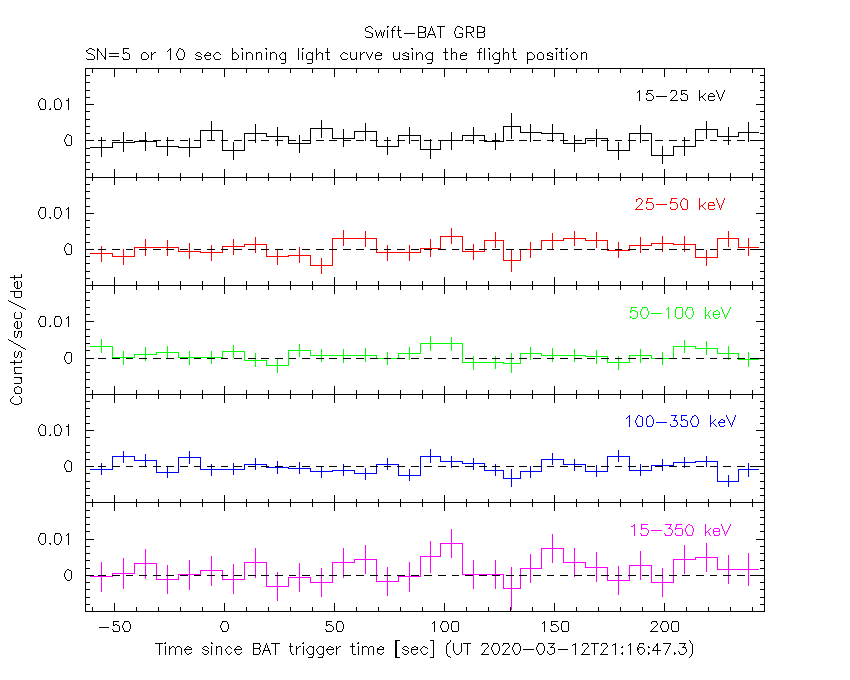

SN=5 or 10 sec. binning (whichever binning is satisfied first)

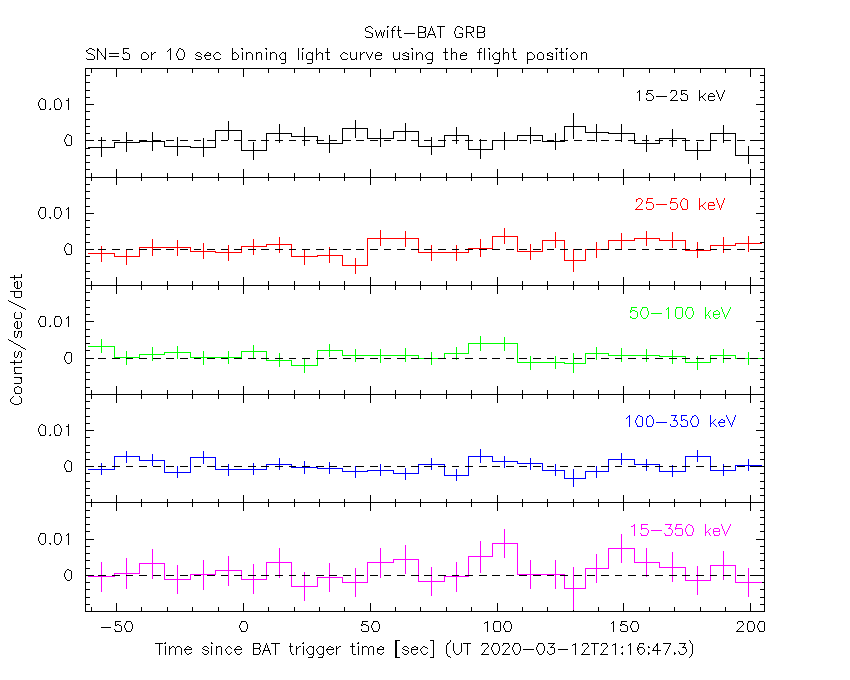

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

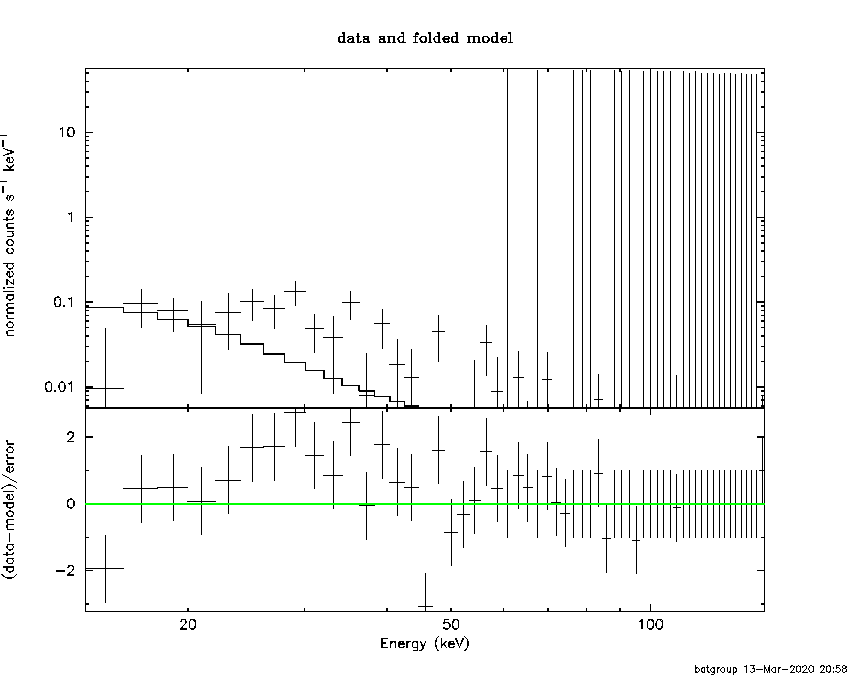

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.000 sec. to    0.008 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.17110     ( -0.58126   0.671666 )
Norm@50keV  : 2.78308E-02    ( -0.0140239   0.0145754 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.91 using 59 PHA bins.
# Reduced chi-squared =         0.9108 for     57 degrees of freedom
# Null hypothesis probability =   6.657791e-01

Photon flux (15-150 keV)    in 0.008 sec: 8.69093 ( -3.09553  3.09668 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.90863e-09 ( -1.04496e-09  1.05163e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.008 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 8.51552E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.51 using 59 PHA bins.
# Reduced chi-squared =          1.116 for     56 degrees of freedom
# Null hypothesis probability =   2.561267e-01

Photon flux (15-150 keV)    in 0.008 sec: 13.4320 13.4338 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.88671e-13 ( 0  0 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.008 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.85986   ( 3.67776   8.85986 )
beta        : -3.17048    ( -0.672604   0.581498 )
Epeak [keV] : 55.1483      ( -55.1483 -55.1483 )
Norm@50keV   : 3.78412    ( -1.90629   1.98083 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.91 using 59 PHA bins.
# Reduced chi-squared =         0.9439 for     55 degrees of freedom
# Null hypothesis probability =   5.932689e-01

Photon flux (15-150 keV)    in 0.008 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

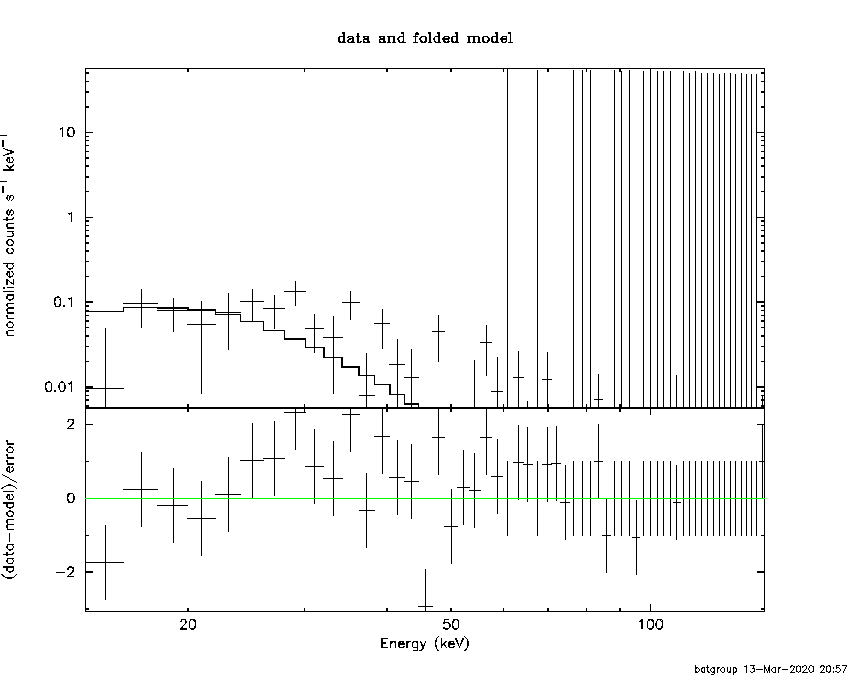

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 5.48017  (-0.823942  0.877581)
R^2/D10^2   : 69.2398  (-38.6701   78.8031)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.20 using 59 PHA bins.
# Reduced chi-squared =         0.7579 for     57 degrees of freedom
# Null hypothesis probability =   9.116014e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.918e-09   8.978e-10
25- 50  1.560e-09   8.440e-10
50-150  9.702e-11   8.491e-11
15-150  3.574e-09   1.822e-09

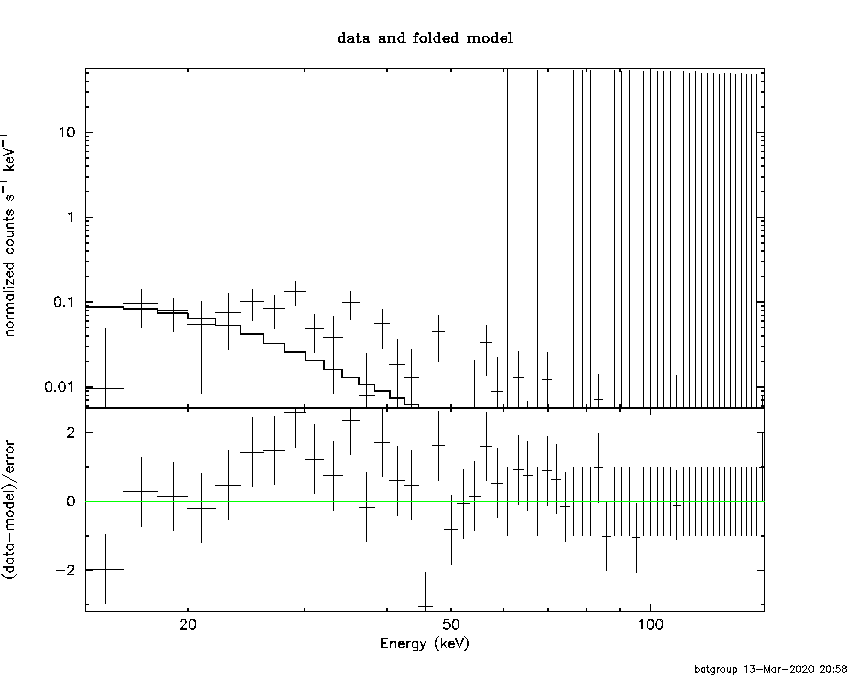

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 15.7933       (-5.00842      8.01109)
Norm        : 167.791       (-88.4401     140.748)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.73 using 59 PHA bins.
# Reduced chi-squared =         0.8549 for     57 degrees of freedom
# Null hypothesis probability =   7.740952e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.654e-09   7.102e-10
25- 50  1.184e-09   5.916e-10
50-150  2.312e-10   1.837e-10
15-150  3.070e-09   1.426e-09

Double BB

R1^2/D10^2  : 74.8153        (-38.7153      78.7577)
kT2 [keV]   : 200.000        (-200      -200)
R2^2/D10^2  : 3.99879E-04    (-0.000397652   -0.000397652)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.20 using 59 PHA bins.
#Fit statistic : Chi-Squared =          42.62 using 59 PHA bins.
#Fit statistic : Chi-Squared =          42.23 using 59 PHA bins.
# Reduced chi-squared =         0.7855 for     55 degrees of freedom
# Reduced chi-squared =         0.7749 for     55 degrees of freedom
# Reduced chi-squared =         0.7679 for     55 degrees of freedom
# Null hypothesis probability =   8.754517e-01
# Null hypothesis probability =   8.883213e-01
# Null hypothesis probability =   8.964846e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Peak spectrum fit

Power-law model

Time interval is from    0.000 sec. to    0.008 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.17110     ( -0.58126   0.671666 )
Norm@50keV  : 2.78308E-02    ( -0.0140239   0.0145754 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.91 using 59 PHA bins.
# Reduced chi-squared =         0.9108 for     57 degrees of freedom
# Null hypothesis probability =   6.657791e-01

Photon flux (15-150 keV)    in 0.008 sec: 8.69093 ( -3.09553  3.09668 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.90863e-09 ( -1.04496e-09  1.05163e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.008 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 8.51552E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.51 using 59 PHA bins.
# Reduced chi-squared =          1.116 for     56 degrees of freedom
# Null hypothesis probability =   2.561267e-01

Photon flux (15-150 keV)    in 0.008 sec: 13.4320 13.4338 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.88671e-13 ( 0  0 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.008 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.85986   ( 3.67776   8.85986 )
beta        : -3.17048    ( -0.672604   0.581498 )
Epeak [keV] : 55.1483      ( -55.1483 -55.1483 )
Norm@50keV   : 3.78412    ( -1.90629   1.98083 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.91 using 59 PHA bins.
# Reduced chi-squared =         0.9439 for     55 degrees of freedom
# Null hypothesis probability =   5.932689e-01

Photon flux (15-150 keV)    in 0.008 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 5.48017  (-0.823942  0.877581)
R^2/D10^2   : 69.2398  (-38.6701   78.8031)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.20 using 59 PHA bins.
# Reduced chi-squared =         0.7579 for     57 degrees of freedom
# Null hypothesis probability =   9.116014e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.918e-09   1.059e-09
25- 50  1.560e-09   8.449e-10
50-150  9.702e-11   7.825e-11
15-150  3.574e-09   1.721e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 15.7933       (-5.00842      8.01109)
Norm        : 167.791       (-88.4401     140.748)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.73 using 59 PHA bins.
# Reduced chi-squared =         0.8549 for     57 degrees of freedom
# Null hypothesis probability =   7.740952e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.654e-09   7.983e-10
25- 50  1.184e-09   6.398e-10
50-150  2.312e-10   1.996e-10
15-150  3.070e-09   1.409e-09

Double BB

R1^2/D10^2  : 74.8153        (-38.7153      78.7577)
kT2 [keV]   : 200.000        (-200      -200)
R2^2/D10^2  : 3.99879E-04    (-0.000397652   -0.000397652)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.20 using 59 PHA bins.
#Fit statistic : Chi-Squared =          42.62 using 59 PHA bins.
#Fit statistic : Chi-Squared =          42.23 using 59 PHA bins.
# Reduced chi-squared =         0.7855 for     55 degrees of freedom
# Reduced chi-squared =         0.7749 for     55 degrees of freedom
# Reduced chi-squared =         0.7679 for     55 degrees of freedom
# Null hypothesis probability =   8.754517e-01
# Null hypothesis probability =   8.883213e-01
# Null hypothesis probability =   8.964846e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.17110     ( -0.58126   0.671666 )
Norm@50keV  : 2.78308E-02    ( -0.0140239   0.0145754 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.91 using 59 PHA bins.
# Reduced chi-squared =         0.9108 for     57 degrees of freedom
# Null hypothesis probability =   6.657791e-01

Photon flux (15-150 keV)    in 0.008 sec: 8.69093 ( -3.09553  3.09668 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.90863e-09 ( -1.04496e-09  1.05163e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 8.51552E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.51 using 59 PHA bins.
# Reduced chi-squared =          1.116 for     56 degrees of freedom
# Null hypothesis probability =   2.561267e-01

Photon flux (15-150 keV)    in 0.008 sec: 13.4320 13.4338 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.88671e-13 ( 0  0 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.85986   ( 3.67776   8.85986 )
beta        : -3.17048    ( -0.672604   0.581498 )
Epeak [keV] : 55.1483      ( -55.1483 -55.1483 )
Norm@50keV   : 3.78412    ( -1.90629   1.98083 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.91 using 59 PHA bins.
# Reduced chi-squared =         0.9439 for     55 degrees of freedom
# Null hypothesis probability =   5.932689e-01

Photon flux (15-150 keV)    in 0.008 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 9.53e-10
S(50-100 keV) = 4.24e-10

T90 vs. Hardness ratio plot

T90                                   = 0.00800001621246338 sec.
Hardness ratio (energy fluence ratio) = 0.444911

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.62228
Count Ratio (50-100 keV) / (15-25 keV) = 0.154559

Mask shadow pattern

IMX = -2.742536591115584E-01, IMY = 1.327154829047476E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-30.415410 -7.916000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9814 -15.6525    0.5  25.0  121.8   2.0460  21.6    0.7	Sco X-1
255.9895 -37.7927    3.8  10.7   47.8   0.2017   3.0    3.1	4U 1700-377
256.4115 -36.3557    4.3   9.6   53.8   0.1718   2.7    4.2	GX 349+2
262.9227 -24.8753    4.7   7.1  152.1  -0.1668  -2.4    9.1	GX 1+4
264.7741 -44.3504    4.6  13.1    2.8   0.1688   2.5    6.1	4U 1735-44
268.2830  -1.5640  297.8  29.8 -178.2   0.0033   0.0    8.4	SW J1753.5-0127
270.1201 -24.9281    0.0   7.2 -153.7   0.0653   1.1   12.7	GX 5-1
270.1363 -25.8916    0.0   6.4 -149.7   0.0227   0.4   12.6	GRS 1758-258
273.8612 -14.1279    5.9  18.5 -158.6   0.1293   2.0   10.1	GX 17+2
276.0989 -30.3638   13.0   8.4  -96.3  -0.0597  -0.9    9.0	H1820-303
285.0254 -24.9420   19.9  17.7 -108.7  -0.0414  -0.6    1.4	HT1900.1-2455
288.7139  11.0959   54.2  47.6 -151.7   0.0341   0.2   10.3	GRS 1915+105
263.0133 -33.6859    9.7   3.6   47.0   0.0836   1.2    9.0	GX 354-0
266.1703   5.3776    2.4  36.7  177.6   0.4636   4.8 ------	UNKNOWN
274.2684  26.3667    2.3  58.2 -173.8   2.0078   5.1 ------	UNKNOWN
315.7591 -33.2305    2.3  41.4  -75.9   1.3673   5.0 ------	UNKNOWN
317.3907 -35.9989    2.9  42.3  -71.5   1.0033   3.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 0.008000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9907 -15.6852    5.8  25.0  121.8   0.0064   2.0    2.8	Sco X-1
256.0106 -37.7081    8.5  10.6   48.2  -0.0032  -1.4    8.2	4U 1700-377
256.4238 -36.3795    6.3   9.6   53.7  -0.0043  -1.8    2.7	GX 349+2
262.9120 -24.5901   12.3   7.4  152.9  -0.0022  -0.9   10.7	GX 1+4
264.6421 -44.5961    7.6  13.3    3.1   0.0035   1.5    9.8	4U 1735-44
268.2416  -1.2984    0.0  30.1 -178.3  -0.0090  -3.2   12.0	SW J1753.5-0127
270.1615 -24.9284    4.2   7.2 -153.5  -0.0064  -2.7   11.2	GX 5-1
270.4009 -25.8934    5.2   6.5 -147.9  -0.0053  -2.2   10.5	GRS 1758-258
273.8608 -14.0793  117.6  18.6 -158.7   0.0002   0.1    8.8	GX 17+2
275.9521 -30.3695    4.6   8.3  -96.4  -0.0057  -2.5    1.4	H1820-303
284.9627 -24.8196    6.2  17.7 -109.2  -0.0048  -1.9    7.3	HT1900.1-2455
288.7885  10.8054    5.0  47.3 -151.5  -0.0125  -2.3    8.4	GRS 1915+105
263.0041 -33.6854   13.9   3.7   47.1   0.0019   0.8    9.0	GX 354-0
274.5154 -16.1255    1.5  16.9 -154.2   0.0169   7.5 ------	UNKNOWN
319.3883 -41.0391    2.4  43.2  -63.8   0.0432   4.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
47.584620 97.054000
98.084000 132.514000
134.084000 242.132300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9869 -15.6450    0.4  28.3   87.3  14.0913  31.0    0.5	Sco X-1
255.9883 -37.8295    1.2  27.1   33.8   3.1386   9.6    0.9	4U 1700-377
256.2712 -36.3316    3.6  25.9   35.7   1.0104   3.2    9.6	GX 349+2
263.1670 -24.8511   29.0  13.7   49.1  -0.1170  -0.4   10.7	GX 1+4
264.5616 -44.3940   11.4  29.5   15.0   0.3549   1.0    8.5	4U 1735-44
268.4118  -1.6013    5.0  15.7  157.6   0.6810   2.3    9.3	SW J1753.5-0127
270.1391 -25.0981    2.8   9.8   24.0   1.1404   4.2    8.0	GX 5-1
270.1394 -25.6648   14.1  10.4   22.7   0.2494   0.9   10.0	GRS 1758-258
274.1609 -14.1070    3.1   2.0  172.4   1.0130   3.7   10.0	GX 17+2
275.9251 -30.2868    5.0  14.2   -4.7   0.6827   2.3    4.8	H1820-303
285.0104 -24.9311   61.1  13.2  -46.0  -0.0522  -0.2    1.5	HT1900.1-2455
288.7906  10.8206    6.9  30.4 -150.8  -0.5801  -1.7    7.5	GRS 1915+105
299.5448  35.2116  251.6  56.6 -155.0   0.0874   0.0    2.3	Cyg X-1
262.8745 -33.9733    4.7  20.7   28.6   0.7310   2.5   10.1	GX 354-0
253.4207 -31.5911    2.4  24.6   47.8   1.5036   4.7 ------	UNKNOWN
292.2493 -50.9160    2.5  37.6  -17.9   1.5823   4.6 ------	UNKNOWN
302.8980 -26.7736    3.3  28.4  -62.7   1.1810   3.6 ------	UNKNOWN
315.8217 -36.3824    4.1  41.8  -52.4   1.8474   2.8 ------	UNKNOWN
322.4739 -48.2923    3.8  50.6  -39.3   3.5685   3.0 ------	UNKNOWN
312.9179   5.7010    3.5  43.9 -116.2   4.6390   3.3 ------	UNKNOWN

Plot creation:
Fri Mar 13 20:58:59 EDT 2020
