TDRSS scaled map for 960986
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Thu 12 Mar 20 21:17:01 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 960986, Seg_Num: 0
GRB_RA: 274.471d {+18h 17m 53s} (J2000),
274.762d {+18h 19m 03s} (current),
273.750d {+18h 15m 00s} (1950)
GRB_DEC: -16.102d {-16d 06' 05"} (J2000),
-16.093d {-16d 05' 33"} (current),
-16.122d {-16d 07' 17"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 162 [cnts] Image_Peak=36 [image_cnts]
TRIGGER_DUR: 0.008 [sec]
TRIGGER_INDEX: 10109 E_range: 15-50 keV
BKG_INTEN: 29409 [cnts]
BKG_TIME: 76591.41 SOD {21:16:31.41} UT
BKG_DUR: 8 [sec]
GRB_DATE: 18920 TJD; 72 DOY; 20/03/12
GRB_TIME: 76607.09 SOD {21:16:47.09} UT
GRB_PHI: -154.34 [deg]
GRB_THETA: 16.94 [deg]
SOLN_STATUS: 0x3
RATE_SIGNIF: 23.97 [sigma]
IMAGE_SIGNIF: 7.40 [sigma]
MERIT_PARAMS: +1 +0 +0 -7 +1 -3 +0 +1 -19 +0
SUN_POSTN: 353.35d {+23h 33m 25s} -2.87d {-02d 52' 19"}
SUN_DIST: 78.25 [deg] Sun_angle= 5.2 [hr] (West of Sun)
MOON_POSTN: 216.28d {+14h 25m 07s} -9.84d {-09d 50' 29"}
MOON_DIST: 57.16 [deg]
MOON_ILLUM: 86 [%]
GAL_COORDS: 14.83, -0.10 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 274.33, 7.27 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 153.82,-17.40 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Thu 12 Mar 20 21:29:25 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 960986, Seg_Num: 0
POINT_RA: 266.333d {+17h 45m 20s} (J2000)
POINT_DEC: -31.331d {-31d 19' 50"} (J2000)
MAP_DATE: 18920 TJD; 72 DOY; 20/03/12
MAP_TIME: 76607.32 SOD {21:16:47.32} UT
TRIGGER_DUR: 0.008 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 23.97 [sigma]
IMAGE_SIGNIF: 7.40 [sigma]
MAP_URL: sw00960986000msbsm.fits
SUN_POSTN: 353.36d {+23h 33m 27s} -2.87d {-02d 52' 06"}
MOON_POSTN: 216.40d {+14h 25m 35s} -9.89d {-09d 53' 14"}
MOON_ILLUM: 86 [%]
GAL_COORDS: 357.92, -1.19 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 266.84, -7.93 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

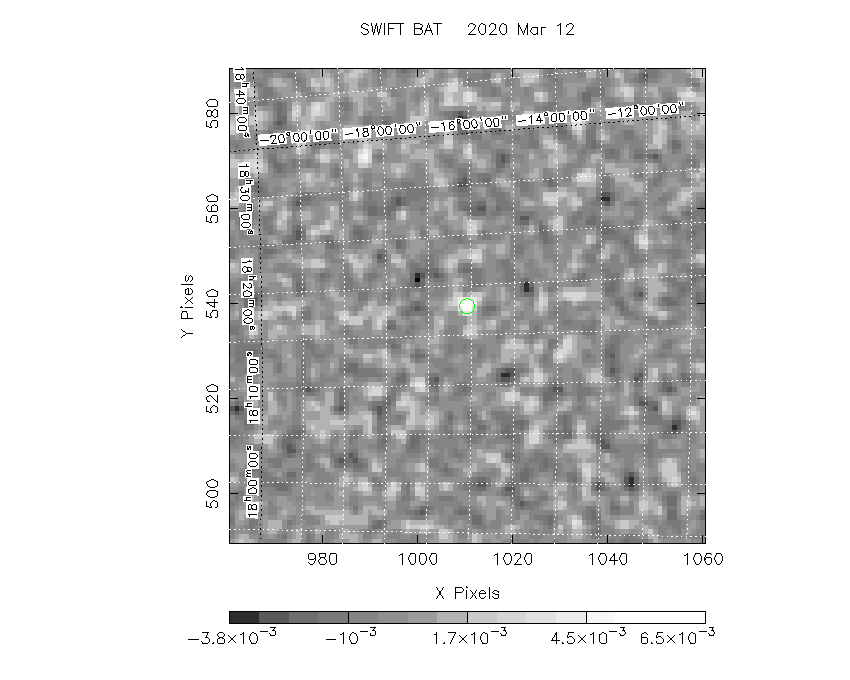

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (274.471, -16.102).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 274.471 -16.102 1.0
AXJ1817.0-1607 ( 274.271 , -16.132 ) delta= 0.195
AXJ1818.8-1527 ( 274.704 , -15.463 ) delta= 0.677
AXJ1818.8-1559 ( 274.721 , -15.992 ) delta= 0.264
AXJ1819.2-1548 ( 274.825 , -15.803 ) delta= 0.453
AXJ1819.2-1601 ( 274.817 , -16.023 ) delta= 0.341
SAXJ1818.6-1703 ( 274.663 , -17.052 ) delta= 0.967
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
195.6985 -63.8357 0.0 53.7 28.9 -0.0160 -2.3 0.0 PSR B1259-63
201.6504 -62.1361 0.0 50.9 30.8 0.0061 1.2 0.0 4U 1323-619
213.2913 -65.3390 0.0 46.6 25.2 0.0050 1.5 0.0 Cir Galaxy
228.4837 -59.1356 0.0 37.6 28.9 0.0016 0.9 0.0 PSR B1509-58
231.2913 -65.3390 0.0 40.1 19.7 0.0008 0.4 0.0 Circinus AGN
235.5971 -52.3861 0.0 30.7 35.5 0.0011 0.7 0.0 H 1538-522
243.1792 -52.4231 0.0 27.0 29.7 -0.0003 -0.2 0.0 4U 1608-522
243.1792 -57.1669 0.0 30.4 22.8 -0.0012 -0.8 0.0 Cir X-1
244.9795 -15.6402 0.0 25.0 121.8 0.0023 1.6 0.0 Sco X-1
248.0700 -67.4619 0.0 37.7 9.2 0.0012 0.8 0.0 4U 1626-67
250.2312 -53.7514 0.0 25.2 20.5 0.0006 0.5 0.0 4U 1636-536
251.4487 -45.6111 0.0 18.4 32.6 -0.0002 -0.2 0.0 GX 340+0
253.5006 -39.8458 0.0 13.4 45.0 0.0000 0.0 0.0 GRO J1655-40
255.1996 -41.6731 0.0 13.6 35.5 0.0006 0.6 0.0 OAO 1657-415
255.9866 -37.8441 0.0 10.7 47.6 -0.0021 -2.0 0.0 4U 1700-377
256.4354 -36.4231 0.0 9.7 53.4 -0.0015 -1.5 0.0 GX 349+2
256.5638 -43.0361 0.0 14.0 28.6 0.0005 0.5 0.0 4U 1702-429
257.2292 -44.1000 0.0 14.6 24.6 0.0010 0.9 0.0 4U 1705-440
257.2333 -32.2833 0.0 7.8 78.5 -0.0013 -1.2 0.0 4U 1705-32
257.2750 -36.4108 0.0 9.1 51.4 0.0025 2.4 0.0 IGR J17091-3624
257.4500 -36.4700 0.0 9.0 50.6 -0.0005 -0.5 0.0 IGR J17098-3628
257.5517 -28.1317 0.0 8.3 108.5 -0.0004 -0.4 0.0 XTE J1710-281
261.3000 -36.2667 0.0 6.5 36.8 -0.0003 -0.3 0.0 IGR J17252-3616
261.3500 -32.9500 0.0 4.5 65.7 0.0014 1.3 0.0 IGR J17254-3257
261.8883 -30.8019 0.0 3.8 94.8 0.0014 1.3 0.0 4U 1722-30
262.9342 -16.9617 0.0 14.7 164.9 0.0012 1.2 0.0 GX 9+9
262.9892 -33.8347 0.0 3.8 45.4 0.0007 0.6 0.0 4U 1728-34
263.0090 -24.7456 0.0 7.2 153.1 -0.0005 -0.5 0.0 GX 1+4
263.3504 -33.3878 0.0 3.2 48.0 0.0000 0.0 0.0 4U 1730-335
264.5667 -27.0044 0.0 4.6 157.8 -0.0017 -1.7 0.0 SLX 1735-269
264.7429 -44.4500 0.0 13.2 2.8 0.0005 0.5 0.0 4U 1735-44
265.7500 -36.3447 0.0 5.0 3.2 -0.0012 -1.2 0.0 XTE J1743-363
265.9761 -29.7395 0.0 1.6 166.9 0.0001 0.1 0.0 1E 1740.7-2942
266.2500 -28.9167 0.0 2.4 176.2 -0.0014 -1.4 0.0 GRS 1741.9-2853
266.4167 -29.0082 0.0 2.3 179.7 0.0008 0.8 0.0 AX J1745.6-2900
266.5229 -29.5153 0.0 1.8 -177.0 -0.0011 -1.1 0.0 1A 1742-294
266.8579 -29.9994 0.0 1.4 -163.4 -0.0009 -0.9 0.0 SLX 1744-299
266.9833 -26.5636 0.0 4.8 -175.2 -0.0014 -1.3 0.0 GX 3+1
270.2842 -25.0792 0.0 7.2 -152.1 -0.0017 -1.6 0.0 GX 5-1
270.3025 -25.7431 0.0 6.6 -149.3 0.0002 0.2 0.0 GRS 1758-258
270.3846 -20.5289 0.0 11.4 -162.6 0.0007 0.7 0.0 GX 9+1
270.6663 -20.2871 0.0 11.7 -161.7 -0.0000 -0.0 0.0 IGR J18027-2016
273.6315 -17.1574 0.0 15.7 -155.4 0.0010 0.9 0.0 GX 13+1
273.8000 -12.0833 0.0 20.5 -160.8 0.0003 0.3 0.0 4U 1812-12
274.0058 -14.0364 0.0 18.7 -158.3 -0.0006 -0.5 0.0 GX 17+2
275.9185 -30.3611 0.0 8.3 -96.5 -0.0027 -2.6 0.0 4U 1820-30
276.4450 -37.1053 0.0 10.1 -54.8 -0.0017 -1.7 0.0 3A 1822-371
277.3675 -23.7969 0.0 12.3 -127.1 0.0016 1.6 0.0 GS 1826-24
278.9337 -32.9914 0.0 10.8 -80.0 0.0004 0.4 0.0 XB 1832-330
279.5847 -65.4276 0.0 35.0 -11.7 -0.0000 -0.0 0.0 ESO 103-035
279.9896 5.0358 0.0 38.6 -160.0 0.0023 1.5 0.0 Ser X-1
283.8804 -2.6067 0.0 33.2 -148.7 0.0000 0.0 0.0 XTE J1855-026
287.4138 9.8292 0.0 45.9 -152.6 -0.0016 -0.7 0.0 4U 1907+09
287.7208 7.6667 0.0 44.0 -150.8 -0.0011 -0.6 0.0 4U 1909+07
287.9565 4.9827 0.0 41.8 -148.7 -0.0025 -1.3 0.0 SS 433
288.5083 9.8883 0.0 46.4 -151.3 -0.0008 -0.4 0.0 IGR J19140+0951
288.7983 10.9456 0.0 47.5 -151.5 -0.0024 -1.0 0.0 GRS 1915+105
229.9077 -32.0327 2.8 30.9 76.8 0.0080 4.2 ------ UNKNOWN
265.9812 -51.6632 2.2 20.3 -1.5 0.0055 5.3 ------ UNKNOWN
274.5116 -16.1218 1.7 16.9 -154.2 0.0075 7.0 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
244.9795 -15.6402 0.0 25.0 121.8 0.0023 1.6 0.0 Sco X-1
255.9866 -37.8441 0.0 10.7 47.6 -0.0021 -2.0 0.0 4U 1700-377
256.4354 -36.4231 0.0 9.7 53.4 -0.0016 -1.6 0.0 GX 349+2
263.0090 -24.7456 0.0 7.2 153.1 -0.0005 -0.5 0.0 GX 1+4
264.7429 -44.4500 0.0 13.2 2.8 0.0005 0.5 0.0 4U 1735-44
268.3680 -1.4526 0.0 30.0 -178.1 -0.0008 -0.6 0.0 SW J1753.5-0127
270.2842 -25.0792 0.0 7.2 -152.1 -0.0017 -1.6 0.0 GX 5-1
270.3025 -25.7431 0.0 6.6 -149.3 0.0002 0.2 0.0 GRS 1758-258
274.0058 -14.0364 0.0 18.7 -158.3 -0.0006 -0.5 0.0 GX 17+2
275.9250 -30.3670 0.0 8.3 -96.4 -0.0027 -2.6 0.0 H1820-303
285.0360 -24.9205 0.0 17.7 -108.8 -0.0030 -2.6 0.0 HT1900.1-2455
288.7983 10.9456 0.0 47.5 -151.5 -0.0024 -1.0 0.0 GRS 1915+105
262.9891 -33.8347 0.0 3.8 45.4 0.0007 0.6 0.0 GX 354-0
229.9077 -32.0327 2.8 30.9 76.8 0.0080 4.2 ------ UNKNOWN
265.9812 -51.6632 2.2 20.3 -1.5 0.0055 5.3 ------ UNKNOWN
274.5116 -16.1218 1.6 16.9 -154.2 0.0075 7.0 ------ UNKNOWN
Search for UNKNOWN source R.A. = 229.9077 Dec. = -32.0327 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 265.9812 Dec. = -51.6632 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 274.5116 Dec. = -16.1218 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger960986/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Thu Mar 12 17:31:18 EDT 2020
