Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.47
    Process Start Time (local time): Sun May 17 21:38:34 EDT 2020
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger972614/GCN5_download_cron
======================================================================

  Trigger: 00972614      Segment: 000

  BAT Trigger Time: 611334233.648   [s; MET]
      Trigger Stop: 611334233.664   [s; MET]
               UTC: 2020-05-16T15:03:28.697140    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 274.550208088544   Dec: -16.1926044315806  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.09
     Image Trigger?:     NO
     Rate S/N Ratio:     11.4455231422596  [ if not an image trigger ]
     Image S/N Ratio:    7.09

  Flight Position:   [ source = BAT ]
    RA: 274.550208088544   Dec: -16.1926044315806  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 274.489700039187   Dec: -16.1642398878541  [deg; J2000]
        { 18h 17m 57.5s , -16d 09' 51.3" }
         +/- 3.30456449503448 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.9412374517012 [arcmin] (formal 1-sigma fit error)
    SNR: 5.51476003232504

  Angular difference between Flight and Ground position is 3.879887 arcmin

  Partial Coding Fraction: 0.9453125    [ including projection effects ]

  Duration
     T90: 0.0160000324249268 +/-
        Measured from: 0
                   to: 0.0160000324249268     [s; relative to TRIGTIME]
     T50: 0.0160000324249268 +/-
        Measured from: 0
                   to: 0.0160000324249268     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 0.0160000324249268 second)
        Measured from: 0
                   to: 0.0160000324249268     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 0.0160000324249268     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.006670   0.004040   0.000579   0.000346
           0.001363   0.001191   0.000683   0.000558 [error]
 Peak      0.006670   0.004040   0.000579   0.000346
           0.001363   0.001191   0.000683   0.000558 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.01e-09 3.61e-10 7.36e-11 1.78e-11 1.46e-09 1.46e-09   erg/cm2
              Error 4.56e-10 1.69e-10 5.57e-11 2.48e-11 6.08e-10 6.10e-10   erg/cm2
Peak flux Power-law 2.16e+00 4.42e-01 4.51e-02 5.05e-03 2.65e+00 2.65e+00   ph/cm2/s
              Error 9.84e-01 2.03e-01 3.34e-02 6.68e-03 1.14e+00 1.14e+00   ph/cm2/s

Fluence   Cutoff-PL 1.28e-09 7.30e-10 4.24e-11 6.56e-14 2.06e-09 2.06e-09   erg/cm2
              Error 5.43e-10 6.08e-10 4.91e-11 8.75e-12 6.42e-10 6.42e-10   erg/cm2
Peak flux Cutoff-PL 2.64e+00 9.05e-01 2.90e-02 2.39e-05 3.58e+00 3.58e+00   ph/cm2/s
              Error 1.14e+00 7.48e-01 3.20e-02 2.54e-03 1.45e+00 1.45e+00   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.293    0.760    -      -           3.31e-03 2.09e-03   57.940 57
CPL   1.000    0.000      50.0    0.0      5.65e-03 0.00e+00   69.570 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.293    0.760    -      -           3.31e-03 2.09e-03   57.940 57
CPL   1.000    0.000      50.0    0.0      5.65e-03 0.00e+00   69.570 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.016    0.000    0.016
T90     0.016    0.000    0.016
T50     0.016    0.000    0.016
Peak    0.016    0.000    0.016

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  274.4897 -16.1642 0.0348   12.7   59.1       0.0109     5.5  TRIG_00972614
------------------------------------------

Foreground time interval of the image:
  0.000   0.016 (delta_t =   0.016 [sec])
Background time interval of the image:
-239.648 -198.448 (delta_t =  41.200 [sec])
-197.648  -1.648 (delta_t = 196.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

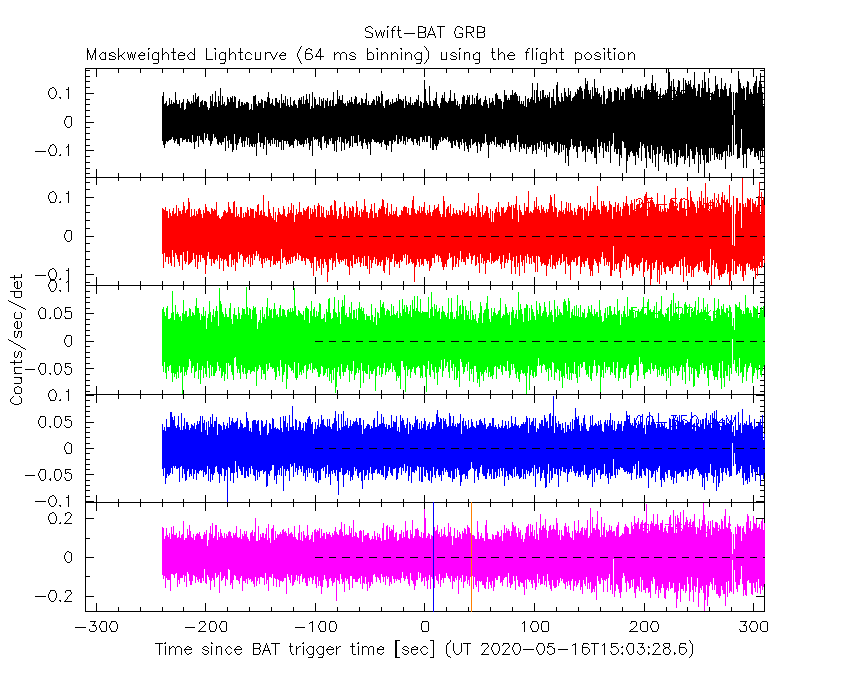

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.000 sec. to    0.016 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.29291     ( -0.644427   0.875103 )
Norm@50keV  : 3.31043E-03    ( -0.00208508   0.00209223 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.94 using 59 PHA bins.
# Reduced chi-squared =          1.016 for     57 degrees of freedom
# Null hypothesis probability =   4.403954e-01

Photon flux (15-150 keV)    in 0.016 sec: 2.64764 ( -1.14538  1.13783 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.45518e-09 ( -6.07971e-10  6.07626e-10 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.016 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 5.64974E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.57 using 59 PHA bins.
# Reduced chi-squared =          1.242 for     56 degrees of freedom
# Null hypothesis probability =   1.051577e-01

Photon flux (15-150 keV)    in 0.016 sec: 3.57698 ( -1.44974  1.4437 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.05651e-09 ( -4.33728e-10  8.49616e-10 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.016 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.33762   ( 8.33762   8.33762 )
beta        : -4.29301    ( -0.873759   0.644589 )
Epeak [keV] : 2.25278      ( -2.25278 -2.25278 )
Norm@50keV   : 0.449893    ( -0.283114   0.284366 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.94 using 59 PHA bins.
# Reduced chi-squared =          1.053 for     55 degrees of freedom
# Null hypothesis probability =   3.673741e-01

Photon flux (15-150 keV)    in 0.016 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 4.99327  (-1.73345  0.987097)
R^2/D10^2   : 32.7632  (-32.7695   239.997)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.61 using 59 PHA bins.
# Reduced chi-squared =         0.9756 for     57 degrees of freedom
# Null hypothesis probability =   5.274546e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.268e-09   8.408e-10
25- 50  8.254e-10   5.510e-10
50-150  3.334e-11   3.403e-11
15-150  2.127e-09   1.426e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 10.8638       (-3.52727      3.46631)
Norm        : 100.391       (-56.092     130.413)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.62 using 59 PHA bins.
# Reduced chi-squared =         0.9758 for     57 degrees of freedom
# Null hypothesis probability =   5.269069e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.242e-09   6.927e-10
25- 50  5.954e-10   3.238e-10
50-150  5.081e-11   4.408e-11
15-150  1.888e-09   9.678e-10

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.20205        (-1.25585      1.36507)
R1^2/D10^2  : 73.0841        (-57.1583      454.993)
kT2 [keV]   : 199.363        (-199.363      -199.363)
R2^2/D10^2  : 6.31993E-05    (-6.32137e-05   68.7661)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.48 using 59 PHA bins.
#Fit statistic : Chi-Squared =          53.47 using 59 PHA bins.
# Reduced chi-squared =         0.9724 for     55 degrees of freedom
# Reduced chi-squared =         0.9722 for     55 degrees of freedom
# Null hypothesis probability =   5.327312e-01
# Null hypothesis probability =   5.332094e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.346e-09   8.208e-10
25- 50  5.675e-10   3.883e-10
50-150  2.590e-10   1.288e-11
15-150  2.173e-09   1.241e-09

Peak spectrum fit

Power-law model

Time interval is from    0.000 sec. to    0.016 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.29291     ( -0.644427   0.875103 )
Norm@50keV  : 3.31043E-03    ( -0.00208508   0.00209223 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.94 using 59 PHA bins.
# Reduced chi-squared =          1.016 for     57 degrees of freedom
# Null hypothesis probability =   4.403954e-01

Photon flux (15-150 keV)    in 0.016 sec: 2.64764 ( -1.14538  1.13783 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.45518e-09 ( -6.07971e-10  6.07626e-10 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.016 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 5.64974E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.57 using 59 PHA bins.
# Reduced chi-squared =          1.242 for     56 degrees of freedom
# Null hypothesis probability =   1.051577e-01

Photon flux (15-150 keV)    in 0.016 sec: 3.57698 ( -1.44974  1.4437 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.05651e-09 ( -4.33728e-10  8.49616e-10 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.016 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.33762   ( 8.33762   8.33762 )
beta        : -4.29301    ( -0.873759   0.644589 )
Epeak [keV] : 2.25278      ( -2.25278 -2.25278 )
Norm@50keV   : 0.449893    ( -0.283114   0.284366 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.94 using 59 PHA bins.
# Reduced chi-squared =          1.053 for     55 degrees of freedom
# Null hypothesis probability =   3.673741e-01

Photon flux (15-150 keV)    in 0.016 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 4.99327  (-1.73345  0.987097)
R^2/D10^2   : 32.7632  (-32.7695   239.997)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.61 using 59 PHA bins.
# Reduced chi-squared =         0.9756 for     57 degrees of freedom
# Null hypothesis probability =   5.274546e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.268e-09   8.280e-10
25- 50  8.254e-10   5.649e-10
50-150  3.334e-11   3.341e-11
15-150  2.127e-09   1.394e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 10.8638       (-3.52727      3.46631)
Norm        : 100.391       (-56.092     130.413)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.62 using 59 PHA bins.
# Reduced chi-squared =         0.9758 for     57 degrees of freedom
# Null hypothesis probability =   5.269069e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.242e-09   5.803e-10
25- 50  5.954e-10   3.198e-10
50-150  5.081e-11   4.334e-11
15-150  1.888e-09   9.350e-10

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.20205        (-1.25585      1.36507)
R1^2/D10^2  : 73.0841        (-57.1583      454.993)
kT2 [keV]   : 199.363        (-199.363      -199.363)
R2^2/D10^2  : 6.31993E-05    (-6.32137e-05   68.7661)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.48 using 59 PHA bins.
#Fit statistic : Chi-Squared =          53.47 using 59 PHA bins.
# Reduced chi-squared =         0.9724 for     55 degrees of freedom
# Reduced chi-squared =         0.9722 for     55 degrees of freedom
# Null hypothesis probability =   5.327312e-01
# Null hypothesis probability =   5.332094e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.346e-09   8.480e-10
25- 50  5.675e-10   3.713e-10
50-150  2.590e-10   1.255e-11
15-150  2.173e-09   1.237e-09

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.29291     ( -0.644427   0.875103 )
Norm@50keV  : 3.31043E-03    ( -0.00208508   0.00209223 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.94 using 59 PHA bins.
# Reduced chi-squared =          1.016 for     57 degrees of freedom
# Null hypothesis probability =   4.403954e-01

Photon flux (15-150 keV)    in 0.016 sec: 2.64764 ( -1.14538  1.13783 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.45518e-09 ( -6.07971e-10  6.07626e-10 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 5.64974E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.57 using 59 PHA bins.
# Reduced chi-squared =          1.242 for     56 degrees of freedom
# Null hypothesis probability =   1.051577e-01

Photon flux (15-150 keV)    in 0.016 sec: 3.57698 ( -1.44974  1.4437 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.05651e-09 ( -4.33728e-10  8.49616e-10 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.33762   ( 8.33762   8.33762 )
beta        : -4.29301    ( -0.873759   0.644589 )
Epeak [keV] : 2.25278      ( -2.25278 -2.25278 )
Norm@50keV   : 0.449893    ( -0.283114   0.284366 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.94 using 59 PHA bins.
# Reduced chi-squared =          1.053 for     55 degrees of freedom
# Null hypothesis probability =   3.673741e-01

Photon flux (15-150 keV)    in 0.016 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.61e-10
S(50-100 keV) = 7.36e-11

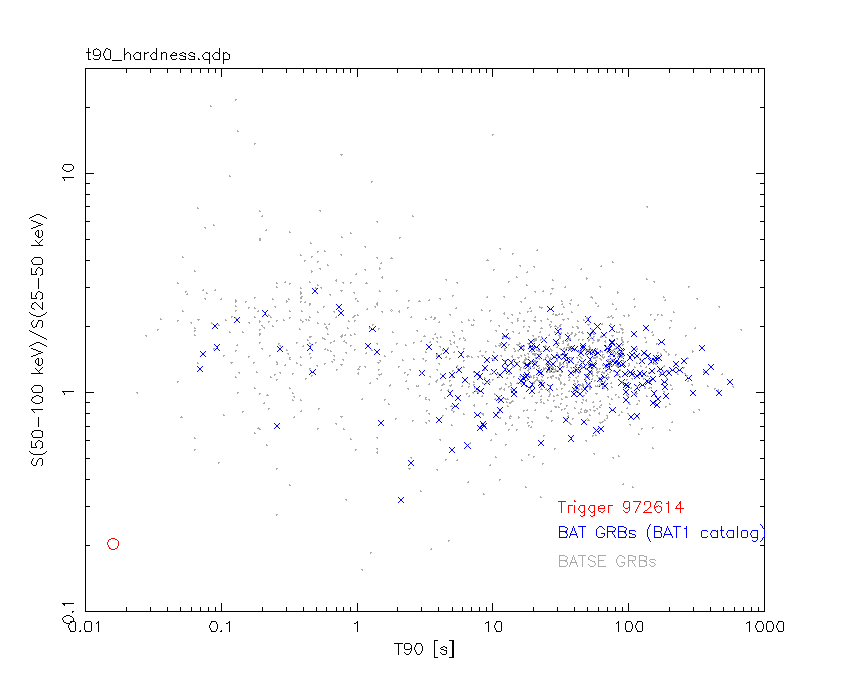

T90 vs. Hardness ratio plot

T90                                   = 0.0160000324249268 sec.
Hardness ratio (energy fluence ratio) = 0.203878

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.605697
Count Ratio (50-100 keV) / (15-25 keV) = 0.0868066

Mask shadow pattern

IMX = 1.158954132227205E-01, IMY = -1.939257385237809E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.648000 -198.448000
-197.648000 -1.648000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9743 -15.6145    0.8  39.5   83.9  15.6486  14.3    1.6	Sco X-1
254.5913  35.2717    4.3  52.0  157.1  -2.8475  -2.7    7.8	Her X-1
256.0624 -37.9176    4.3  39.3   45.1   1.4505   2.7    5.7	4U 1700-377
256.4575 -36.5621    5.7  38.2   46.4   1.0581   2.0    8.4	GX 349+2
262.8533 -24.8005    6.6  26.6   57.4   0.5894   1.7    9.1	GX 1+4
264.8992 -44.3212    0.0  40.0   30.6   0.4647   1.1   10.2	4U 1735-44
268.3381  -1.3789    5.3  17.7  120.5   0.6554   2.2    4.8	SW J1753.5-0127
270.2346 -25.0595    2.2  21.7   46.2   1.4632   5.3    2.9	GX 5-1
270.1759 -25.8914    3.7  22.4   44.8   0.8565   3.1   11.2	GRS 1758-258
273.9640 -14.0289    3.0  12.0   68.8   0.9742   3.9    2.5	GX 17+2
276.0923 -30.4841 2700.0  23.6   27.3  -0.0009  -0.0   11.1	H1820-303
285.1664 -24.7624    7.8  16.5    7.0  -0.3877  -1.5   11.8	HT1900.1-2455
288.8891  10.9471    6.7  19.7 -159.3   0.4395   1.7    5.3	GRS 1915+105
299.5854  35.2000   83.3  45.7 -154.5   0.0711   0.1    0.3	Cyg X-1
308.2124  41.0780   10.6  53.9 -149.7  -1.3380  -1.1    8.8	Cyg X-3
262.8731 -33.9669    4.0  32.6   43.4   1.1435   2.9    9.8	GX 354-0
253.5904 -10.8863    2.4  30.8   91.0   2.1957   4.9 ------	UNKNOWN
285.5805 -35.2302    2.9  27.0    6.9   1.0639   4.0 ------	UNKNOWN
288.2516 -10.6970    2.9   4.3  -46.4   1.0138   4.0 ------	UNKNOWN
291.2777  38.1665    4.1  46.8 -164.5   1.6231   2.8 ------	UNKNOWN
309.9736 -29.6357    2.5  31.9  -36.1   1.3551   4.6 ------	UNKNOWN
	UNKNOWN
	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 0.016000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8315 -15.7514    4.7  39.7   83.7  -0.0190  -2.5   10.8	Sco X-1
254.3372  35.4544    6.2  52.3  157.1   0.0160   1.9    8.9	Her X-1
255.8119 -37.7542    7.6  39.4   45.5   0.0067   1.5    9.9	4U 1700-377
256.2864 -36.2667    5.2  38.1   46.9  -0.0093  -2.2   11.8	GX 349+2
263.0009 -24.8845   18.7  26.6   57.1  -0.0015  -0.6    8.3	GX 1+4
264.9093 -44.3879    6.0  40.0   30.6  -0.0072  -1.9    8.0	4U 1735-44
268.2359  -1.6180    0.0  17.7  119.6   0.0009   0.4   12.7	SW J1753.5-0127
270.1835 -24.9612    4.8  21.7   46.4   0.0056   2.4    8.9	GX 5-1
270.1968 -25.8176    9.4  22.3   44.9   0.0028   1.2    7.3	GRS 1758-258
273.9461 -13.8945    6.0  12.0   69.4   0.0039   1.9    9.2	GX 17+2
276.0085 -30.2149    4.4  23.4   27.7   0.0055   2.6   10.1	H1820-303
284.8757 -24.9213   52.2  16.7    7.9   0.0004   0.2    8.7	HT1900.1-2455
288.9377  10.9909    4.0  19.7 -159.2   0.0056   2.9    8.6	GRS 1915+105
299.4871  35.0622    0.0  45.5 -154.5  -0.0071  -1.7    9.8	Cyg X-1
307.9643  40.9468  144.5  53.7 -149.8   0.0007   0.1    6.6	Cyg X-3
262.9359 -33.8261   17.3  32.5   43.5   0.0020   0.7    2.7	GX 354-0
267.1581  34.8551    2.5  46.2  168.4   0.0202   4.6 ------	UNKNOWN
274.4897 -16.1643    2.1  12.7   59.1   0.0109   5.5 ------	UNKNOWN
297.0625  38.2936    2.6  48.0 -158.5   0.0206   4.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
42.652600 171.392000
172.352000 260.422000
261.352000 280.242000
281.352000 281.932000
283.352000 288.612000
289.352000 308.382000
309.352000 538.452600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9815 -15.6372    0.4  28.4   98.0  42.1415  32.1    0.2	Sco X-1
254.3818  35.3398   22.0  55.0  170.9   1.7112   0.5    3.7	Her X-1
255.8274 -37.9282   29.4  27.3   44.6   0.4076   0.4    9.1	4U 1700-377
256.4949 -36.3887    3.5  25.8   46.1   3.3177   3.3    3.5	GX 349+2
262.8348 -24.6868    5.8  13.9   61.4   1.5115   2.0   10.1	GX 1+4
264.5215 -44.3113    0.0  29.4   25.8   1.6988   1.8   12.6	4U 1735-44
268.3632  -1.5194   33.7  15.9  167.8  -0.2682  -0.3    4.0	SW J1753.5-0127
270.3170 -25.0024    3.3   9.7   34.7   2.6292   3.5    4.9	GX 5-1
270.1683 -25.9133    0.0  10.6   33.2   1.8401   2.4   12.5	GRS 1758-258
273.9937 -14.1913    8.0   2.1  175.3   1.1185   1.4    9.3	GX 17+2
275.9237 -30.3670  206.8  14.2    6.3   0.0488   0.1    0.1	H1820-303
285.0321 -25.0757    9.3  13.2  -35.0  -0.9702  -1.2    9.3	HT1900.1-2455
288.7067  11.0769   10.3  30.6 -140.9   1.3263   1.1    9.6	GRS 1915+105
263.1473 -33.9716   12.5  20.5   39.0  -0.8033  -0.9   11.4	GX 354-0
331.0947 -50.6843    3.3  56.5  -28.3  16.7629   3.5 ------	UNKNOWN
305.3099  21.1694    3.1  48.0 -129.1  15.3521   3.7 ------	UNKNOWN

Plot creation:
Sun May 17 21:43:25 EDT 2020
