Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte
Pre-slew 15.0-350.0 keV image (Event data)
# RAcent DECcent POSerr Theta Phi Peak Cts SNR Name
255.3205 -30.3939 0.0050 8.0367 50.8046 1.5718573 38.530 TRIG_00973140
Foreground time interval of the image:
-0.452 9.997 (delta_t = 10.449 [sec])
Background time interval of the image:
-239.704 -0.452 (delta_t = 239.252 [sec])
Lightcurves
Notes:
- 1) The mask-weighted light curves are using the flight position.
- 2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
- 3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
- 4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
- 5) Time of each bin is in the middle of the bin.
1 s binning
From T0-310 s to T0+310 s
From T100_start - 20 s to T100_end + 30 s
Full time interval

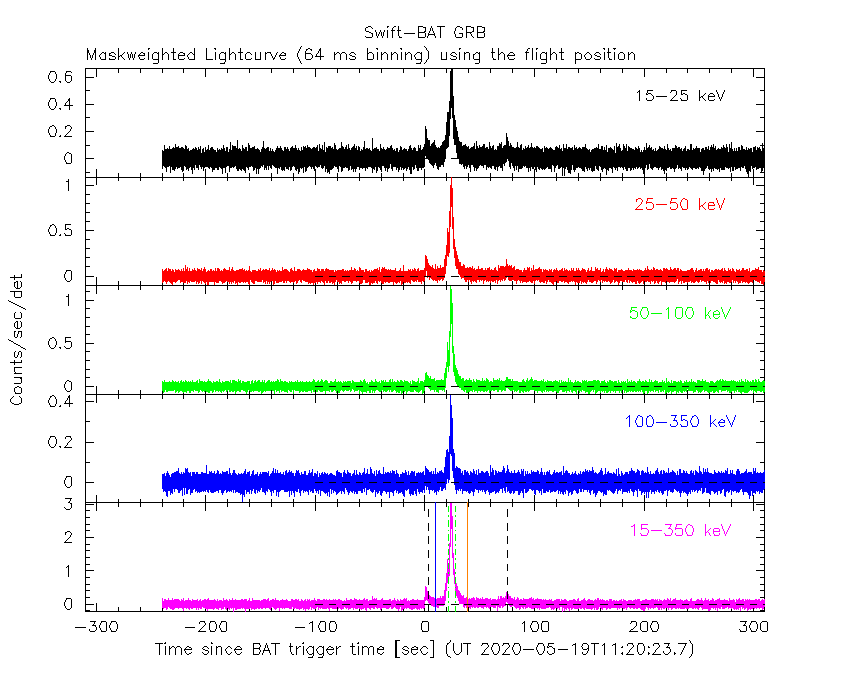

64 ms binning
Full time interval
From T100_start to T100_end
From T0-5 sec to T0+5 sec
16 ms binning
From T100_start-5 s to T100_start+5 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000
8 ms binning
From T100_start-3 s to T100_start+3 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000
2 ms binning
From T100_start-1 s to T100_start+1 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000
SN=5 or 10 sec. binning (whichever binning is satisfied first)
SN=5 or 10 sec. binning (T < 200 sec)
Quad-rate summed light curves (from T0-300s to T0+1000s)
Spectral Evolution
Spectra
Notes:
- 1) The fitting includes the systematic errors.
- 2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
- 3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
Time averaged spectrum fit using the average DRM
Power-law model
Time interval is from -0.452 sec. to 100.704 sec.
XSPEC12>exit
XSPEC: quit
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.42896 ( -0.0314473 0.0313725 )
Norm@50keV : 1.21823E-02 ( -0.000198568 0.000198296 )
------------------------------------------------------------
Photon flux (15-150 keV) in 101.2 sec: 1.49366 ( -0.02896 0.02907 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.18457e-05 ( -1.89637e-07 1.90014e-07 ) ergs/cm2
Cutoff power-law model
Time interval is from -0.452 sec. to 100.704 sec.
XSPEC: quit
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.36535 ( -0.126221 0.075616 )
Epeak [keV] : 599.852 ( -599.87 -599.87 )
Norm@50keV : 1.29474E-02 ( -0.00049276 0.00161693 )
------------------------------------------------------------
Photon flux (15-150 keV) in 101.2 sec: 1.48467 ( -0.03339 0.03361 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.18035e-05 ( -2.06333e-07 2.02045e-07 ) ergs/cm2
Band function
Time interval is from -0.452 sec. to 100.704 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : ( )
beta : ( )
Epeak [keV] : ( )
Norm@50keV : ( )
------------------------------------------------------------
Photon flux (15-150 keV) in sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
Single BB
XSPEC12>exit
XSPEC: quit
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 19.4769 ( )
R^2/D10^2 : 6.66080E-02 ( )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 4.980e-07 1.725e-08
25- 50 2.437e-06 6.325e-08
50-150 6.825e-06 1.695e-07
15-150 9.760e-06 1.685e-07

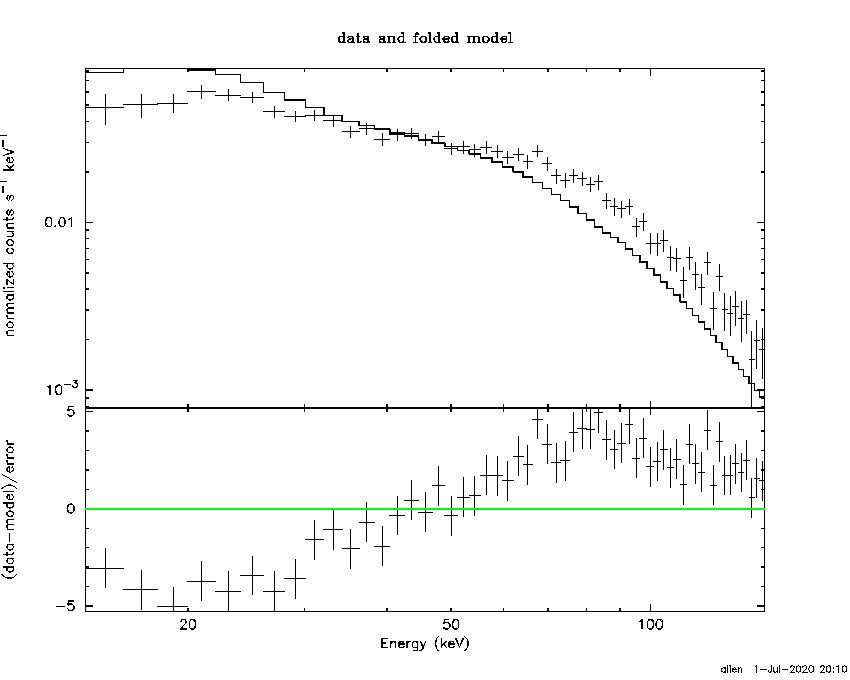

Thermal bremsstrahlung (OTTB)
XSPEC12>/*
XSPEC12>exit
XSPEC: quit
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 199.363 ( )
Norm : 6.30273 ( )
------------------------------------------------------------
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 1.588e-06 3.188e-08
25- 50 3.055e-06 5.667e-08
50-150 6.701e-06 1.240e-07
15-150 1.134e-05 2.226e-07
Double BB
XSPEC12>/*
XSPEC12>exit
XSPEC: quit
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 7.92515 (-0.48927 0.515711)
R1^2/D10^2 : 0.945740 (-0.186124 0.242268)
kT2 [keV] : 31.2461 (-1.76738 2.09865)
R2^2/D10^2 : 1.10711E-02 (-0.00222435 0.00251663)
------------------------------------------------------------
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 1.246e-06 8.096e-08
25- 50 2.905e-06 1.022e-07
50-150 7.566e-06 2.439e-07
15-150 1.172e-05 2.985e-07
Peak spectrum fit
Power-law model
Time interval is from 23.528 sec. to 24.528 sec.
XSPEC12>exit
XSPEC: quit
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.07644 ( -0.0397766 0.0396925 )
Norm@50keV : 0.178279 ( -0.00387333 0.00387024 )
------------------------------------------------------------
Photon flux (15-150 keV) in 1 sec: 20.6346 ( -0.4665 0.467 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.87841e-06 ( -4.33934e-08 4.34423e-08 ) ergs/cm2
Cutoff power-law model
Time interval is from 23.528 sec. to 24.528 sec.
XSPEC: quit
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.836151 ( -0.165297 0.159575 )
Epeak [keV] : 292.702 ( -93.8253 419.372 )
Norm@50keV : 0.224815 ( -0.0313749 0.0376813 )
------------------------------------------------------------
Photon flux (15-150 keV) in 1 sec: 20.3521 ( -0.4984 0.5 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.86016e-06 ( -4.54802e-08 4.53446e-08 ) ergs/cm2
Band function
Time interval is from 23.528 sec. to 24.528 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : ( )
beta : ( )
Epeak [keV] : ( )
Norm@50keV : ( )
------------------------------------------------------------
Photon flux (15-150 keV) in sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
Single BB
XSPEC12>exit
XSPEC: quit
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 22.3417 ( )
R^2/D10^2 : 0.687742 ( )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 6.308e-08 2.965e-09
25- 50 3.366e-07 1.075e-08
50-150 1.256e-06 4.200e-08
15-150 1.655e-06 3.950e-08
Thermal bremsstrahlung (OTTB)
XSPEC12>/*
XSPEC12>exit
XSPEC: quit
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 199.363 ( )
Norm : 86.6027 ( )
------------------------------------------------------------
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 2.157e-07 5.050e-09
25- 50 4.148e-07 9.600e-09
50-150 9.098e-07 2.055e-08
15-150 1.540e-06 3.600e-08
Double BB
XSPEC12>/*
XSPEC12>exit
XSPEC: quit
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 7.69513 (-0.767808 0.859076)
R1^2/D10^2 : 10.5622 (-3.06087 4.57915)
kT2 [keV] : 32.0913 (-2.09051 2.61396)
R2^2/D10^2 : 0.191401 (-0.0435232 0.0480831)
------------------------------------------------------------
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 1.393e-07 1.270e-08
25- 50 3.665e-07 1.875e-08
50-150 1.364e-06 6.600e-08
15-150 1.870e-06 7.350e-08
Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)
Power-law model
XSPEC12>exit
XSPEC: quit
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.72517 ( -0.0825159 0.0833171 )
Norm@50keV : 9.11468E-03 ( -0.000425718 0.000423892 )
------------------------------------------------------------
Photon flux (15-150 keV) in 10.45 sec: 1.22137 ( -0.056416 0.0565456 ) ph/cm2/s
Energy fluence (15-150 keV) : 8.80254e-07 ( -4.27976e-08 4.30269e-08 ) ergs/cm2
Cutoff power-law model
XSPEC: quit
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.24263 ( -0.363733 0.336064 )
Epeak [keV] : 76.2306 ( -14.7805 60.9606 )
Norm@50keV : 1.60611E-02 ( -0.00512654 0.00834854 )
------------------------------------------------------------
Photon flux (15-150 keV) in 10.45 sec: 1.18446 ( -0.0615 0.06158 ) ph/cm2/s
Energy fluence (15-150 keV) : 8.43764e-07 ( -4.95027e-08 4.96845e-08 ) ergs/cm2
Band function
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : ( )
beta : ( )
Epeak [keV] : ( )
Norm@50keV : ( )
------------------------------------------------------------
Photon flux (15-150 keV) in sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
S(25-50 keV) vs. S(50-100 keV) plot
S(25-50 keV) = 2.82e-06
S(50-100 keV) = 4.20e-06
T90 vs. Hardness ratio plot
T90 = 71.6959999799728 sec.
Hardness ratio (energy fluence ratio) = 1.48936
Color vs. Color plot
Count Ratio (25-50 keV) / (15-25 keV) = 1.40175
Count Ratio (50-100 keV) / (15-25 keV) = 1.11369
Mask shadow pattern
IMX = 8.923010412344813E-02, IMY = -1.094247107851486E-01

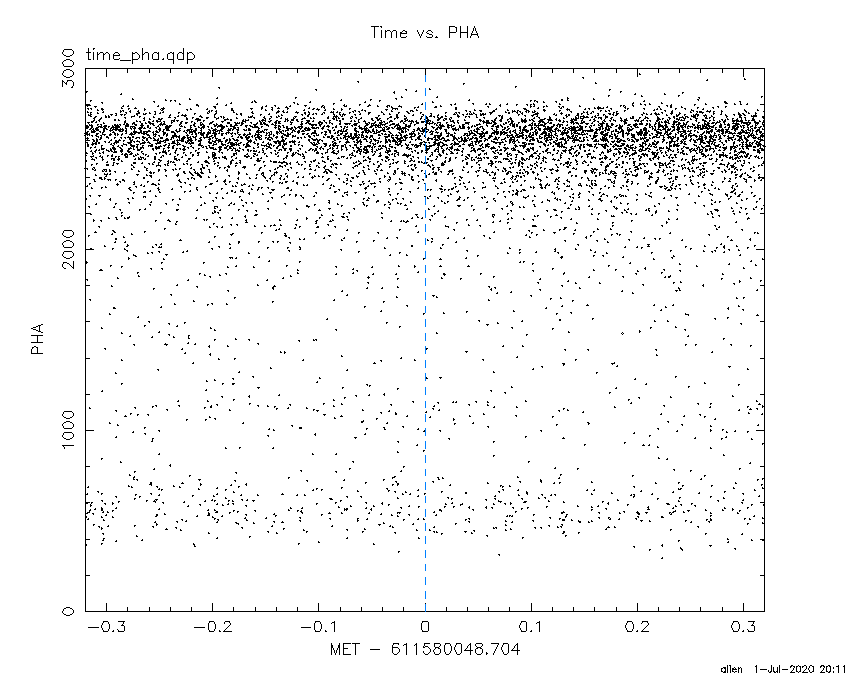

TIME vs. PHA plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000
TIME vs. DetID plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000
100 us light curve (15-350 keV)
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000
Spacecraft aspect plot
Bright source in the pre-burst/pre-slew/post-slew images
Pre-burst image of 15-350 keV band
Time interval of the image:
-239.704000 -0.452000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
244.9696 -15.6435 0.4 22.4 94.8 11.9856 32.5 0.6 Sco X-1
255.9167 -37.8144 6.2 11.2 9.2 0.5520 1.9 3.8 4U 1700-377
256.2476 -36.4524 8.4 10.1 13.3 0.3781 1.4 9.2 GX 349+2
262.9430 -24.6612 26.6 4.7 134.9 0.1145 0.4 6.2 GX 1+4
264.8892 -44.5635 8.1 15.4 -29.0 0.3742 1.4 9.3 4U 1735-44
268.4127 -1.3100 25.7 28.1 160.6 -0.1463 -0.4 9.0 SW J1753.5-0127
270.2405 -25.0337 4.1 6.6 -155.0 0.7845 2.8 3.6 GX 5-1
270.4194 -25.7137 4.1 6.3 -149.3 0.8182 2.9 6.6 GRS 1758-258
273.8923 -13.9590 6.7 17.5 -175.9 0.4870 1.7 8.1 GX 17+2
276.0071 -30.5354 43.1 10.1 -107.0 0.0747 0.3 11.0 H1820-303
284.9049 -25.0315 11.4 18.6 -125.7 0.3207 1.0 9.8 HT1900.1-2455
288.9305 10.9938 226.0 46.6 -173.8 -0.0330 -0.1 8.3 GRS 1915+105
263.0606 -34.0377 0.0 5.1 -14.5 0.2977 1.0 12.7 GX 354-0
221.4335 -46.7009 2.7 37.6 22.2 1.8095 4.3 ------ UNKNOWN
267.6230 -0.1310 2.0 29.2 158.6 1.9279 5.6 ------ UNKNOWN
302.2308 -24.2818 4.5 33.9 -117.0 1.3493 2.6 ------ UNKNOWN
Pre-slew background subtracted image of 15-350 keV band
Time interval of the image:
-0.452000 9.996590
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
244.8443 -15.7183 4.4 22.5 94.5 -0.1417 -2.6 9.1 Sco X-1
256.0353 -38.0470 37.5 11.3 8.1 0.0128 0.3 12.4 4U 1700-377
256.4266 -36.5586 21.9 10.0 12.3 -0.0219 -0.5 8.1 GX 349+2
263.1898 -24.6642 5.4 4.6 137.5 0.0943 2.1 11.0 GX 1+4
264.6343 -44.5775 7.6 15.5 -28.3 0.0635 1.5 9.0 4U 1735-44
268.4909 -1.3459 6.0 28.0 160.7 0.1024 1.9 9.8 SW J1753.5-0127
270.2459 -25.2285 14.5 6.5 -153.7 -0.0340 -0.8 9.2 GX 5-1
270.5225 -25.6711 0.0 6.4 -149.1 -0.0683 -1.6 12.7 GRS 1758-258
273.9349 -13.8401 0.0 17.6 -176.0 0.0602 1.4 12.5 GX 17+2
275.9245 -30.2068 41.4 10.0 -108.8 -0.0128 -0.3 9.6 H1820-303
284.9500 -24.8341 6.7 18.7 -126.3 -0.0811 -1.7 7.0 HT1900.1-2455
288.8934 10.8984 6.1 46.4 -173.8 0.1666 1.9 6.3 GRS 1915+105
262.9007 -33.8557 3.0 4.9 -12.5 0.1650 3.9 4.6 GX 354-0
233.9051 -13.6625 2.3 32.2 84.3 0.3957 5.0 ------ UNKNOWN
209.5857 -44.7293 2.6 45.6 26.6 0.4593 4.5 ------ UNKNOWN
255.3204 -30.3939 0.3 8.0 50.8 1.5720 38.5 ------ UNKNOWN
240.8835 -54.6044 2.3 30.6 -0.8 0.2553 5.1 ------ UNKNOWN
272.5760 -22.5204 2.3 9.8 -158.2 0.2159 5.0 ------ UNKNOWN
Post-slew image of 15-350 keV band
Time interval of the image:
38.396600 962.356000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
186.5516 -62.7164 3.7 53.7 4.6 8.3670 3.1 4.3 GX 301-2
244.9760 -15.6439 0.3 17.5 117.5 41.6564 35.8 0.3 Sco X-1
256.1086 -37.9828 6.6 7.6 -31.9 -1.6609 -1.8 10.1 4U 1700-377
256.4133 -36.4234 3.1 6.1 -35.5 3.7134 3.7 1.1 GX 349+2
262.8484 -24.7084 14.7 8.7 -156.1 0.7029 0.8 9.0 GX 1+4
264.7163 -44.5913 147.2 16.0 -52.3 0.0711 0.1 8.6 4U 1735-44
268.4534 -1.3565 7.1 31.6 178.3 2.0068 1.6 7.7 SW J1753.5-0127
270.2946 -25.1399 2.6 14.2 -135.4 4.4027 4.5 3.7 GX 5-1
270.1779 -25.7348 3.4 13.9 -133.4 3.6796 3.7 6.8 GRS 1758-258
274.1340 -13.9268 14.1 23.9 -156.8 -0.8517 -0.8 9.9 GX 17+2
275.8858 -30.4022 7.2 17.7 -112.1 1.6452 1.6 2.9 H1820-303
285.0339 -24.9262 17.7 26.8 -121.8 0.8224 0.7 0.4 HT1900.1-2455
288.8420 11.0569 11.3 52.5 -164.3 -2.8270 -1.0 7.2 GRS 1915+105
262.8500 -33.9225 5.4 7.3 -86.3 1.9774 2.1 8.7 GX 354-0
212.8512 -23.1351 3.4 38.4 63.0 7.7687 3.4 ------ UNKNOWN
251.9145 11.3136 3.3 41.8 147.6 8.4292 3.5 ------ UNKNOWN
185.7551 -59.9483 3.6 53.9 8.1 9.1861 3.2 ------ UNKNOWN
251.0140 -31.1431 3.6 3.8 50.1 2.7950 3.2 ------ UNKNOWN
294.2821 9.6686 2.6 54.8 -158.1 15.4772 4.4 ------ UNKNOWN
177.9126 -84.5224 4.0 58.6 -21.1 15.8883 2.9 ------ UNKNOWN
285.0899 -83.5978 3.3 54.1 -31.3 14.9888 3.5 ------ UNKNOWN
Plot creation:
Wed Jul 1 20:11:21 EDT 2020
