batgrbproduct analysis for trigger=974827

batgrbproduct Analysis for Trigger=974827

Analysis Summary

Notes:

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.47
    Process Start Time (local time): Mon Jun 29 14:53:54 EDT 2020
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger974827
======================================================================

  Trigger: 00974827      Segment: 000

  BAT Trigger Time: 612354468.864   [s; MET]
      Trigger Stop: 612354469.376   [s; MET]
               UTC: 2020-05-28T10:27:23.846900    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 176.636774868885   Dec: 58.1471189930449  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.17
     Image Trigger?:     NO
     Rate S/N Ratio:     15.3948043183407  [ if not an image trigger ]
     Image S/N Ratio:    9.17

  Flight Position:   [ source = BAT ]
    RA: 176.636774868885   Dec: 58.1471189930449  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 176.635874179899   Dec: 58.1849494187847  [deg; J2000]
        { 11h 46m 32.6s , +58d 11' 05.8" }
         +/- 0.686444883629976 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.229830573673835 [arcmin] (formal 1-sigma fit error)
    SNR: 52.064157854471

  Angular difference between Flight and Ground position is 2.270005 arcmin

  Partial Coding Fraction: 0.625    [ including projection effects ]

  Duration
     T90: 59.9839999675751 +/- 1.92381702054219
        Measured from: 4.74000000953674
                   to: 64.7239999771118     [s; relative to TRIGTIME]
     T50: 24.6319999694824 +/- 0.417612353072037
        Measured from: 28.0600000619888
                   to: 52.6920000314713     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 33.8159999847412
                   to: 34.8159999847412     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.73199999332428
                   to: 132.34399998188     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    12.531114  13.062307   6.699846   0.944570
           0.091608   0.093892   0.077326   0.059484 [error]
 Peak      0.607270   0.762010   0.512094   0.097064
           0.013934   0.015551   0.013292   0.007421 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.25e-06 5.42e-06 5.06e-06 8.29e-06 1.76e-05 2.30e-05   erg/cm2
              Error 1.41e-07 1.02e-07 9.92e-08 3.74e-07 2.78e-07 4.29e-07   erg/cm2
Peak flux Power-law 6.07e+00 5.50e+00 3.44e+00 3.28e+00 1.64e+01 1.83e+01   ph/cm2/s
              Error 3.08e-01 1.66e-01 1.14e-01 2.29e-01 4.84e-01 4.92e-01   ph/cm2/s

Fluence   Cutoff-PL 3.73e-06 5.50e-06 5.22e-06 4.91e-06 1.68e-05 1.93e-05   erg/cm2
              Error 1.91e-07 1.07e-07 1.11e-07 6.80e-07 3.33e-07 7.94e-07   erg/cm2
Peak flux Cutoff-PL 5.38e+00 5.65e+00 3.60e+00 2.06e+00 1.58e+01 1.67e+01   ph/cm2/s
              Error 4.01e-01 1.82e-01 1.35e-01 3.86e-01 5.31e-01 6.98e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s

=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.100    0.032    -      -           1.42e-02 2.23e-04    0.000  0
CPL   1.616    0.141      43.1    5.2      2.34e-02 3.38e-03    0.000  0


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.678    0.049    -      -           1.24e-01 3.36e-03    0.000  0
CPL   1.173    0.215      87.7   18.5      2.15e-01 4.95e-02    0.000  0

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom

=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 55.040000 sec.
T50 in the 50-300 keV band: 20.928000 sec.

=== Table of the duration information ==

        Value   tstart    tstop
T100  133.076   -0.732  132.344
T90    59.984    4.740   64.724
T50    24.632   28.060   52.692
Peak    1.000   33.816   34.816
  • Click here for the BAT GCN circular template
  • Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


    Pre-slew 15.0-350.0 keV image (Event data)

    #   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
      176.6359    58.1849   0.0037    27.6737  -131.8887         4.0130465     52.064 TRIG_00974827

    Foreground time interval of the image:
     -0.732  10.637 (delta_t =  11.369 [sec])
    Background time interval of the image:
    -239.864  -0.732 (delta_t = 239.132 [sec])


    Lightcurves

    Notes:

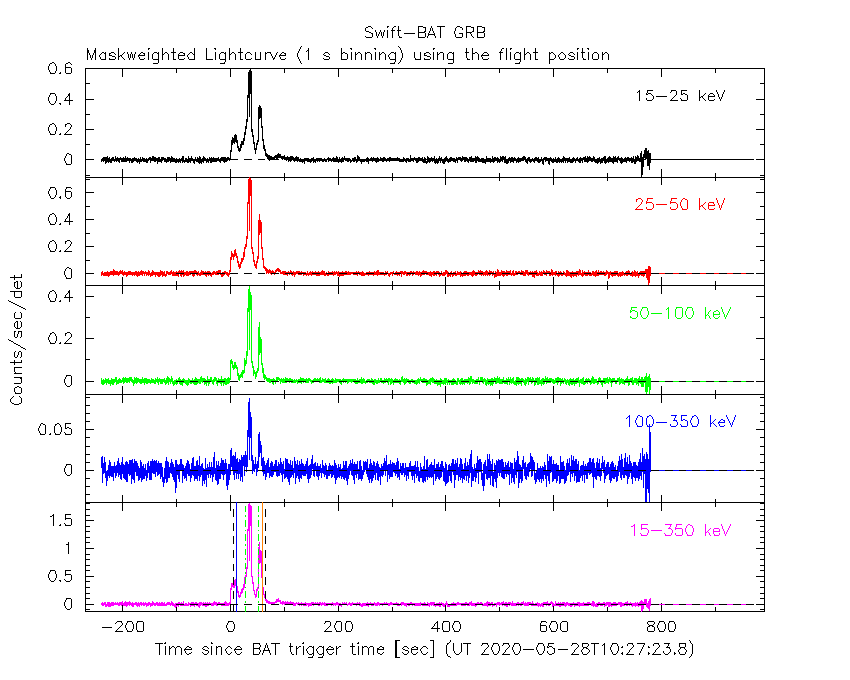

    1 s binning

    From T0-310 s to T0+310 s
    From T100_start - 20 s to T100_end + 30 s
    Full time interval

    64 ms binning

    Full time interval
    From T100_start to T100_end
    From T0-5 sec to T0+5 sec

    16 ms binning

    From T100_start-5 s to T100_start+5 s
    Blue+Cyan dotted lines: Time interval of the scaled map
    From 0.000000 to 0.512000

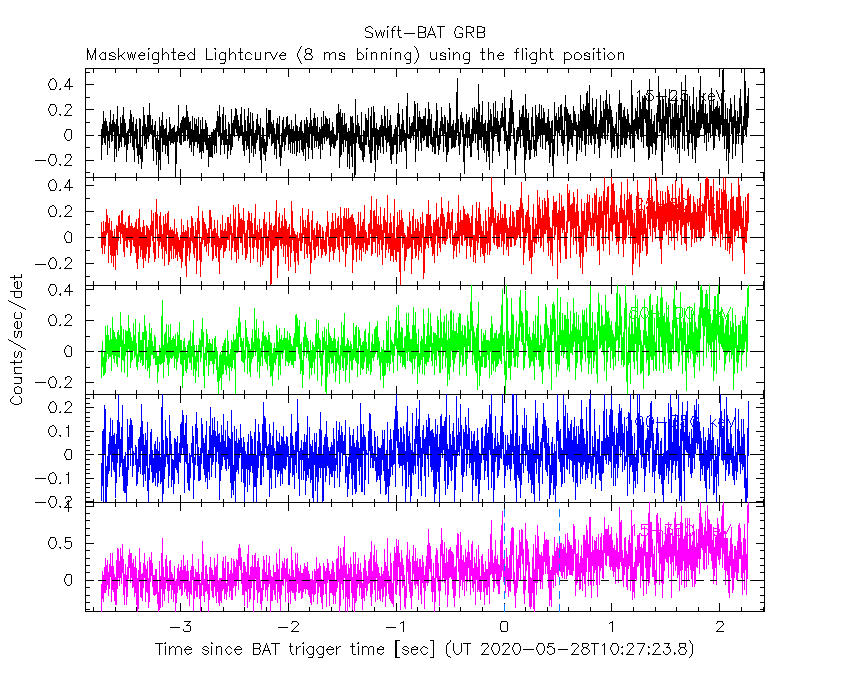

    8 ms binning

    From T100_start-3 s to T100_start+3 s
    Blue+Cyan dotted lines: Time interval of the scaled map
    From 0.000000 to 0.512000


    2 ms binning

    From T100_start-1 s to T100_start+1 s
    Blue+Cyan dotted lines: Time interval of the scaled map
    From 0.000000 to 0.512000


    SN=5 or 10 sec. binning (whichever binning is satisfied first)

    SN=5 or 10 sec. binning (T < 200 sec)

    Quad-rate summed light curves (from T0-300s to T0+1000s)

    Spectral Evolution

    Spectra

    Notes:

    Time averaged spectrum fit using the average DRM

    Power-law model
    Time interval is from   -0.732 sec. to  132.344 sec.
    XSPEC12>exit
     XSPEC: quit


    Spectral model in power-law:
    ------------------------------------------------------------
    Parameters  : value       lower 90%   higher 90%
    Photon index: 2.10012     ( -0.0316467   0.0316912 )
    Norm@50keV  : 1.41594E-02    ( -0.000223325   0.000223313 )
    ------------------------------------------------------------

    Photon flux (15-150 keV)    in 133.1 sec: 2.22797 ( -0.0479  0.04824 ) ph/cm2/s
    Energy fluence (15-150 keV)             : 1.75137e-05 ( -2.78429e-07  2.78437e-07 ) ergs/cm2


    Cutoff power-law model
    Time interval is from   -0.732 sec. to  132.344 sec.
     XSPEC: quit


    Spectral model in the cutoff power-law:
    ------------------------------------------------------------
    Parameters  : value       lower 90%   higher 90%
    Photon index: 1.61564     ( -0.14307   0.139017 )
    Epeak [keV] : 43.1431      ( -6.09422 4.34973 )
    Norm@50keV  : 2.34425E-02    ( -0.00308822   0.00367097 )
    ------------------------------------------------------------

    Photon flux (15-150 keV)    in 133.1 sec: 2.09906 ( -0.05753  0.05822 ) ph/cm2/s
    Energy fluence (15-150 keV)             : 1.68282e-05 ( -3.32634e-07  3.32589e-07 ) ergs/cm2


    Band function
    Time interval is from   -0.732 sec. to  132.344 sec.


    Spectral model in the Band function:
    ------------------------------------------------------------
    Parameters  : value       lower 90%   higher 90%
    alpha       :    (     )
    beta        :     (     )
    Epeak [keV] :       (   )
    Norm@50keV   :     (     )
    ------------------------------------------------------------

    Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
    Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

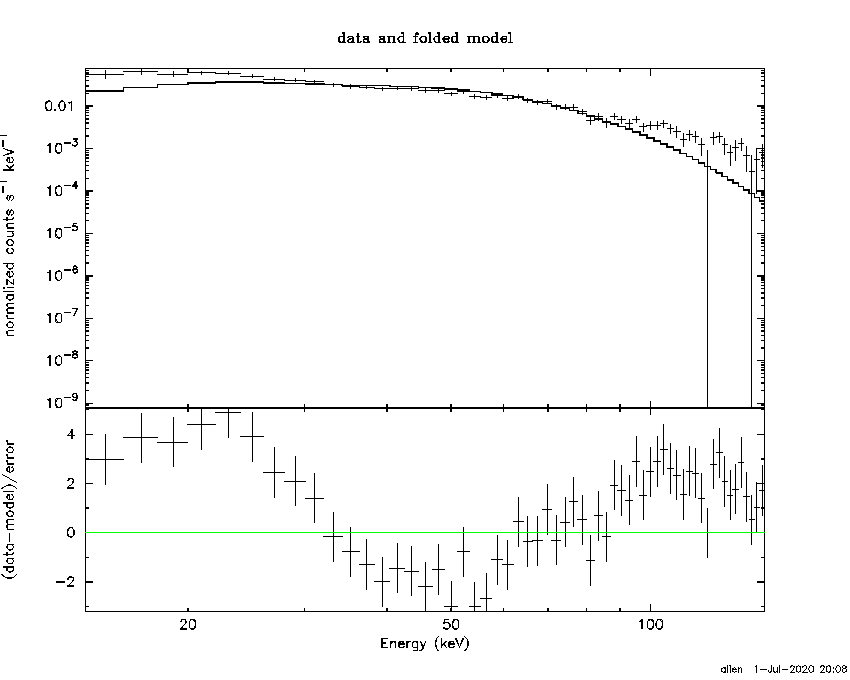

    Single BB
    XSPEC12>exit
     XSPEC: quit


    Spectral model blackbody:
    ------------------------------------------------------------
    Parameters  : value    Lower 90%  Upper 90%
    kT [keV]    : 13.6425  (  )
    R^2/D10^2   : 0.271930  (   )
    (R is the radius in km and D10 is the distance to the source in units of 10 kpc)
    ------------------------------------------------------------

    Energy  Fluence     90% Error
    [keV]   [erg/cm2]   [erg/cm2]
    15- 25  1.426e-06   4.792e-08
    25- 50  5.167e-06   1.098e-07
    50-150  6.246e-06   1.710e-07
    15-150  1.284e-05   2.143e-07

    Thermal bremsstrahlung (OTTB)
    XSPEC12>/*
    XSPEC12>exit
     XSPEC: quit


    Spectral model: thermal bremsstrahlung
    ------------------------------------------------------------
    Parameters  : value         Lower 90%    Upper 90%
    kT [keV]    : 75.9398       (-3.51039      3.79087)
    Norm        : 9.84638       (-0.311798     0.32248)
    ------------------------------------------------------------

    Energy  Fluence     90% Error
    [keV]   [erg/cm2]   [erg/cm2]
    15- 25  3.388e-06   9.184e-08
    25- 50  5.506e-06   1.185e-07
    50-150  7.500e-06   1.943e-07
    15-150  1.639e-05   2.595e-07

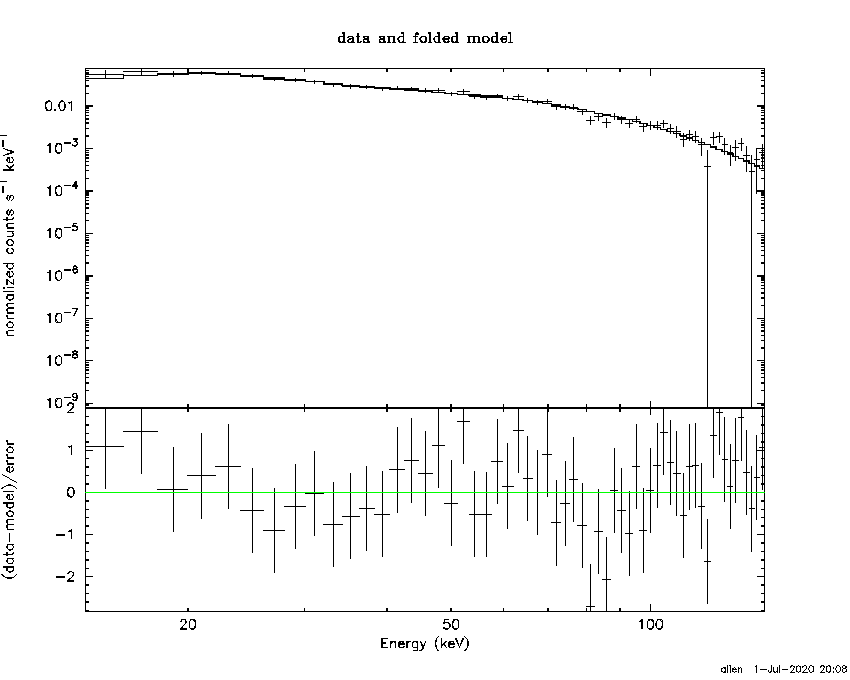

    Double BB
    XSPEC12>/*
    XSPEC12>exit
     XSPEC: quit


    Spectral model: bbodyrad<1> + bbodyrad<2>
    ------------------------------------------------------------
    Parameters  : value         Lower 90%    Upper 90%
    kT1 [keV]   : 6.47840        (-0.38456      0.40182)
    R1^2/D10^2  : 3.43831        (-0.728997      0.978688)
    kT2 [keV]   : 20.6881        (-0.947925      1.08713)
    R2^2/D10^2  : 4.02744E-02    (-0.00811544   0.00927572)
    ------------------------------------------------------------

    Energy  Fluence     90% Error
    [keV]   [erg/cm2]   [erg/cm2]
    15- 25  3.263e-06   2.110e-07
    25- 50  5.537e-06   1.690e-07
    50-150  7.488e-06   2.176e-07
    15-150  1.629e-05   3.926e-07


    Peak spectrum fit

    Power-law model
    Time interval is from   33.816 sec. to   34.816 sec.
    XSPEC12>exit
     XSPEC: quit


    Spectral model in power-law:
    ------------------------------------------------------------
    Parameters  : value       lower 90%   higher 90%
    Photon index: 1.67787     ( -0.0490161   0.049271 )
    Norm@50keV  : 0.124363    ( -0.0033584   0.00335639 )
    ------------------------------------------------------------

    Photon flux (15-150 keV)    in 1 sec: 16.3918 ( -0.4832  0.4846 ) ph/cm2/s
    Energy fluence (15-150 keV)             : 1.15375e-06 ( -3.2274e-08  3.23191e-08 ) ergs/cm2


    Cutoff power-law model
    Time interval is from   33.816 sec. to   34.816 sec.
     XSPEC: quit


    Spectral model in the cutoff power-law:
    ------------------------------------------------------------
    Parameters  : value       lower 90%   higher 90%
    Photon index: 1.17312     ( -0.220288   0.210198 )
    Epeak [keV] : 87.7220      ( -11.9391 25.0829 )
    Norm@50keV  : 0.214595    ( -0.0426834   0.0563396 )
    ------------------------------------------------------------

    Photon flux (15-150 keV)    in 1 sec: 15.8069 ( -0.5302  0.5327 ) ph/cm2/s
    Energy fluence (15-150 keV)             : 1.1183e-06 ( -3.56452e-08  3.55783e-08 ) ergs/cm2


    Band function
    Time interval is from   33.816 sec. to   34.816 sec.


    Spectral model in the Band function:
    ------------------------------------------------------------
    Parameters  : value       lower 90%   higher 90%
    alpha       :    (     )
    beta        :     (     )
    Epeak [keV] :       (   )
    Norm@50keV   :     (     )
    ------------------------------------------------------------

    Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
    Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2


    Single BB
    XSPEC12>exit
     XSPEC: quit


    Spectral model blackbody:
    ------------------------------------------------------------
    Parameters  : value    Lower 90%  Upper 90%
    kT [keV]    : 14.9942  (  )
    R^2/D10^2   : 1.75132  (   )
    (R is the radius in km and D10 is the distance to the source in units of 10 kpc)
    ------------------------------------------------------------

    Energy  Fluence     90% Error
    [keV]   [erg/cm2]   [erg/cm2]
    15- 25  8.244e-08   4.725e-09
    25- 50  3.274e-07   1.175e-08
    50-150  5.010e-07   2.665e-08
    15-150  9.108e-07   2.735e-08

    Thermal bremsstrahlung (OTTB)
    XSPEC12>/*
    XSPEC12>exit
     XSPEC: quit


    Spectral model: thermal bremsstrahlung
    ------------------------------------------------------------
    Parameters  : value         Lower 90%    Upper 90%
    kT [keV]    : 154.691       (-19.7527      21.0798)
    Norm        : 66.7447       (-2.16677     2.53511)
    ------------------------------------------------------------

    Energy  Fluence     90% Error
    [keV]   [erg/cm2]   [erg/cm2]
    15- 25  1.710e-07   9.350e-09
    25- 50  3.183e-07   1.680e-08
    50-150  6.362e-07   1.415e-07
    15-150  1.126e-06   1.558e-07

    Double BB
    XSPEC12>/*
    XSPEC12>exit
     XSPEC: quit


    Spectral model: bbodyrad<1> + bbodyrad<2>
    ------------------------------------------------------------
    Parameters  : value         Lower 90%    Upper 90%
    kT1 [keV]   : 6.98992        (-0.895077      0.996573)
    R1^2/D10^2  : 16.1803        (-5.70585      10.1507)
    kT2 [keV]   : 23.2161        (-2.10917      2.9315)
    R2^2/D10^2  : 0.279102    (-0.107148   0.133924)
    ------------------------------------------------------------

    Energy  Fluence     90% Error
    [keV]   [erg/cm2]   [erg/cm2]
    15- 25  1.539e-07   1.610e-08
    25- 50  3.212e-07   1.715e-08
    50-150  6.242e-07   4.440e-08
    15-150  1.099e-06   6.690e-08


    Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

    Power-law model
    XSPEC12>exit
     XSPEC: quit


    Spectral model in power-law:
    ------------------------------------------------------------
    Parameters  : value       lower 90%   higher 90%
    Photon index: 1.91694     ( -0.0599326   0.060474 )
    Norm@50keV  : 2.09236E-02    ( -0.000695098   0.000692789 )
    ------------------------------------------------------------

    Photon flux (15-150 keV)    in 11.37 sec: 3.02459 ( -0.103807  0.104177 ) ph/cm2/s
    Energy fluence (15-150 keV)             : 2.18764e-06 ( -7.17768e-08  7.1927e-08 ) ergs/cm2


    Cutoff power-law model
     XSPEC: quit


    Spectral model in the cutoff power-law:
    ------------------------------------------------------------
    Parameters  : value       lower 90%   higher 90%
    Photon index: 1.43306     ( -0.26047   0.245695 )
    Epeak [keV] : 57.4253      ( -7.09243 12.6439 )
    Norm@50keV  : 3.66498E-02    ( -0.00888265   0.0126251 )
    ------------------------------------------------------------

    Photon flux (15-150 keV)    in 11.37 sec: 2.91653 ( -0.11529  0.11581 ) ph/cm2/s
    Energy fluence (15-150 keV)             : 2.10294e-06 ( -8.30806e-08  8.31488e-08 ) ergs/cm2


    Band function


    Spectral model in the Band function:
    ------------------------------------------------------------
    Parameters  : value       lower 90%   higher 90%
    alpha       :    (     )
    beta        :     (     )
    Epeak [keV] :       (   )
    Norm@50keV   :     (     )
    ------------------------------------------------------------

    Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
    Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2



    S(25-50 keV) vs. S(50-100 keV) plot

    S(25-50 keV)  = 5.42e-06
    S(50-100 keV) = 5.06e-06


    T90 vs. Hardness ratio plot

    T90                                   = 59.9839999675751 sec.
    Hardness ratio (energy fluence ratio) = 0.933579


    Color vs. Color plot

    Count Ratio  (25-50 keV) / (15-25 keV) = 1.04239
    Count Ratio (50-100 keV) / (15-25 keV) = 0.534657


    Mask shadow pattern

    IMX = -3.501517289823179E-01, IMY = 3.904046968426518E-01


    TIME vs. PHA plot around the trigger time

    Blue+Cyan dotted lines: Time interval of the scaled map
    From 0.000000 to 0.512000

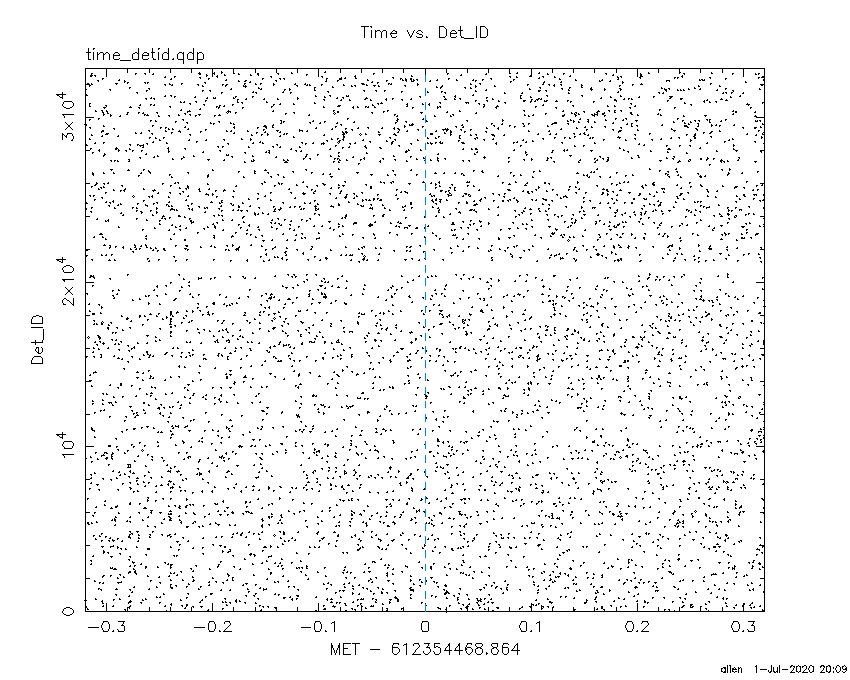

    TIME vs. DetID plot around the trigger time

    Blue+Cyan dotted lines: Time interval of the scaled map
    From 0.000000 to 0.512000


    100 us light curve (15-350 keV)

    Blue+Cyan dotted lines: Time interval of the scaled map
    From 0.000000 to 0.512000

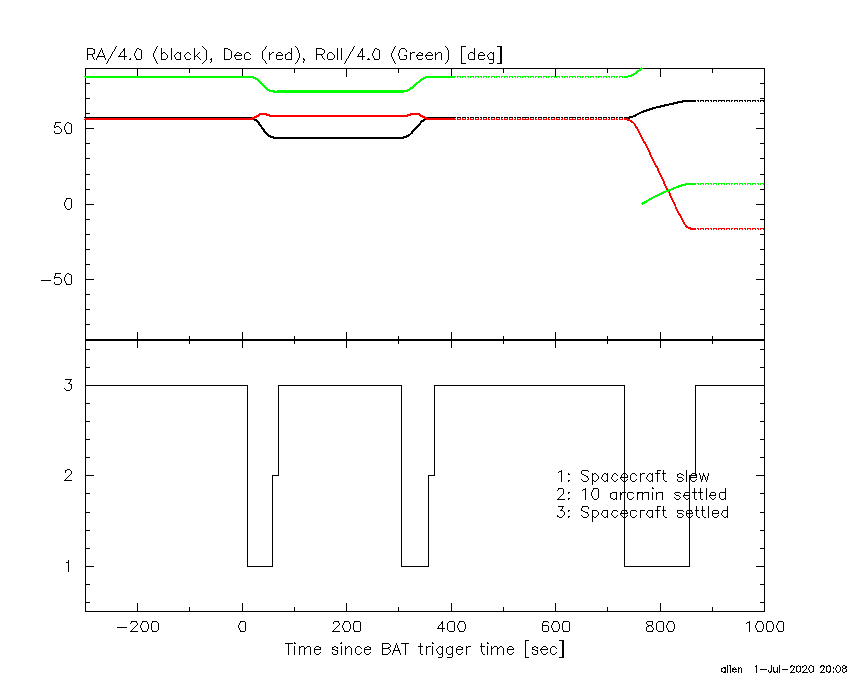

    Spacecraft aspect plot

    Bright source in the pre-burst/pre-slew/post-slew images

    Pre-burst image of 15-350 keV band

    Time interval of the image:
    -239.864000 -0.732000

    # RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
    #  [deg]    [deg]    ['] [deg]  [deg]                   [']
    254.4659  35.2841   10.6  27.2   61.8   0.3412   1.1    3.5	Her X-1
    299.5775  35.2117    3.2  50.9   15.1   2.2155   3.6    0.9	Cyg X-1
    308.1563  41.0460    9.7  51.3    3.7   0.6557   1.2    6.0	Cyg X-3
    345.5676  58.7718    3.1  54.4  -33.1   4.7228   3.7 ------	UNKNOWN


    Pre-slew background subtracted image of 15-350 keV band

    Time interval of the image:
    -0.732000 10.636590

    # RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
    #  [deg]    [deg]    ['] [deg]  [deg]                   [']
    254.4576  35.1952   15.9  27.3   62.0  -0.0516  -0.7    8.8	Her X-1
    299.3659  35.1754   23.7  50.8   15.3   0.0826   0.5   11.1	Cyg X-1
    308.1655  41.0402   10.1  51.3    3.7  -0.1704  -1.2    5.8	Cyg X-3
    225.1484  21.3604    4.1  35.0  118.3   0.3105   2.9 ------	UNKNOWN
    179.8855  18.6741    2.8  52.4  176.8   0.7232   4.1 ------	UNKNOWN
    176.6359  58.1850    0.2  27.7 -131.9   4.0132  52.1 ------	UNKNOWN


    Post-slew image of 15-350 keV band

    Time interval of the image:
    59.036610 305.036600

    # RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
    #  [deg]    [deg]    ['] [deg]  [deg]                   [']
    209.8364  36.2615    2.6  30.8   92.1   1.7106   4.4 ------	UNKNOWN
    174.4737   5.8048    3.1  52.4  154.2   4.4689   3.8 ------	UNKNOWN
    176.5161  58.1907    0.9   0.1  -97.1   2.8264  12.7 ------	UNKNOWN
    161.3292  53.6801    2.7   9.7 -139.5   0.9887   4.2 ------	UNKNOWN
    144.7173  17.7351    3.0  46.8 -164.7   2.0999   3.9 ------	UNKNOWN
    134.5342  20.5968    3.0  48.3 -151.3   2.7289   3.8 ------	UNKNOWN
    122.2743  29.0791    3.3  47.1 -132.4   3.7754   3.5 ------	UNKNOWN

    Plot creation:
    Wed Jul  1 20:09:15 EDT 2020
