batgrbproduct analysis for trigger=999571

batgrbproduct Analysis for Trigger=999571

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Oct 11 12:01:28 EDT 2020
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger999571/batgroup_hand_proc
======================================================================

  Trigger: 00999571      Segment: 000

  BAT Trigger Time: 624034189.916   [s; MET]
      Trigger Stop: 624034189.924   [s; MET]
               UTC: 2020-10-10T14:49:24.134400    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 277.675224036808   Dec: -6.75850257801429  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.03
     Image Trigger?:     NO
     Rate S/N Ratio:     23.259406699226  [ if not an image trigger ]
     Image S/N Ratio:    7.03

  Flight Position:   [ source = BAT ]
    RA: 277.675224036808   Dec: -6.75850257801429  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 277.696893397221   Dec: -6.76112260489708  [deg; J2000]
        { 18h 30m 47.3s , -06d 45' 40.0" }
         +/- 2.94058338803704 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.28960072191481 [arcmin] (formal 1-sigma fit error)
    SNR: 6.51519871664852

  Angular difference between Flight and Ground position is 1.300658 arcmin

  Partial Coding Fraction: 0.890625    [ including projection effects ]

  Duration
     T90: 0.00800001621246338 +/- 0.00894431669225064
        Measured from: 0
                   to: 0.00800001621246338     [s; relative to TRIGTIME]
     T50: 0.00800001621246338 +/- 0.004
        Measured from: 0
                   to: 0.00800001621246338     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 0.00800001621246338 second)
        Measured from: 5.96046447753906e-08
                   to: 0.00800007581710815     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 0.00800001621246338     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.005473   0.010481   0.001629  -0.000141
           0.001719   0.001845   0.000919   0.000476 [error]
 Peak      0.005473   0.010481   0.001629  -0.000141
           0.001719   0.001845   0.000919   0.000476 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.08e-09 2.47e-09 2.12e-09 3.10e-09 7.77e-09 9.77e-09   erg/cm2
              Error 7.02e-10 7.08e-10 9.81e-10 2.61e-09 2.48e-09 4.05e-09   erg/cm2
Peak flux Power-law 8.51e+00 5.61e+00 2.41e+00 1.42e+00 1.72e+01 1.79e+01   ph/cm2/s
              Error 2.92e+00 1.59e+00 1.08e+00 1.11e+00 4.78e+00 4.99e+00   ph/cm2/s

Fluence   Cutoff-PL 1.51e-09 4.16e-09 1.29e-09 1.23e-11 6.98e-09 6.98e-09   erg/cm2
              Error 1.23e-09 1.70e-09 1.49e-09 1.59e-09 2.37e-09 2.75e-09   erg/cm2
Peak flux Cutoff-PL 5.86e+00 9.33e+00 1.68e+00 8.92e-03 1.69e+01 1.69e+01   ph/cm2/s
              Error 5.00e+00 3.84e+00 1.70e+00 7.47e-01 4.72e+00 4.73e+00   ph/cm2/s

Fluence        Band 1.50e-09 4.03e-09 1.81e-09 7.45e-10 7.78e-09 8.11e-09   erg/cm2
              Error -------- -------- 1.29e-09 -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.221    0.470    -      -           1.03e-01 3.72e-02    0.000  0
CPL  -3.389    0.999      36.1   18.3      2.64e+02 2.00e+06    0.000  0


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.221    0.470    -      -           1.03e-01 3.72e-02    0.000  0
CPL  -3.389    0.999      36.1   18.3      2.64e+02 2.33e+06    0.000  0

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.008    0.000    0.008
T90     0.008    0.000    0.008
T50     0.008    0.000    0.008
Peak    0.008    0.000    0.008

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

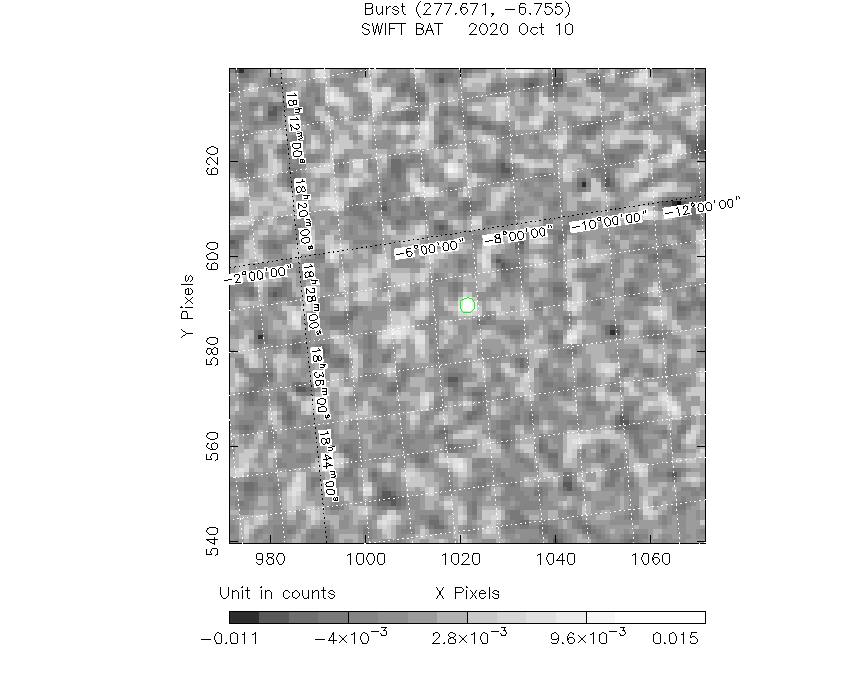

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  277.6969  -6.7611 0.0295   20.9 -141.5       0.0179     6.5  TRIG_00999571
------------------------------------------

Foreground time interval of the image:
  0.000   0.008 (delta_t =   0.008 [sec])
Background time interval of the image:
-239.916  -5.916 (delta_t = 234.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

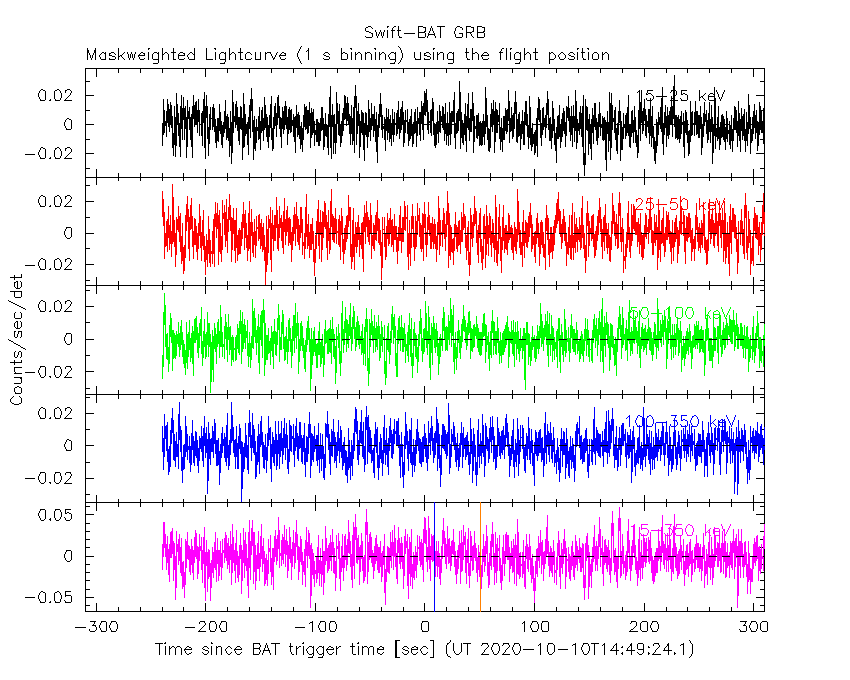

1 s binning

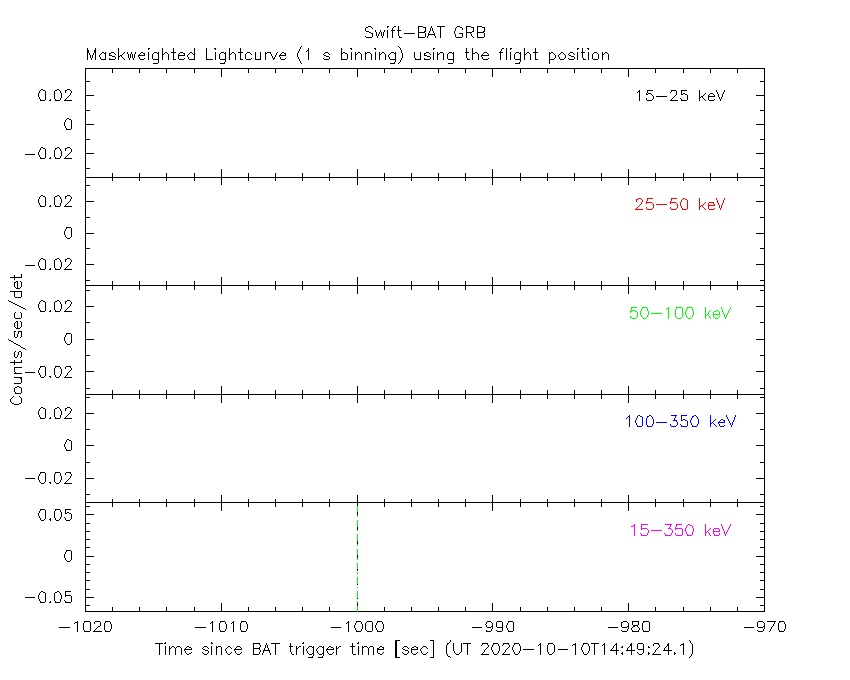

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

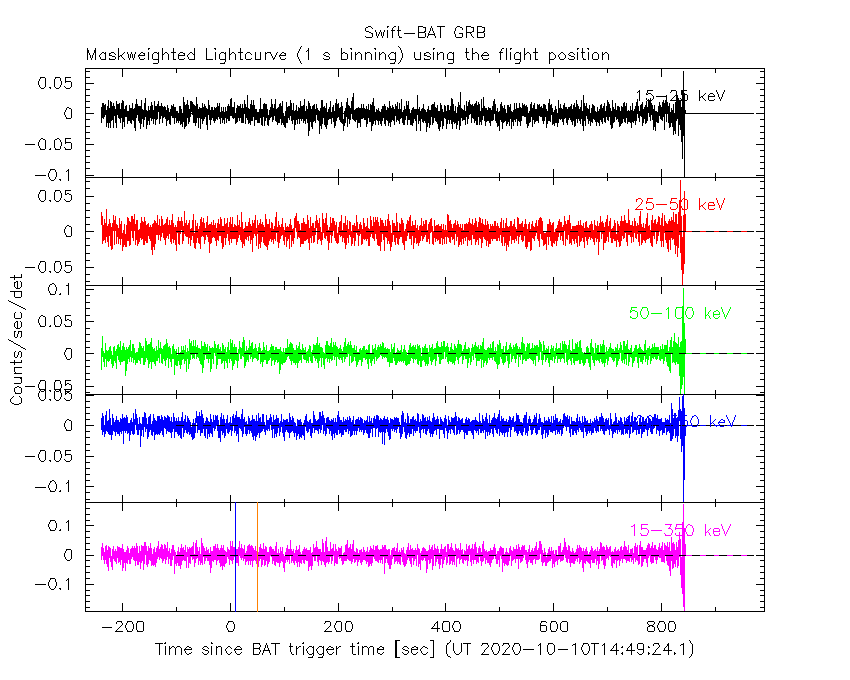

Full time interval

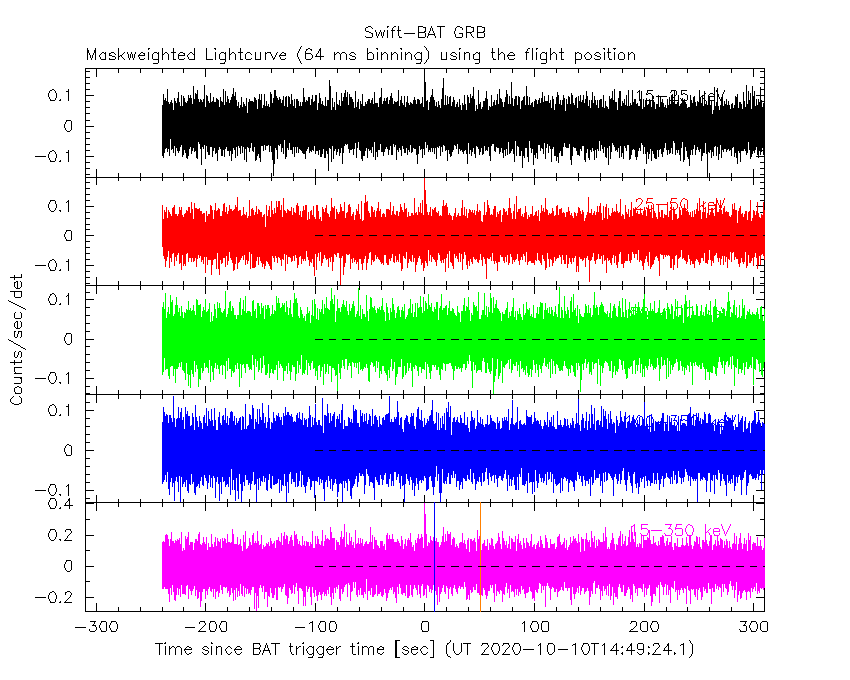

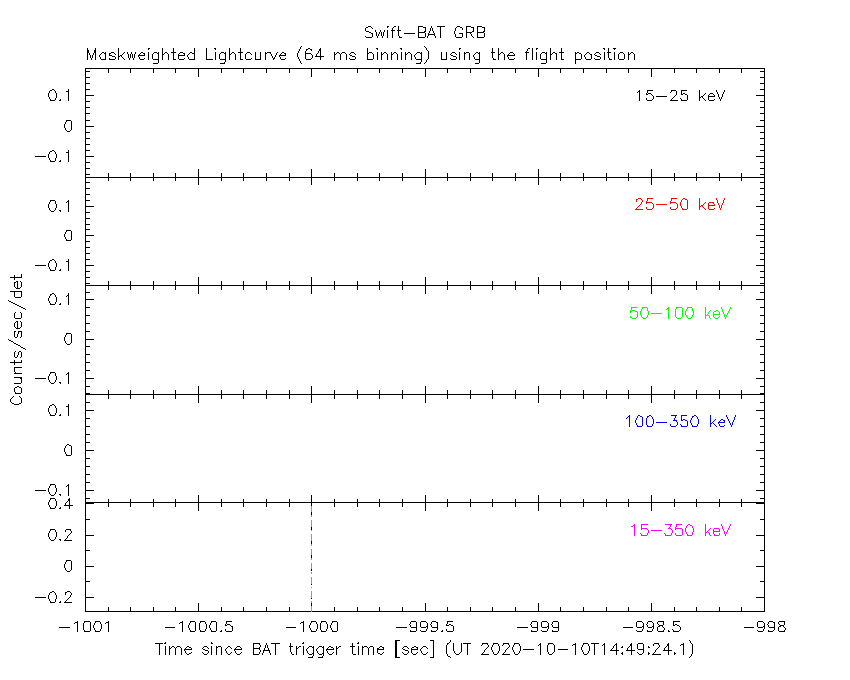

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

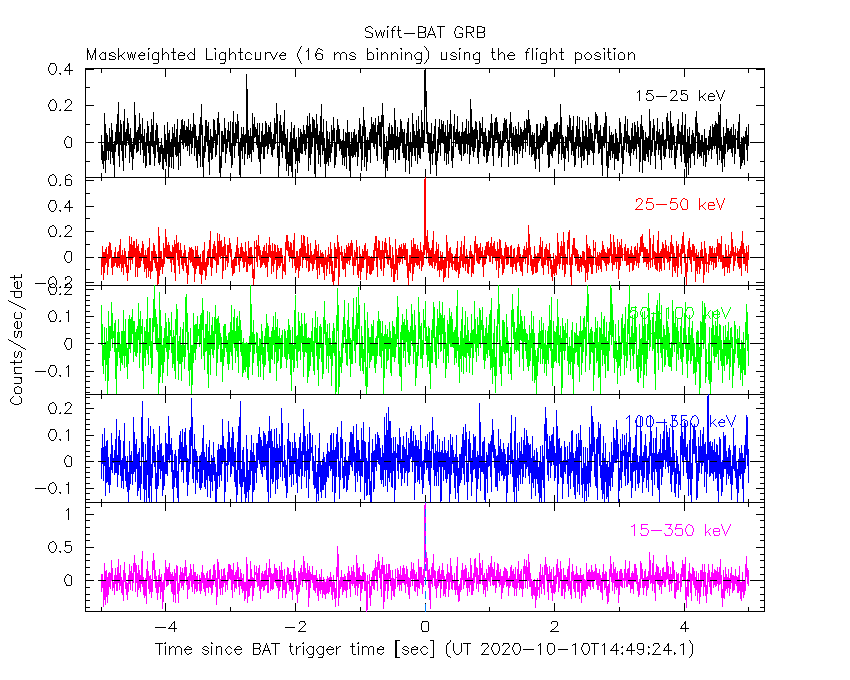

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

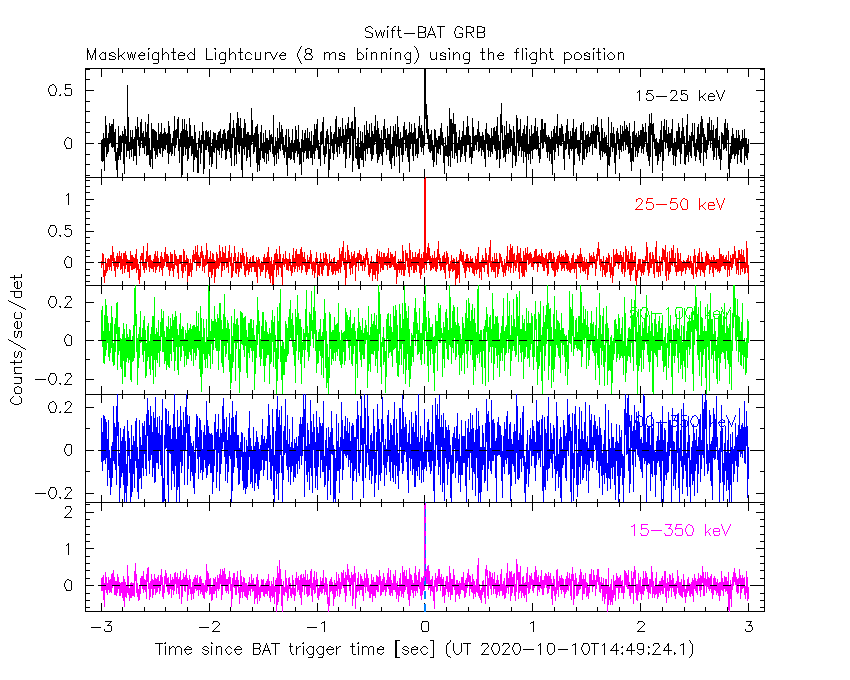

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

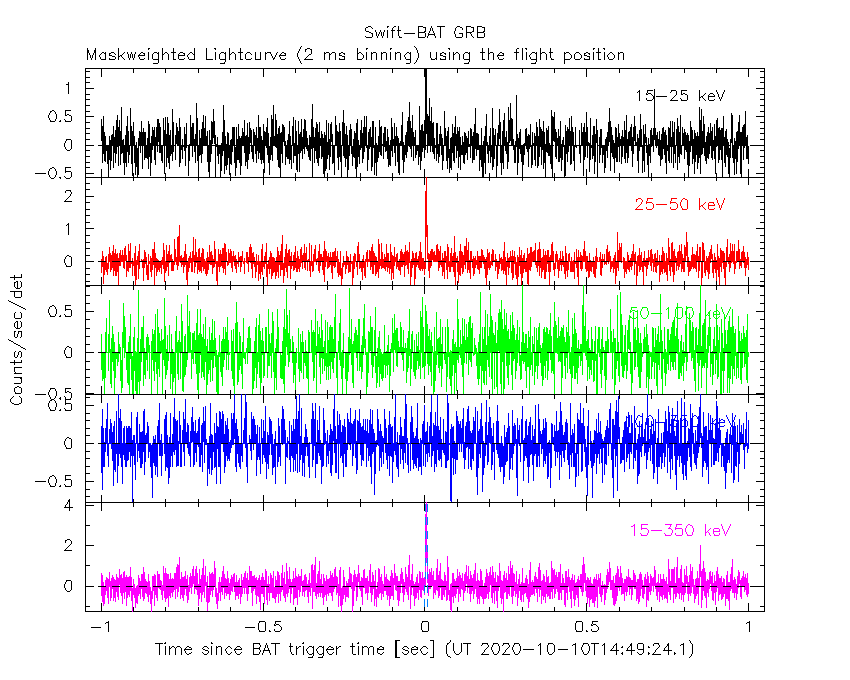

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

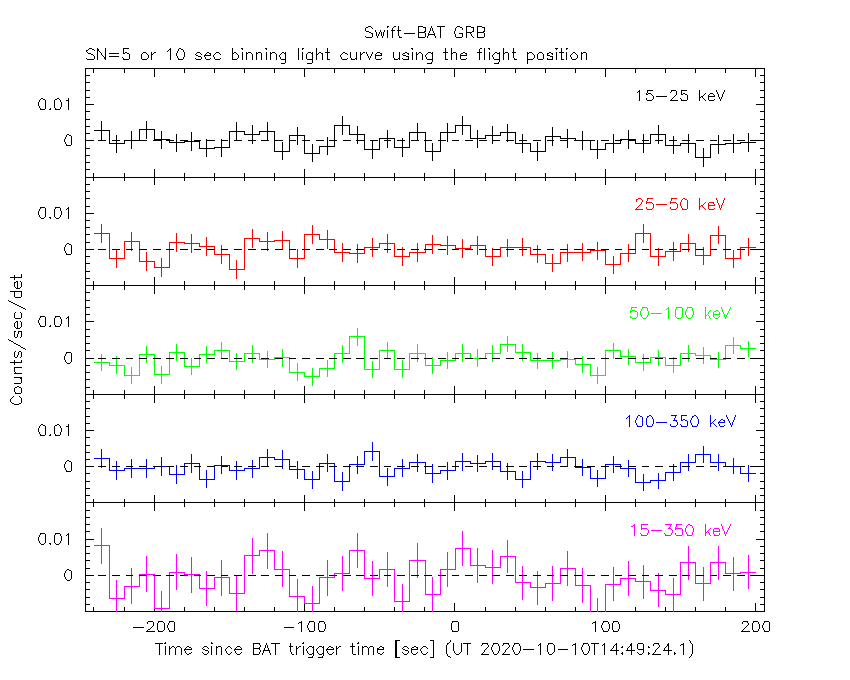

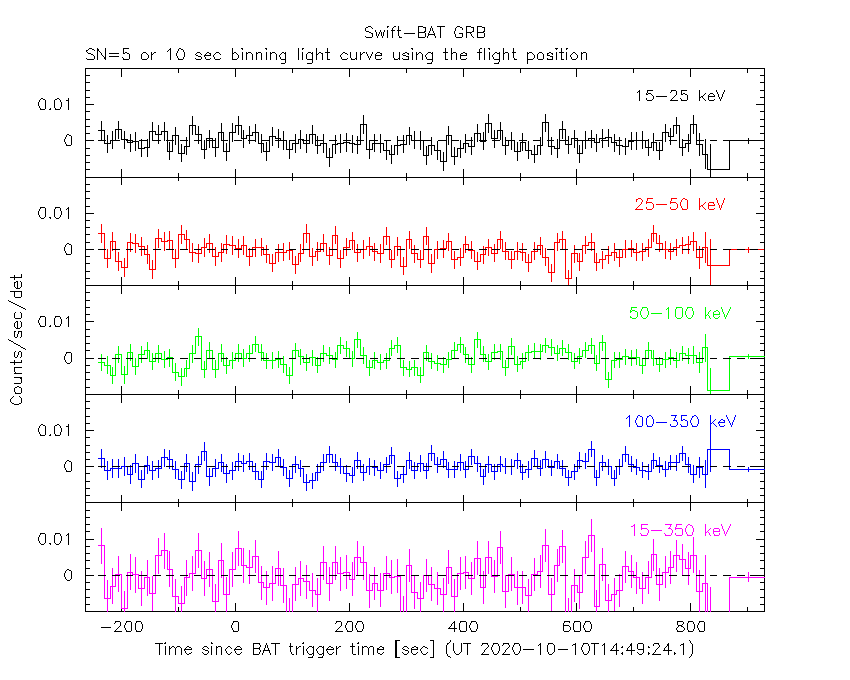

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

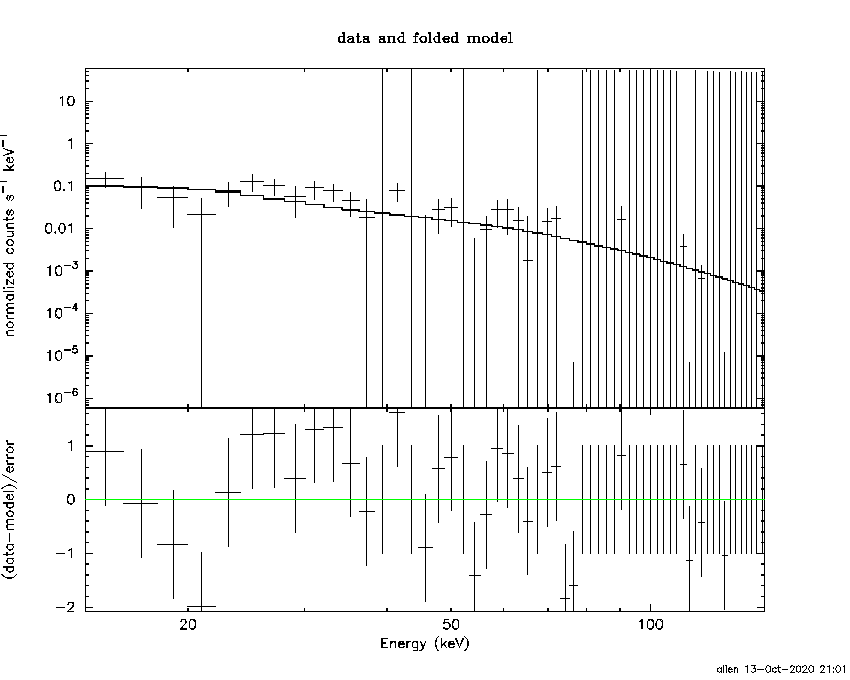

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.000 sec. to    0.008 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.22059     ( -0.405365   0.535237 )
Norm@50keV  : 0.102994    ( -0.0385387   0.035778 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.008 sec: 17.2377 ( -4.77862  4.77879 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.77008e-09 ( -2.46609e-09  2.4915e-09 ) ergs/cm2

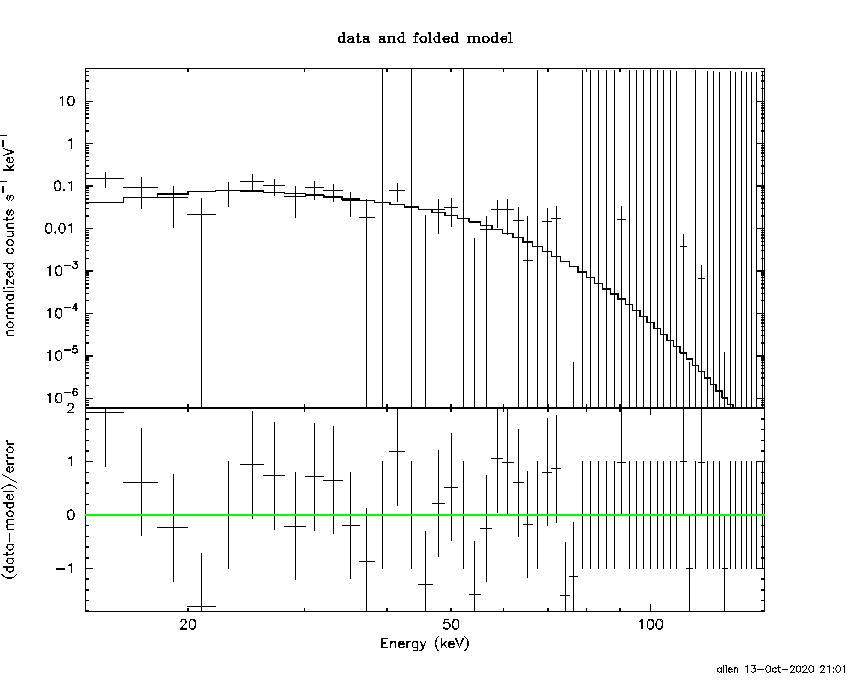

Cutoff power-law model

Time interval is from    0.000 sec. to    0.008 sec.
 XSPEC: quit


Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -3.38876     ( 2.1241   4.12303 )
Epeak [keV] : 36.1133      ( -19.7809 16.7473 )
Norm@50keV  : 263.510    ( -250.721   3.99324e+06 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.008 sec: 16.8740 ( -4.6816  4.7679 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.97788e-09 ( -2.01804e-09  2.71812e-09 ) ergs/cm2

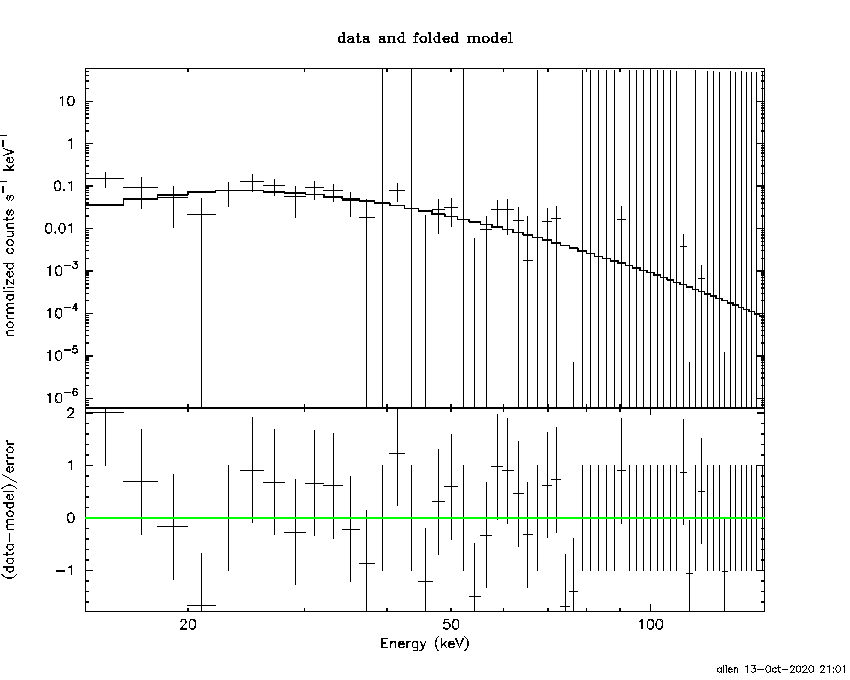

Band function

Time interval is from    0.000 sec. to    0.008 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.69916   ( -13.4667   -4.69916 )
beta        : -3.65352    ( 3.65352   1.19117 )
Epeak [keV] : 34.2309      ( -5.963 6.26761 )
Norm@50keV   : 2155.11    ( -570.24   13141.1 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.008 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.77549e-09 ( 0  0 ) ergs/cm2

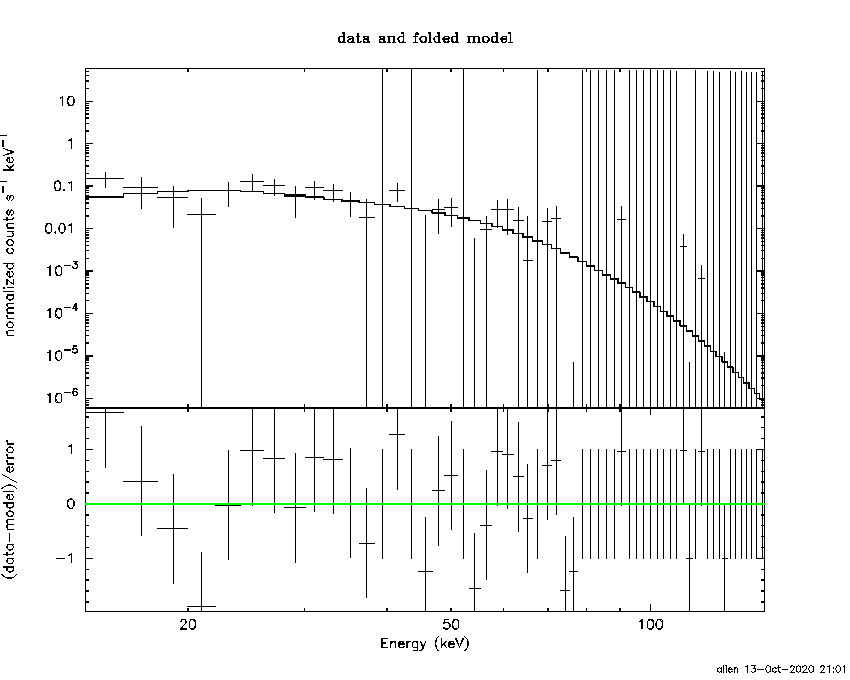

Single BB

XSPEC12>exit
 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.30208  (-1.86046  2.24449)
R^2/D10^2   : 12.4181  (-7.28359   16.1071)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.701e-09   8.046e-10
25- 50  3.804e-09   1.700e-09
50-150  1.604e-09   1.125e-09
15-150  7.108e-09   2.807e-09

Thermal bremsstrahlung (OTTB)

XSPEC12>/*
XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 51.6899       (-24.0234      51.8222)
Norm        : 101.332       (-36.1633     56.4673)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.997e-09   7.424e-10
25- 50  2.902e-09   1.129e-09
50-150  2.906e-09   1.848e-09
15-150  7.804e-09   3.305e-09

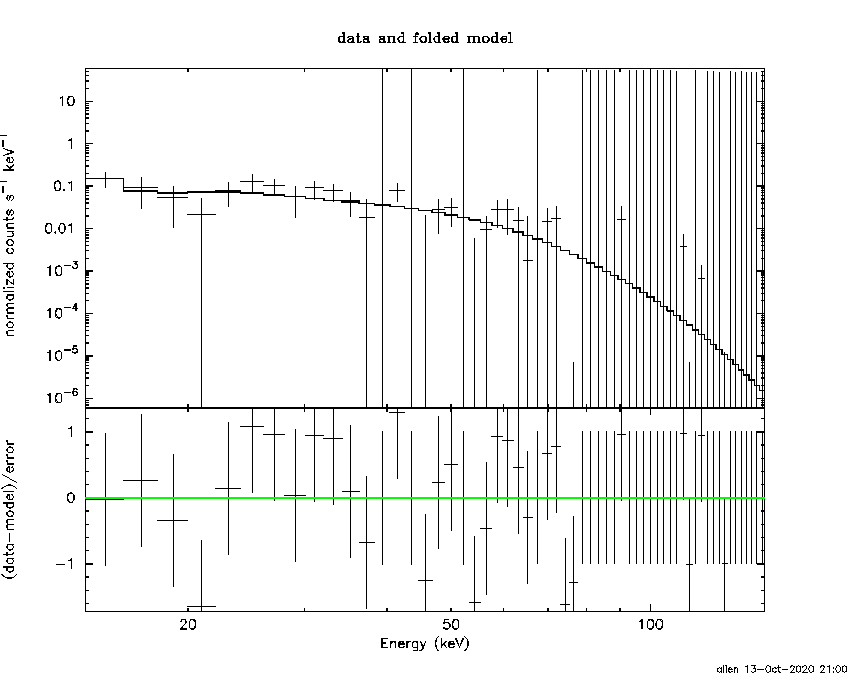

Double BB

XSPEC12>/*
XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 0.795247        (-0.79305      1.69632)
R1^2/D10^2  : 4.83960E+08        (-5.14863e+08      -5.14894e+08)
kT2 [keV]   : 9.71922        (-1.9617      2.61262)
R2^2/D10^2  : 9.98237    (-6.25878   9.74632)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.791e-09   9.460e-10
25- 50  3.586e-09   2.186e-09
50-150  1.769e-09   1.292e-09
15-150  7.146e-09   4.360e-09

Peak spectrum fit

Power-law model

Time interval is from    0.000 sec. to    0.008 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.22059     ( -0.405365   0.535237 )
Norm@50keV  : 0.102994    ( -0.0385387   0.035778 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.008 sec: 17.2377 ( -4.77862  4.77879 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.77008e-09 ( -2.46609e-09  2.4915e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.008 sec.
 XSPEC: quit


Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -3.38876     ( 2.1241   4.12303 )
Epeak [keV] : 36.1133      ( -19.7809 16.7473 )
Norm@50keV  : 263.510    ( -250.721   4.65348e+06 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.008 sec: 16.8740 ( -4.6816  4.7679 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.97788e-09 ( -2.01804e-09  2.71812e-09 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.008 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.69916   ( -6.30985   -4.69916 )
beta        : -3.65352    ( 3.65352   1.19117 )
Epeak [keV] : 34.2309      ( -5.963 6.26761 )
Norm@50keV   : 2155.11    ( -570.24   13141.1 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.008 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.77549e-09 ( 0  0 ) ergs/cm2

Single BB

XSPEC12>exit
 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.30208  (-1.86046  2.24449)
R^2/D10^2   : 12.4181  (-7.28359   16.1071)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.701e-09   7.828e-10
25- 50  3.804e-09   1.688e-09
50-150  1.604e-09   1.088e-09
15-150  7.108e-09   3.134e-09

Thermal bremsstrahlung (OTTB)

XSPEC12>/*
XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 51.6899       (-24.0234      51.8222)
Norm        : 101.332       (-36.1633     56.4673)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.997e-09   7.248e-10
25- 50  2.902e-09   1.278e-09
50-150  2.906e-09   1.942e-09
15-150  7.804e-09   3.560e-09

Double BB

XSPEC12>/*
XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 0.706983        (-0.70809      1.7053)
R1^2/D10^2  : 3.79226E+09        (-3.46577e+09      1.83892e+14)
kT2 [keV]   : 9.69813        (-1.94888      2.55022)
R2^2/D10^2  : 10.0938    (-6.39886   8.74507)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.791e-09   8.947e-10
25- 50  3.586e-09   2.202e-09
50-150  1.769e-09   1.335e-09
15-150  7.146e-09   4.228e-09

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model

XSPEC12>exit
 XSPEC: quit


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.22059     ( -0.405365   0.535237 )
Norm@50keV  : 0.102994    ( -0.0385387   0.035778 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.008 sec: 17.2377 ( -4.77862  4.77879 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.77008e-09 ( -2.46609e-09  2.4915e-09 ) ergs/cm2

Cutoff power-law model

 XSPEC: quit


Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -3.38876     ( 2.1241   4.12303 )
Epeak [keV] : 36.1133      ( -19.7809 16.7473 )
Norm@50keV  : 263.510    ( -250.721   4.04279e+06 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.008 sec: 16.8740 ( -4.6816  4.7679 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.97788e-09 ( -2.01804e-09  2.71812e-09 ) ergs/cm2

Band function

XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.69916   ( -6.5863   -4.69916 )
beta        : -3.65352    ( 3.65352   1.19117 )
Epeak [keV] : 34.2309      ( -5.963 6.26761 )
Norm@50keV   : 2155.11    ( -570.24   13141.1 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.008 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.77549e-09 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.47e-09
S(50-100 keV) = 2.12e-09

T90 vs. Hardness ratio plot

T90                                   = 0.00800001621246338 sec.
Hardness ratio (energy fluence ratio) = 0.8583

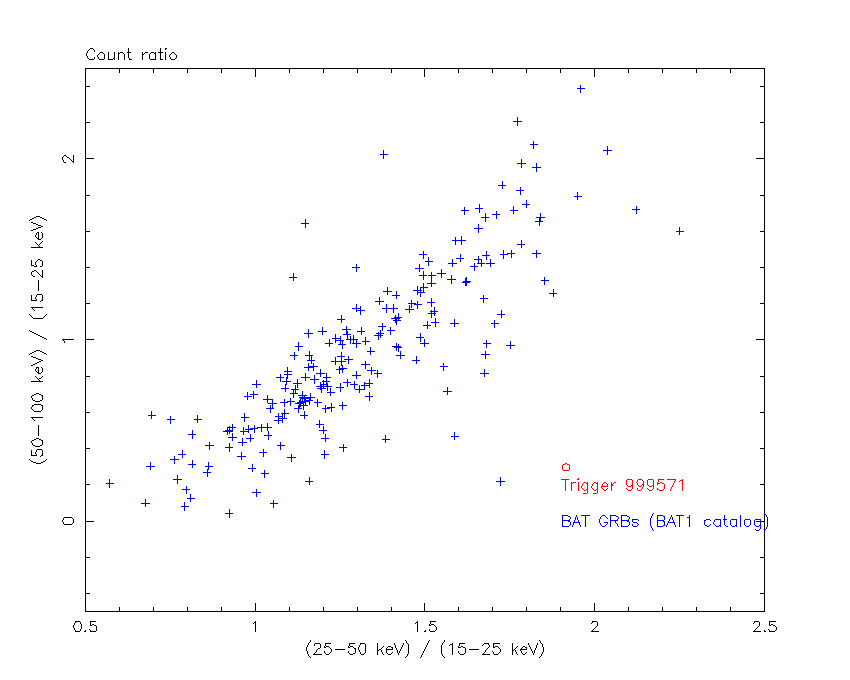

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.91504
Count Ratio (50-100 keV) / (15-25 keV) = 0.297643

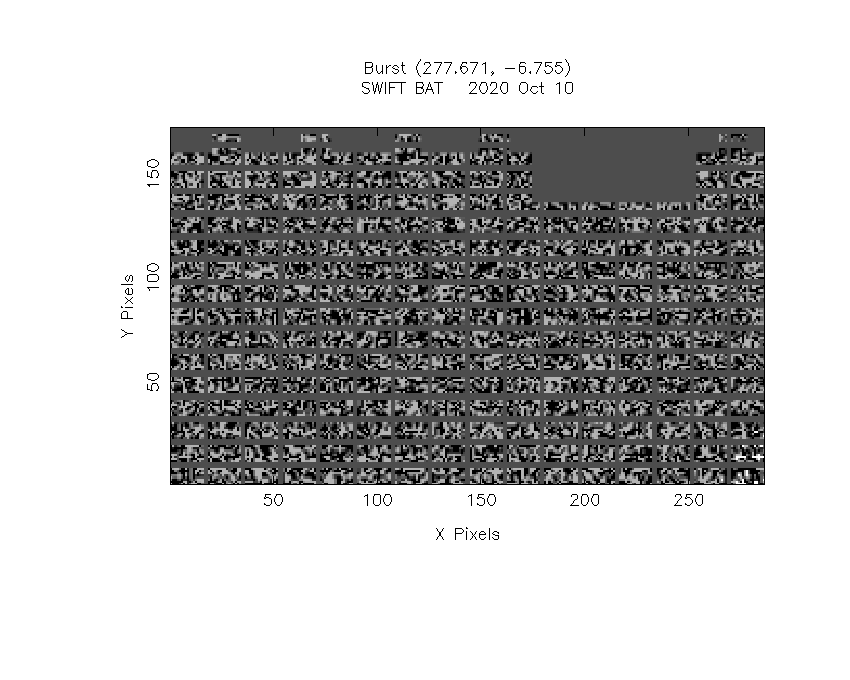

Mask shadow pattern

IMX = -2.980736922444337E-01, IMY = 2.374333392074235E-01

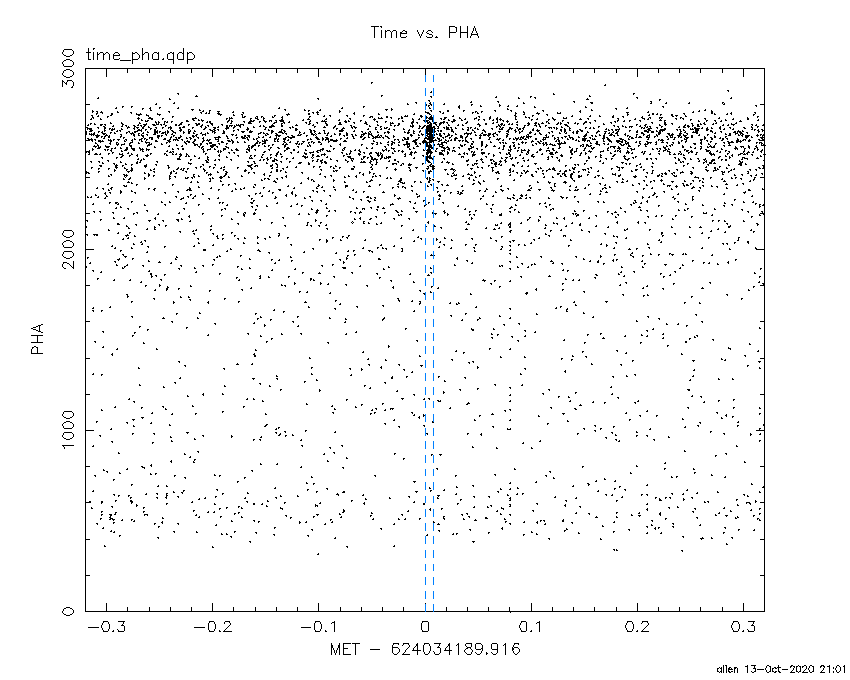

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

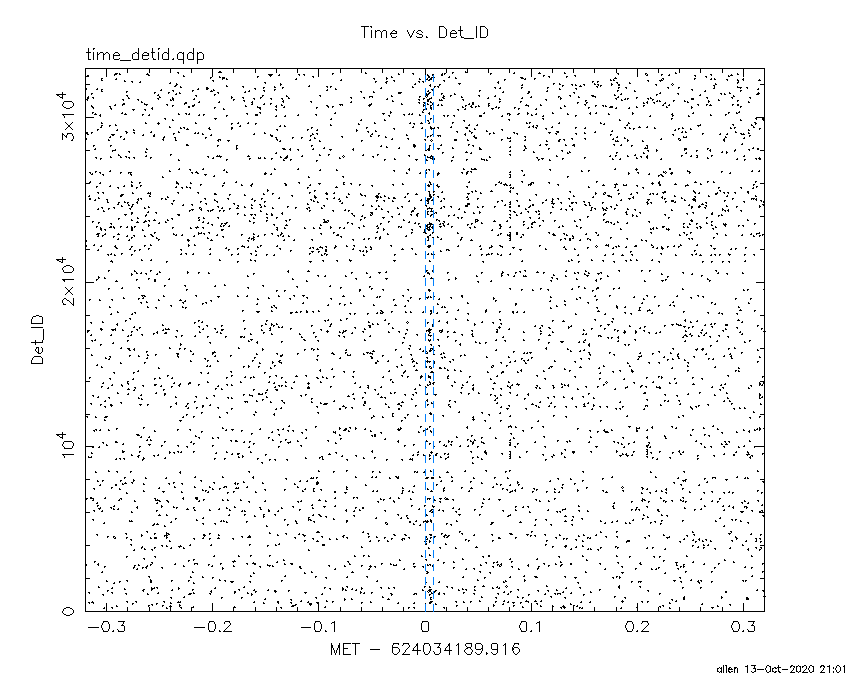

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

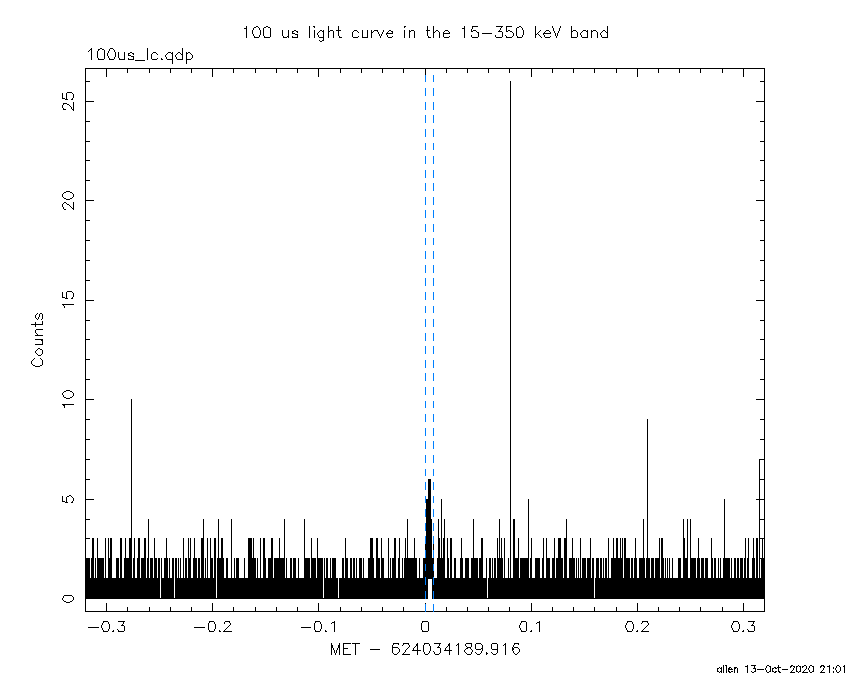

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

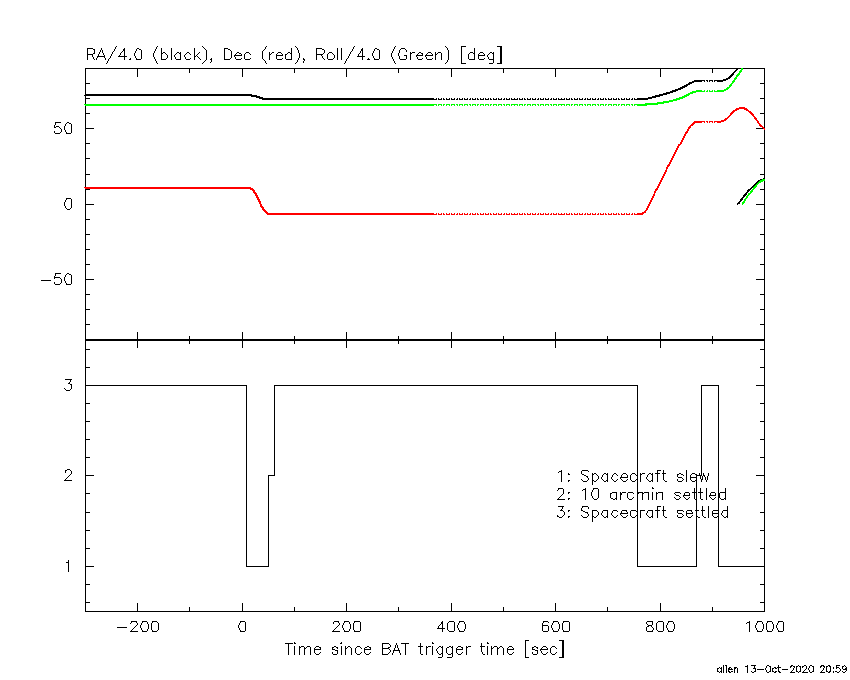

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.916000 -5.916000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6315  35.2904    6.8  39.4  -40.0   0.8271   1.7    9.1	Her X-1
263.0623 -24.6563    7.1  43.6 -138.9   1.0918   1.6    6.1	GX 1+4
268.2507  -1.3247    8.7  23.8 -113.6   0.4998   1.3   10.4	SW J1753.5-0127
270.2537 -25.0668   14.2  40.3 -147.4   0.4512   0.8    1.8	GX 5-1
270.3027 -25.7359   13.7  40.9 -148.0   0.4632   0.8    0.4	GRS 1758-258
274.0195 -14.0324    3.7  29.0 -143.1   1.2226   3.1    0.8	GX 17+2
275.7894 -30.3746    4.8  43.2 -157.4   1.4252   2.4    7.0	H1820-303
285.0662 -24.7696    6.0  35.9 -168.1   0.8680   1.9    9.2	HT1900.1-2455
288.9645  10.8317   16.9   0.2  128.1   0.2250   0.7   11.9	GRS 1915+105
299.4350  35.0556    0.0  26.0   26.5   0.7346   2.0   11.6	Cyg X-1
307.9293  41.0584   15.4  34.5   32.1   0.3616   0.7   10.4	Cyg X-3
326.0456  38.3320   15.2  43.1   50.3  -0.8409  -0.8    6.0	Cyg X-2
263.1381 -33.8833  381.2  51.0 -146.3  -0.0301  -0.0    8.0	GX 354-0
329.5958  16.4504    2.2  40.0   83.6   6.9717   5.2 ------	UNKNOWN
323.7441   3.9587    4.1  35.4  104.9   1.9071   2.8 ------	UNKNOWN
303.0755 -44.3709    3.7  56.8  174.0   5.9911   3.1 ------	UNKNOWN
294.5710  20.6169    2.6  11.2   35.5   1.4225   4.5 ------	UNKNOWN
245.3526  54.6525    2.8  55.4  -22.7   4.4934   4.1 ------	UNKNOWN
251.8908 -13.1464    2.2  43.8 -116.2   6.5596   5.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 0.008000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6437  35.2669    0.0  39.3  -40.0  -0.0014  -0.3   10.2	Her X-1
263.1711 -24.8213    5.1  43.6 -139.2  -0.0138  -2.2    9.9	GX 1+4
268.4028  -1.3087    2.9  23.7 -113.8   0.0139   4.0    8.9	SW J1753.5-0127
270.4413 -25.1792    6.6  40.3 -147.7   0.0083   1.7   10.4	GX 5-1
270.4767 -25.8923    0.0  40.9 -148.3  -0.0070  -1.5   13.0	GRS 1758-258
273.8481 -13.9604    6.2  29.0 -142.8   0.0061   1.9   10.3	GX 17+2
276.0836 -30.4622   32.9  43.2 -157.8   0.0017   0.4   10.0	H1820-303
285.0064 -25.0635    5.0  36.2 -168.0  -0.0080  -2.3    8.7	HT1900.1-2455
288.7159  10.7859   47.0   0.2 -161.2   0.0006   0.2   10.7	GRS 1915+105
299.4643  35.2448    5.3  26.2   26.3  -0.0061  -2.2    6.7	Cyg X-1
308.1701  40.9528    4.4  34.5   32.5  -0.0101  -2.6    2.7	Cyg X-3
326.2360  38.2311    5.6  43.1   50.5   0.0191   2.1    6.2	Cyg X-2
263.1390 -33.8621   12.7  51.0 -146.3   0.0082   0.9    7.6	GX 354-0
309.0222 -21.6662    2.3  38.2  154.8   0.0223   5.1 ------	UNKNOWN
277.6969  -6.7611    1.8  20.9 -141.5   0.0179   6.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
50.784600 757.684590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9795 -15.6325    0.6  33.3 -102.1  23.6305  18.0    0.5	Sco X-1
254.3387  35.4190    3.9  47.6  -19.8  -4.7997  -3.0    7.4	Her X-1
256.1587 -37.9168    8.2  36.8 -144.9   1.6989   1.4    9.2	4U 1700-377
256.2839 -36.4163    5.5  35.5 -143.5   2.4194   2.1    7.3	GX 349+2
262.9645 -24.7966    5.8  22.9 -137.4   1.5969   2.0    3.9	GX 1+4
264.7119 -44.4310    3.8  39.4 -159.2   3.4772   3.1    1.7	4U 1735-44
268.3717  -1.4502   50.4  10.7  -54.5   0.1570   0.2    0.3	SW J1753.5-0127
270.1105 -24.9383    0.0  19.6 -152.9   1.4641   1.6   12.7	GX 5-1
270.2058 -25.6118    3.2  20.2 -153.9   3.2533   3.6    9.5	GRS 1758-258
273.9866 -14.0352    2.7   8.1 -147.5   3.3102   4.3    1.1	GX 17+2
275.7748 -30.2434    6.6  23.6 -169.7  -1.4752  -1.8   10.7	H1820-303
284.9497 -25.0754   10.1  19.6  166.3   0.8528   1.1   10.4	HT1900.1-2455
288.8333  10.9155    5.4  20.9   38.4   1.7049   2.1    2.7	GRS 1915+105
299.5838  35.2010   64.4  46.7   30.9   0.3687   0.2    0.3	Cyg X-1
262.9875 -33.8045    5.9  30.3 -149.1   1.8667   2.0    1.8	GX 354-0
313.0176 -10.7075    4.2  35.1  105.2   4.1151   2.8 ------	UNKNOWN
312.4533 -14.2366    4.0  34.9  111.4   4.3915   2.9 ------	UNKNOWN
293.9035   6.2663    3.1  20.8   57.7   3.8516   3.7 ------	UNKNOWN
267.9525  47.7946    3.6  55.2   -1.8   8.2747   3.2 ------	UNKNOWN
268.4247  -5.3455    3.4   9.3  -75.7   2.4398   3.4 ------	UNKNOWN

Plot creation:
Tue Oct 13 21:01:40 EDT 2020
