                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Tue Oct 13 14:58:26 EDT 2020
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger999895/GCN5_download_cron
======================================================================

  Trigger: 00999895      Segment: 000

  BAT Trigger Time: 624233208   [s; MET]
      Trigger Stop: 624233296   [s; MET]
               UTC: 2020-10-12T22:06:22.205300    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 244.836007496934   Dec: -15.8161582437486  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.25
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    8.25

  Flight Position:   [ source = BAT ]
    RA: 244.836007496934   Dec: -15.8161582437486  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 244.902764345539   Dec: -15.7043360706559  [deg; J2000]
        { 16h 19m 36.7s , -15d 42' 15.6" }
         +/- 1.18438840407551 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.445475729305911 [arcmin] (formal 1-sigma fit error)
    SNR: 23.8850822871311

  Angular difference between Flight and Ground position is 7.737884 arcmin

  Partial Coding Fraction: 0.7890625    [ including projection effects ]

  Duration
     T90: 349.775999903679 +/- 68.2197527099543
        Measured from: -116.407999873161
                   to: 233.368000030518     [s; relative to TRIGTIME]
     T50: 197.203999996185 +/- 37.1357920326906
        Measured from: -70.691999912262
                   to: 126.512000083923     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -40.2680000066757
                   to: -39.2680000066757     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -152.095999956131
                   to: 299.103999972343     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     9.942473   1.017397  -0.273937  -0.120658
           0.192557   0.176087   0.149102   0.134322 [error]
 Peak      0.021515   0.038198   0.003515   0.008182
           0.009432   0.008752   0.007265   0.006470 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.20e-06 4.82e-07 3.32e-08 2.44e-09 3.72e-06 3.72e-06   erg/cm2
              Error 3.04e-07 8.24e-08 1.41e-08 1.78e-09 3.08e-07 3.08e-07   erg/cm2
Peak flux Power-law 3.14e-01 1.94e-01 7.66e-02 4.07e-02 6.05e-01 6.25e-01   ph/cm2/s
              Error 1.36e-01 7.20e-02 5.13e-02 5.66e-02 2.10e-01 2.19e-01   ph/cm2/s

Fluence   Cutoff-PL 3.17e-06 3.67e-07 1.27e-09 1.51e-14 3.54e-06 3.54e-06   erg/cm2
              Error 3.28e-07 1.07e-07 6.53e-09 3.35e-11 3.39e-07 3.39e-07   erg/cm2
Peak flux Cutoff-PL 1.74e-01 3.03e-01 4.50e-02 1.08e-04 5.22e-01 5.23e-01   ph/cm2/s
              Error 1.70e-01 1.18e-01 5.45e-02 1.10e-02 2.20e-01 2.20e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    5.860    0.372    -      -           7.62e-05 2.62e-05    0.000  0
CPL   0.977    0.000       4.5    0.0      6.88e-01 0.00e+00    0.000  0


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.338    0.730    -      -           3.39e-03 1.77e-03    0.000  0
CPL  -4.314    0.969      35.7   12.9      3.18e+01 7.98e+04    0.000  0

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  451.200 -152.096  299.104
T90   349.776 -116.408  233.368
T50   197.204  -70.692  126.512
Peak    1.000  -40.268  -39.268

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  244.9028 -15.7043 0.0080   21.2  -52.3      13.6250    23.9  TRIG_00999895
------------------------------------------

Foreground time interval of the image:
-76.599 299.104 (delta_t = 375.703 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

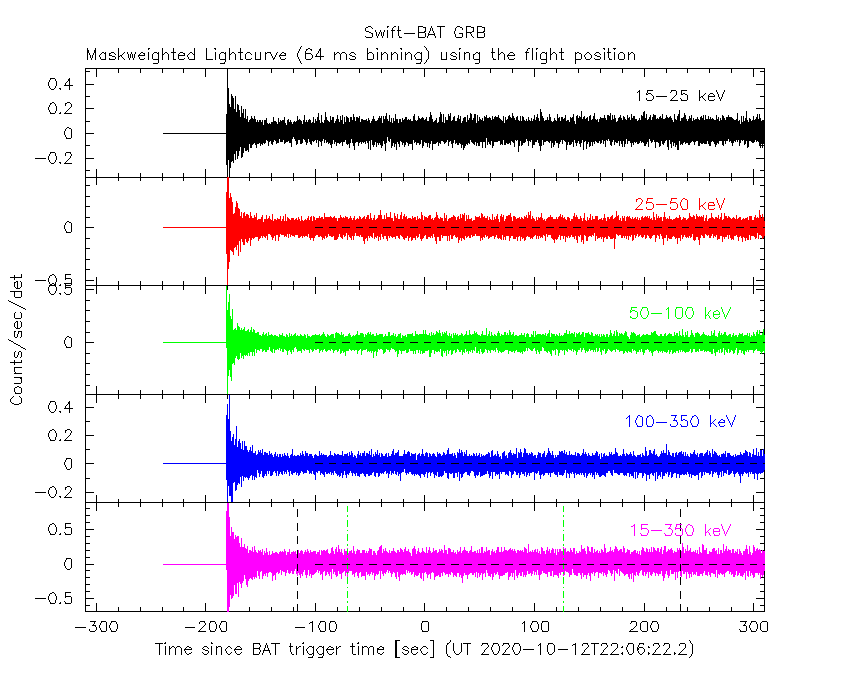

Full time interval

From T100_start to T100_end

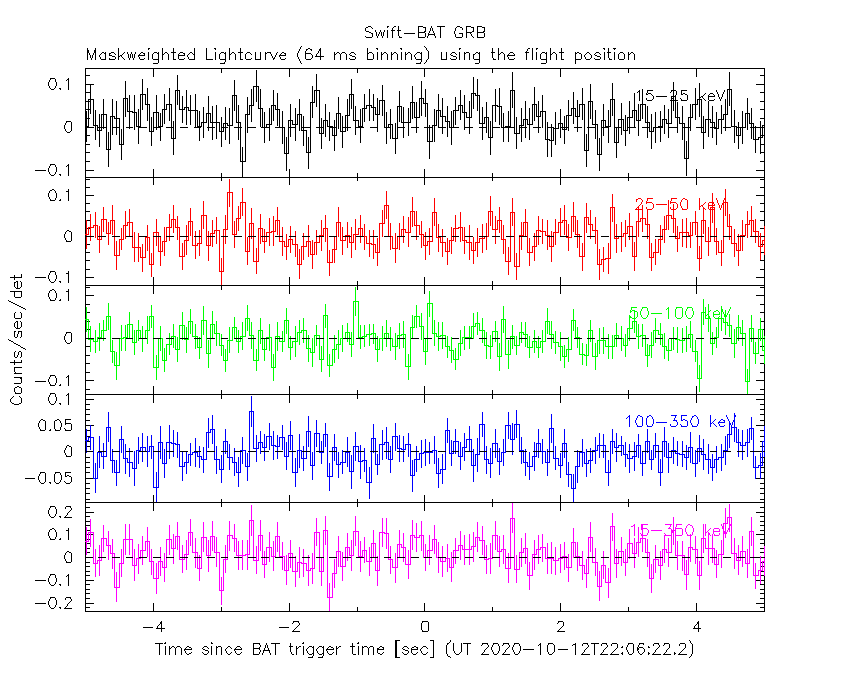

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

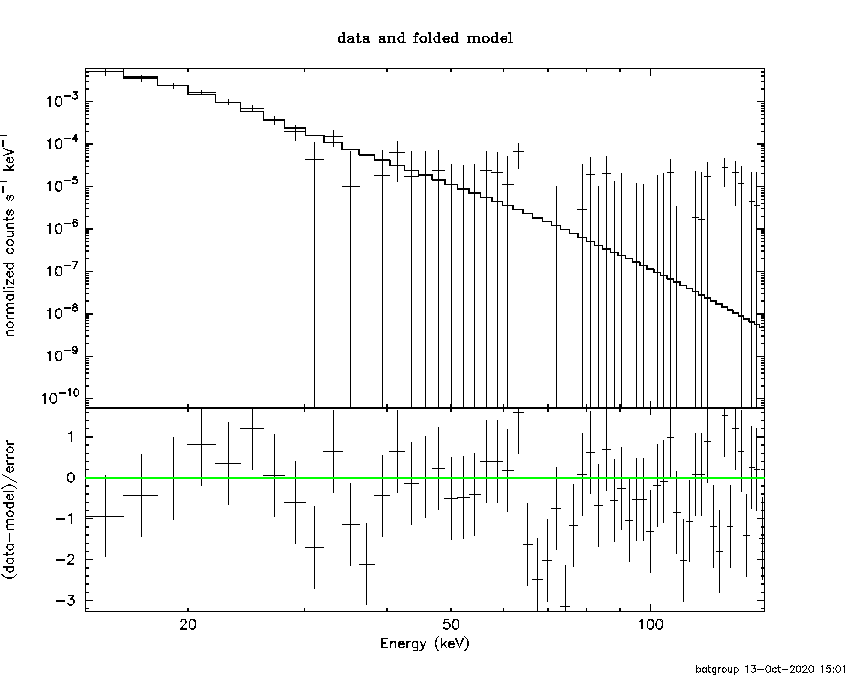

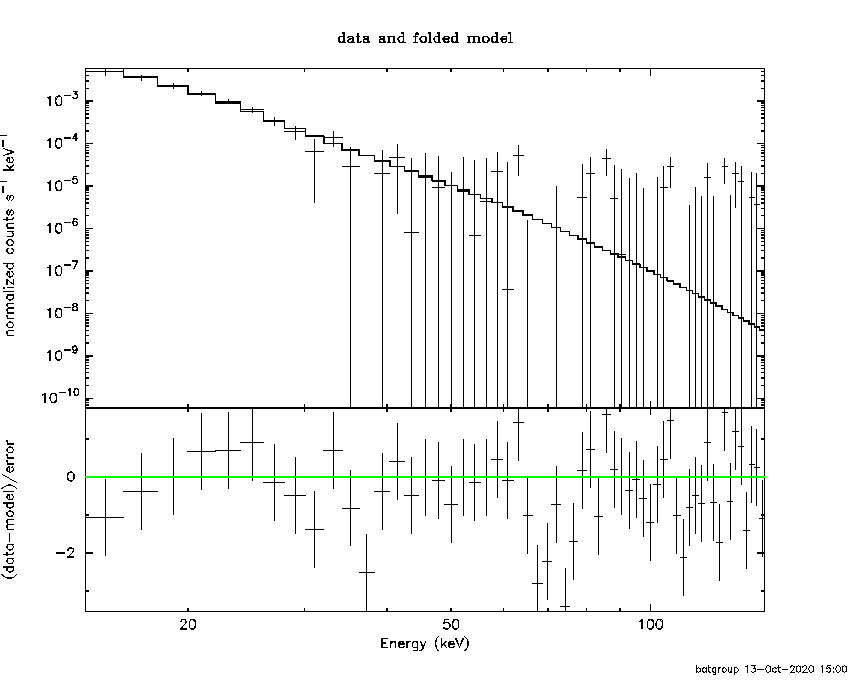

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from -152.096 sec. to  299.104 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.86006     ( -0.366723   0.377911 )
Norm@50keV  : 7.61977E-05    ( -2.27578e-05   2.96267e-05 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 451.2 sec: 0.272583 ( -0.0243283  0.0244971 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.72056e-06 ( -3.07366e-07  3.08396e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from -152.096 sec. to  299.104 sec.
 XSPEC: quit


Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.977147     (     )
Epeak [keV] : 4.50200      (   )
Norm@50keV  : 0.688340    (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in 451.2 sec: 0.262474 ( -0.027353  0.026723 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.54313e-06 ( -3.42325e-07  3.35485e-07 ) ergs/cm2

Band function

Time interval is from -152.096 sec. to  299.104 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.56351   ( 5.85945   8.56351 )
beta        : -5.89949    ( -0.348844   0.399295 )
Epeak [keV] : 282.124      ( -282.124 -282.124 )
Norm@50keV   : 9.97524E-03    ( -0.00286727   0.00427036 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 451.2 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

XSPEC12>exit
 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.71909  (-0.189849  0.212227)
R^2/D10^2   : 70.1754  (-30.6933   54.4035)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.130e-06   5.482e-07
25- 50  3.193e-07   6.448e-08
50-150  2.220e-10   1.486e-10
15-150  3.449e-06   6.019e-07

Thermal bremsstrahlung (OTTB)

XSPEC12>/*
XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.85465       (-0.495647      0.587707)
Norm        : 67.8983       (-25.3523     41.0022)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.184e-06   5.473e-07
25- 50  3.762e-07   7.919e-08
50-150  1.677e-09   1.032e-09
15-150  3.562e-06   4.528e-07

Double BB

XSPEC12>/*
XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.85968E-04        (0.000794129      -0.000185968)
R1^2/D10^2  : 5.54467E+04        (-55446.7      -55446.7)
kT2 [keV]   : 2.71910        (-0.189859      0.212217)
R2^2/D10^2  : 70.1734    (-30.6912   54.4055)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.215e-06   6.809e-02
25- 50  5.935e-07   6.463e-01
50-150  3.794e-09   1.484e+01
15-150  2.812e-06   1.645e+01

Peak spectrum fit

Power-law model

Time interval is from  -40.268 sec. to  -39.268 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.33799     ( -0.629526   0.830245 )
Norm@50keV  : 3.39108E-03    ( -0.0017824   0.00175048 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 1 sec: 0.605403 ( -0.209972  0.21003 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.26419e-08 ( -1.33825e-08  1.47306e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  -40.268 sec. to  -39.268 sec.
 XSPEC: quit


Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -4.31354     ( 2.74551   4.68251 )
Epeak [keV] : 35.6958      ( -16.7762 9.09653 )
Norm@50keV  : 31.7550    ( -31.0275   159585 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 1 sec: 0.521627 ( -0.212847  0.227122 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.67866e-08 ( -9.924e-09  1.13191e-08 ) ergs/cm2

Band function

Time interval is from  -40.268 sec. to  -39.268 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.68049   ( -5.9115   -4.68049 )
beta        : -9.37167    ( 9.37167   19.3352 )
Epeak [keV] : 35.9629      ( -6.95935 7.57541 )
Norm@50keV   : 50.2000    ( -16.2327   279.923 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

XSPEC12>exit
 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.79875  (-2.13505  2.72119)
R^2/D10^2   : 0.501831  (-0.501634   1.00343)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.473e-09   4.560e-09
25- 50  1.533e-08   9.530e-09
50-150  5.453e-09   4.149e-09
15-150  2.825e-08   1.795e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>/*
XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 37.1717       (-18.5442      59.8254)
Norm        : 4.22622       (-1.99632     3.89007)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.455e-09   5.814e-09
25- 50  1.204e-08   7.470e-09
50-150  8.578e-09   6.715e-09
15-150  3.007e-08   1.853e-08

Double BB

XSPEC12>/*
XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 0.242981        (-0.242578      3.63681)
R1^2/D10^2  : 4.92528E+21        (-5.38981e+21      -5.39052e+21)
kT2 [keV]   : 9.23276        (-2.21016      2.94758)
R2^2/D10^2  : 0.394686    (-0.270192   0.766438)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.751e-09   3.994e-09
25- 50  1.442e-08   9.510e-09
50-150  6.223e-09   4.746e-09
15-150  2.839e-08   1.648e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model

XSPEC12>exit
 XSPEC: quit


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.80338     ( -0.378055   0.391405 )
Norm@50keV  : 8.29654E-05    ( -2.56376e-05   3.36473e-05 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 375.7 sec: 0.280486 ( -0.025428  0.0255875 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.19754e-06 ( -2.69507e-07  2.70199e-07 ) ergs/cm2

Cutoff power-law model

 XSPEC: quit


Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.697082     (     )
Epeak [keV] : 5.46688      (   )
Norm@50keV  : 1.15399    (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in 375.7 sec: 0.270484 ( -0.028407  0.027794 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.04492e-06 ( -2.9846e-07  2.92779e-07 ) ergs/cm2

Band function

XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.42039   ( 6.00836   8.42039 )
beta        : -5.84371    ( -0.361475   0.411619 )
Epeak [keV] : 247.593      ( -247.593 -247.593 )
Norm@50keV   : 1.08499E-02    ( -0.00322862   0.0048487 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 375.7 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.82e-07
S(50-100 keV) = 3.32e-08

T90 vs. Hardness ratio plot

T90                                   = 349.775999903679 sec.
Hardness ratio (energy fluence ratio) = 0.0688797

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.102328
Count Ratio (50-100 keV) / (15-25 keV) = -0.0275522

Mask shadow pattern

IMX = 2.370537132296635E-01, IMY = 3.063275279505948E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 88.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-76.599410 299.104000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.8230 -62.8397   10.9  55.5 -152.9   2.4125   1.1    6.2	GX 301-2
244.9028 -15.7043    0.5  21.2  -52.3  13.6273  23.8    5.9	Sco X-1
255.8649 -37.9116    2.2   8.0 -155.4   2.6448   5.1    7.0	4U 1700-377
256.2383 -36.4850    4.2   6.7 -150.9   1.3839   2.7   10.2	GX 349+2
262.8517 -24.8266    6.0   6.5   11.0   0.9085   1.9    9.9	GX 1+4
264.7953 -44.3766   10.6  13.7  163.1   0.5492   1.1    4.9	4U 1735-44
268.3025  -1.3553    8.5  30.5    9.7   0.7923   1.4    7.0	SW J1753.5-0127
270.1690 -24.9707    7.0  10.2   50.7   0.7929   1.6    9.0	GX 5-1
270.1678 -25.7924    3.9   9.7   54.5   1.3977   2.9    7.9	GRS 1758-258
273.9672 -14.1404    5.5  20.7   33.3   1.1683   2.1    6.6	GX 17+2
275.7461 -30.2764    8.2  12.8   85.3   0.8308   1.4   10.7	H1820-303
284.8752 -24.9566    9.4  22.0   74.9   0.7686   1.2    9.0	HT1900.1-2455
288.9155  10.9541   12.4  49.9   32.1   1.9772   0.9    6.9	GRS 1915+105
262.9796 -33.6839   27.7   3.2  141.7   0.1886   0.4    9.1	GX 354-0
296.5795  -1.8440    5.4  44.6   51.1   3.6478   2.1 ------	UNKNOWN
256.2314   7.2087    2.4  38.5  -12.5   2.9946   4.8 ------	UNKNOWN
182.3019 -70.1230    3.0  57.1 -161.7  10.7135   3.9 ------	UNKNOWN
199.0118 -47.4780    3.1  49.2 -133.1   7.6976   3.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:

Plot creation:
Tue Oct 13 15:01:43 EDT 2020
