GRB060526

Images

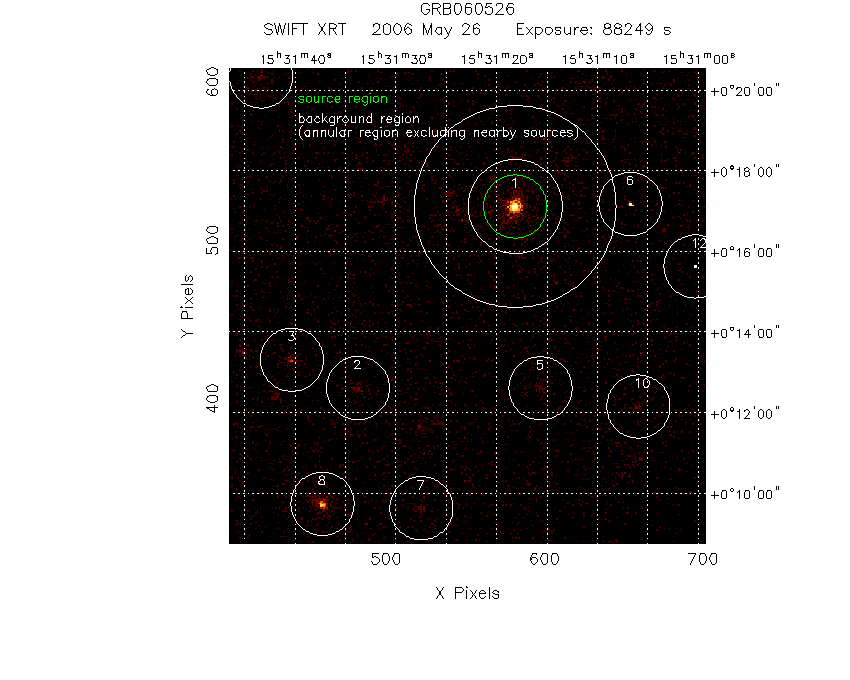

PC mode

#	RA(2000)	Dec(2000)	SNR
SIMBAD	RA(2000)	Dec(2000)	identifier	object_type

1	15:31:18.157	+00:17:06.706	3.047E+01
SIMBAD:	15:31:18.23	+00:17:05.4	GRB 060526	gammaBurst
2	15:31:33.764	+00:12:36.647	5.723E+00
3	15:31:40.314	+00:13:18.722	6.957E+00
4	15:31:43.373	+00:20:20.118	5.655E+00
SIMBAD:	15:31:43.20	+00:20:19.0	NVSS J153143+002019	Radio
5	15:31:15.649	+00:12:36.186	5.865E+00
6	15:31:06.727	+00:17:10.420	2.995E+01
7	15:31:27.465	+00:09:37.845	5.069E+00
8	15:31:37.276	+00:09:44.367	1.592E+01
9	15:31:14.536	+00:22:03.784	5.173E+00
10	15:31:05.949	+00:12:09.112	5.733E+00
11	15:31:23.182	+00:23:38.079	5.723E+00
12	15:31:00.278	+00:15:37.525	2.286E+01
13	15:31:58.350	+00:11:16.622	1.761E+01
SIMBAD:	15:31:58.5	+00:11:18	2MASX J15315841+0011170	Galaxy
14	15:31:59.125	+00:21:44.005	7.900E+00
15	15:30:58.106	+00:21:37.651	5.113E+00
16	15:31:12.845	+00:07:11.090	1.235E+01
17	15:30:58.155	+00:23:17.836	1.261E+01
18	15:32:01.677	+00:24:20.240	5.571E+00

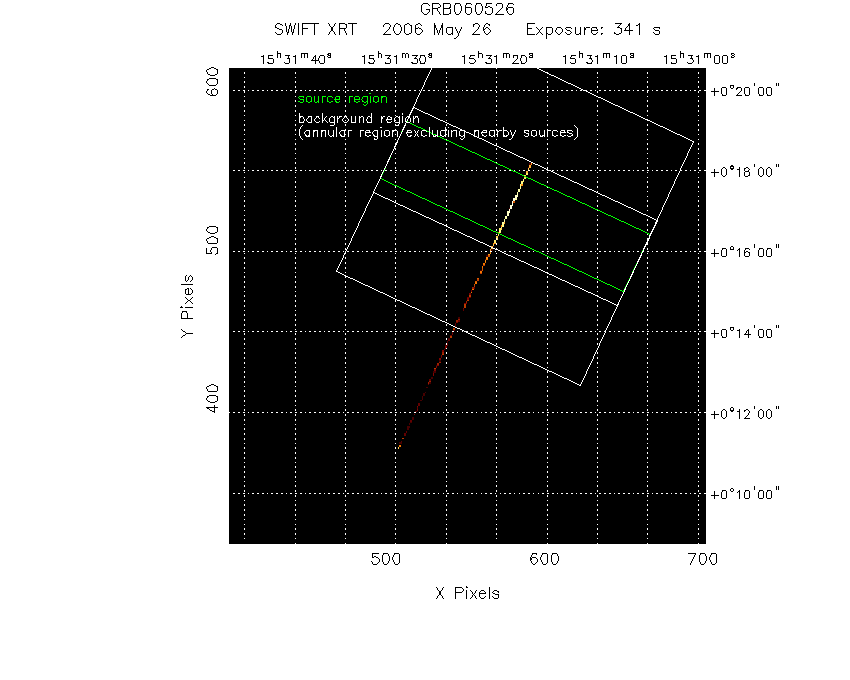

WT mode

Light curves
0.3-10.0 keV

Light curve fit log

Hardness Ratio (0.3-1.5-10.0)

Spectra

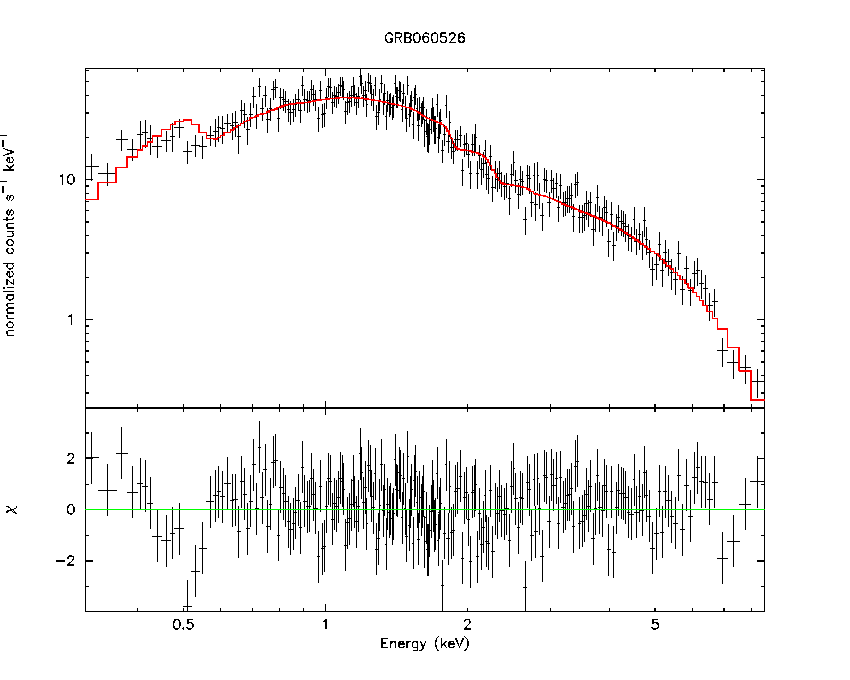

WT mode
Time interval suffered by pile-up. Central regions is excluded.

rate            7.56e+01   8.86e-01   [counts/s (0.3-10.0 keV)]

wabs*powerlaw
nH              1.40e-01   -1.45e-02  +1.52e-02  [10^22]
PhoIndex        1.75       -0.05      +0.05
norm            1.68e+00   -8.80e-02  +9.32e-02  [cnts/cm^2/s/keV]
chisq           280.25
dof             246
rchisq          1.14

wabs*pegpwrlw
nH              1.40e-01   -1.45e-02  +1.52e-02  [10^22]
PhoIndex        1.75       -0.05      +0.05
eMin            0.3        [keV]
eMax            10.0       [keV]
norm            1.12e+04   -2.83e+02  +2.88e+02  [10^-12 ergs/cm^2/s]
chisq           280.25
dof             246
rchisq          1.14

conversion_factor (norm_at_1keV)      2.23e-02   -1.16e-03  +1.23e-03  [cm^2/keV]
conversion_factor (unabsorbed_flux)   1.48e-10   -3.74e-12  +3.80e-12  [ergs/cm^2/count]
extrapolated_flux (14-194 keV)        1.94e-08   [ergs/cm^2/s]

Spectral fit log

Time interval without pile-up.

rate            1.96e+01   2.87e-01   [counts/s (0.3-10.0 keV)]

wabs*powerlaw
nH              4.87e-02   -1.14e-02  +1.21e-02  [10^22]
PhoIndex        2.17       -0.07      +0.08
norm            1.41e-01   -7.56e-03  +8.06e-03  [cnts/cm^2/s/keV]
chisq           144.78
dof             162
rchisq          0.89

wabs*pegpwrlw
nH              4.87e-02   -1.14e-02  +1.21e-02  [10^22]
PhoIndex        2.17       -0.07      +0.08
eMin            0.3        [keV]
eMax            10.0       [keV]
norm            7.31e+02   -2.61e+01  +2.77e+01  [10^-12 ergs/cm^2/s]
chisq           144.78
dof             162
rchisq          0.89

conversion_factor (norm_at_1keV)      7.17e-03   -3.85e-04  +4.11e-04  [cm^2/keV]
conversion_factor (unabsorbed_flux)   3.72e-11   -1.33e-12  +1.41e-12  [ergs/cm^2/count]
extrapolated_flux (14-194 keV)        3.11e-10   [ergs/cm^2/s]

Spectral fit log

PC mode
Time interval suffered by pile-up. Central regions is excluded.

rate            6.99e-01   4.49e-02   [counts/s (0.3-10.0 keV)]

wabs*powerlaw
nH              1.01e-08   +0.00e+00  +0.00e+00  [10^22]
PhoIndex        1.68       -0.17      +0.24
norm            7.73e-03   -9.07e-04  +1.61e-03  [cnts/cm^2/s/keV]
chisq           16.18
dof             9
rchisq          1.80

wabs*pegpwrlw
nH              2.59e-09   -2.59e-09  +4.15e-02  [10^22]
PhoIndex        1.68       -0.17      +0.24
eMin            0.3        [keV]
eMax            10.0       [keV]
norm            5.45e+01   -7.57e+00  +7.98e+00  [10^-12 ergs/cm^2/s]
chisq           16.18
dof             9
rchisq          1.80

conversion_factor (norm_at_1keV)      1.11e-02   -1.30e-03  +2.30e-03  [cm^2/keV]
conversion_factor (unabsorbed_flux)   7.80e-11   -1.08e-11  +1.14e-11  [ergs/cm^2/count]
extrapolated_flux (14-194 keV)        1.20e-10   [ergs/cm^2/s]

Spectral fit log

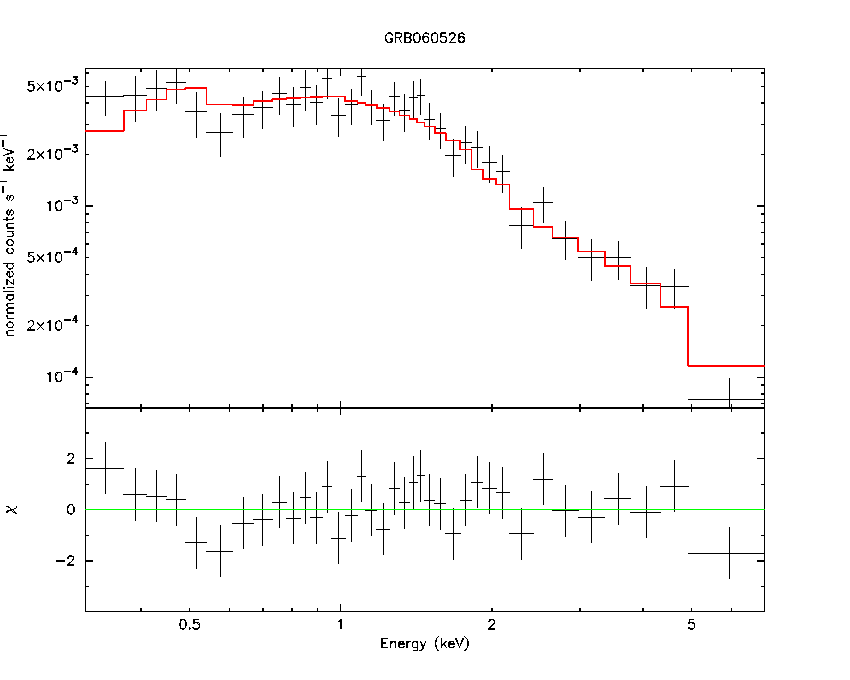

Time interval without pile-up.

rate            7.85e-03   3.23e-04   [counts/s (0.3-10.0 keV)]

wabs*powerlaw
nH              5.59e-02   -3.98e-02  +4.60e-02  [10^22]
PhoIndex        1.99       -0.09      +0.19
norm            6.50e-05   -1.06e-05  +1.34e-05  [cnts/cm^2/s/keV]
chisq           26.63
dof             34
rchisq          0.78

wabs*pegpwrlw
nH              5.59e-02   -4.03e-02  +4.94e-02  [10^22]
PhoIndex        1.99       -0.18      +0.21
eMin            0.3        [keV]
eMax            10.0       [keV]
norm            3.67e-01   -3.60e-02  +4.29e-02  [10^-12 ergs/cm^2/s]
chisq           26.63
dof             34
rchisq          0.78

conversion_factor (norm_at_1keV)      8.28e-03   -1.35e-03  +1.70e-03  [cm^2/keV]
conversion_factor (unabsorbed_flux)   4.67e-11   -4.59e-12  +5.47e-12  [ergs/cm^2/count]
extrapolated_flux (14-194 keV)        2.85e-13   [ergs/cm^2/s]

Spectral fit log

Redshift Estimation
Redshift filtering based on Grupe et al., 2007, AJ, 133
N_H,fit      [10^20 cm^-2] :  4.87 -1.14 +1.21
N_H,galactic [10^20 cm^-2] :  5.07
delta(N_H)   [10^20 cm^-2] : -0.20 -1.14 +1.21
Chance probability of z > 3 : 62 %

Pseudo redshift based on R. Sato et al., 2007, arXiv:0711.0903
tbreak          : 1.068e+04 [s]
gamma           : 1.99
norm_at_1keV    : 0.0008379 [cnts/cm^2/s/keV]
pseudo_z        : 4.83      -2.53     +3.3
