K.L. Page (U. Leicester), A. Tohuvavohu (PSU) and F.E. Marshall (NASA/GSFC) for the Swift team
At 18:03:49 UT, the Swift Burst Alert Telescope (BAT) triggered and located GRB 180311A (trigger=813721) (Page et al. GCN Circ. 22468). Swift slewed to the burst after a brief delay to clear the Earth limb observing contraint. At the time of the trigger, the initial BAT position was 52° from the Sun (0.8 hours East) and 66° from the 29%-illuminated Moon. Table 1 contains the best reported positions from Swift, and the latest XRT position can be viewed at http://www.swift.ac.uk/xrt_positions.
Table 2 is a summary of GCN Circulars about this GRB from observatories other than Swift.
Standard analysis products for this burst are available at https://gcn.gsfc.nasa.gov/swift_gnd_ana.html.
As reported by Stamatikos et al. (GCN Circ. 22474),
the BAT ground-calculated position is RA, Dec = 3.379, -54.491 deg which is RA(J2000) = 0
The mask-weighted light curve (Figure 1) shows a single-peaked structure that starts at ~
The time-averaged spectrum from T-0.2 to T+26.6 s is best fit by a simple power-law model.
The power law index of the time-averaged spectrum is 1.78 ± 0.29.
The fluence in the 15-150 keV band is 3.3 ± 0.7 x 1
The results of the batgrbproduct analysis are available at https://gcn.gsfc.nasa.gov/notices_s/813721/BA/.
Analysis of the initial XRT data was reported by Tohuvavohu et al. (GCN Circ. 22473). We have analysed 13 ks of XRT data for GRB 180311A, from 284 s to 75.1 ks after the BAT trigger. The data are entirely in Photon Counting (PC) mode. The enhanced XRT position for this burst was given by Goad et al. (GCN Circ. 22469).
The light curve (Figure 2) can be modelled with an initial power-law decay with an index of α=3.1 (+0.9, -0.6), followed by a break at T+626 s to an α of 0.60 (+0.07, -0.06).
A spectrum formed from the PC mode data can be fitted with an absorbed power-law with a photon spectral index of 2.07 (+0.20, -0.19). The best-fitting absorption column is 5.5 (+4.3, -3.7) x 1
A summary of the PC-mode spectrum is thus:
Total column: 5.5 (+4.3, -3.7) x 1
Galactic foreground: 1.6 x 1
Excess significance: 1.7 σ
Photon index: 2.07 (+0.20, -0.19)
The results of the XRT team automatic analysis are available at http://www.swift.ac.uk/xrt_products/00813721.
The Swift/UVOT began settled observations of the field of GRB 180311A 280 s after the BAT trigger
(Marshall and Page GCN Circ. 22475).
No optical afterglow consistent with the enhanced XRT position (Goad et al. GCN Circ. 22470) is detected in the initial UVOT exposures.
Table 3 gives preliminary
magnitudes using the UVOT photometric system
(Breeveld et al. 2011, AIP Conf. Proc., 1358, 373).
No correction has been made for the expected extinction in the Milky Way
corresponding to a reddening of
Figure 1. The BAT
mask-weighted light curve in the four individual and total
energy bands. The units are counts

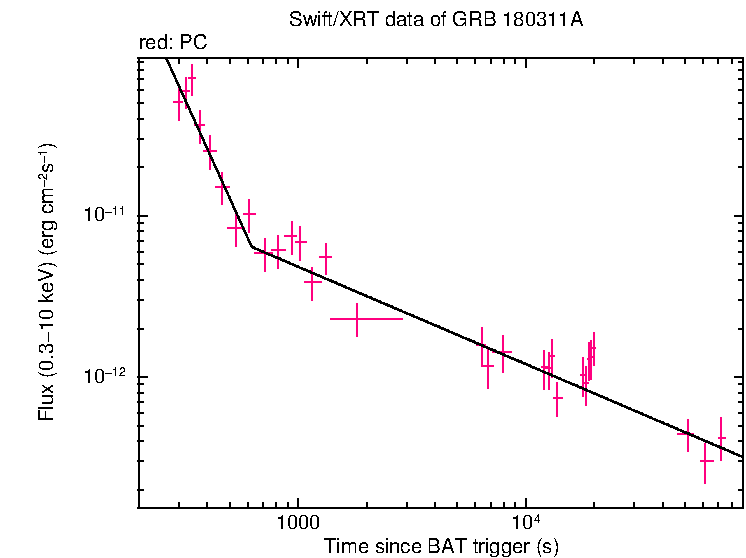

Figure 2. The XRT light curve.
Any data from a crosshatched region are not included in the fit.
| RA (J2000) | Dec (J2000) | Error | Note | Reference |
|---|---|---|---|---|
| 0 |
-54°29'29.2" | 1.5" | XRT-final | UKSSDC |
| 0 |
-54°29'29.2" | 1.7" | XRT-enhanced | Goad et al. GCN Circ. 22470 |
| 0 |
-54°29'26.6" | 2.3' | BAT-refined | Stamatikos et al. GCN Circ. 22474 |
| Band | Authors | GCN Circ. | Subject | Observatory | Notes |
|---|
| Filter | Exp(s) | Mag | ||
|---|---|---|---|---|
| whit |
280 | 430 | 147 | >20.3 |
| white | 280 | 6742 | 589 | >21.2 |
| v | 437 | 7155 | 333 | >19.4 |
| b | 536 | 8600 | 488 | >20.9 |
| u | 511 | 7770 | 561 | >20.5 |
| w1 | 486 | 7565 | 330 | >20.2 |
| m2 | 7160 | 7360 | 197 | >20.3 |
| w2 | 1187 | 6950 | 255 | >20.5 |
Table 3. UVOT observations reported by Marshall and Page (GCN Circ. 22475). The start and stop times of the exposures are given in seconds since the BAT trigger. The preliminary 3-σ upper limits are given. No correction has been made for extinction in the Milky Way.
March 13, 2018
